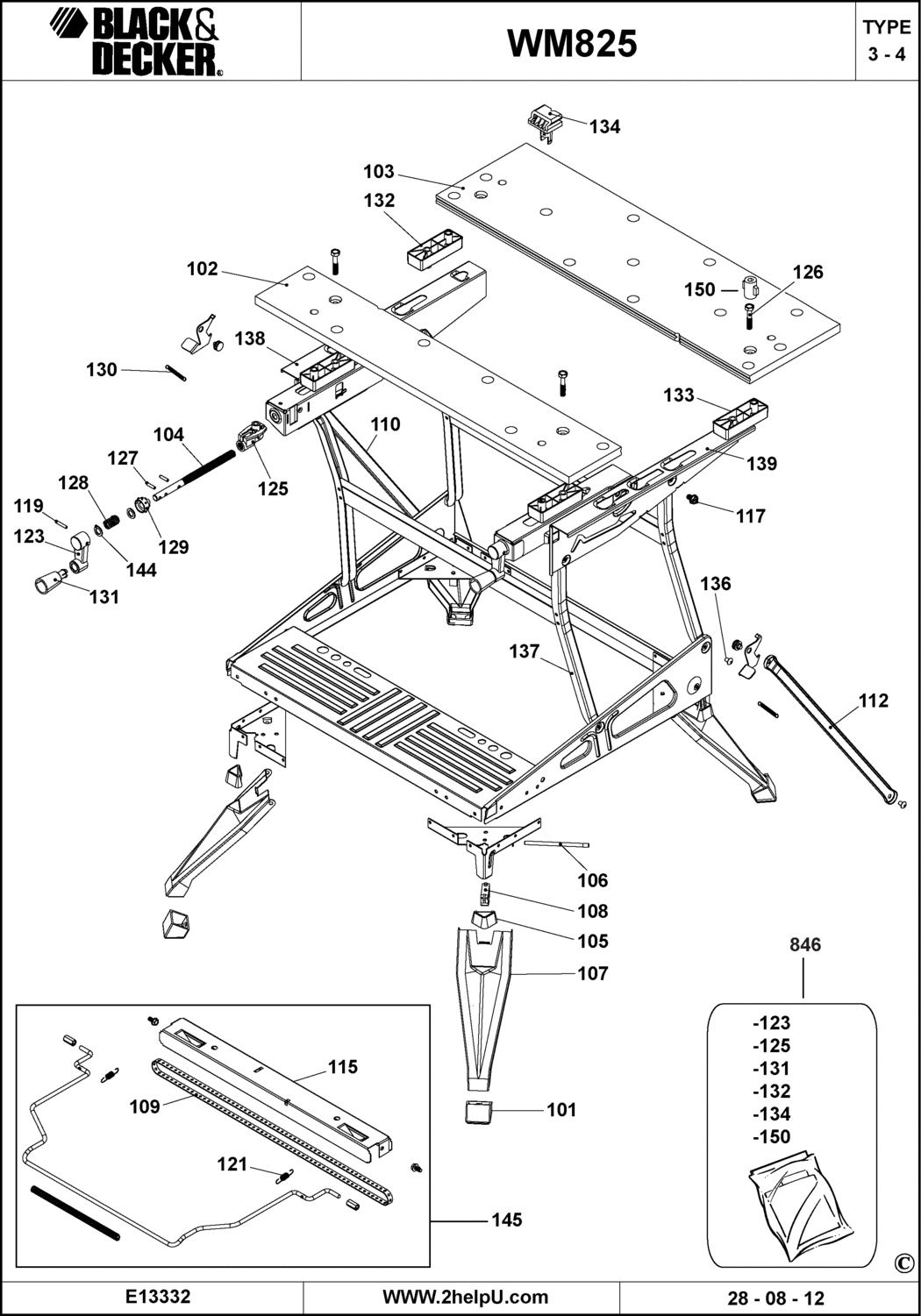

101 - FOOT
BDE-723206.A5
723206
|
£1.66
|
£1.99
|
|
|
104 - VICE SCREW
BDE-574171-00.A2
574171-00
|
£2.78
|
£3.34
|
|
|
105 - FOOT
BDE-723557.A23
723557
|
£2.26
|
£2.71
|
|
|
106 - AXLE
BDE-374561.A9
374561
|
£1.66
|
£1.99
|
|
|
107 - LEG
BDE-723745-49.A6
723745-49
|
£7.18
|
£8.62
|
|
|
108 - LATCH
BDE-374985-49.A47
374985-49
|
£2.51
|
£3.01
|
|
|
109 - BELT DRIVE
BDE-242821-02.A5
242821-02
|
£10.85
|
£13.02
|
|
|
110 - STAY LH
BDE-1004688-17.A4
1004688-17
|
£17.48
|
£20.97
|
|
|
112 - STAY RH
BDE-1004688-18.A1
1004688-18
|
£17.48
|
£20.97
|
|
|
115 - LABEL
BDE-572789-00.A1
572789-00
|
£1.82
|
£2.19
|
|
|
117 - SCREW
BDE-823385.A8
823385
|
£1.66
|
£1.99
|
|
|
119 - PIN
BDE-807532.A9
807532
|
£1.66
|
£1.99
|
|
|
121 - SPRING
BDE-576465-00.A2
576465-00
|
£1.66
|
£1.99
|
|
|
123 - ARM
BDE-723541.A10
723541
|
£2.04
|
£2.45
|
|
|
125 - NUT
BDE-577199-00.A4
577199-00
|
£3.12
|
£3.75
|
|
|
126 - BOLT
BDE-98025-40.A2
98025-40
|
£1.66
|
£1.99
|
|
|
127 - SPIROL PIN
BDE-807531.A1
807531
|
£1.66
|
£1.99
|
|
|
128 - SPRING
BDE-572764-00.A1
572764-00
|
£1.66
|
£1.99
|
|
|
129 - SPROCKET
BDE-242836-00.A0
242836-00
|
£1.66
|
£1.99
|
|
|
130 - SPRING
BDE-797516.A9
797516
|
£1.66
|
£1.99
|
|
|
131 - KNOB
BDE-820728.A34
820728
|
£2.08
|
£2.50
|
|
|
132 - BLOCK REAR
BDE-1004683-00.A0
1004683-00
|
£3.30
|
£3.96
|
|
|
133 - BLOCK
BDE-820261.A25
820261
|
£2.73
|
£3.28
|
|
|
134 - GRIP
BDE-807530-02.A25
807530-02
|
£1.66
|
£1.99
|
|
|
136 - RIVET
BDE-1004688-16.A7
1004688-16
|
£1.66
|
£1.99
|
|
|
137 - FRAME
BDE-1004689-00.A0
1004689-00
|
£41.24
|
£49.49
|
|
|
138 - BRACKET LH
BDE-1004688-20.A0
1004688-20
|
£18.91
|
£22.69
|
|
|
139 - BRACKET RH
BDE-1004688-21.A2
1004688-21
|
£18.91
|
£22.69
|
|
|
144 - WASHER SPECIAL
BDE-809486.A7
809486
|
£1.66
|
£1.99
|
|
|
145 - BRACKET SA
BDE-572760-01.A3
572760-01
|
£34.00
|
£40.80
|
|
|
150 - SOCKET
BDE-723742.A22
723742
|
£1.66
|
£1.99
|
|
|
846 - PARTS PACK
BDE-572780-00.A3
572780-00
|
£18.91
|
£22.69
|
|
