Black & Decker GWC1820PC Type 1 Blower Vac Spare Parts

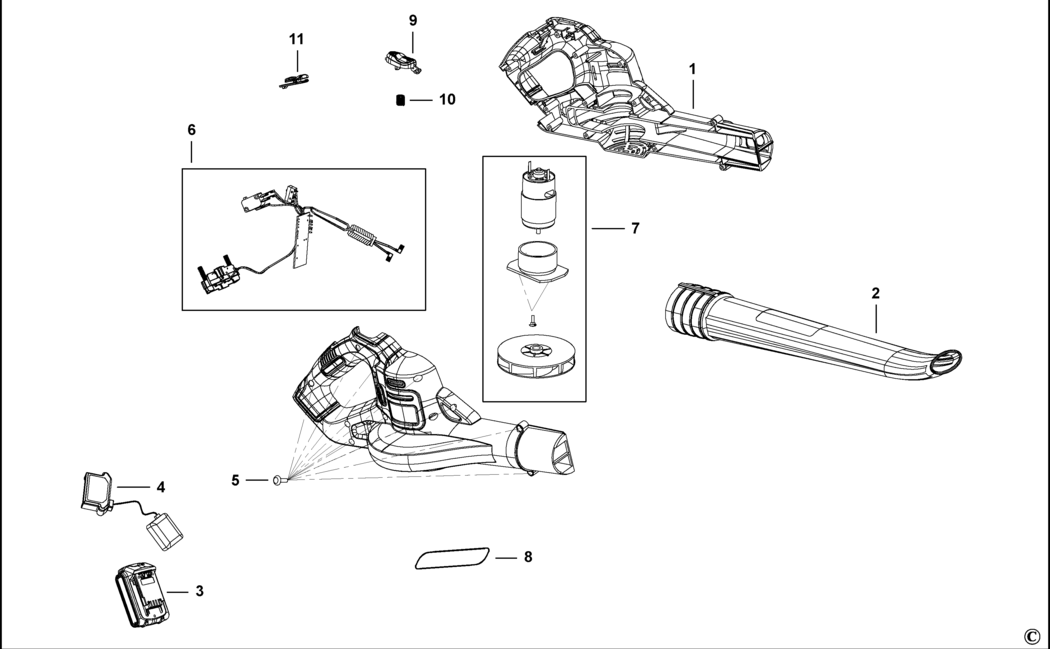

An exploded drawing and spare parts listing for the Black & Decker GWC1820PC Type 1 Blower Vac

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A123 000000-05	-
2 - NOZZLE BDE-1004707-46.A0 1004707-46	£7.18	£8.62
2 - HOUSING SA BDE-N512357.A0 N512357	£16.03	£19.24
3 - BATTERY 18V - 2.0AH - 36WH GB BDE-90635616.A0 90635616	£113.07	£135.68
3 - NOZZLE BDE-N530846.A0 N530846	£7.18	£8.62
4 - CHARGER SA GB BDE-N588715.A3 N588715	£34.00	£40.80
5 - SCREW BDE-1004707-52.A0 1004707-52	£1.50	£1.80
6 - SWITCH & PCB SA BDE-90626007.A0 90626007	£44.14	£52.97
6 - SCREW BDE-373158.A35 373158	£1.50	£1.80
7 - SWITCH & PCB SA BDE-N512361.A1 N512361	£30.08	£36.10
7 - MOTOR SA BDE-1004707-47.A1 1004707-47	£30.08	£36.10
8 - RATING PLATE GB BDE-1004715-06 1004715-06	£1.50	£1.80
8 - MOTOR SA BDE-N530351.A1 N530351	£25.70	£30.84
9 - BUTTON BDE-1004707-53.A1 1004707-53	£1.50	£1.80
10 - BUTTON BDE-N501313.A1 N501313	£1.50	£1.80
10 - SPRING BDE-1004707-54.A0 1004707-54	£1.50	£1.80
11 - SPRING BDE-N504734.A1 N504734	£1.50	£1.80
11 - BUTTON START BDE-1004707-55.A1 1004707-55	£1.50	£1.80
12 - BUTTON START BDE-N501310.A0 N501310	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
