Black & Decker EMAX32 Type 3 Rotary Mower Spare Parts

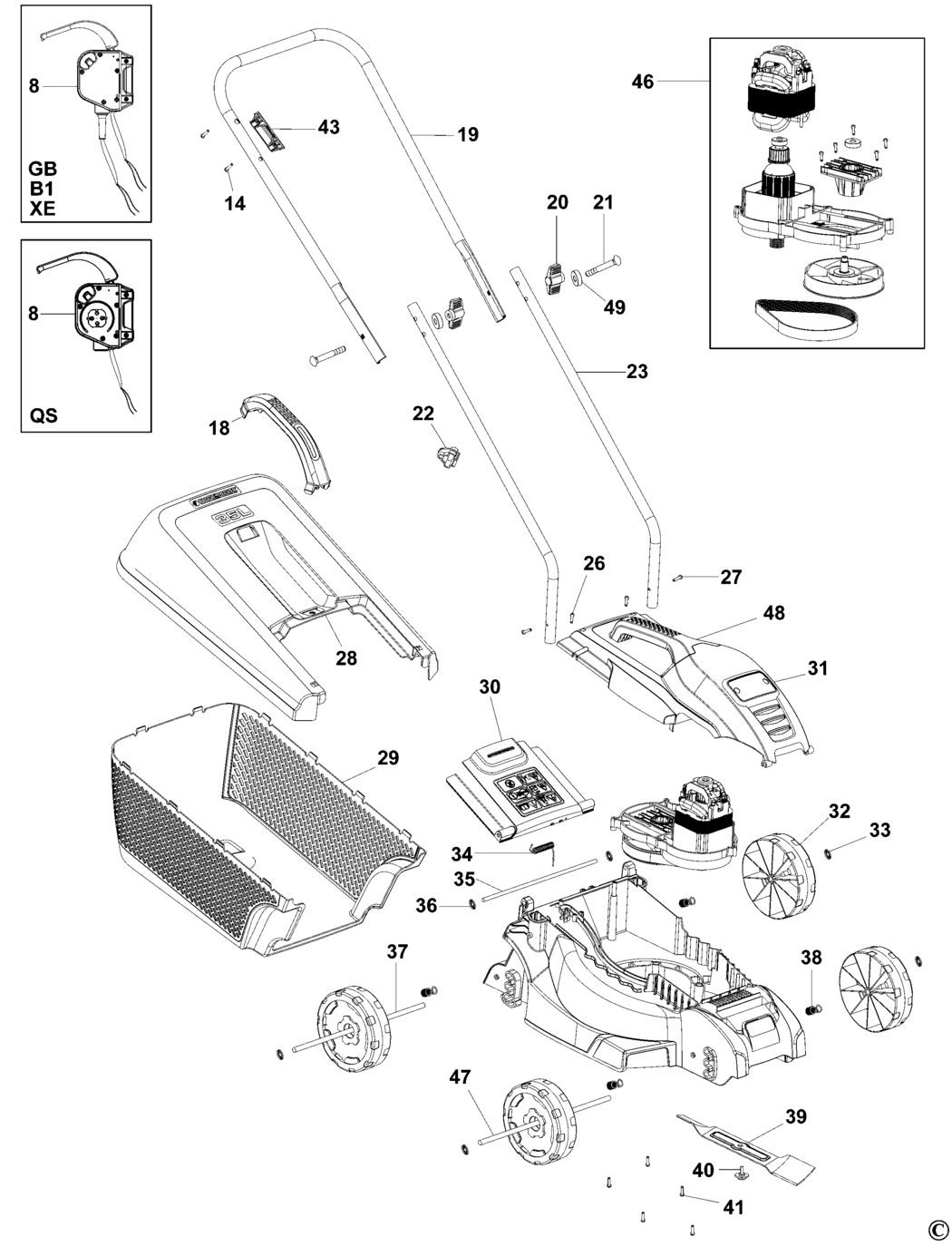

An exploded drawing and spare parts listing for the Black & Decker EMAX32 Type 3 Rotary Mower

	Ex VAT	Inc VAT
8 - SWITCHBOX & CABLE GB BDE-90562889-01.A0 90562889-01	£45.88	£55.06
14 - SCREW BDE-747329.A457 747329	£1.50	£1.80
18 - HANDLE BDE-90567333.A27 90567333	£2.78	£3.34
19 - HANDLE UPPER BDE-90560151.A3 90560151	£19.90	£23.88
20 - WING NUT BDE-90570279-01.A103 90570279-01	£1.50	£1.80
20 - WING NUT BDE-90570279-01.A115 90570279-01	£1.50	£1.80
21 - BOLT BDE-90570805.A7 90570805	£1.50	£1.80
22 - CLAMP BDE-90571653.A7 90571653	£1.50	£1.80
23 - HANDLE BDE-90560152-02.A2 90560152-02	£5.88	£7.06
23 - HANDLE BDE-90560152-02.A3 90560152-02	£5.88	£7.06
26 - SCREW BDE-747329.A458 747329	£1.50	£1.80
27 - SCREW BDE-90589823.A2 90589823	£1.50	£1.80
27 - SCREW BDE-90589823.A3 90589823	£1.50	£1.80
28 - COVER BDE-90561608.A0 90561608	£15.63	£18.76
28 - COVER GB BDE-90561608.A1 90561608	£15.63	£18.76
28 - COVER BDE-90561608-01.A3 90561608-01	£18.42	£22.10
29 - GRASSBOX BDE-90561607.A6 90561607	£17.48	£20.97
30 - GRASSFLAP GB BDE-90561602.A2 90561602	£3.22	£3.86
31 - HOUSING MOTOR BDE-90577032 90577032	-
31 - HOUSING MOTOR BDE-90561601.A0 90561601	£14.19	£17.03
32 - WHEEL BDE-90560001.A6 90560001	£3.22	£3.86
33 - WASHER LOCK BDE-90574276.A8 90574276	£1.50	£1.80
34 - SPRING BDE-90568097.A0 90568097	£1.50	£1.80
35 - SPINDLE BDE-90561603.A6 90561603	£1.82	£2.19
36 - WASHER LOCK BDE-90574275.A2 90574275	-
37 - SPINDLE BDE-90561688.A2 90561688	£3.22	£3.86
38 - SPRING BDE-90570075.A0 90570075	£1.50	£1.80
39 - BLADE BDE-90559972.A0 90559972	£10.85	£13.02
39 - BLADE BDE-90629616.A3 90629616	£9.41	£11.29
40 - BOLT BDE-90516533.A13 90516533	£1.50	£1.80
41 - SCREW BDE-330019-13.A315 330019-13	£1.50	£1.80
41 - SCREW BDE-330019-14.A105 330019-14	£1.50	£1.80
43 - BRACKET BDE-90563921.A9 90563921	£1.50	£1.80
46 - TRANSMISSION SA BDE-90560207-01.A3 90560207-01	£125.16	£150.19
47 - AXLE FRONT BDE-90561687.A2 90561687	£2.71	£3.25
48 - HANDLE BDE-90562788.A0 90562788	£2.21	£2.65
49 - WASHER BDE-490624-00.A8 490624-00	£1.50	£1.80
50 - HOUSING LOWER BDE-90560000-01 90560000-01	-
51 - WEIGHT BDE-90580445 90580445	-
52 - BRUSH PAIR BDE-90604379.A3 90604379	-
53 - BRAND LABEL BDE-90571704.A1 90571704	-

Attribute Name	Value
Brand	Black & Decker
