Black & Decker GT7030 Type 1 Hedgetrimmer Spare Parts

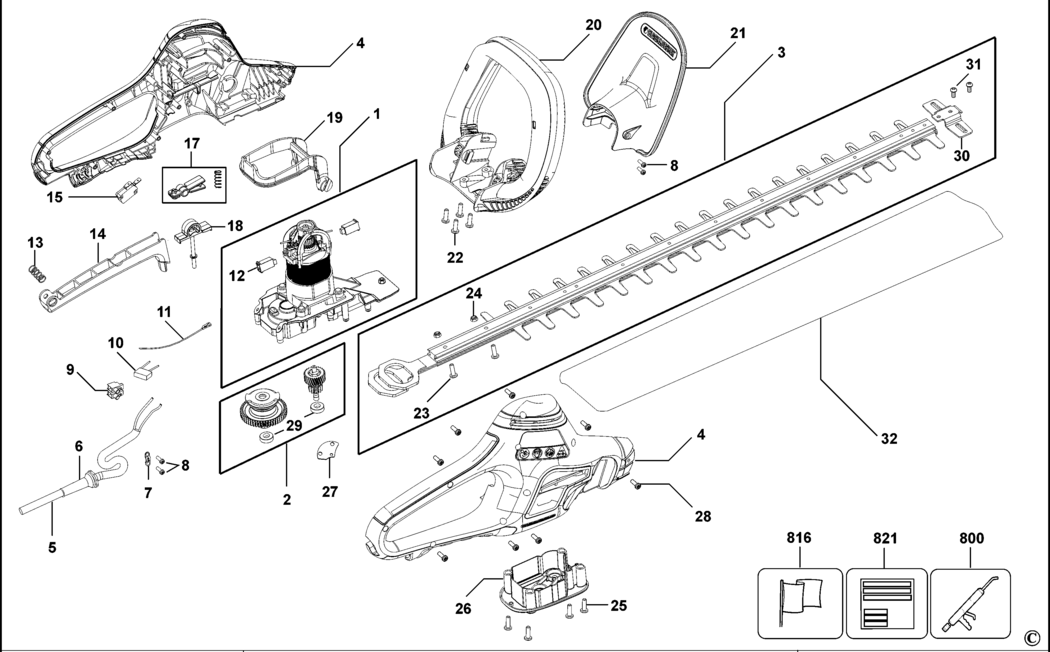

An exploded drawing and spare parts listing for the Black & Decker GT7030 Type 1 Hedgetrimmer

	Ex VAT	Inc VAT
1 - MOTOR & GEARCASE BDE-90531857-01.A3 90531857-01	£87.82	£105.39
2 - PINION & GEAR SA BDE-90543630.A4 90543630	£58.69	£70.43
3 - BLADE SA BDE-90544203 90544203	£96.55	£115.86
4 - CLAMSHELL SA BDE-90527815-01.A1 90527815-01	£30.08	£36.10
5 - CORDSET GB BDE-90540131.A4 90540131	£25.70	£30.84
6 - PROTECTOR BDE-770235.A167 770235	£1.50	£1.80
7 - CORD CLAMP BDE-821070.A21 821070	£1.50	£1.80
8 - SCREW BDE-821057.A14 821057	£1.50	£1.80
9 - TERMINAL BLOCK BDE-373883.A58 373883	£1.50	£1.80
10 - CAPACITOR BDE-90537509.A1 90537509	£1.50	£1.80
11 - LEADWIRE BDE-90532880.A2 90532880	£1.50	£1.80
12 - BRUSH & HOLDER SA BDE-90545659.A3 90545659	£7.18	£8.62
13 - SPRING BDE-90532295.A0 90532295	£1.50	£1.80
14 - TRIGGER BDE-90039466.A1 90039466	£2.26	£2.71
15 - SWITCH SA BDE-90533781.A1 90533781	£1.50	£1.80
17 - ACTUATOR BDE-90543632.A1 90543632	£1.50	£1.80
18 - ACTUATOR BDE-90556342.A1 90556342	£4.69	£5.63
19 - PIVOT BDE-90039468.A5 90039468	£2.78	£3.34
20 - HANDLE SA BDE-90532771.A5 90532771	£18.91	£22.69
21 - LOWER GUARD SA BDE-90528349-01.A0 90528349-01	£7.85	£9.42
22 - SCREW BDE-90540971.A3 90540971	£1.50	£1.80
23 - SCREW BDE-330045-16.A25 330045-16	£1.50	£1.80
24 - NUT BDE-90533548.A5 90533548	£1.50	£1.80
25 - SCREW BDE-330024-36.A2 330024-36	£1.50	£1.80
26 - BOTTOM PLATE BDE-90040523.A0 90040523	£3.80	£4.56
27 - SUPPORT PLATE BDE-90524440.A5 90524440	£1.50	£1.80
28 - SCREW BDE-747329.A641 747329	£1.50	£1.80
29 - BEARING BDE-574853-06.A12 574853-06	£2.26	£2.71
30 - GUARD BDE-90527993.A5 90527993	£3.30	£3.96
31 - SCREW BDE-330024-34.A4 330024-34	£1.50	£1.80
32 - SHEATH BDE-90535281.A2 90535281	£7.85	£9.42
800 - GREASE BDE-870889-03.A28 870889-03	£7.85	£9.42
816 - BRAND LABEL BDE-90536337.A4 90536337	£1.50	£1.80
821 - RATING PLATE GB BDE-90556548 90556548	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
