Black & Decker CS1835 Type 1 Chainsaw Spare Parts

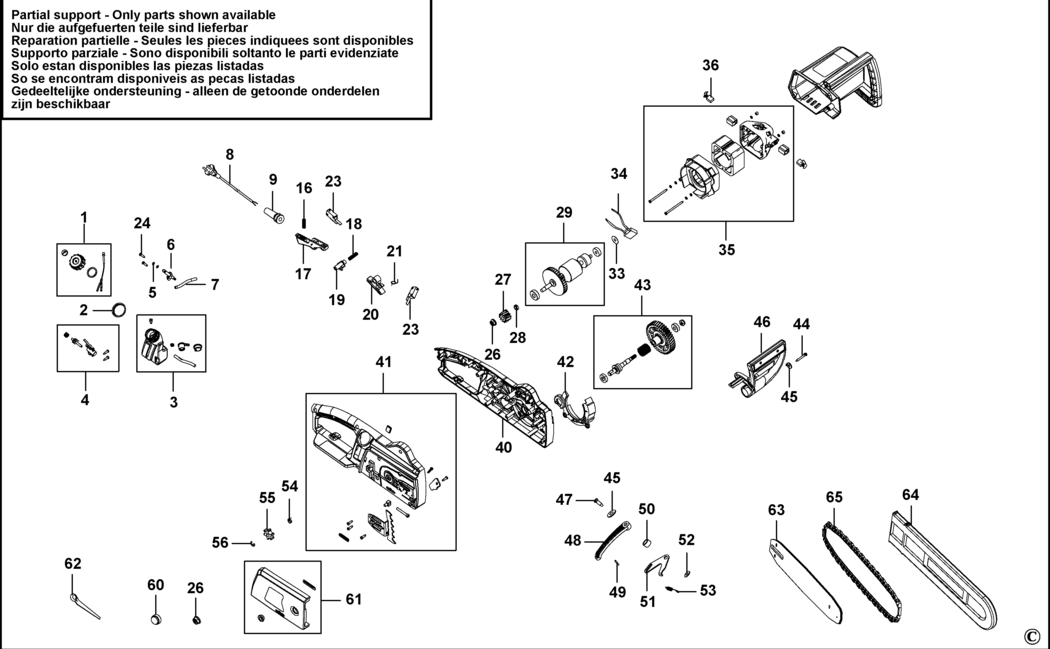

An exploded drawing and spare parts listing for the Black & Decker CS1835 Type 1 Chainsaw

	Ex VAT	Inc VAT
1 - CAP SA BDE-1004700-54 1004700-54	£1.50	£1.80
2 - SEAL BDE-1004698-02.A0 1004698-02	£1.50	£1.80
3 - RESERVOIR SA BDE-1004698-03.A1 1004698-03	£3.80	£4.56
4 - PUMP SA BDE-1004698-34.A0 1004698-34	£2.78	£3.34
5 - O RING BDE-1004698-38.A3 1004698-38	£1.50	£1.80
6 - OUTLET BDE-1004698-39.A0 1004698-39	£1.50	£1.80
7 - TUBE OIL BDE-1004698-40.A3 1004698-40	£1.50	£1.80
8 - CORDSET GB BDE-1004698-60.A0 1004698-60	£19.90	£23.88
9 - CORD PROTECTOR BDE-1004698-05.A0 1004698-05	£1.50	£1.80
16 - SPRING BDE-1004698-11.A0 1004698-11	£1.50	£1.80
17 - TRIGGER BDE-1004700-55.A0 1004700-55	£1.50	£1.80
18 - SPRING BDE-1004698-13.A1 1004698-13	£1.50	£1.80
19 - BUTTON BDE-1004698-14.A0 1004698-14	£1.50	£1.80
20 - CONNECTING ROD BDE-1004700-56 1004700-56	£1.50	£1.80
21 - SPRING BDE-1004698-16.A3 1004698-16	£1.50	£1.80
23 - MICRO SWITCH BDE-1004698-18.A0 1004698-18	£2.78	£3.34
24 - SCREW BDE-1004697-53.A2 1004697-53	£1.50	£1.80
26 - NUT BDE-1004698-20.A3 1004698-20	£1.50	£1.80
27 - PINION BDE-1004698-21.A0 1004698-21	£1.50	£1.80
28 - BUSHING BDE-1004698-22.A3 1004698-22	£1.50	£1.80
29 - ARMATURE SA BDE-1004698-24.A1 1004698-24	£37.35	£44.82
33 - SPACER BDE-1004698-25.A0 1004698-25	£1.50	£1.80
34 - CAPACITOR BDE-1004698-26.A2 1004698-26	£1.50	£1.80
35 - FIELD SA BDE-1004698-27.A0 1004698-27	£30.08	£36.10
36 - BRUSH BDE-1004700-35.A0 1004700-35	£3.30	£3.96
40 - HOUSING LH BDE-1004698-23.A0 1004698-23	£16.03	£19.24
41 - HOUSING RH BDE-1004698-49.A0 1004698-49	£19.90	£23.88
42 - DUST GUARD BDE-1004700-37.A0 1004700-37	£1.50	£1.80
43 - OUTPUT SHAFT SA BDE-1004698-41.A0 1004698-41	£17.48	£20.97
44 - SCREW BDE-1004698-32.A1 1004698-32	£1.50	£1.80
45 - WASHER BDE-1004695-08.A1 1004695-08	£1.50	£1.80
46 - BRAKE BDE-1004700-36.A1 1004700-36	£5.88	£7.06
47 - SCREW BDE-1004697-54.A0 1004697-54	£1.50	£1.80
48 - CONNECTING ROD BDE-1004698-48.A3 1004698-48	£1.50	£1.80
49 - PIN BDE-1004698-47.A0 1004698-47	£1.50	£1.80
50 - SLEEVE BDE-1004698-46.A2 1004698-46	£1.50	£1.80
51 - BRAKE BDE-1004700-38.A1 1004700-38	£1.50	£1.80
52 - SPACER BDE-1004700-57 1004700-57	£1.50	£1.80
53 - SPRING BDE-1004698-43.A3 1004698-43	£1.50	£1.80
54 - SPRING BDE-1004698-50.A3 1004698-50	£1.50	£1.80
55 - SPROCKET BDE-1004700-58.A0 1004700-58	£1.50	£1.80
56 - RETAINER BDE-1004697-79.A4 1004697-79	£1.50	£1.80
60 - CAP BDE-1004698-55.A0 1004698-55	£1.50	£1.80
61 - END CAP SA BDE-1004698-56.A1 1004698-56	£4.69	£5.63
62 - WRENCH SPECIAL BDE-1004697-89.A2 1004697-89	£1.50	£1.80
63 - BAR CHAIN 35CM BDE-1004698-57 1004698-57	£17.48	£20.97
64 - SHEATH BDE-1004698-59 1004698-59	£3.30	£3.96
65 - CHAIN BDE-1004698-58 1004698-58	£17.48	£20.97

Attribute Name	Value
Brand	Black & Decker
