Black & Decker KS900SLW Type 1 Jigsaw Spare Parts

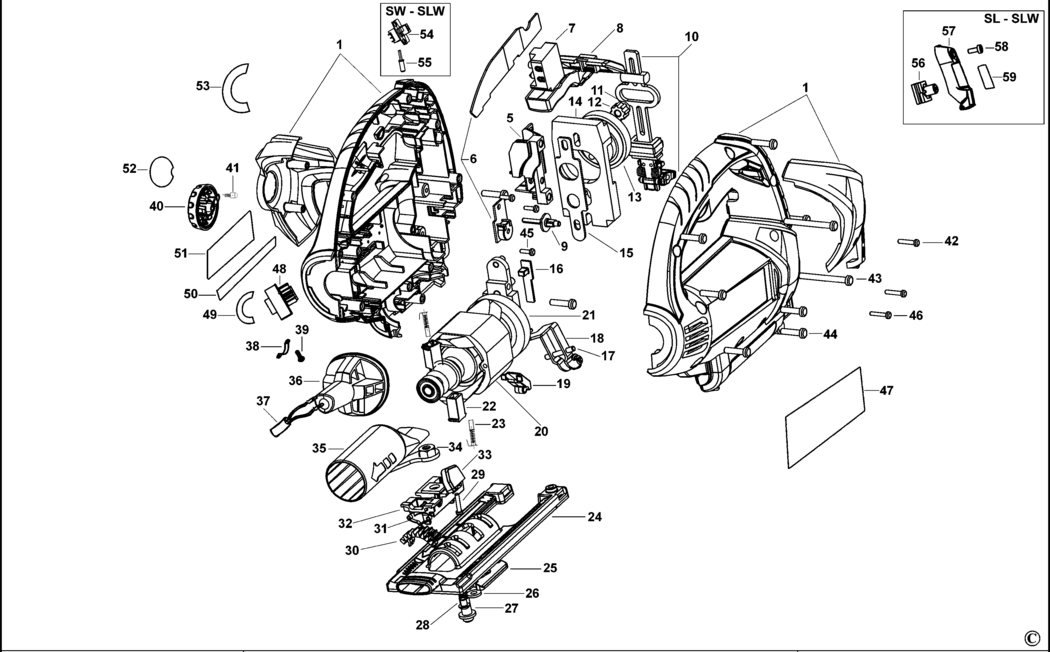

An exploded drawing and spare parts listing for the Black & Decker KS900SLW Type 1 Jigsaw

	Ex VAT	Inc VAT
5 - SUPPORT BDE-90514323.A15 90514323	£1.50	£1.80
6 - PCB 230V BDE-90518917.A15 90518917	£25.05	£30.06
7 - SWITCH SA BDE-585385-00.A8 585385-00	£3.80	£4.56
8 - ACTUATOR BDE-90517413.A4 90517413	-
9 - CAM BDE-90514375.A0 90514375	£1.50	£1.80
10 - CLAMP SA BDE-90517396.A3 90517396	£14.57	£17.48
11 - WASHER BDE-823954.A7 823954	£1.50	£1.80
12 - ROLLER BDE-795688-00.A22 795688-00	£1.50	£1.80
13 - GEAR SA BDE-90517366.A5 90517366	£10.85	£13.02
14 - BALANCE WEIGHT BDE-90516114.A5 90516114	£12.17	£14.60
15 - FORK BDE-90516213.A4 90516213	£1.50	£1.80
16 - PLATE THRUST BDE-90514354.A14 90514354	£1.50	£1.80
17 - PIN BDE-90514424.A10 90514424	£1.50	£1.80
18 - ROLLER SA BDE-90545786.A3 90545786	£4.69	£5.63
19 - DUST PORT BDE-90514324.A0 90514324	£1.50	£1.80
20 - FIELD 230V BDE-90517308.A3 90517308	£19.90	£23.88
21 - ARMATURE SA BDE-90523334.A7 90523334	£38.80	£46.56
22 - BRUSHBOX BDE-582696-00.A25 582696-00	£2.26	£2.71
23 - BRUSH & SPRING BDE-90521673.A5 90521673	£2.78	£3.34
24 - SHOE SA BDE-90517433.A5 90517433	-
25 - PLATE LOCK BDE-90513772.A15 90513772	£1.50	£1.80
26 - WASHER BDE-90514216.A14 90514216	£1.50	£1.80
27 - BOLT BDE-90514219.A14 90514219	£1.50	£1.80
28 - BOLT BDE-582827-00.A30 582827-00	£1.50	£1.80
29 - SCREW BDE-330019-00.A96 330019-00	£1.50	£1.80
30 - INSERT BDE-90514228.A11 90514228	£2.26	£2.71
31 - SPRING BDE-90521871.A1 90521871	£1.50	£1.80
32 - BLOCK BDE-90515286.A10 90515286	£3.80	£4.56
33 - HANDLE BDE-90514276.A3 90514276	£1.50	£1.80
34 - LEVER SA BDE-90517427.A15 90517427	£1.42	£1.70
35 - VACUUM ADAPTOR BDE-90501915.A8 90501915	£1.50	£1.80
36 - CORD PROTECTOR BDE-90514628.A3 90514628	£1.50	£1.80
37 - CORDSET GB BDE-90523264.A11 90523264	£16.03	£19.24
38 - CORD CLAMP BDE-329301-00.A264 329301-00	£1.50	£1.80
39 - SCREW BDE-370748.A36 370748	£1.50	£1.80
40 - KNOB BDE-90514622.A14 90514622	£1.50	£1.80
41 - DETENT BDE-N403227.A5 N403227	£1.50	£1.80
42 - SCREW BDE-330045-02.A7 330045-02	£1.50	£1.80
43 - SCREW BDE-330019-17.A4 330019-17	£1.50	£1.80
44 - SCREW BDE-330019-13.A83 330019-13	£1.50	£1.80
45 - SCREW BDE-98091-10.A77 98091-10	£1.50	£1.80
46 - SCREW BDE-330019-00.A97 330019-00	£1.50	£1.80
47 - RATING PLATE BDE-90556604.A1 90556604	-
48 - INDICATOR BDE-90514273.A20 90514273	£1.50	£1.80
49 - LABEL BDE-90520107.A16 90520107	£1.42	£1.70
50 - LABEL PIVOT BDE-90520273.A4 90520273	£1.50	£1.80
51 - BRAND LABEL BDE-90521533.A18 90521533	£1.42	£1.70
52 - LABEL BDE-90521787.A5 90521787	£1.50	£1.80
53 - LABEL BDE-90521788.A6 90521788	£1.50	£1.80
56 - INSERT BDE-489246-00.A8 489246-00	£1.42	£1.70
57 - LASER BDE-90516180.A5 90516180	£19.40	£23.28
58 - SCREW BDE-489427-00.A9 489427-00	£1.42	£1.70
