Black & Decker CS355 Type 1 Chop Saw Spare Parts

Home Details Reviews Delivery

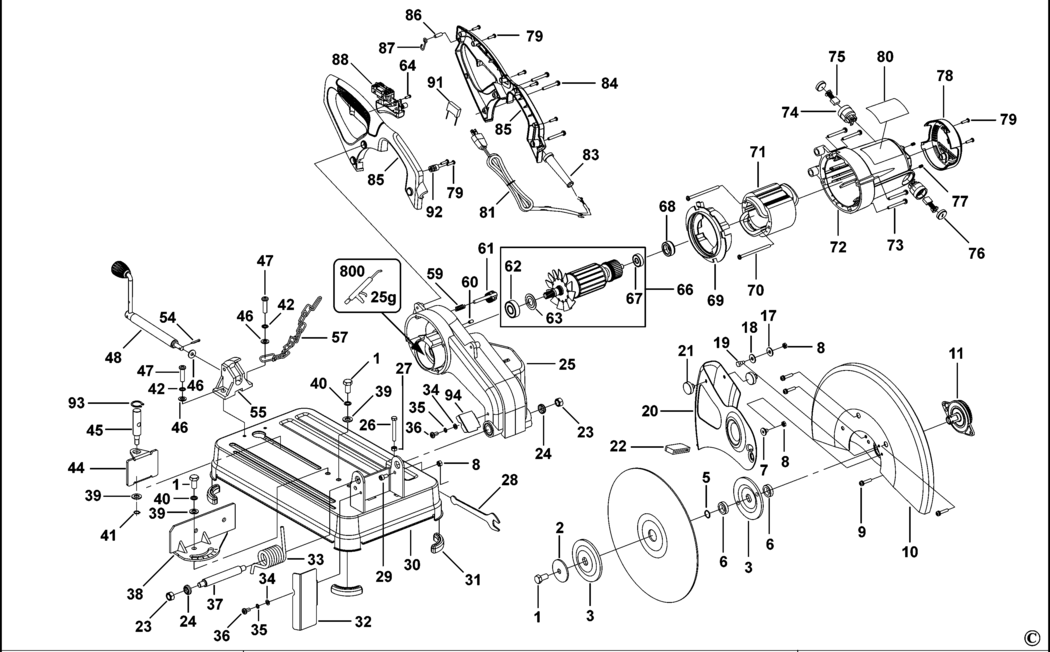

An exploded drawing and spare parts listing for the Black & Decker CS355 Type 1 Chop Saw

	Ex VAT	Inc VAT
1 - BOLT BDE-5140062-44.A7 5140062-44	£1.66	£1.99
2 - FLANGE BDE-5140062-45.A2 5140062-45	£1.66	£1.99
3 - FLANGE BDE-5140062-46.A4 5140062-46	£10.85	£13.02
5 - O RING BDE-5140062-47.A0 5140062-47	£1.66	£1.99
6 - BUSH BDE-5140062-48.A13 5140062-48	£1.66	£1.99
7 - SCREW BDE-5140062-49.A0 5140062-49	£1.66	£1.99
8 - LOCK NUT BDE-5140062-50.A13 5140062-50	£1.66	£1.99
9 - SCREW BDE-5140062-51.A0 5140062-51	£1.66	£1.99
10 - GUARD BDE-5140062-52.A2 5140062-52	£29.32	£35.18
11 - GEAR & SPINDLE SA BDE-5140062-53.A0 5140062-53	£34.00	£40.80
17 - WASHER BDE-5140062-54.A14 5140062-54	£1.66	£1.99
18 - WASHER BDE-5140062-55.A0 5140062-55	£1.66	£1.99
19 - SCREW BDE-5140062-56.A14 5140062-56	£1.66	£1.99
20 - GUARD LOWER BDE-5140062-57.A0 5140062-57	£25.70	£30.84
21 - RUBBER BDE-5140062-58.A14 5140062-58	£1.66	£1.99
22 - PROTECTOR BDE-5140062-59.A0 5140062-59	£1.66	£1.99
23 - NUT BDE-5140062-60.A16 5140062-60	£1.66	£1.99
24 - WASHER. CUP BDE-5140062-61.A0 5140062-61	£1.66	£1.99
25 - ARM ELEVATING BDE-5140062-62.A4 5140062-62	£78.12	£93.74
26 - BOLT BDE-5140062-63.A0 5140062-63	£1.66	£1.99
27 - NUT BDE-5140062-64.A9 5140062-64	£1.66	£1.99
28 - WRENCH SPECIAL BDE-5140062-65.A0 5140062-65	£3.30	£3.96
29 - BOLT BDE-5140062-66.A16 5140062-66	£1.66	£1.99
30 - BASE BDE-5140062-67.A0 5140062-67	£57.22	£68.66
31 - FOOT BDE-5140062-68.A8 5140062-68	£1.66	£1.99
32 - PROTECTOR BDE-5140062-69.A3 5140062-69	£2.78	£3.34
33 - SPRING TORSION BDE-5140062-70.A5 5140062-70	£7.85	£9.42
34 - WASHER BDE-5140062-71.A3 5140062-71	£1.66	£1.99
35 - WASHER SPRING BDE-5140062-72.A3 5140062-72	£1.66	£1.99
36 - SCREW BDE-5140062-73.A3 5140062-73	£1.66	£1.99
37 - SHAFT BDE-5140062-74.A3 5140062-74	£5.88	£7.06
38 - FENCE BDE-5140062-75.A3 5140062-75	£17.48	£20.97
39 - WASHER BDE-5140062-76.A9 5140062-76	£1.66	£1.99
40 - WASHER SPRING BDE-5140062-77.A3 5140062-77	£1.66	£1.99
41 - RETAINER BDE-5140062-78.A3 5140062-78	£1.66	£1.99
42 - WASHER SPRING BDE-5140062-79.A3 5140062-79	£1.66	£1.99
44 - CLAMP BDE-5140062-80.A3 5140062-80	£5.88	£7.06
45 - SHAFT BDE-5140062-81.A3 5140062-81	£3.30	£3.96
46 - WASHER BDE-5140062-82.A6 5140062-82	£1.66	£1.99
47 - SCREW BDE-5140062-83.A3 5140062-83	£1.66	£1.99
48 - HANDLE SA BDE-5140062-84.A5 5140062-84	£12.17	£14.60
54 - PIN BDE-5140062-85.A3 5140062-85	£1.66	£1.99
55 - LOCKING DEVICE BDE-5140062-86.A6 5140062-86	£10.85	£13.02
57 - CHAIN BDE-5140062-87.A3 5140062-87	£1.66	£1.99
59 - SPRING BDE-5140062-88.A3 5140062-88	£1.66	£1.99
60 - PIN BDE-5140062-89.A7 5140062-89	£1.66	£1.99
61 - LOCK PIN BDE-5140062-90.A2 5140062-90	£3.30	£3.96
62 - BEARING BDE-5140062-91.A3 5140062-91	£12.17	£14.60
63 - WASHER BDE-5140062-92.A9 5140062-92	£1.66	£1.99
64 - SCREW BDE-5140062-93.A7 5140062-93	£1.66	£1.99
66 - ARMATURE SA BDE-5140062-94.A3 5140062-94	£115.77	£138.92
67 - BEARING BDE-5140062-96.A9 5140062-96	£5.88	£7.06
68 - SLEEVE BEARING BDE-5140062-97.A0 5140062-97	£2.78	£3.34
69 - DUST DEFLECTOR BDE-5140062-98.A9 5140062-98	£2.78	£3.34
70 - SCREW BDE-5140062-99.A0 5140062-99	£1.66	£1.99
71 - FIELD BDE-5140063-00.A6 5140063-00	-
72 - HOUSING MOTOR BDE-5140063-02.A1 5140063-02	£2.71	£3.25
73 - SCREW BDE-5140063-03.A0 5140063-03	£1.66	£1.99
74 - BRUSH HOLDER BDE-1004492-07.A1 1004492-07	£2.87	£3.44
75 - BRUSH PAIR BDE-N381908.A6 N381908	-
76 - BRUSH CAP BDE-1004492-08.A0 1004492-08	£1.66	£1.99
77 - SCREW BDE-5140063-08.A3 5140063-08	£1.66	£1.99
78 - COVER REAR BDE-5140063-09.A1 5140063-09	£4.58	£5.49
79 - SCREW BDE-5140063-10.A0 5140063-10	£1.66	£1.99
80 - RATING PLATE GB BDE-1004492-09 1004492-09	£1.66	£1.99
81 - NO LONGER AVAILABLE GB BDE-000000-00.A96528 000000-00	-
83 - CORD PROTECTOR BDE-5140063-19.A16 5140063-19	£7.18	£8.62
84 - SCREW BDE-5140063-20.A0 5140063-20	£1.66	£1.99
85 - HANDLE SA BDE-5140063-21.A1 5140063-21	£15.63	£18.76
86 - PIN BDE-5140063-22.A0 5140063-22	£1.66	£1.99
87 - HOOK BDE-5140063-23.A9 5140063-23	£1.66	£1.99
88 - SWITCH BDE-5140063-24.A0 5140063-24	£23.75	£28.50
91 - CAPACITOR BDE-5140063-25.A4 5140063-25	£1.66	£1.99
92 - CORD CLAMP BDE-5140063-26.A5 5140063-26	£1.66	£1.99
93 - RETAINER BDE-5140063-27.A12 5140063-27	£1.66	£1.99
94 - GUARD LOWER BDE-1004492-06.A0 1004492-06	£3.80	£4.56
800 - GREASE 90 GMS 25g BDE-870889-02.A478 870889-02	£8.08	£9.70

Attribute Name	Value
Brand	Black & Decker
