Black & Decker BD779 Type 1 Router Spare Parts

Home Details Reviews Delivery

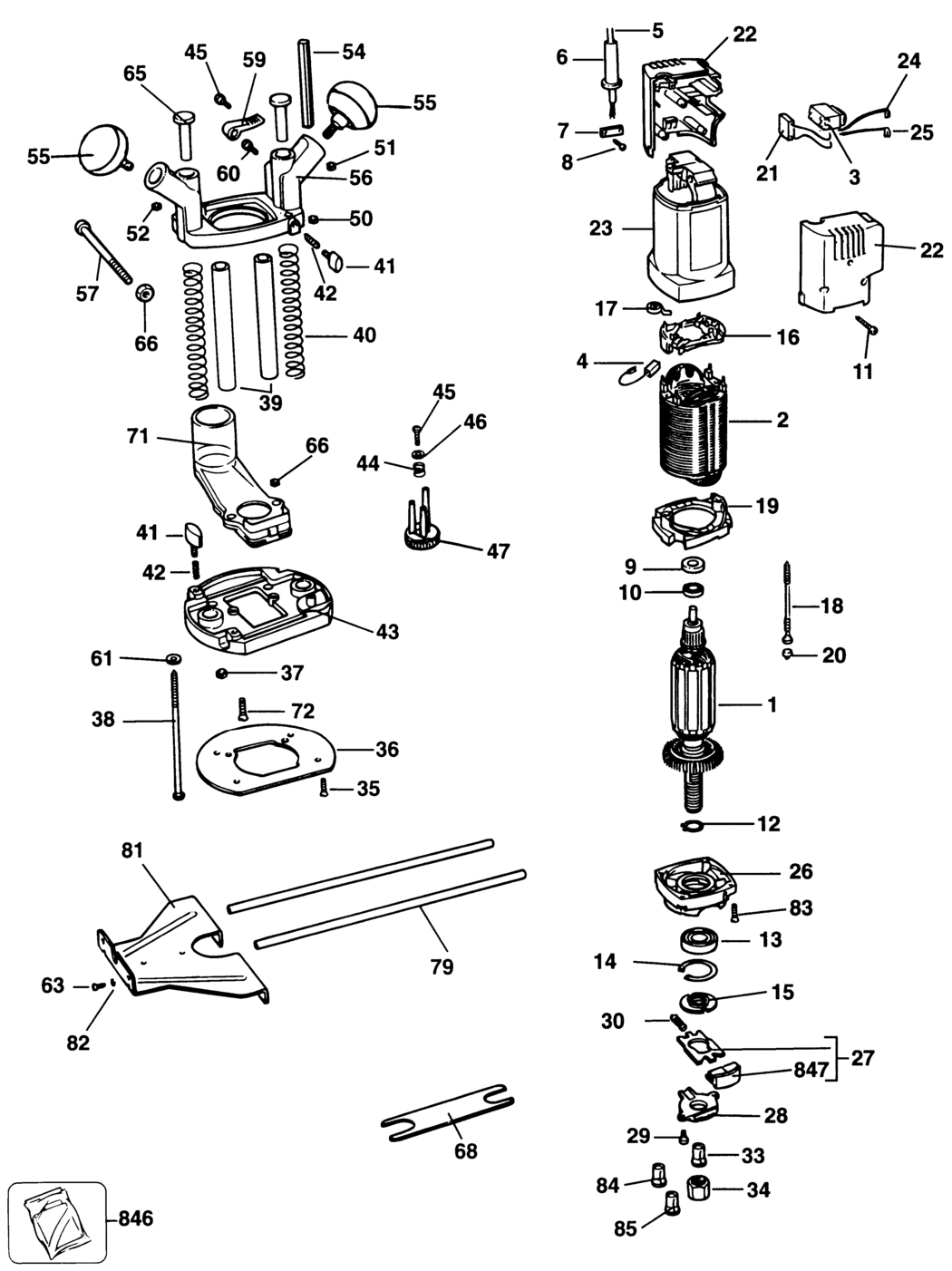

An exploded drawing and spare parts listing for the Black & Decker BD779 Type 1 Router

	Ex VAT	Inc VAT
1 - ARMATURE GB BDE-868630-00.A3 868630-00	£107.82	£129.39
2 - NO LONGER AVAILABLE GB BDE-000000-00.A102169 000000-00	-
3 - SWITCH BDE-N566709.A5 N566709	£30.98	£37.18
4 - BRUSH 230V BDE-930760-00.A24 930760-00	£6.06	£7.27
5 - NO LONGER AVAILABLE GB BDE-000000-00.A102170 000000-00	-
6 - PROTECTOR BDE-949835-01.A3 949835-01	-
7 - CORD CLAMP BDE-930103-00.A26 930103-00	£1.66	£1.99
8 - NO LONGER AVAILABLE BDE-000000-00.A102171 000000-00	-
9 - HOLDER BEARING BDE-930029-00.A143 930029-00	£1.66	£1.99
10 - BEARING BDE-330003-34.A30 330003-34	£25.12	£30.15
11 - SCREW BDE-930079-01.A249 930079-01	£1.66	£1.99
12 - RETAINER BDE-930098-00.A75 930098-00	£1.66	£1.99
15 - LOCKING RING BDE-944484-00.A15 944484-00	£1.66	£1.99
16 - BRUSH HOLDER SA BDE-930746-00.A34 930746-00	£3.22	£3.86
17 - BRUSH SPRING BDE-930090-00.A71 930090-00	-
18 - SCREW BDE-930077-00.A8 930077-00	£1.66	£1.99
18 - NO LONGER AVAILABLE BDE-000000-00.A102172 000000-00	-
19 - BAFFLE BDE-943173-00.A15 943173-00	£3.22	£3.86
20 - CAP BDE-933657-00.A72 933657-00	£3.22	£3.86
21 - CAPACITOR BDE-949877-01.A170 949877-01	£1.66	£1.99
22 - NO LONGER AVAILABLE BDE-000000-00.A102173 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A102174 000000-00	-
24 - LEAD BDE-949801-11.A16 949801-11	-
25 - LEAD BDE-949801-10.A5 949801-10	-
26 - HOUSING LOWER BDE-944856-00.A2 944856-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A102175 000000-00	-
28 - COVER BDE-944386-00.A2 944386-00	£1.66	£1.99
29 - SCREW.TEMP BDE-930251-01.A2 930251-01	£1.66	£1.99
30 - SPRING COMPRESSION BDE-N406641.A28 N406641	£1.66	£1.99
33 - COLLET 6MM BDE-943269-00.A4 943269-00	-
34 - COLLET NUT BDE-943270-00.A16 943270-00	£6.06	£7.27
35 - NO LONGER AVAILABLE BDE-000000-00.A102176 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A102177 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A102178 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A102179 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A102180 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A102181 000000-00	-
41 - SCREW WING BDE-326573-01.A87 326573-01	£1.88	£2.26
42 - SPRING BDE-868082-00.A139 868082-00	£1.66	£1.99
43 - NO LONGER AVAILABLE BDE-000000-00.A102182 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A102183 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A102184 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A102185 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A102186 000000-00	-
50 - NUT BDE-949726-05.A27 949726-05	£1.66	£1.99
51 - NUT BDE-896369.A103 896369	£1.78	£2.13
52 - NUT BDE-860083-14.A96 860083-14	£1.66	£1.99
54 - NO LONGER AVAILABLE GB BDE-000000-00.A102187 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A102188 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A102189 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A102190 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A102191 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A102192 000000-00	-
61 - WASHER BDE-937883.A0 937883	-
63 - NO LONGER AVAILABLE BDE-000000-00.A102193 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A102194 000000-00	-
66 - NUT BDE-930244-00.A5 930244-00	£3.39	£4.07
68 - NO LONGER AVAILABLE BDE-000000-00.A102197 000000-00	-
71 - NO LONGER AVAILABLE BDE-000000-00.A102198 000000-00	-
72 - SCREW BDE-869076-00.A39 869076-00	£1.66	£1.99
79 - NO LONGER AVAILABLE BDE-000000-00.A102195 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A102196 000000-00	-
82 - WASHER BDE-930248-00.A13 930248-00	£1.66	£1.99
84 - COLLET 6.35MM BDE-943269-01.A14 943269-01	£19.90	£23.88
85 - COLLET 8MM BDE-943269-02.A3 943269-02	£15.01	£18.01
846 - NO LONGER AVAILABLE BDE-000000-00.A102199 000000-00	-
847 - NO LONGER AVAILABLE BDE-000000-00.A102200 000000-00	-

Attribute Name	Value
Brand	Black & Decker
