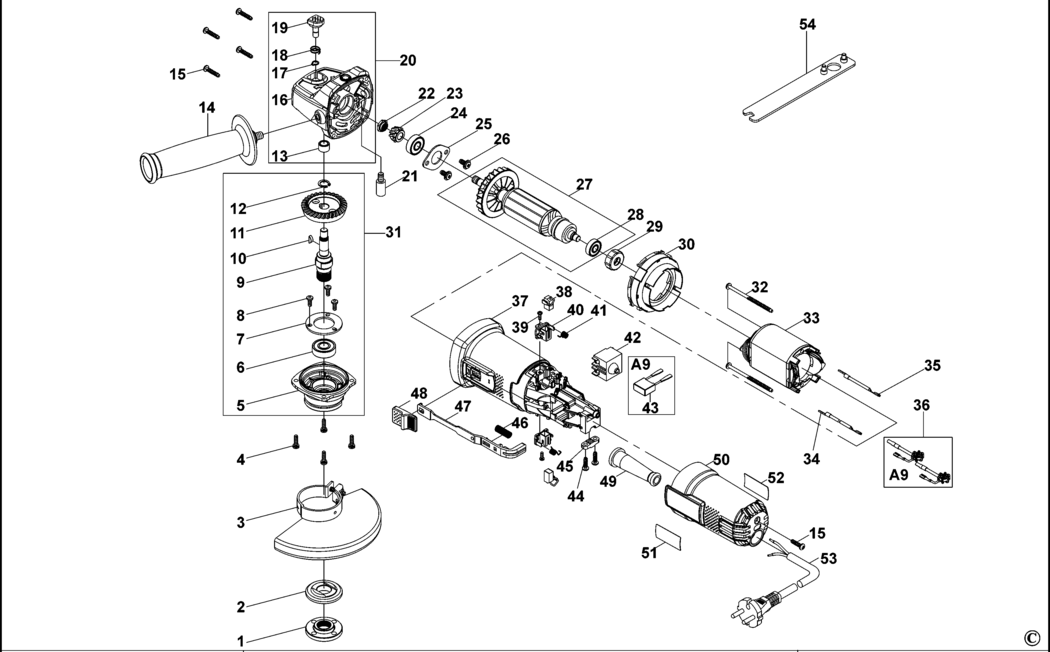

1 - OUTER FLANGE
BDE-1004525-01.A7
1004525-01
|
£3.39
|
£4.07
|
|
|
2 - INNER FLANGE
BDE-1004525-03.A7
1004525-03
|
£3.39
|
£4.07
|
|
|
3 - GUARD
BDE-1004525-05
1004525-05
|
£11.87
|
£14.24
|
|
|
4 - SCREW
BDE-1004525-06.A0
1004525-06
|
£1.66
|
£1.99
|
|
|
5 - GEARCASE COVER
BDE-1004525-07.A2
1004525-07
|
£12.17
|
£14.60
|
|
|
6 - BEARING
BDE-1004525-08.A0
1004525-08
|
£5.88
|
£7.06
|
|
|
7 - COVERPLATE
BDE-1004525-09.A9
1004525-09
|
£1.66
|
£1.99
|
|
|
8 - SCREW
BDE-1004525-10.A0
1004525-10
|
£1.66
|
£1.99
|
|
|
9 - SPINDLE
BDE-1004525-12.A0
1004525-12
|
£7.18
|
£8.62
|
|
|
10 - WOODRUFF KEY
BDE-1004525-13.A5
1004525-13
|
£1.66
|
£1.99
|
|
|
11 - GEAR
BDE-1004525-14.A2
1004525-14
|
£14.57
|
£17.48
|
|
|
12 - CIRCLIP
BDE-1004525-15.A5
1004525-15
|
£1.66
|
£1.99
|
|
|
13 - BEARING SINTER
BDE-1004525-16.A3
1004525-16
|
£1.66
|
£1.99
|
|
|
14 - SIDE HANDLE
BDE-1004525-17.A3
1004525-17
|
£4.83
|
£5.80
|
|
|
15 - SCREW
BDE-1004525-18.A1
1004525-18
|
£1.66
|
£1.99
|
|
|
16 - GEARCASE
BDE-1004525-19.A1
1004525-19
|
£19.40
|
£23.28
|
|
|
17 - CIRCLIP
BDE-1004525-20.A1
1004525-20
|
£1.66
|
£1.99
|
|
|
18 - SPRING
BDE-5140040-64.A5
5140040-64
|
£1.66
|
£1.99
|
|
|
19 - LOCK BUTTON
BDE-1004525-21.A1
1004525-21
|
-
|
|
|
|
20 - GEARCASE SA
BDE-1004525-22.A0
1004525-22
|
£18.91
|
£22.69
|
|
|
21 - SCREW
BDE-1004525-23.A1
1004525-23
|
£1.66
|
£1.99
|
|
|
22 - NUT
BDE-569175-00.A41
569175-00
|
£1.66
|
£1.99
|
|
|
23 - PINION GEAR
BDE-1004525-24.A6
1004525-24
|
£7.01
|
£8.41
|
|
|
24 - BEARING
BDE-1004525-25.A2
1004525-25
|
£4.83
|
£5.80
|
|
|
25 - COVERPLATE
BDE-596407-00.A3
596407-00
|
£1.66
|
£1.99
|
|
|
26 - SCREW
BDE-596408-00.A13
596408-00
|
£1.66
|
£1.99
|
|
|
27 - ARMATURE SA
BDE-1004525-26.A4
1004525-26
|
£48.48
|
£58.17
|
|
|
28 - BEARING
BDE-1004525-27.A5
1004525-27
|
£4.83
|
£5.80
|
|
|
29 - BEARING HOLDER
BDE-1004525-28.A18
1004525-28
|
£1.66
|
£1.99
|
|
|
30 - BAFFLE FAN
BDE-1004525-29.A5
1004525-29
|
£1.66
|
£1.99
|
|
|
31 - SPINDLE SA
BDE-1004525-31
1004525-31
|
£36.42
|
£43.70
|
|
|
32 - SCREW
BDE-1004525-32.A0
1004525-32
|
£1.66
|
£1.99
|
|
|
33 - FIELD
BDE-1004525-33.A9
1004525-33
|
£30.98
|
£37.18
|
|
|
34 - LEADWIRE
BDE-1004525-34.A0
1004525-34
|
£1.66
|
£1.99
|
|
|
35 - LEADWIRE
BDE-1004525-35.A10
1004525-35
|
£1.66
|
£1.99
|
|
|
36 - CHOKE
BDE-1004525-36.A0
1004525-36
|
£6.06
|
£7.27
|
|
|
37 - HOUSING
BDE-1004525-37.A1
1004525-37
|
£14.19
|
£17.03
|
|
|
38 - BRUSH PAIR
BDE-1004525-38.A0
1004525-38
|
£7.18
|
£8.62
|
|
|
39 - SCREW
BDE-1004525-39.A7
1004525-39
|
£1.66
|
£1.99
|
|
|
40 - BRUSH HOLDER
BDE-1004525-40.A0
1004525-40
|
£2.78
|
£3.34
|
|
|
41 - BRUSH SPRING
BDE-1004525-41.A7
1004525-41
|
£1.66
|
£1.99
|
|
|
42 - SWITCH
BDE-1004525-42.A2
1004525-42
|
£10.85
|
£13.02
|
|
|
43 - CAPACITOR
BDE-1004525-43.A4
1004525-43
|
£6.06
|
£7.27
|
|
|
44 - SCREW
BDE-1004525-44.A2
1004525-44
|
£1.66
|
£1.99
|
|
|
45 - CORDCLAMP
BDE-596432-00.A4
596432-00
|
£1.66
|
£1.99
|
|
|
46 - SPRING
BDE-1004525-45.A10
1004525-45
|
£1.66
|
£1.99
|
|
|
47 - LINKAGE SA
BDE-1004525-46.A10
1004525-46
|
£1.66
|
£1.99
|
|
|
48 - ACTUATOR
BDE-1004525-47.A0
1004525-47
|
£1.66
|
£1.99
|
|
|
49 - CORD PROTECTOR
BDE-1004525-48.A1
1004525-48
|
£1.66
|
£1.99
|
|
|
50 - COVER
BDE-1004525-49.A7
1004525-49
|
£8.08
|
£9.70
|
|
|
51 - BRAND LABEL
BDE-1004525-50.A1
1004525-50
|
£1.66
|
£1.99
|
|
|
54 - SPANNER
BDE-569197-00.A4
569197-00
|
£1.88
|
£2.26
|
|
