Black & Decker SVFV3250L Type H1 Dustbuster Spare Parts

Home Details Reviews Delivery

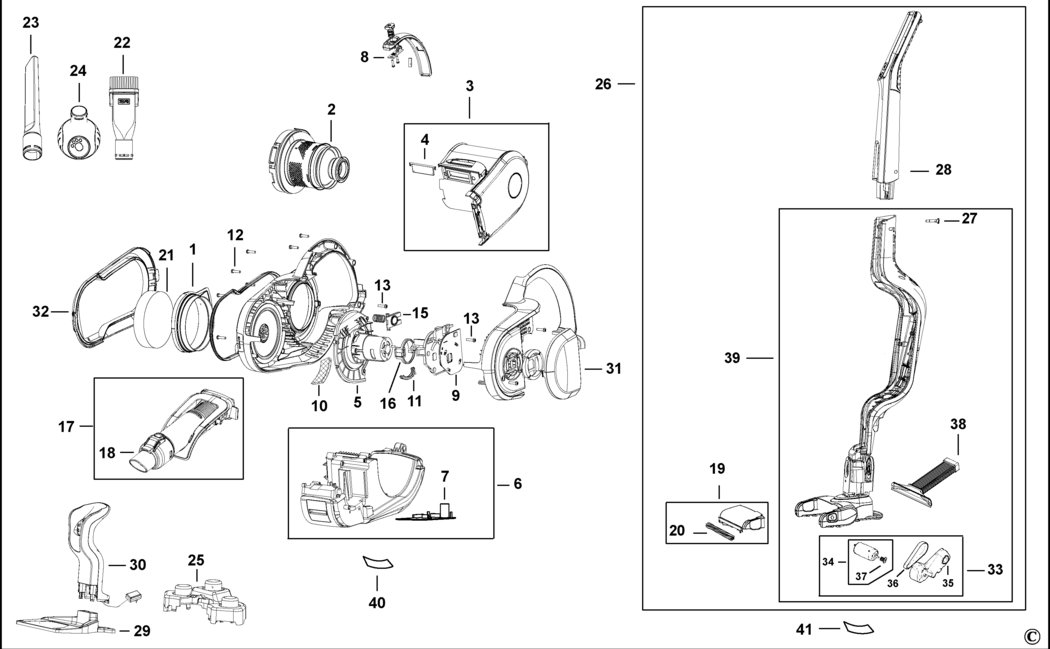

An exploded drawing and spare parts listing for the Black & Decker SVFV3250L Type H1 Dustbuster

	Ex VAT	Inc VAT
1 - FRAME BDE-90596689.A2 90596689	-
1 - COVER BDE-90610940-01.A0 90610940-01	£4.69	£5.63
2 - FOAM BDE-90607901.A1 90607901	£1.66	£1.99
2 - FILTER SA BDE-90614707.A2 90614707	£25.12	£30.15
3 - FRAME BDE-90596689.A3 90596689	-
3 - BOWL BDE-N924715.A2 N924715	£80.46	£96.55
4 - SEAL BDE-90606003.A3 90606003	-
4 - FLAP BDE-90599426.A0 90599426	£1.66	£1.99
5 - MOTOR & FAN BDE-90607900-02.A0 90607900-02	£38.48	£46.17
5 - SCREW BDE-143062-02.A87 143062-02	£1.66	£1.99
6 - BATTERY CASE SA SVFV3250L BDE-90605622.A1 90605622	£209.59	£251.51
6 - BATTERY CASE SA SVFV3250LR BDE-90605622-04 90605622-04	£187.30	£224.76
6 - HOUSING SA BDE-90609113.A1 90609113	-
7 - PCB SA BDE-90593774-01 90593774-01	£60.94	£73.13
7 - SPRING BDE-90604593.A1 90604593	-
8 - SCREW BDE-499903-00.A73 499903-00	£1.66	£1.99
8 - PCB SA BDE-90595818.A1 90595818	£3.30	£3.96
9 - PCB SA BDE-90599455-01.A2 90599455-01	£16.03	£19.24
9 - BIT BDE-90605510.A1 90605510	£1.66	£1.99
10 - BUTTON BDE-90593719.A2 90593719	-
10 - EXHAUST BDE-90611150.A2 90611150	£1.66	£1.99
11 - INSULATOR BDE-90616027.A6 90616027	£1.66	£1.99
11 - SPRING BDE-90597744.A1 90597744	-
12 - SCREW BDE-143062-02.A88 143062-02	£1.66	£1.99
12 - PCB SA BDE-90595818.A0 90595818	£3.30	£3.96
13 - SCREW BDE-499903-00.A72 499903-00	£1.66	£1.99
13 - SCREW BDE-419799-05.A5 419799-05	-
14 - COVER BDE-90594171-01.A3 90594171-01	-
15 - BOWL BDE-90597329-01.A0 90597329-01	-
15 - BIT BDE-90605510.A2 90605510	£1.66	£1.99
16 - BATTERY CASE SA BDE-90605622.A0 90605622	£209.59	£251.51
16 - CAP BDE-90603382.A4 90603382	£1.66	£1.99
17 - MOTOR COVER BDE-90594170.A4 90594170	£1.66	£1.99
17 - HOSE SA BDE-90599658-02.A1 90599658-02	£23.75	£28.50
18 - LENS BDE-90601773.A1 90601773	-
18 - NOZZLE BDE-90619242 90619242	£2.71	£3.25
19 - SCREW BDE-90609722.A0 90609722	£1.66	£1.99
19 - HEAD SA Inc 20 BDE-90605475.A2 90605475	£42.48	£50.98
20 - PCB SA BDE-90599455-01.A3 90599455-01	£16.03	£19.24
20 - ROLLER SA BDE-N924396.A3 N924396	£16.52	£19.82
21 - FOAM BDE-90607901.A2 90607901	£1.66	£1.99
21 - CARRIER BDE-90601612.A5 90601612	-
22 - BRUSH BDE-90600901-02.A3 90600901-02	£5.88	£7.06
22 - INSULATOR BDE-90616027.A7 90616027	£1.66	£1.99
23 - TOOL CREVICE BDE-90552231-03.A0 90552231-03	£3.30	£3.96
23 - CAP BDE-90603382.A3 90603382	£1.66	£1.99
24 - PET HEAD BDE-90600824-02.A1 90600824-02	£11.18	£13.41
24 - MOTOR & FAN BDE-90607900-01.A0 90607900-01	-
25 - HOLDER BDE-90602833-01.A4 90602833-01	£5.88	£7.06
25 - EXHAUST BDE-90611150.A1 90611150	£1.66	£1.99
26 - FOOT SA SVFV3250L BDE-90610847 90610847	£157.18	£188.61
26 - SCREW BDE-311940-01.A12 311940-01	£1.66	£1.99
26 - FOOT SA SVFV3250LR BDE-90610847-02 90610847-02	£183.42	£220.10
27 - HOSE SA BDE-90599658-02.A0 90599658-02	£23.75	£28.50
27 - SCREW BDE-90601722.A10 90601722	£1.66	£1.99
28 - HANDLE SA SVFV3250L BDE-90603258-01 90603258-01	£19.40	£23.28
28 - HANDLE SA SVFV3250LR BDE-90603258-03 90603258-03	£34.00	£40.80
29 - BASE SA BDE-90610875-01.A3 90610875-01	£11.18	£13.41
29 - CHARGER SA BDE-90613140-08 90613140-08	-
30 - CHARGER SVFV3250L + LR GB BDE-90613140-04 90613140-04	£44.14	£52.97
30 - BODY BDE-90608472-09 90608472-09	-
31 - MOTOR COVER BDE-90594170.A5 90594170	£1.66	£1.99
32 - COVER BDE-90618871.A1 90618871	£7.85	£9.42
33 - MOTOR SA & MOUNT BDE-N925214.A0 N925214	£78.12	£93.74
33 - BRUSH BDE-90600901-02.A4 90600901-02	£5.88	£7.06
34 - MOTOR SA 18V Inc. 37 BDE-90626421 90626421	£11.18	£13.41
34 - TOOL CREVICE BDE-90552231-03.A1 90552231-03	£3.30	£3.96
35 - MOUNT BDE-90591875.A2 90591875	£1.66	£1.99
36 - BELT DRIVE BDE-90592224.A13 90592224	£1.88	£2.26
36 - PET HEAD BDE-90600824-02.A0 90600824-02	£11.18	£13.41
37 - GEAR BDE-N548025.A8 N548025	£1.66	£1.99
37 - HOLDER BDE-90602833-01.A3 90602833-01	£5.88	£7.06
38 - DUCT BDE-90608567.A10 90608567	£9.69	£11.63
39 - LOWER HANDLE SVFV3250LR GB BDE-90622406-04 90622406-04	£119.32	£143.19
39 - NOZZLE BDE-90604088.A1 90604088	-
39 - LOWER HANDLE SVFV3250L GB BDE-90622406-03 90622406-03	£115.77	£138.92
40 - RATING PLATE SVFV3250LR GB BDE-90609278 90609278	£1.66	£1.99
40 - HOUSING UPPER BDE-90596746-02.A2 90596746-02	-
40 - RATING PLATE SVFV3250L GB BDE-90605881 90605881	£1.66	£1.99
41 - RATING LABEL SVFV3250L GB BDE-90605882 90605882	£1.66	£1.99
41 - TERMINAL BLOCK BDE-90604520-02.A0 90604520-02	-
41 - RATING LABEL SVFV3250LR GB BDE-90609279 90609279	£1.66	£1.99
42 - HANDLE UPPER BDE-90610948-07 90610948-07	-
43 - SPRING BDE-90608240.A1 90608240	-
44 - BUTTON BDE-90603264.A0 90603264	-
45 - BUTTON BDE-90603263.A4 90603263	-
46 - INSERT BDE-90603262-01.A1 90603262-01	-
47 - LEAD SWITCH SA BDE-90599456.A4 90599456	-
48 - CLAMP BDE-90610041.A4 90610041	-
50 - LOWER HANDLE BDE-90603261.A1 90603261	-
51 - LATCH BDE-90610949.A0 90610949	-
52 - CONNECTOR BDE-90599290.A3 90599290	-
53 - SPRING BDE-90605266.A0 90605266	-
54 - LATCH BDE-90598009.A4 90598009	-
55 - HOUSING LOWER BDE-90596747.A0 90596747	-
56 - SCREW BDE-90601722.A11 90601722	£1.66	£1.99
57 - CONTACT BDE-90602729.A0 90602729	-
58 - SCREW BDE-90610859.A4 90610859	-
59 - CABLE SA BDE-90605821.A1 90605821	-
60 - PLATE BDE-90611233.A1 90611233	-
61 - EXHAUST BDE-90611151.A3 90611151	-
62 - SPRING BDE-90605566.A0 90605566	-
63 - CONTACT BDE-90605268.A4 90605268	-
64 - CABLE SA BDE-90606916.A3 90606916	-
102 - WHEEL BDE-90605480.A1 90605480	-
103 - DOWEL BDE-90608269.A1 90608269	-
104 - GASKET BDE-90608273.A3 90608273	-
105 - BRUSH BDE-90608271-01.A1 90608271-01	-
106 - HOUSING LOWER BDE-90592084-01.A2 90592084-01	-
107 - BUMPER BDE-90599806-01.A4 90599806-01	-
108 - MOTOR SA BDE-90608509-01.A0 90608509-01	-
109 - GRILLE BDE-90599805.A0 90599805	-
110 - COVER BDE-90610947-05 90610947-05	-
111 - HOUSING UPPER BDE-90592085-01 90592085-01	-
112 - COVER BDE-90600096-01.A0 90600096-01	-
113 - COVER BDE-90591926.A1 90591926	-
114 - AXLE BDE-90608242-01.A1 90608242-01	-
115 - CAP BDE-90591872.A1 90591872	-
116 - SCREW BDE-90608241.A3 90608241	-
117 - PANEL FRONT BDE-90592463.A1 90592463	-
118 - SCREW BDE-90505371.A5 90505371	£1.66	£1.99
120 - ACTUATOR BDE-90608508.A1 90608508	-
121 - RUBBER BDE-90619439.A0 90619439	-
122 - CLIP BDE-90606050-01.A1 90606050-01	-
123 - SCREW BDE-90612168-01.A1 90612168-01	-
124 - BACKPLATE BDE-90592464.A0 90592464	-
125 - DUCT BDE-90608567.A11 90608567	£9.69	£11.63
126 - SPRING BDE-90608172.A1 90608172	-
127 - CAP BDE-90600500.A1 90600500	-
128 - SCREW BDE-598450-00.A2 598450-00	-
129 - ROLLER SA BDE-N924396.A4 N924396	£16.52	£19.82
130 - LATCH BDE-90600094.A4 90600094	-
132 - SPRING BDE-90608238.A3 90608238	-
133 - END CAP BDE-90605477.A3 90605477	-
134 - WHEEL LARGE BDE-90605481.A3 90605481	-
135 - DOWEL BDE-90608270.A3 90608270	-

Attribute Name	Value
Brand	Black & Decker
