Black & Decker STC1815 Type 1 Cordless String Trimmer Spare Parts

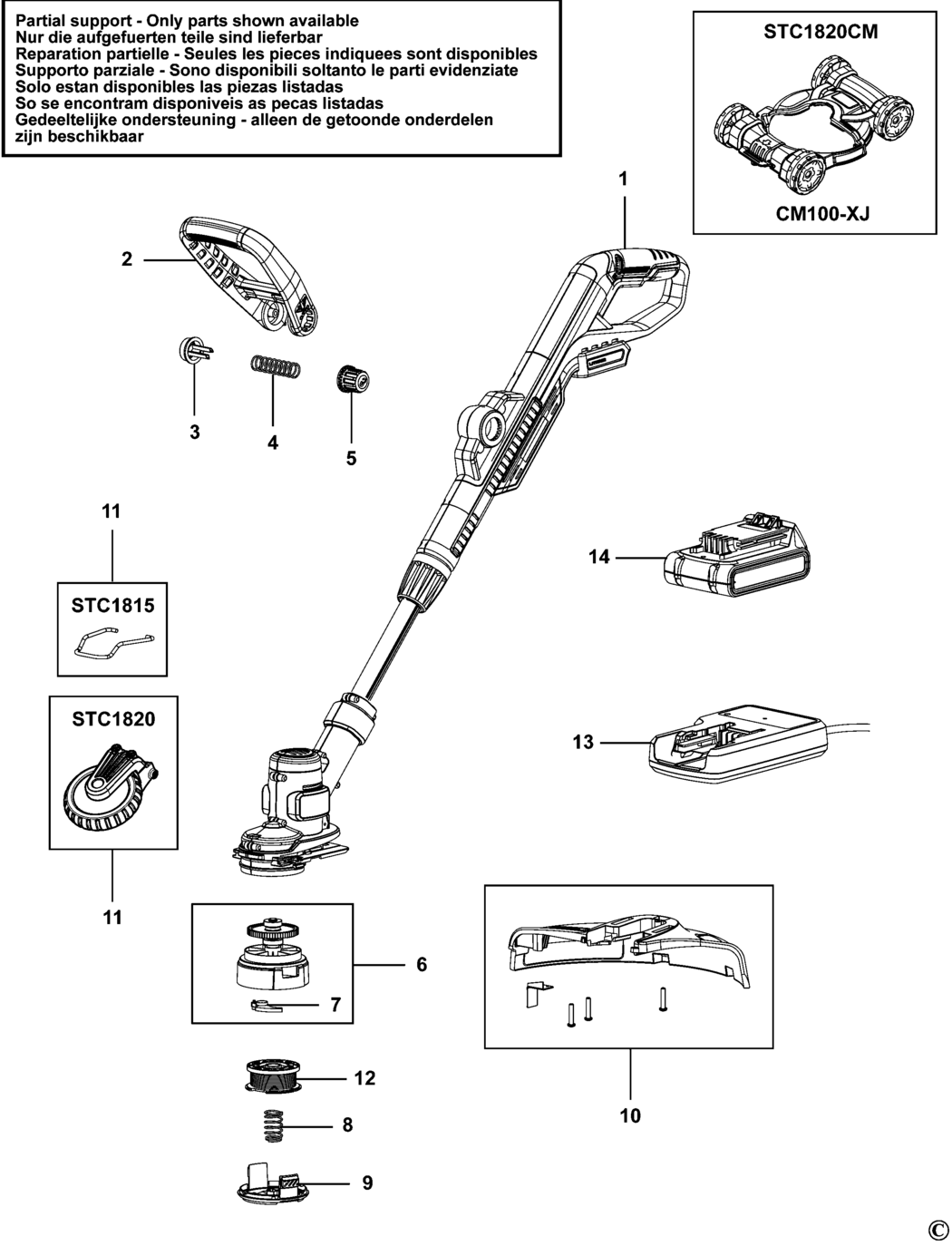

An exploded drawing and spare parts listing for the Black & Decker STC1815 Type 1 Cordless String Trimmer

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A419 000000-05	-
2 - HANDLE SA BDE-90562062-01.A1 90562062-01	-
3 - BUTTON BDE-90556608.A3 90556608	£1.66	£1.99
4 - SPRING BDE-90559866.A16 90559866	£1.66	£1.99
5 - BUTTON BDE-90554396-01.A8 90554396-01	£1.66	£1.99
6 - GEAR & SPINDLE SA BDE-90559541-01.A3 90559541-01	£16.03	£19.24
7 - LEVER BDE-90567075.A8 90567075	£1.66	£1.99
8 - SPRING BDE-90566944.A24 90566944	£1.66	£1.99
9 - COVER SPOOL BDE-385022-03N.A131 385022-03N	£6.06	£7.27
10 - GUARD SA BDE-90601671 90601671	£7.85	£9.42
11 - GUIDE BDE-90592826.A2 90592826	£1.66	£1.99
12 - SPOOL & LINE BDE-90564281N.A1 90564281N	£8.08	£9.70
13 - CHARGER SA GB BDE-N588715.A38 N588715	£35.02	£42.02
14 - BATTERY 18V - 1.5AH - 27WH BDE-90641356.A2 90641356	£80.98	£97.18
