Black & Decker PW1900WR Type 1 Pressure Washer Spare Parts

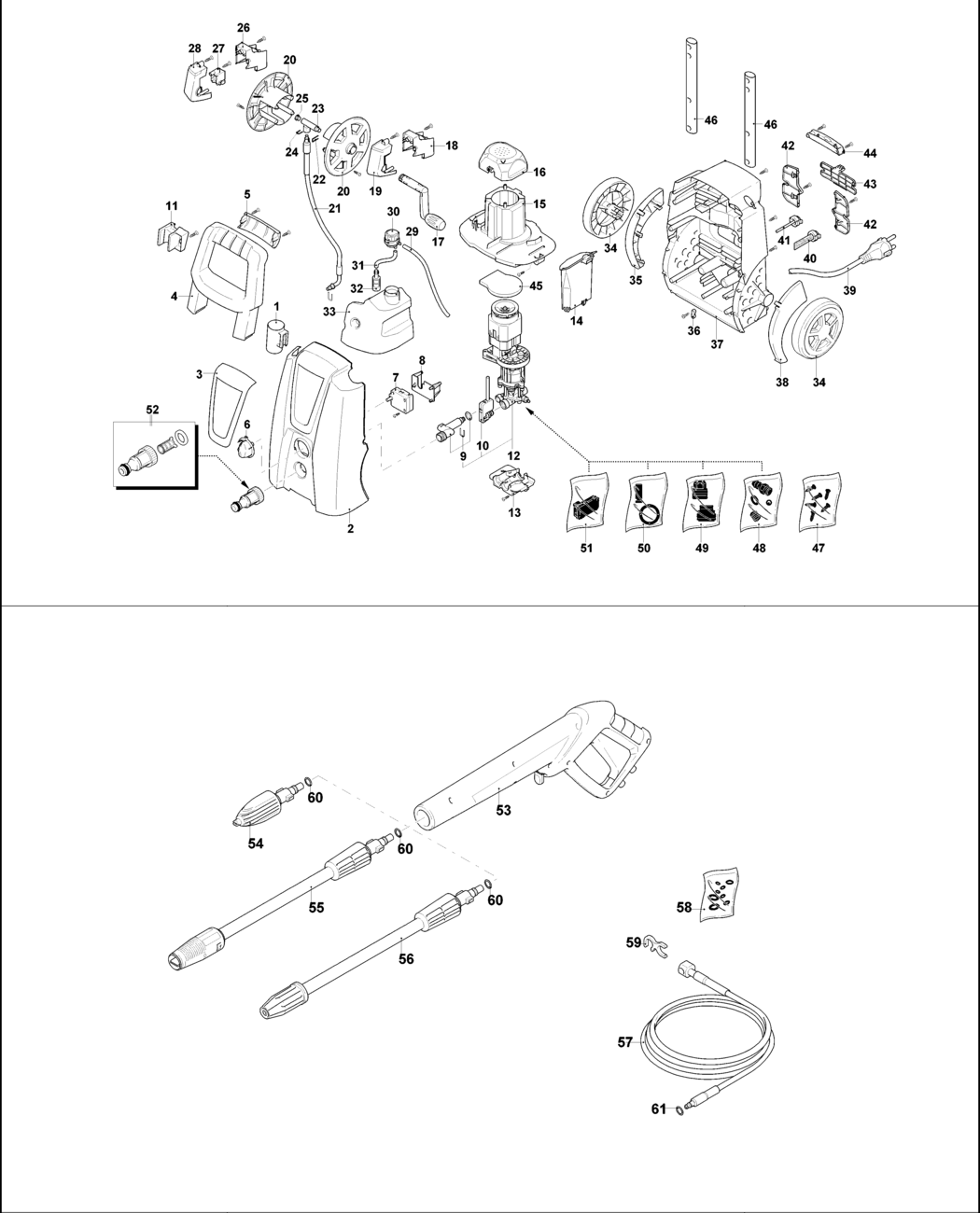

An exploded drawing and spare parts listing for the Black & Decker PW1900WR Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - CARRIER BDE-3760600.A0 3760600	£9.41	£11.29
2 - CASING BDE-3761900.A0 3761900	£30.08	£36.10
3 - GUARD BDE-3761910.A3 3761910	£12.17	£14.60
4 - HANDLE BDE-3760400.A0 3760400	£19.90	£23.88
5 - KNOB BDE-3760450.A3 3760450	£9.41	£11.29
6 - KNOB BDE-3760211.A0 3760211	£7.18	£8.62
7 - SWITCH BDE-3761640.A3 3761640	£16.03	£19.24
8 - BRACKET BDE-3761000.A3 3761000	£9.41	£11.29
9 - KIT BDE-3761180.A3 3761180	£14.57	£17.48
10 - BOX BDE-3641340.A3 3641340	£19.90	£23.88
11 - CARRIER BDE-3760610.A3 3760610	£9.41	£11.29
12 - PUMP SA BDE-3761620.A0 3761620	£301.55	£361.86
13 - SUPPORT BDE-3760980.A0 3760980	£12.17	£14.60
14 - CARRIER BDE-3760230.A3 3760230	£12.17	£14.60
15 - CONVEYOR BDE-3761660.A1 3761660	£19.90	£23.88
16 - COVER BDE-3761650.A0 3761650	£7.85	£9.42
17 - LEVER BDE-3760941.A3 3760941	£14.57	£17.48
18 - SUPPORT BDE-3760410.A3 3760410	£10.85	£13.02
19 - SUPPORT BDE-3760440.A0 3760440	£10.85	£13.02
20 - PLATE BDE-3760390.A3 3760390	£25.70	£30.84
21 - HOSE BDE-3760650.A0 3760650	£30.08	£36.10
22 - FORK BDE-3760840.A3 3760840	£7.18	£8.62
23 - JOINT BDE-3760590.A3 3760590	£19.90	£23.88
24 - FORK BDE-3760750.A3 3760750	£7.18	£8.62
25 - PLUG BDE-3760830.A0 3760830	£9.41	£11.29
26 - SUPPORT BDE-3760420.A0 3760420	£10.85	£13.02
27 - SUPPORT BDE-3760460.A0 3760460	£7.85	£9.42
28 - SUPPORT BDE-3760430.A3 3760430	£10.85	£13.02
29 - HOSE BDE-3760900.A3 3760900	£7.85	£9.42
30 - PLUG BDE-3761050.A0 3761050	£10.85	£13.02
31 - HOSE BDE-3761100.A3 3761100	£7.18	£8.62
32 - FILTER BDE-1004700-71.A3 1004700-71	£1.66	£1.99
33 - TANK BDE-3760240.A0 3760240	£19.90	£23.88
34 - WHEEL BDE-3761920.A0 3761920	£24.39	£29.27
35 - GUARD BDE-3760250.A3 3760250	£14.57	£17.48
36 - GLAND BDE-3320200.A0 3320200	£7.18	£8.62
37 - BASE BDE-3760260.A0 3760260	£34.00	£40.80
38 - GUARD BDE-3760670.A3 3760670	£14.57	£17.48
40 - KIT BDE-3760271.A3 3760271	£7.18	£8.62
41 - KIT BDE-3760291.A0 3760291	£7.85	£9.42
42 - CARRIER BDE-3760301.A3 3760301	£7.85	£9.42
43 - DOOR BDE-3760311.A0 3760311	£7.18	£8.62
44 - GUARD BDE-3760471.A3 3760471	£7.18	£8.62
45 - FILTER BDE-3761670.A0 3761670	£7.85	£9.42
46 - EXTENSION BDE-3760860.A0 3760860	£34.00	£40.80
47 - KIT BDE-3761600.A3 3761600	£17.48	£20.97
48 - KIT BDE-3640880.A3 3640880	£7.40	£8.88
49 - VALVES & SEALS KIT BDE-5170008-20.A0 5170008-20	£14.57	£17.48
50 - PISTON KIT BDE-5170008-19.A2 5170008-19	£25.70	£30.84
51 - KIT BDE-3761210.A0 3761210	£24.39	£29.27
52 - COUPLING SA BDE-1004712-93.A40 1004712-93	£11.18	£13.41
53 - HANDLE BDE-3761381.A3 3761381	£41.24	£49.49
54 - EXTENSION BDE-4100730.A0 4100730	£14.57	£17.48
55 - EXTENSION BDE-3642420 3642420	£25.70	£30.84
56 - EXTENSION BDE-3642120 3642120	£51.90	£62.28
57 - HOSE BDE-3761680 3761680	£34.00	£40.80
58 - GASKET SA BDE-5170008-42.A2 5170008-42	£7.18	£8.62
59 - TUBE BDE-3940260.A0 3940260	£4.69	£5.63
60 - O RING BDE-5140193-41.A44 5140193-41	£1.66	£1.99
61 - O RING BDE-3761360.A3 3761360	£1.82	£2.19
