Black & Decker PW1600SLP Type 1 Pressure Washer Spare Parts

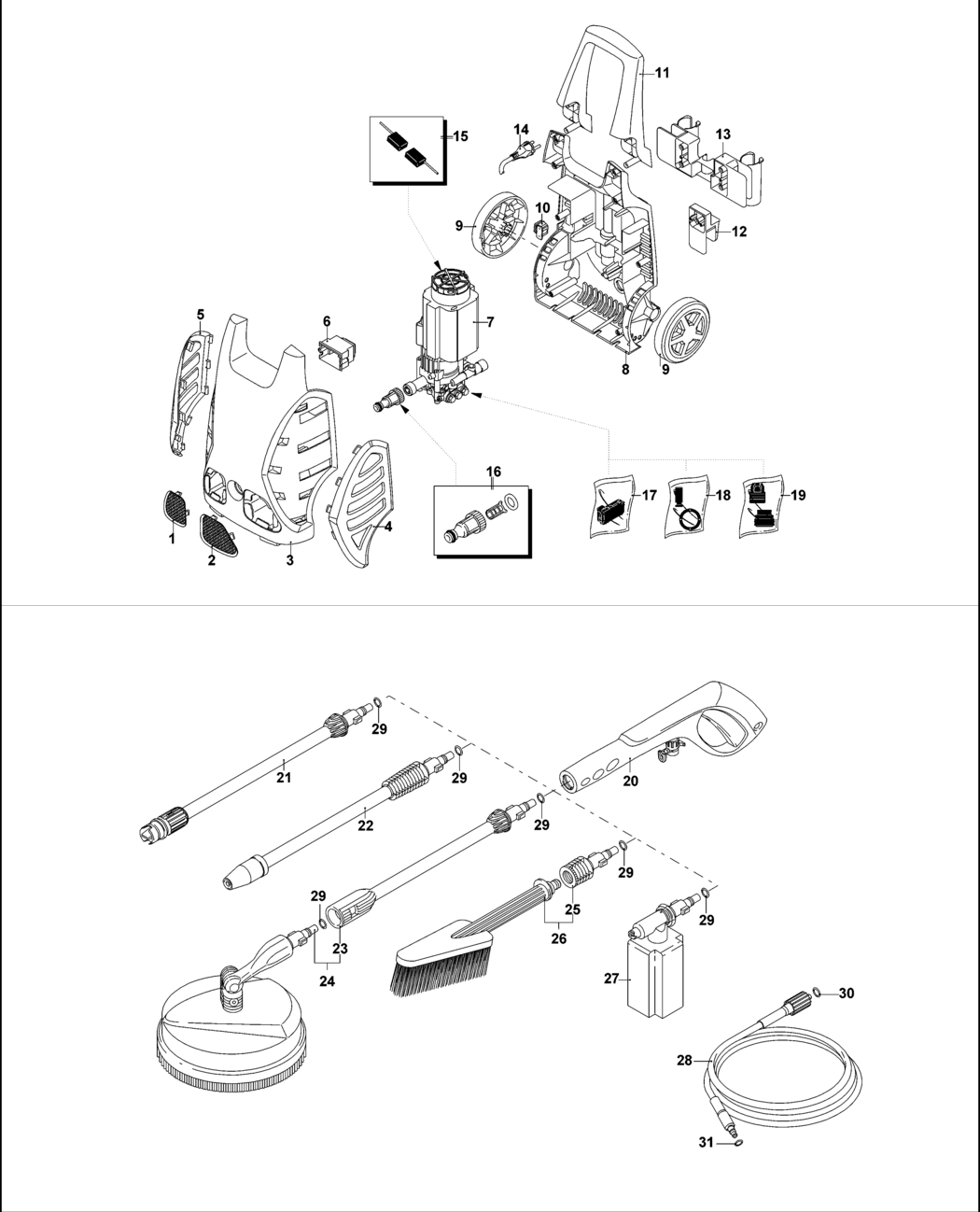

An exploded drawing and spare parts listing for the Black & Decker PW1600SLP Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - GRILLE BDE-1004700-44.A2 1004700-44	£2.78	£3.34
2 - GRILLE BDE-1004700-45.A2 1004700-45	£2.78	£3.34
3 - HOUSING FRONT Orange BDE-1004512-63.A4 1004512-63	£16.03	£19.24
4 - DOOR BDE-1004455-29.A3 1004455-29	£3.30	£3.96
5 - DOOR BDE-1004455-30.A4 1004455-30	£3.30	£3.96
6 - SWITCH 240V BDE-1004455-31.A1 1004455-31	£9.41	£11.29
7 - MOTOR & PUMP SA 240V BDE-1004455-33.A1 1004455-33	£245.11	£294.13
8 - BASE BDE-1004512-64.A1 1004512-64	£24.39	£29.27
9 - WHEEL BDE-1004455-35.A3 1004455-35	£7.18	£8.62
10 - GLAND BDE-1004455-07.A26 1004455-07	£7.64	£9.17
11 - HANDLE BDE-1004700-90.A0 1004700-90	£14.57	£17.48
12 - CARRIER BDE-1004700-48.A2 1004700-48	£3.30	£3.96
13 - CARRIER BDE-1004700-49.A3 1004700-49	£12.17	£14.60
14 - CORDSET GB PLUG GB BDE-1004690-90.A1 1004690-90	£36.42	£43.70
15 - BRUSH KIT BDE-1004512-65.A4 1004512-65	£10.85	£13.02
16 - FILTER & INLET KIT BDE-1004455-15.A4 1004455-15	-
16 - COUPLING SA BDE-1004712-93.A9 1004712-93	£9.16	£10.99
17 - KIT BDE-3081280.A15 3081280	£16.03	£19.24
18 - SERVICE KIT BDE-1004455-16.A9 1004455-16	£24.39	£29.27
19 - SERVICE KIT BDE-1004455-19.A10 1004455-19	£9.41	£11.29
20 - ADJUSTER HANDLE BDE-1004455-44.A6 1004455-44	£41.24	£49.49
21 - SPRAY SA BDE-1004455-41.A1 1004455-41	£25.70	£30.84
22 - SPRAY SA BDE-1004455-42.A2 1004455-42	£34.00	£40.80
23 - ADAPTOR BDE-3082860.A1 3082860	£17.48	£20.97
24 - BRUSH BDE-40780.A0 40780	£58.69	£70.43
25 - ADAPTOR BDE-1004512-28.A10 1004512-28	£1.50	£1.80
26 - BRUSH BDE-1004455-56.A7 1004455-56	£14.57	£17.48
27 - TANK BDE-1004455-43.A0 1004455-43	£25.70	£30.84
28 - HOSE SA BDE-1004455-45.A0 1004455-45	£37.35	£44.82
29 - O RING BDE-5140193-41.A39 5140193-41	£1.66	£1.99
30 - O RING BDE-3083380.A12 3083380	£1.50	£1.80
31 - O RING BDE-3083390.A0 3083390	£1.50	£1.80
