Black & Decker PL89------B Type 1 Drill Spare Parts

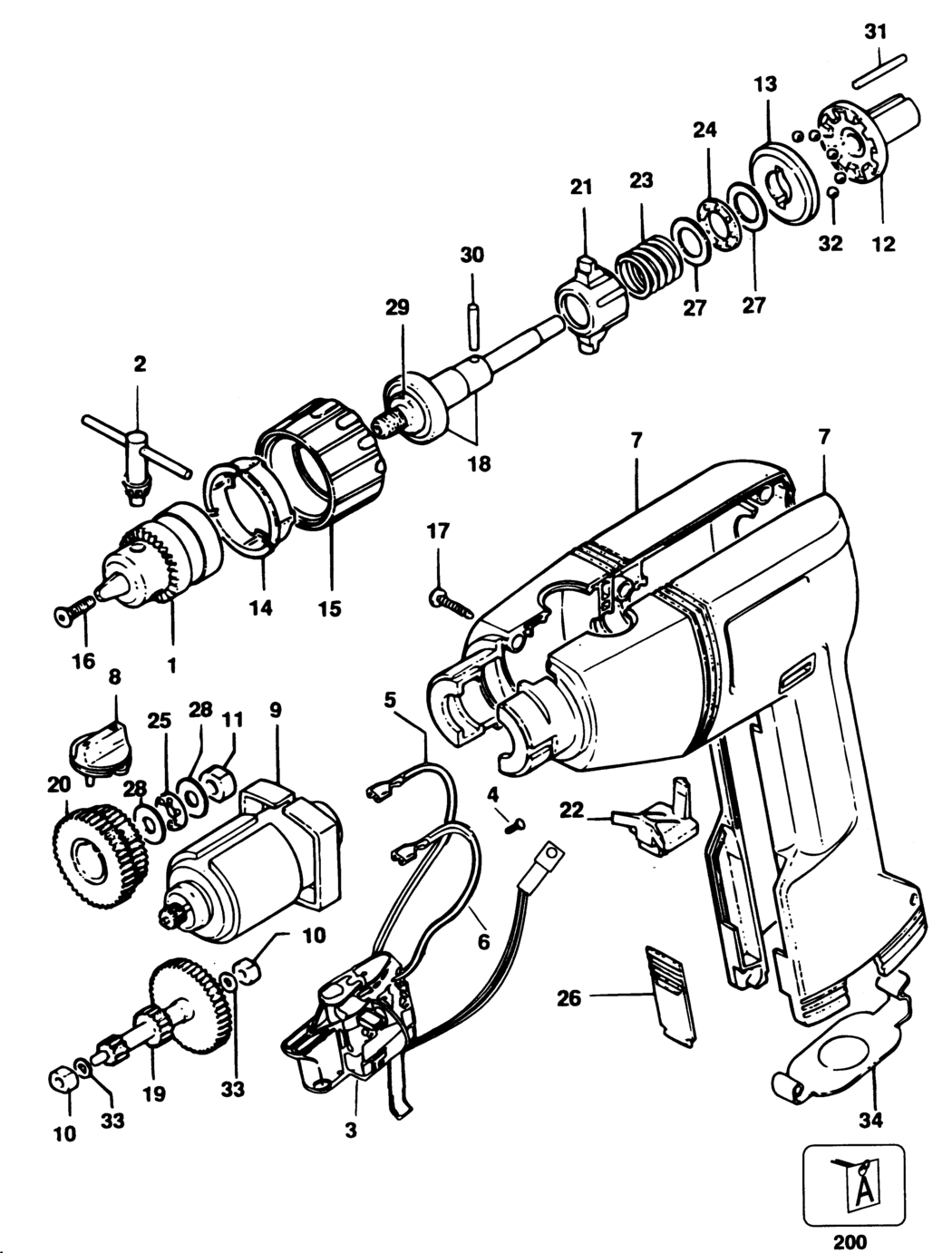

An exploded drawing and spare parts listing for the Black & Decker PL89------B Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE CHUCK NON S2A BDE-000000-00.A1904 000000-00	-
1 - CHUCK 10MM CHUCK S2A BDE-330033-15.A11 330033-15	-
2 - CHUCK KEY CHUCK S2A BDE-330034-07.A413 330034-07	£1.66	£1.99
2 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A2 330034-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A1905 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A1906 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A1907 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A1908 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A1909 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A1910 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A1911 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A1912 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A1913 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A1914 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A1915 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A1916 000000-00	-
16 - SCREW.SPECIAL BDE-805434.A207 805434	£1.66	£1.99
17 - NO LONGER AVAILABLE BDE-000000-00.A1917 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A1918 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A1919 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A99276 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A99277 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A99278 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A99279 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A99280 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A99281 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A99282 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A99283 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A99284 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A99285 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A99286 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A99287 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A99288 000000-00	-
200 - NO LONGER AVAILABLE GB BDE-000000-00.A99289 000000-00	-

Attribute Name	Value
Brand	Black & Decker
