Black & Decker PL10 Type 1 Hammer Drill Spare Parts

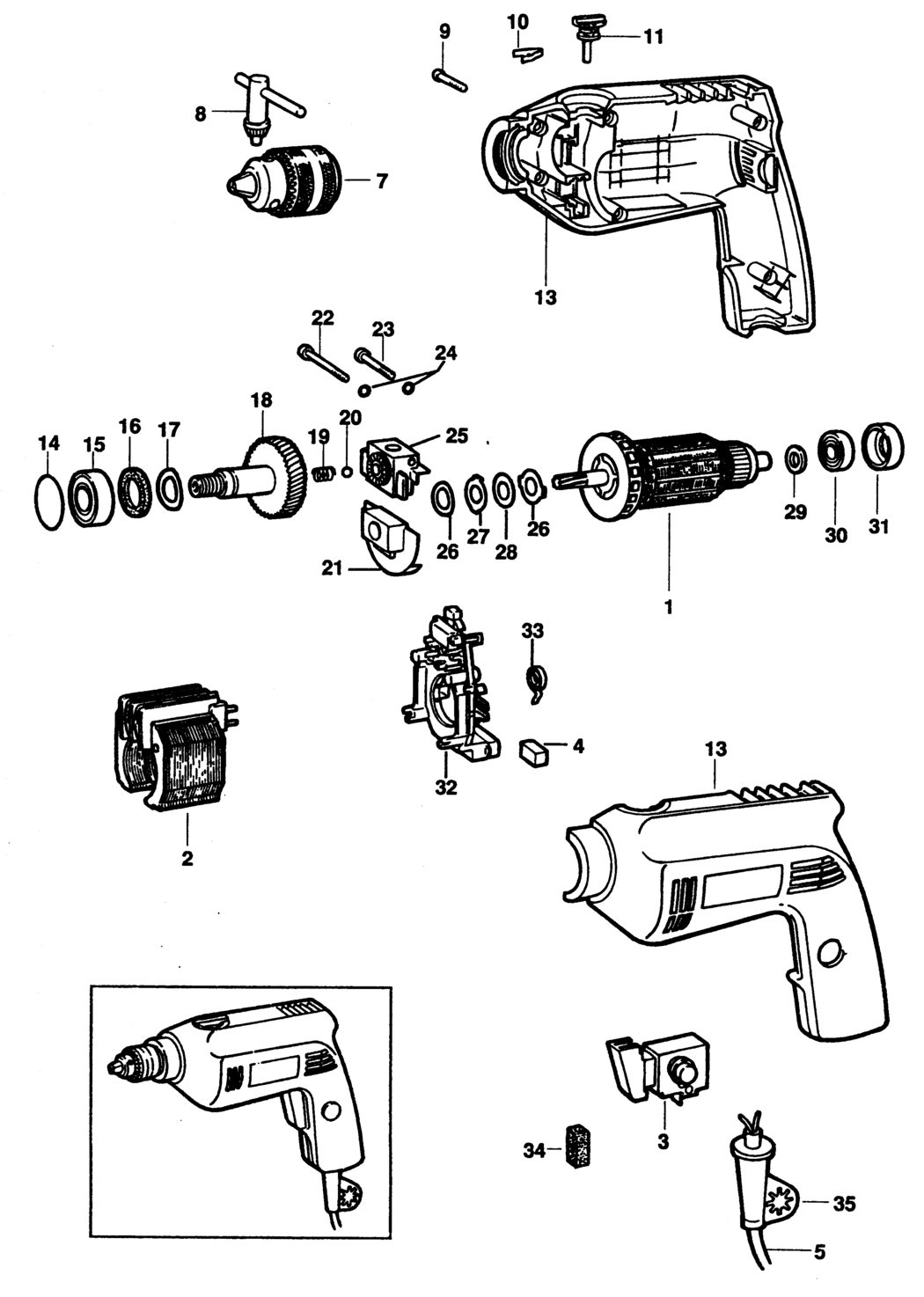

An exploded drawing and spare parts listing for the Black & Decker PL10 Type 1 Hammer Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A3371 000000-00	-
2 - FIELD BDE-939818-00.A14 939818-00	£17.48	£20.97
3 - NO LONGER AVAILABLE BDE-000000-00.A3372 000000-00	-
4 - BRUSH 230V BDE-931235-00.A32 931235-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A3373 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A3374 000000-00	-
8 - CHUCK KEY BDE-330034-07.A430 330034-07	£1.66	£1.99
9 - SCREW BDE-930079-01.A61 930079-01	£1.66	£1.99
10 - NO LONGER AVAILABLE BDE-000000-00.A3375 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A3376 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A3377 000000-00	-
15 - BEARING BDE-605040-25.A116 605040-25	£4.83	£5.80
16 - NO LONGER AVAILABLE BDE-000000-00.A3378 000000-00	-
17 - O RING BDE-930028-00.A276 930028-00	£1.66	£1.99
19 - NO LONGER AVAILABLE BDE-000000-00.A3379 000000-00	-
20 - BALL BDE-930012.A24 930012	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A3380 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A3381 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A3382 000000-00	-
24 - WASHER BDE-932839-00.A7 932839-00	£1.66	£1.99
25 - NO LONGER AVAILABLE BDE-000000-00.A3383 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A3384 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A3385 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A3386 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A3387 000000-00	-
30 - BEARING BDE-330003-02.A225 330003-02	-
31 - HOLDER BEARING BDE-930029-00.A21 930029-00	£1.66	£1.99
32 - NO LONGER AVAILABLE BDE-000000-00.A3388 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A3389 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A3390 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A3391 000000-00	-
