Black & Decker GW3031BP Type 1 Blower Vac Spare Parts

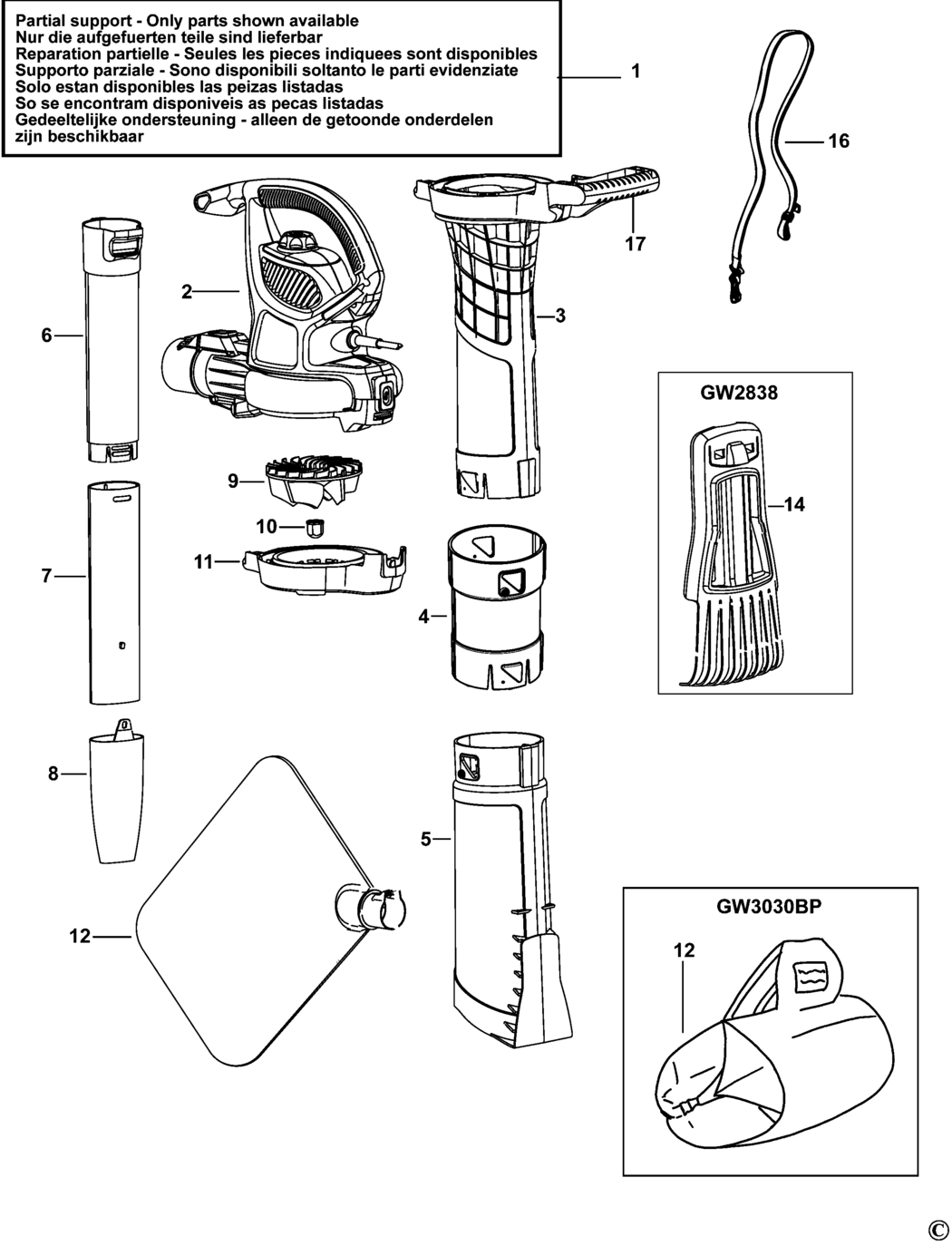

An exploded drawing and spare parts listing for the Black & Decker GW3031BP Type 1 Blower Vac

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A349 000000-05	-
2 - TUBE UPPER BDE-90593149.A2 90593149	£16.03	£19.24
3 - TUBE SUPPORT BDE-90583879.A7 90583879	£3.80	£4.56
4 - TUBE LOWER BDE-90583878-01.A4 90583878-01	£10.85	£13.02
6 - TUBE UPPER BDE-90519931.A8 90519931	£3.80	£4.56
7 - TUBE BDE-90519932.A0 90519932	£3.30	£3.96
8 - TUBE LOWER BDE-90520039.A8 90520039	£1.50	£1.80
9 - FAN SA BDE-90593175.A3 90593175	£14.57	£17.48
10 - LOCK-NUT BDE-90556361.A4 90556361	£1.50	£1.80
11 - FAN COVER BDE-90582451.A5 90582451	£7.18	£8.62
12 - BAG SA BDE-N510995.A1 N510995	£51.90	£62.28
14 - RAKE BDE-90516147.A4 90516147	£5.88	£7.06
16 - STRAP BDE-90593139.A4 90593139	£7.18	£8.62

Attribute Name	Value
Brand	Black & Decker
