Black & Decker LM2000 Type 1 Cordless Mower Spare Parts

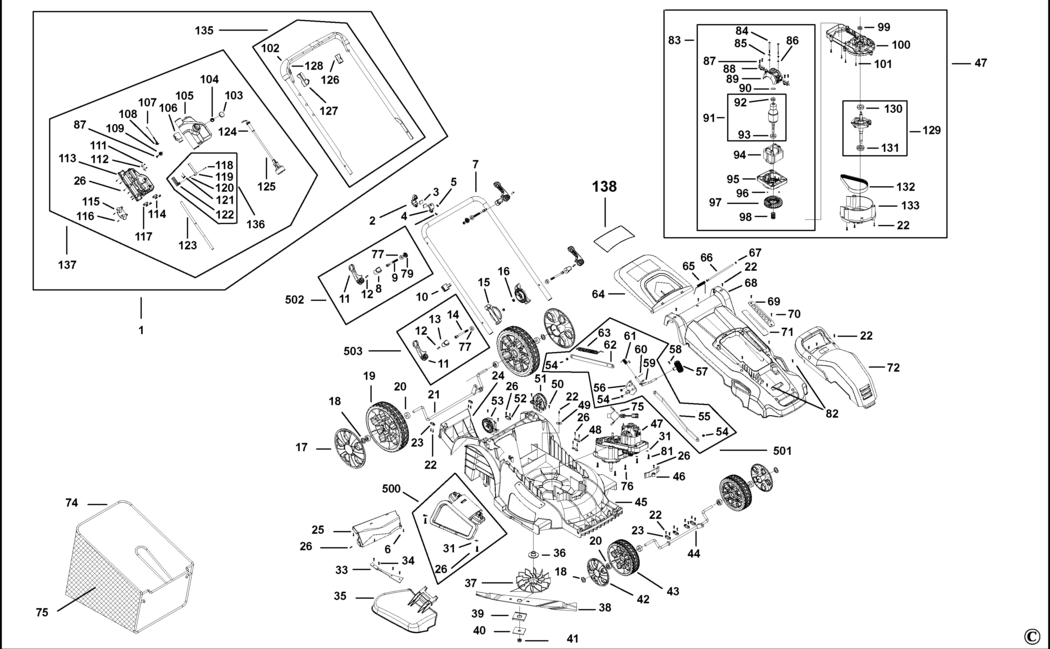

An exploded drawing and spare parts listing for the Black & Decker LM2000 Type 1 Cordless Mower

	Ex VAT	Inc VAT
1 - HANDLE SA BDE-1004728-73 1004728-73	£73.58	£88.30
2 - COVER BDE-1004705-83.A1 1004705-83	£1.66	£1.99
3 - GASKET BDE-1004705-84.A1 1004705-84	£1.66	£1.99
4 - COVER BDE-1004705-85.A1 1004705-85	£1.66	£1.99
5 - SCREW BDE-1004728-88 1004728-88	£1.66	£1.99
6 - SCREW BDE-1004707-03.A1 1004707-03	£1.66	£1.99
7 - LOWER HANDLE BDE-1004728-77 1004728-77	£19.48	£23.37
8 - SEAT BDE-1004705-89.A0 1004705-89	£1.66	£1.99
9 - CONNECTING ROD BDE-1004705-91.A1 1004705-91	£1.66	£1.99
10 - CABLE GUIDE BDE-1004705-95.A1 1004705-95	£1.66	£1.99
11 - FASTENER BDE-1004729-66 1004729-66	£6.06	£7.27
12 - PIN BDE-1004705-88.A1 1004705-88	£1.66	£1.99
13 - SEAT BDE-1004705-98.A0 1004705-98	£1.66	£1.99
14 - CONNECTING ROD BDE-1004706-00.A1 1004706-00	£1.66	£1.99
15 - ADJUSTER BDE-1004706-01.A0 1004706-01	£2.87	£3.44
16 - NUT BDE-1004695-01.A2 1004695-01	£1.66	£1.99
17 - COVER BDE-1004706-02.A1 1004706-02	£2.87	£3.44
18 - RETAINER BDE-1004706-03.A0 1004706-03	£1.66	£1.99
19 - WHEEL REAR BDE-1004706-05.A0 1004706-05	£19.48	£23.37
20 - COLLAR BDE-1004706-04.A1 1004706-04	£1.66	£1.99
21 - AXLE REAR BDE-1004706-06.A1 1004706-06	£15.01	£18.01
22 - SCREW BDE-1004728-89.A1 1004728-89	£1.66	£1.99
23 - RETAINING PLATE BDE-1004706-07.A1 1004706-07	£1.66	£1.99
24 - INSERT BDE-1004706-10.A1 1004706-10	£9.69	£11.63
25 - GUIDE BDE-1004706-18.A1 1004706-18	£6.06	£7.27
26 - SCREW BDE-1004707-27.A1 1004707-27	£1.66	£1.99
31 - WASHER BDE-1004706-12.A1 1004706-12	£1.66	£1.99
33 - PLATE BDE-1004706-78.A2 1004706-78	£2.32	£2.78
34 - SCREW BDE-1004728-25.A1 1004728-25	£1.66	£1.99
35 - SIDE EXTRUSION BDE-1004728-34.A1 1004728-34	£12.53	£15.04
36 - SLEEVE BDE-1004729-11 1004729-11	£7.40	£8.88
37 - FAN BDE-1004728-97 1004728-97	£12.53	£15.04
38 - BLADE BDE-1004706-29.A1 1004706-29	£19.48	£23.37
39 - BOARD BDE-1004728-98 1004728-98	£1.66	£1.99
40 - COVER BDE-1004729-12 1004729-12	£1.66	£1.99
41 - NUT BDE-1004729-13 1004729-13	£1.66	£1.99
42 - COVER BDE-1004706-32.A1 1004706-32	£1.66	£1.99
43 - WHEEL FRONT BDE-1004706-33.A0 1004706-33	£12.53	£15.04
44 - AXLE FRONT BDE-1004706-34.A1 1004706-34	£15.01	£18.01
45 - CHASSIS BDE-1004728-80 1004728-80	£128.92	£154.70
46 - SCREEN BDE-1004729-00 1004729-00	£1.66	£1.99
47 - MOTOR SA BDE-1004728-91 1004728-91	£161.89	£194.27
48 - RETAINING PLATE BDE-1004706-38.A1 1004706-38	£1.66	£1.99
49 - WASHER BDE-1004706-64.A0 1004706-64	£1.66	£1.99
50 - SCREW BDE-1004728-28.A1 1004728-28	£1.66	£1.99
51 - GEAR BDE-1004706-13.A0 1004706-13	£6.06	£7.27
52 - CLAMP BDE-1004728-94 1004728-94	£1.66	£1.99
53 - GEAR BDE-1004706-11.A0 1004706-11	£6.06	£7.27
54 - NUT BDE-1004706-57.A2 1004706-57	£1.66	£1.99
55 - CONNECTING ROD BDE-1004728-95 1004728-95	£7.40	£8.88
56 - SUPPORT PLATE BDE-1004706-58.A0 1004706-58	£7.40	£8.88
57 - ELEVATING HANDLE BDE-1004706-66.A0 1004706-66	£1.88	£2.26
58 - SCREW BDE-1004706-65.A2 1004706-65	£1.66	£1.99
59 - LINK BDE-1004706-59.A2 1004706-59	£3.92	£4.70
60 - COTTER PIN BDE-1004706-61.A2 1004706-61	£1.66	£1.99
61 - SPRING TORSION BDE-1004706-60.A0 1004706-60	£1.66	£1.99
62 - CONNECTING ROD BDE-1004729-02 1004729-02	£6.06	£7.27
63 - SPRING TORSION BDE-1004706-63.A2 1004706-63	£1.66	£1.99
64 - GRASSFLAP BDE-1004728-81 1004728-81	£18.00	£21.60
65 - SPRING TORSION BDE-1004706-83.A2 1004706-83	£1.66	£1.99
66 - SHAFT BDE-1004728-51.A1 1004728-51	£2.32	£2.78
67 - CIRCLIP BDE-1004706-74.A2 1004706-74	£1.66	£1.99
68 - HOUSING UPPER BDE-1004729-19 1004729-19	£48.48	£58.17
69 - ADJUSTER PLATE BDE-1004706-54.A0 1004706-54	£3.92	£4.70
70 - SCREW BDE-1004706-55.A1 1004706-55	£1.66	£1.99
71 - SLEEVE BDE-1004706-53.A2 1004706-53	£1.66	£1.99
72 - COVER BDE-1004729-03 1004729-03	£19.48	£23.37
73 - GRASSBAG BDE-1004728-09.A1 1004728-09	£48.48	£58.17
74 - FRAME BDE-1004705-97.A1 1004705-97	£19.48	£23.37
75 - BATTERY CONNECTOR BDE-1004728-84 1004728-84	£1.66	£1.99
76 - SCREW BDE-1004729-14 1004729-14	£1.66	£1.99
77 - PAD BDE-1004729-04 1004729-04	£1.66	£1.99
79 - LOCK KNOB BDE-1004707-39.A2 1004707-39	£7.40	£8.88
81 - SCREW BDE-1004729-18 1004729-18	£1.66	£1.99
82 - SCREW BDE-1004728-62.A1 1004728-62	£1.66	£1.99
83 - MOTOR BDE-1004728-90 1004728-90	£122.90	£147.48
84 - SCREW BDE-1004729-51 1004729-51	£1.66	£1.99
85 - WASHER SPRING BDE-1004729-52 1004729-52	£1.66	£1.99
86 - GASKET BDE-1004729-53 1004729-53	£1.66	£1.99
87 - SCREW BDE-1004728-85 1004728-85	£1.66	£1.99
88 - BRUSH PAIR BDE-1004729-05 1004729-05	£6.06	£7.27
89 - SUPPORT BDE-1004729-54 1004729-54	£3.92	£4.70
90 - WASHER SPRING BDE-1004729-50 1004729-50	£1.66	£1.99
91 - ARMATURE SA BDE-1004729-30 1004729-30	£48.48	£58.17
92 - BEARING BDE-1004729-48 1004729-48	£2.87	£3.44
93 - BEARING BDE-1004729-49 1004729-49	£2.87	£3.44
94 - FIELD BDE-1004729-01 1004729-01	£38.48	£46.17
95 - COVER BDE-1004729-55 1004729-55	£7.40	£8.88
96 - NUT BDE-1004729-56 1004729-56	£1.66	£1.99
97 - FAN BDE-1004730-16 1004730-16	£2.87	£3.44
98 - WHEEL BDE-1004729-47 1004729-47	£3.92	£4.70
99 - BEARING BDE-1004729-57 1004729-57	£1.66	£1.99
100 - FRAME BDE-1004729-58 1004729-58	£15.01	£18.01
101 - SCREW BDE-1004729-59 1004729-59	£1.66	£1.99
102 - FOAM BDE-1004705-56.A0 1004705-56	£2.87	£3.44
103 - BUTTON BDE-1004705-58.A2 1004705-58	£1.66	£1.99
104 - SPRING BDE-1004705-59.A0 1004705-59	£1.66	£1.99
105 - SWITCH COVER BDE-1004728-75 1004728-75	£1.66	£1.99
106 - SWITCH BDE-1004728-76 1004728-76	£7.40	£8.88
107 - CABLE BDE-1004729-38 1004729-38	£2.32	£2.78
108 - HOOK BDE-1004729-36.A0 1004729-36	£25.12	£30.15
109 - BOTTOM PLATE BDE-1004705-64.A2 1004705-64	£1.66	£1.99
111 - BOLT BDE-5170016-95.A2 5170016-95	£1.66	£1.99
112 - GUIDE BDE-1004705-75.A2 1004705-75	£1.66	£1.99
113 - SWITCH COVER BDE-1004728-82 1004728-82	£7.40	£8.88
115 - GUIDE BLOCK BDE-1004728-83 1004728-83	£1.66	£1.99
116 - SCREW BDE-1004728-86 1004728-86	£1.66	£1.99
117 - CABLE CLAMP BDE-1004705-79.A2 1004705-79	£1.66	£1.99
118 - SCREW BDE-1004694-84.A0 1004694-84	£1.66	£1.99
119 - CATCHPLATE BDE-1004694-83.A2 1004694-83	£1.66	£1.99
120 - NUT BDE-1004694-87.A2 1004694-87	£1.66	£1.99
121 - SPRING TORSION BDE-1004694-85.A2 1004694-85	£1.66	£1.99
122 - GUIDE BDE-1004729-37.A1 1004729-37	£1.66	£1.99
123 - CABLE BDE-1004729-10 1004729-10	£9.69	£11.63
124 - CORD PROTECTOR BDE-1004728-87 1004728-87	£1.66	£1.99
126 - SLEEVE INSULATING BDE-1004729-07 1004729-07	£3.39	£4.07
127 - SUPPORT BDE-1004729-08 1004729-08	£1.66	£1.99
128 - BAR BDE-1004729-09 1004729-09	£8.08	£9.70
129 - BRAKE SA BDE-1004729-64 1004729-64	£19.48	£23.37
130 - BEARING BDE-1004729-60 1004729-60	£3.92	£4.70
131 - BEARING BDE-1004729-61 1004729-61	£3.92	£4.70
132 - BELT BDE-1004728-92 1004728-92	£7.40	£8.88
133 - BASEPLATE BDE-1004729-62 1004729-62	£7.40	£8.88
134 - SCREW BDE-1004728-89.A0 1004728-89	£1.66	£1.99
135 - HANDLE SA BDE-1004729-35 1004729-35	£38.48	£46.17
136 - SWITCH LOCK-ON BDE-1004729-32 1004729-32	£2.87	£3.44
137 - SWITCHBOX SA BDE-1004729-63 1004729-63	£39.97	£47.96
500 - OUTLET BDE-1004729-28 1004729-28	£18.00	£21.60
501 - ADJUSTER HEIGHT BDE-1004729-29 1004729-29	£25.12	£30.15
502 - CLAMP SA BDE-1004729-33 1004729-33	£9.69	£11.63
503 - CLAMP SA BDE-1004729-34 1004729-34	£15.01	£18.01
