Black & Decker KS888E Type 1 Jigsaw Spare Parts

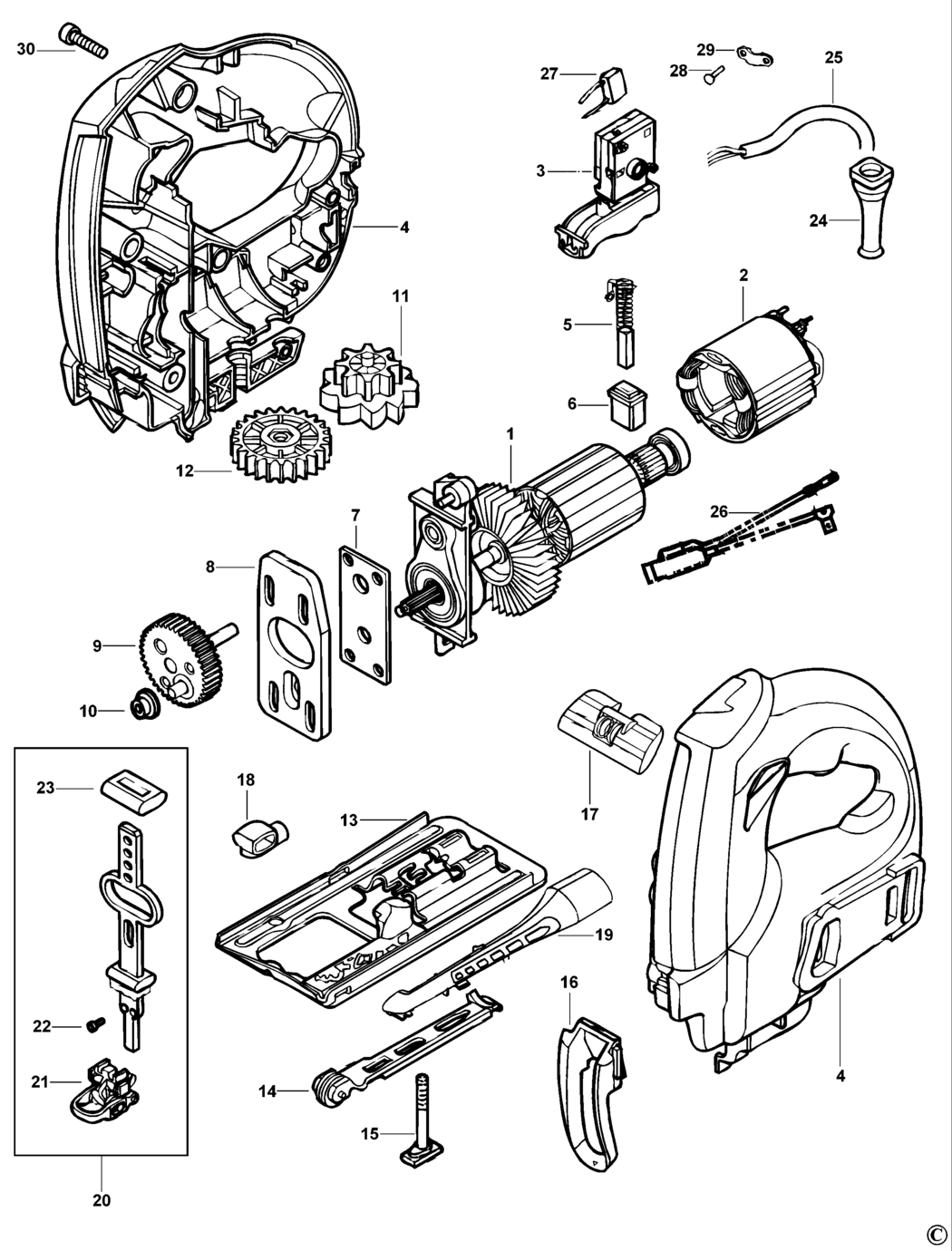

An exploded drawing and spare parts listing for the Black & Decker KS888E Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A124729 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A124730 000000-00	-
3 - SWITCH SA BDE-582779-00 582779-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A124731 000000-00	-
5 - BRUSH & SPRING 230V BDE-582761-00.A3 582761-00	-
6 - BRUSHBOX BDE-582696-00.A6 582696-00	£2.32	£2.78
7 - NO LONGER AVAILABLE BDE-000000-00.A124732 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A124733 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A124734 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A124735 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A124736 000000-00	-
12 - GEAR SA BDE-582768-00.A3 582768-00	£1.66	£1.99
13 - SHOE SA BDE-582596-00 582596-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A124741 000000-00	-
15 - LOCKING SCREW BDE-582600-00.A0 582600-00	£1.66	£1.99
16 - NO LONGER AVAILABLE BDE-000000-00.A124737 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A124738 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A124739 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A124740 000000-00	-
20 - SHAFT SA BDE-583826-00 583826-00	£9.17	£11.00
21 - BLADE CLAMP BDE-582593-00.A24 582593-00	£5.82	£6.99
22 - SCREW BDE-583173-00.A1 583173-00	£1.66	£1.99
23 - BEARING BDE-810893.A42 810893	£1.66	£1.99
24 - PROTECTOR BDE-770235.A208 770235	£1.66	£1.99
25 - CORDSET GB BDE-330060-53.A204 330060-53	£10.85	£13.02
26 - NO LONGER AVAILABLE BDE-000000-00.A124742 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A124743 000000-00	-
28 - SCREW BDE-370748.A107 370748	£1.66	£1.99
29 - CORD CLAMP BDE-821070.A103 821070	£1.66	£1.99
30 - SCREW BDE-809961.A12 809961	-
