Black & Decker KC8402 Type 1 Cordless Drill Spare Parts

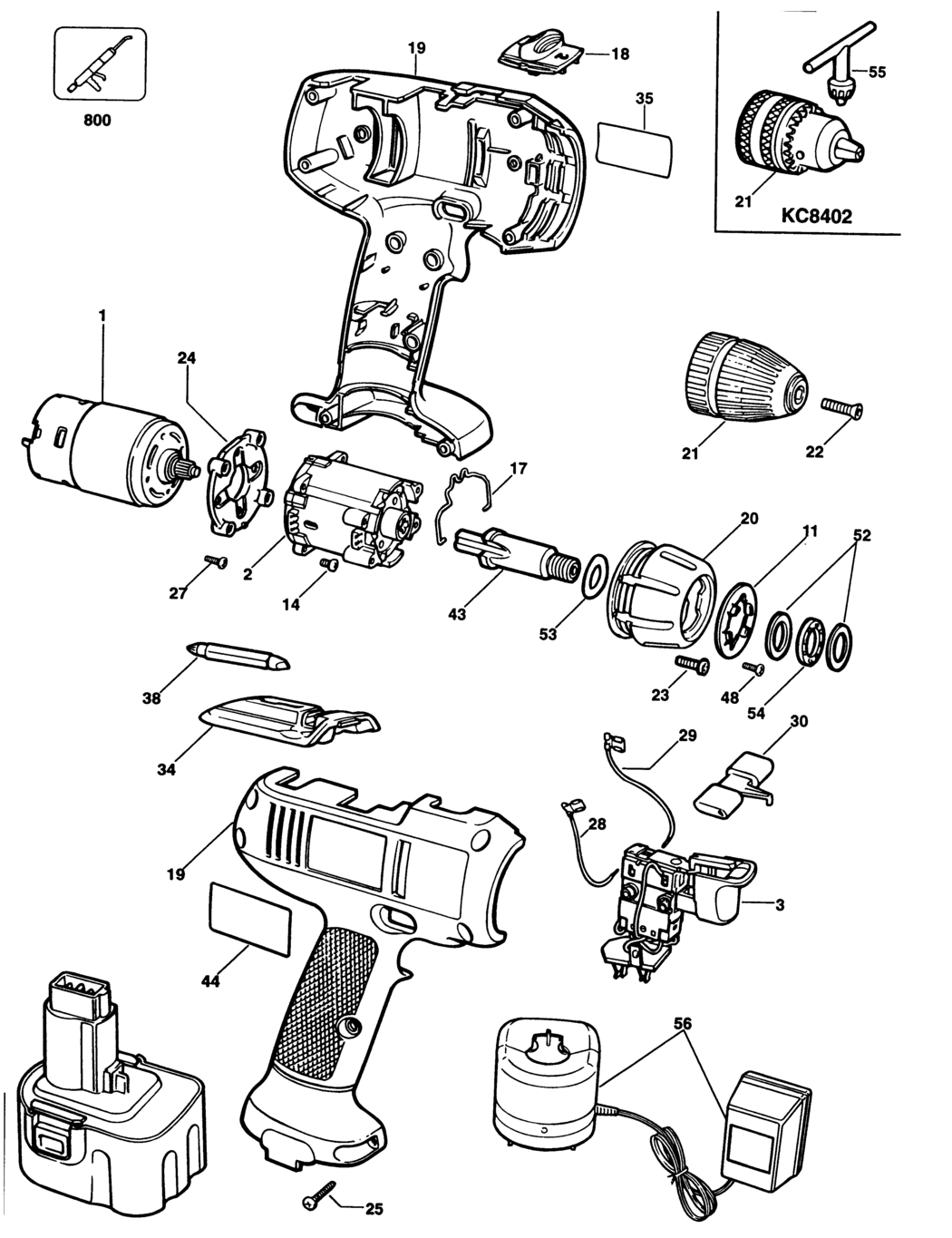

An exploded drawing and spare parts listing for the Black & Decker KC8402 Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A33176 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A33177 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A33178 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A33179 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A33180 000000-00	-
17 - SPRING BDE-799024.A100 799024	-
18 - NO LONGER AVAILABLE BDE-000000-00.A33184 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A33185 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A33186 000000-00	-
21 - NO LONGER AVAILABLE KC8402 BDE-000000-00.A33187 000000-00	-
21 - NO LONGER AVAILABLE KC8402C BDE-000000-00.A33188 000000-00	-
22 - SCREW.SPECIAL BDE-805434.A256 805434	£1.66	£1.99
23 - NO LONGER AVAILABLE BDE-000000-00.A33196 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A33197 000000-00	-
25 - SCREW BDE-330013-04.A21 330013-04	-
27 - NO LONGER AVAILABLE UPTO DC 9648 BDE-000000-00.A33198 000000-00	-
27 - SCREW FROM DC 9649 BDE-808821.A12 808821	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A33189 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A33190 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A33191 000000-00	-
34 - NO LONGER AVAILABLE KC8402 BDE-000000-00.A33192 000000-00	-
34 - NO LONGER AVAILABLE KC8402C BDE-000000-00.A33193 000000-00	-
35 - NO LONGER AVAILABLE KC8402 BDE-000000-00.A33194 000000-00	-
35 - NO LONGER AVAILABLE KC8402C BDE-000000-00.A33195 000000-00	-
38 - BIT PHILLIPS BDE-297757-02.A285 297757-02	£1.82	£2.19
43 - NO LONGER AVAILABLE BDE-000000-00.A33199 000000-00	-
44 - NO LONGER AVAILABLE KC8402C BDE-000000-00.A33200 000000-00	-
48 - SCREW BDE-808821.A11 808821	£1.66	£1.99
52 - NO LONGER AVAILABLE BDE-000000-00.A33208 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A33209 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A33210 000000-00	-
55 - CHUCK KEY 10MM KC8402 BDE-330034-00.A30 330034-00	-
56 - NO LONGER AVAILABLE GB BDE-000000-00.A33226 000000-00	-
800 - GREASE 100 GMS BDE-808386-00.A259 808386-00	£55.30	£66.36
826 - NO LONGER AVAILABLE BDE-000000-00.A33201 000000-00	-
866 - NO LONGER AVAILABLE BDE-000000-00.A33202 000000-00	-

Attribute Name	Value
Brand	Black & Decker
