Black & Decker KA198GT Type 1 Random Orbit Sander Spare Parts

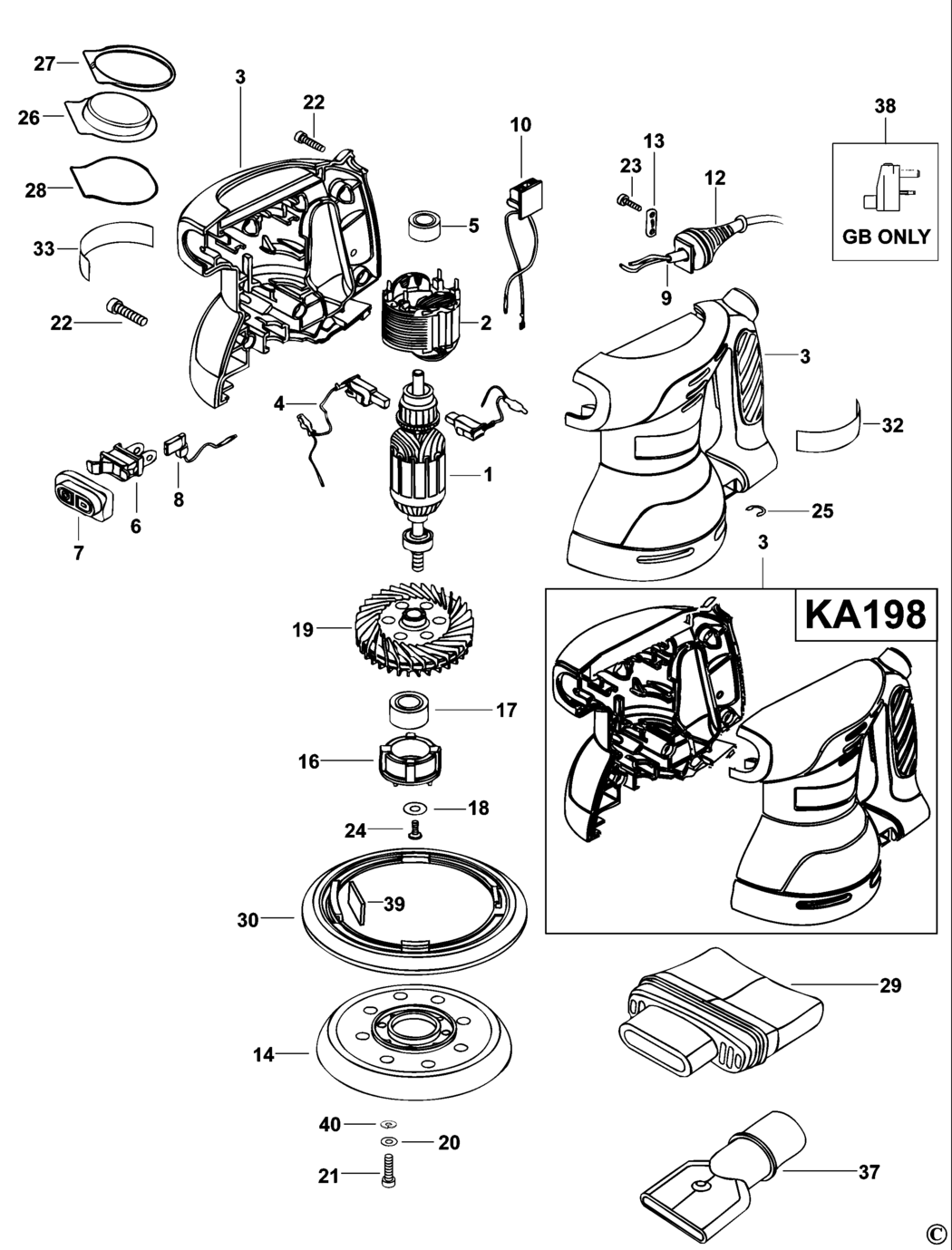

An exploded drawing and spare parts listing for the Black & Decker KA198GT Type 1 Random Orbit Sander

	Ex VAT	Inc VAT
1 - ARMATURE SA BDE-589430-00.A1 589430-00	£24.39	£29.27
2 - FIELD SA BDE-589431-00.A1 589431-00	£12.17	£14.60
3 - NO LONGER AVAILABLE BDE-000000-00.A92295 000000-00	-
4 - BRUSH & HOLDER SA BDE-584751-00.A10 584751-00	£7.18	£8.62
5 - BEARING BDE-574853-06.A18 574853-06	£2.26	£2.71
6 - SWITCH BDE-579050-00.A14 579050-00	£1.50	£1.80
7 - ACTUATOR BDE-808495-04.A0 808495-04	£1.50	£1.80
8 - LEAD SA BDE-389602-02.A2 389602-02	£1.50	£1.80
9 - CORDSET (EURO) GB BDE-90578995-47.A0 90578995-47	£7.85	£9.42
10 - PCB SA BDE-588549-00.A0 588549-00	£3.30	£3.96
12 - CORD PROTECTOR BDE-148481-00.A6 148481-00	£1.50	£1.80
13 - CORD CLAMP BDE-329301-00.A94 329301-00	£1.50	£1.80
14 - PLATEN > 2009-30 BDE-587295-01.A1 587295-01	£12.17	£14.60
14 - PLATE KIT < 2009-29 BDE-1004522-00.A0 1004522-00	£14.57	£17.48
16 - BEARING HOUSING BDE-587297-00.A1 587297-00	£1.50	£1.80
17 - BEARING BDE-574853-05.A0 574853-05	£3.30	£3.96
18 - WASHER SPECIAL BDE-151652-00.A17 151652-00	£1.50	£1.80
19 - COUNTERWEIGHT BDE-587298-00.A1 587298-00	£7.85	£9.42
20 - WASHER BDE-330016-01.A69 330016-01	£1.50	£1.80
21 - SCREW BDE-330019-02.A47 330019-02	£1.50	£1.80
22 - SCREW BDE-747329.A900 747329	£1.50	£1.80
23 - SCREW BDE-370748.A64 370748	£1.50	£1.80
24 - SCREW BDE-388405-00.A0 388405-00	£1.50	£1.80
25 - RETAINER BDE-122198-00.A0 122198-00	£1.50	£1.80
26 - NO LONGER AVAILABLE BDE-000000-00.A92296 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A92297 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A92298 000000-00	-
29 - DUSTBAG BDE-587299-01.A1 587299-01	£4.69	£5.63
30 - SKIRT BDE-587461-00.A2 587461-00	£1.50	£1.80
32 - BRAND LABEL BDE-587695-00.A1 587695-00	£1.50	£1.80
33 - NO LONGER AVAILABLE BDE-000000-00.A92299 000000-00	-
37 - VACUUM ADAPTOR BDE-587561-00.A1 587561-00	£1.50	£1.80
38 - ADAPTOR SA GB BDE-588384-00.A26 588384-00	-
39 - BRAKE BDE-579065-00.A2 579065-00	£1.50	£1.80
40 - WASHER LOCK BDE-098197-11.A1 098197-11	£1.50	£1.80
