Black & Decker KD960 Type 3 Rotary Hammer Spare Parts

Home Details Reviews Delivery

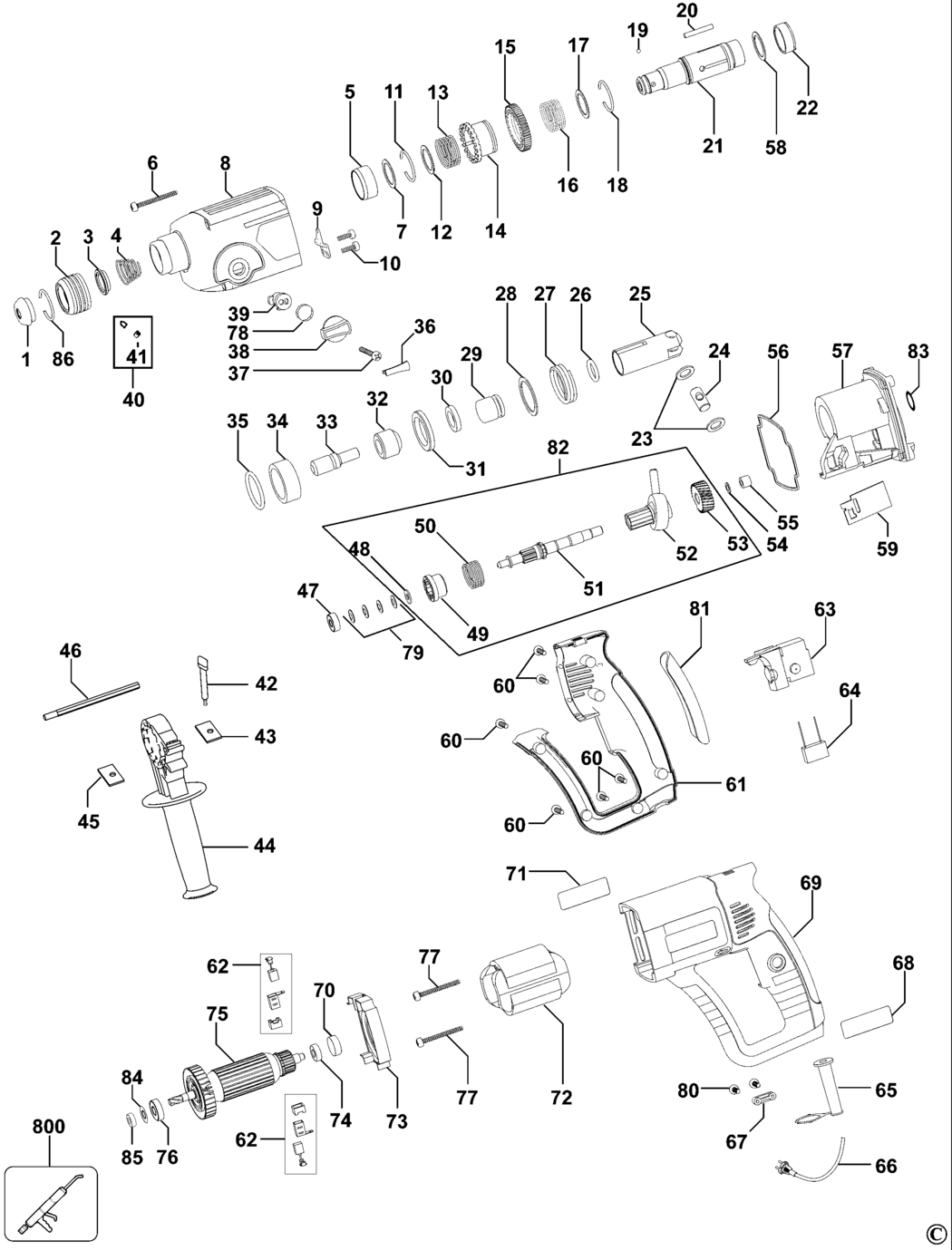

An exploded drawing and spare parts listing for the Black & Decker KD960 Type 3 Rotary Hammer

	Ex VAT	Inc VAT
1 - COVER BDE-569381-00.A6 569381-00	£1.66	£1.99
2 - COVER BDE-569382-00.A4 569382-00	£1.66	£1.99
3 - NO LONGER AVAILABLE BDE-000000-00.A129340 000000-00	-
4 - SPRING BDE-569384-00.A6 569384-00	-
5 - BEARING BDE-90553475.A12 90553475	£4.83	£5.80
6 - NO LONGER AVAILABLE BDE-000000-00.A129341 000000-00	-
7 - WASHER BDE-90553476.A7 90553476	£1.66	£1.99
8 - NO LONGER AVAILABLE BDE-000000-00.A129339 000000-00	-
9 - BRAKE BDE-90553471.A12 90553471	£1.66	£1.99
10 - SCREW BDE-90553472.A7 90553472	£1.66	£1.99
11 - RING BDE-90553477.A12 90553477	£1.66	£1.99
12 - RING BDE-90553478.A7 90553478	£1.66	£1.99
13 - SPRING BDE-90553479.A12 90553479	£1.66	£1.99
14 - SLEEVE BDE-90553480.A7 90553480	£7.18	£8.62
15 - GEAR BDE-90553481.A12 90553481	£7.18	£8.62
16 - SPRING BDE-90553482.A7 90553482	£1.66	£1.99
17 - RING BDE-90553483.A12 90553483	£1.66	£1.99
18 - RING BDE-90553484.A7 90553484	£1.66	£1.99
19 - BALL STEEL BDE-90550363.A19 90550363	£1.66	£1.99
20 - PIN BDE-90553487.A10 90553487	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A129342 000000-00	-
22 - SEAL BDE-569402-00.A10 569402-00	£7.01	£8.41
23 - WASHER BDE-90549884.A19 90549884	£1.66	£1.99
24 - PIN BDE-90553557.A19 90553557	£3.92	£4.70
25 - CYLINDER BDE-90553506.A2 90553506	£7.85	£9.42
26 - O RING BDE-569406-00.A1 569406-00	£1.66	£1.99
27 - NO LONGER AVAILABLE BDE-000000-00.A129343 000000-00	-
28 - RING BDE-569408-00.A10 569408-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A129344 000000-00	-
30 - O RING BDE-569410-00.A0 569410-00	£1.66	£1.99
31 - O RING BDE-569411-00.A10 569411-00	£1.66	£1.99
32 - SLEEVE BDE-569412-00.A0 569412-00	£1.78	£2.13
33 - NO LONGER AVAILABLE BDE-000000-00.A129345 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A129346 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A129347 000000-00	-
36 - COVER BDE-569416-00.A9 569416-00	£1.66	£1.99
37 - NO LONGER AVAILABLE BDE-000000-00.A129353 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A129354 000000-00	-
39 - REVERSER BDE-569419-00.A1 569419-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A129348 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A129349 000000-00	-
42 - LOCKING KNOB BDE-569422-00.A9 569422-00	£1.66	£1.99
43 - WASHER CLAMP BDE-569423-00.A1 569423-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A129350 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A129351 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A129352 000000-00	-
47 - BEARING BDE-90553558.A0 90553558	£2.32	£2.78
48 - RING BDE-90553508.A16 90553508	£1.66	£1.99
49 - CLUTCH BDE-90553510.A19 90553510	£7.40	£8.88
50 - SPRING BDE-90553511.A0 90553511	£1.66	£1.99
51 - NO LONGER AVAILABLE BDE-000000-00.A129355 000000-00	-
52 - BEARING BDE-569432-00.A9 569432-00	-
53 - GEAR BDE-569433-00.A1 569433-00	-
54 - SEAL BDE-569434-00.A9 569434-00	£1.66	£1.99
55 - SEAL BDE-569435-00.A1 569435-00	-
56 - GASKET BDE-569436-00.A9 569436-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A129359 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A129360 000000-00	-
59 - SLIDER BDE-569439-00.A1 569439-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A129356 000000-00	-
61 - NO LONGER AVAILABLE Inc items 61-69-81 BDE-000000-00.A129357 000000-00	-
61 - NO LONGER AVAILABLE BDE-000000-00.A129358 000000-00	-
62 - BRUSH & HOLDER 230V BDE-90592921-01.A7 90592921-01	£7.40	£8.88
63 - SWITCH BDE-569442-00.A8 569442-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A129380 000000-00	-
65 - CORD PROTECTOR BDE-569444-00.A10 569444-00	£1.66	£1.99
66 - NO LONGER AVAILABLE GB BDE-000000-00.A129361 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A129362 000000-00	-
68 - NO LONGER AVAILABLE BDE-000000-00.A129363 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A129364 000000-00	-
69 - NO LONGER AVAILABLE Inc items 61-69-81 BDE-000000-00.A129365 000000-00	-
70 - SLEEVE BEARING BDE-569450-00.A0 569450-00	-
71 - NO LONGER AVAILABLE GB BDE-000000-00.A129366 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A129367 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A129368 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A129369 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A129370 000000-00	-
76 - BEARING BDE-569456-00.A5 569456-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A129381 000000-00	-
78 - RING BDE-569458-00.A5 569458-00	£1.66	£1.99
79 - NO LONGER AVAILABLE BDE-000000-00.A129371 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A129372 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A129373 000000-00	-
81 - NO LONGER AVAILABLE Inc items 61-69-81 BDE-000000-00.A129374 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A129375 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A129376 000000-00	-
84 - NO LONGER AVAILABLE BDE-000000-00.A129377 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A129378 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A129379 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A737 870889-02	£8.08	£9.70

Attribute Name	Value
Brand	Black & Decker
