Black & Decker PL80 Type 1 Sander/grinder Spare Parts

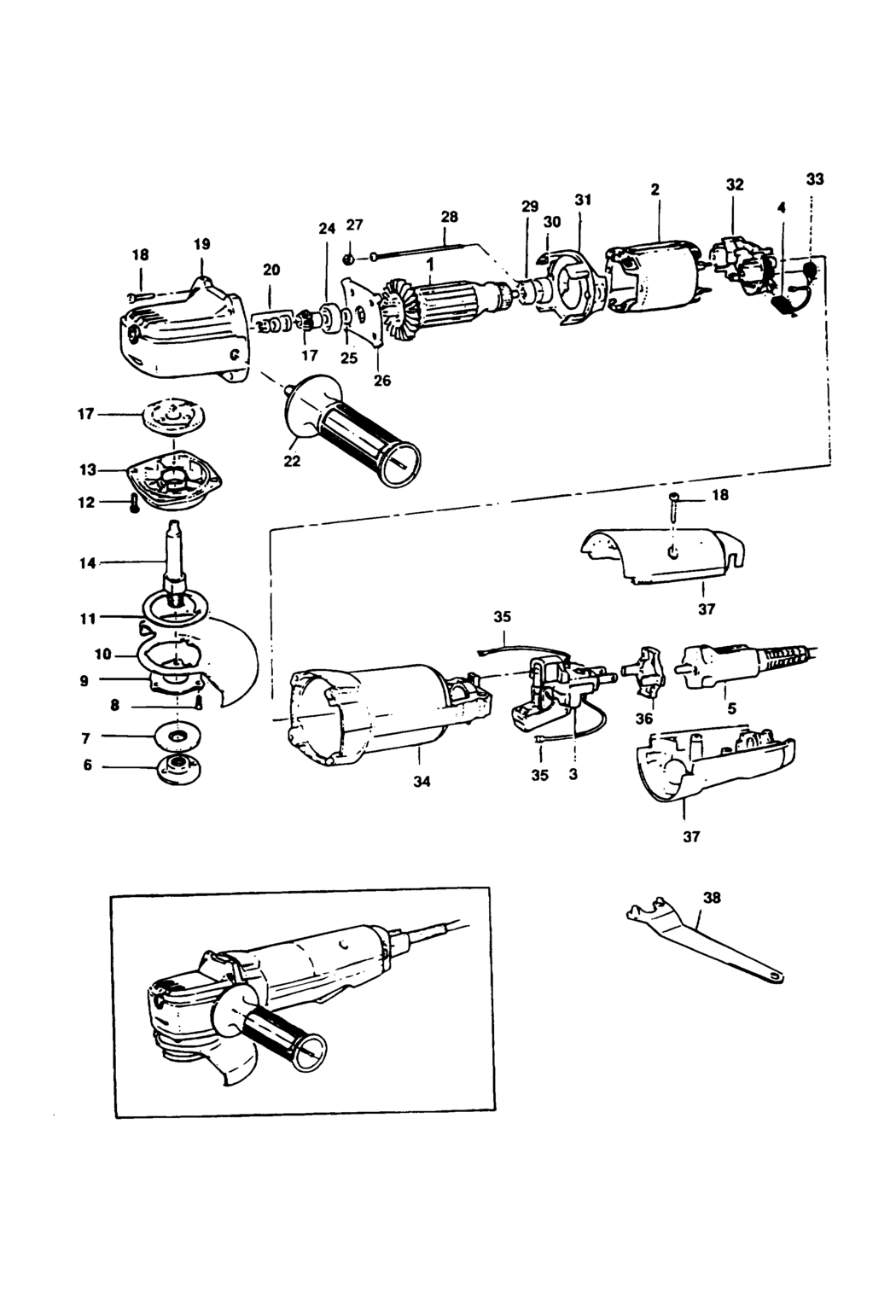

An exploded drawing and spare parts listing for the Black & Decker PL80 Type 1 Sander/grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A3733 000000-00	-
3 - SWITCH BDE-949822-03.A19 949822-03	-
4 - BRUSH 230V BDE-930760-00.A29 930760-00	£5.88	£7.06
5 - NO LONGER AVAILABLE GB BDE-000000-00.A3734 000000-00	-
6 - OUTER FLANGE BDE-403430-00.A10 403430-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A3737 000000-00	-
8 - SCREW BDE-930251-00.A33 930251-00	£1.42	£1.70
10 - NO LONGER AVAILABLE BDE-000000-00.A3735 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A3736 000000-00	-
12 - SCREW BDE-930770-00.A50 930770-00	-
13 - GEARCASE COVER SA BDE-944055.A6 944055	-
14 - NO LONGER AVAILABLE BDE-000000-00.A3738 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A3739 000000-00	-
18 - SCREW BDE-930079-01.A58 930079-01	£1.42	£1.70
19 - NO LONGER AVAILABLE BDE-000000-00.A3740 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A3741 000000-00	-
24 - BEARING BDE-577745-00.A294 577745-00	£7.85	£9.42
25 - WASHER BDE-930753-00.A33 930753-00	£1.50	£1.80
27 - CAP BDE-933657-00.A53 933657-00	£3.22	£3.86
28 - SCREW BDE-930752-00.A54 930752-00	£1.78	£2.13
29 - BEARING BDE-330003-34.A72 330003-34	£24.39	£29.27
30 - HOLDER BEARING BDE-930029-00.A19 930029-00	£1.50	£1.80
31 - NO LONGER AVAILABLE BDE-000000-00.A3748 000000-00	-
32 - BRUSH HOLDER SA BDE-930746-00.A4 930746-00	£3.22	£3.86
33 - BRUSH SPRING BDE-930090-00.A223 930090-00	£1.50	£1.80
34 - NO LONGER AVAILABLE BDE-000000-00.A3742 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A3743 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A3744 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A3745 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A3746 000000-00	-

Attribute Name	Value
Brand	Black & Decker
