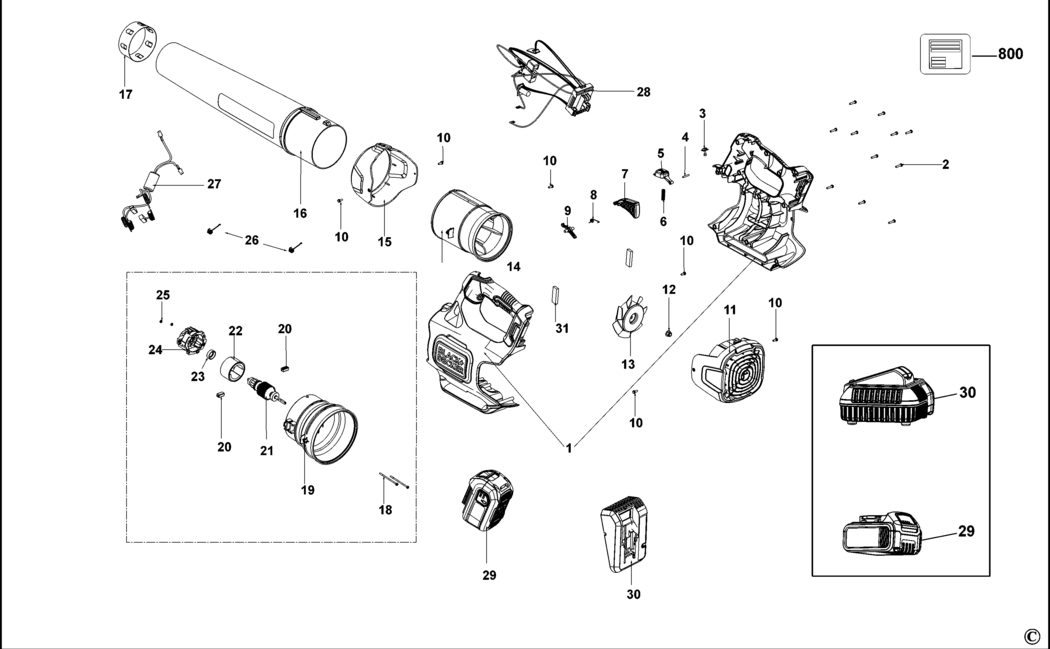

An exploded drawing and spare parts listing for the Black & Decker GWC54PC Type 1 Blower Vac
Ex VAT Inc VAT
1 - HOUSING SA BDE-90642586 90642586 £55.30 £66.36
2 - SCREW BDE-330019-03.A213 330019-03 £1.50 £1.80
3 - LENS BDE-90637061 90637061 £1.50 £1.80
4 - PIN BDE-632492-00.A1 632492-00 £1.50 £1.80
5 - BUTTON BDE-90631428 90631428 £1.50 £1.80
6 - SPRING BDE-90623558.A1 90623558 £1.50 £1.80
7 - SWITCH BDE-90631429 90631429 £1.50 £1.80
8 - SPRING TORSION BDE-90636534 90636534 £1.50 £1.80
9 - LATCH BDE-90633866 90633866 £1.50 £1.80
10 - SCREW.TEMP BDE-330019-01.A67 330019-01 £1.50 £1.80
11 - VENT BDE-90631424 90631424 £17.48 £20.97
12 - NUT BDE-90560803.A1 90560803 £1.50 £1.80
13 - FAN BDE-90631426 90631426 £7.18 £8.62
14 - HOUSING BDE-90631422 90631422 £5.88 £7.06
15 - COLLAR BDE-90631430 90631430 £4.69 £5.63
16 - TUBE BDE-90639358 90639358 £17.48 £20.97
17 - COLLAR BDE-90637872 90637872 £12.17 £14.60
18 - SCREW BDE-90609202 90609202 £1.50 £1.80
19 - BAFFLE FAN BDE-90631425 90631425 £14.57 £17.48
20 - HOLDER BDE-90595882.A1 90595882 £1.50 £1.80
21 - ARMATURE SA BDE-90633865 90633865 £38.80 £46.56
22 - FIELD SA BDE-90580176.A3 90580176 £17.48 £20.97
23 - CAP BDE-90591446 90591446 £1.50 £1.80
24 - BRIDGE BDE-90639040 90639040 £3.30 £3.96
25 - NUT BDE-330015-11 330015-11 £1.50 £1.80
26 - SPRING BRUSH BDE-90619719.A0 90619719 £1.50 £1.80
27 - BRUSH SA BDE-N502794 N502794 £24.39 £29.27
28 - MODULE BDE-N505996 N505996 £104.31 £125.17
29 - BATTERY 54V - 1.5AH - 83WH GB BDE-N694216.A0 N694216 -
30 - CHARGER GB BDE-90642264.A2 90642264 £55.30 £66.36
31 - FOAM BDE-N496799 N496799 £1.50 £1.80
800 - RATING LABEL GB BDE-90641602 90641602 £1.50 £1.80
