Black & Decker GLC1825 Type H1 Cordless String Trimmer Spare Parts

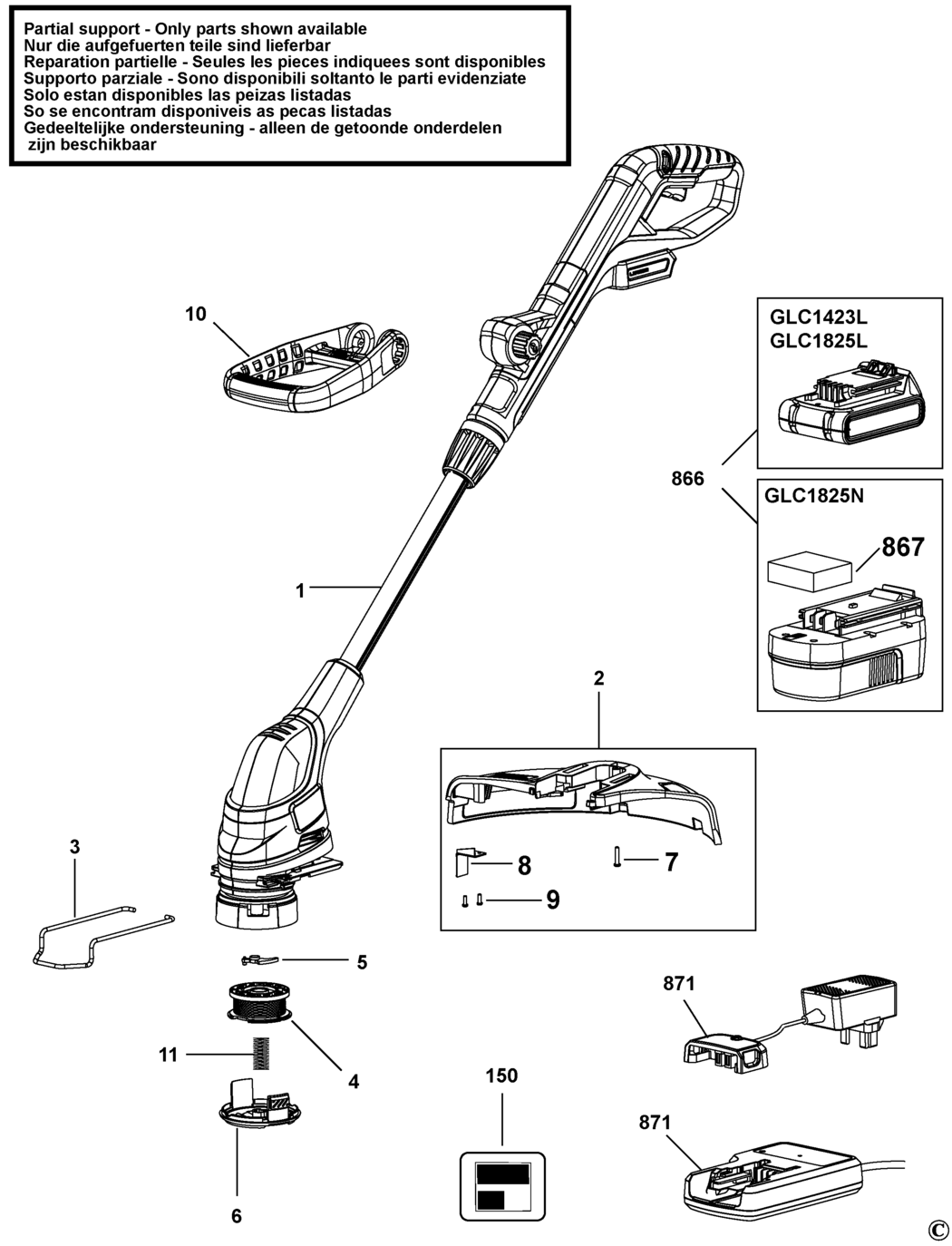

An exploded drawing and spare parts listing for the Black & Decker GLC1825 Type H1 Cordless String Trimmer

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A226 000000-05	-
2 - GUARD SA BDE-90560168.A1 90560168	-
3 - GUIDE BDE-90559835.A7 90559835	£1.66	£1.99
4 - SPOOL & LINE BDE-90564281N.A8 90564281N	£8.08	£9.70
5 - LEVER BDE-90567075.A0 90567075	£1.66	£1.99
6 - COVER SPOOL BDE-385022-03N.A100 385022-03N	£6.06	£7.27
7 - SCREW BDE-747329.A666 747329	£1.66	£1.99
8 - BLADE BDE-90559116.A13 90559116	£1.66	£1.99
9 - SCREW BDE-681914-00.A17 681914-00	£1.66	£1.99
10 - HANDLE SA GLC1825N GB BDE-90562062.A0 90562062	£7.40	£8.88
10 - HANDLE SA GLC1825L GB BDE-90559902.A1 90559902	£9.41	£11.29
11 - SPRING BDE-90566944.A11 90566944	£1.66	£1.99
866 - BATTERY 18V - 1.5AH - 27WH GLC1825N GB BDE-90573366.A0 90573366	£122.02	£146.42
866 - BATTERY 18V - 1.5AH - 27WH GLC1825L GB BDE-90641356.A30 90641356	£80.98	£97.18
867 - CAP GLC1825N BDE-90555391 90555391	£1.66	£1.99
871 - CHARGER SA GLC1825L GB BDE-N588715.A34 N588715	£35.02	£42.02
871 - CHARGER SA GLC1825N GB BDE-90563249.A0 90563249	£24.39	£29.27
