Black & Decker GLC1823L Type 1 Cordless String Trimmer Spare Parts

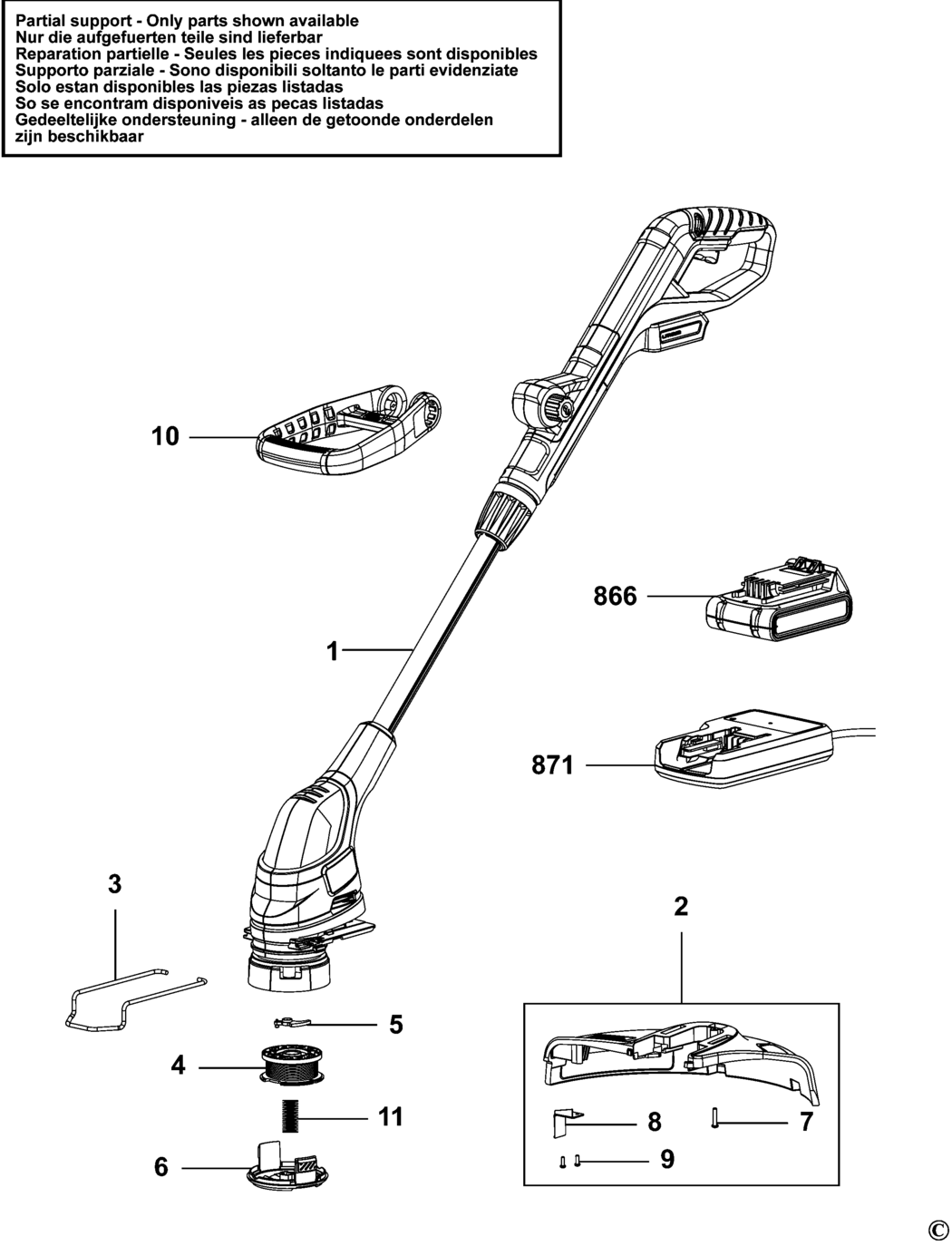

An exploded drawing and spare parts listing for the Black & Decker GLC1823L Type 1 Cordless String Trimmer

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A239 000000-05	-
2 - GUARD SA BDE-90560166.A1 90560166	£9.41	£11.29
3 - GUIDE BDE-90559835.A8 90559835	£1.50	£1.80
4 - SPOOL & LINE BDE-90564281N.A7 90564281N	£7.85	£9.42
5 - LEVER BDE-90567075.A2 90567075	£1.66	£1.99
6 - COVER SPOOL BDE-385022-03N.A140 385022-03N	£5.88	£7.06
7 - SCREW BDE-747329.A656 747329	£1.50	£1.80
8 - BLADE BDE-90559116.A16 90559116	£1.50	£1.80
9 - SCREW BDE-681914-00.A13 681914-00	£1.50	£1.80
10 - HANDLE SA GLC1825L GB BDE-90559902.A2 90559902	£9.41	£11.29
11 - SPRING BDE-90566944.A14 90566944	£1.66	£1.99
866 - BATTERY 18V - 1.5AH - 27WH GLC1825L GB BDE-90641356.A32 90641356	£80.98	£97.18
871 - CHARGER SA GLC1825L GB BDE-N588715.A28 N588715	£34.00	£40.80

Attribute Name	Value
Brand	Black & Decker
