Black & Decker GLC1423 Type H1 Cordless String Trimmer Spare Parts

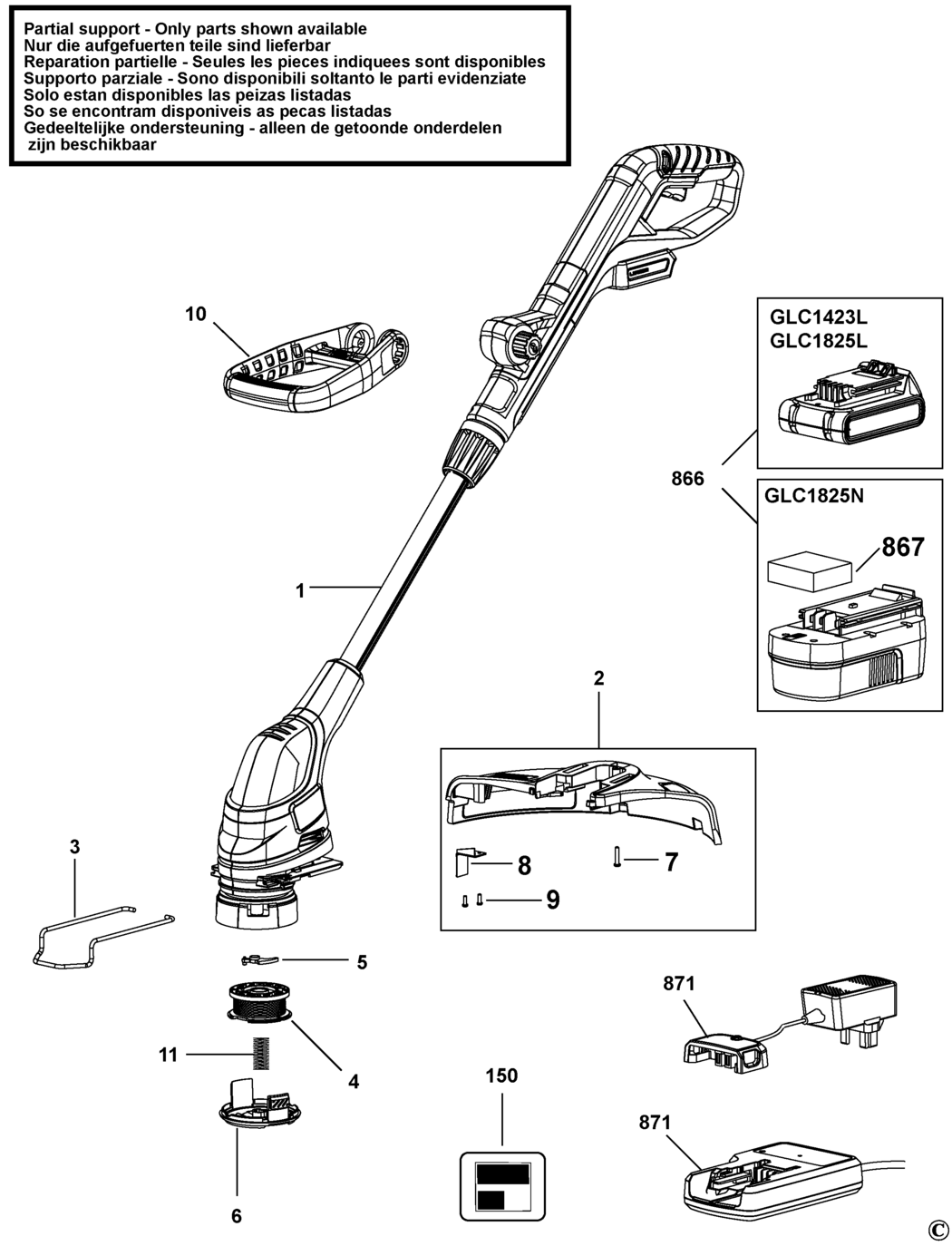

An exploded drawing and spare parts listing for the Black & Decker GLC1423 Type H1 Cordless String Trimmer

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A229 000000-05	-
2 - GUARD SA BDE-90560166.A0 90560166	£9.69	£11.63
3 - GUIDE BDE-90559835.A6 90559835	£1.66	£1.99
4 - SPOOL & LINE BDE-90564281N.A9 90564281N	£8.08	£9.70
5 - LEVER BDE-90567074 90567074	£1.66	£1.99
6 - COVER SPOOL BDE-385022-03N.A101 385022-03N	£6.06	£7.27
7 - SCREW BDE-747329.A665 747329	£1.66	£1.99
8 - BLADE BDE-90559117.A2 90559117	£1.66	£1.99
9 - SCREW BDE-681914-00.A16 681914-00	£1.66	£1.99
10 - HANDLE SA GB BDE-90559902.A0 90559902	£9.41	£11.29
11 - SPRING BDE-90566944.A9 90566944	£1.66	£1.99
866 - BATTERY 14.4V - 1.3AH - 19WH Can use BL1314 GB BDE-90602196N.A5 90602196N	-
871 - CHARGER SA GB BDE-N588715.A35 N588715	£35.02	£42.02

Attribute Name	Value
Brand	Black & Decker
