Black & Decker GL660 Type 2 String Trimmer Spare Parts

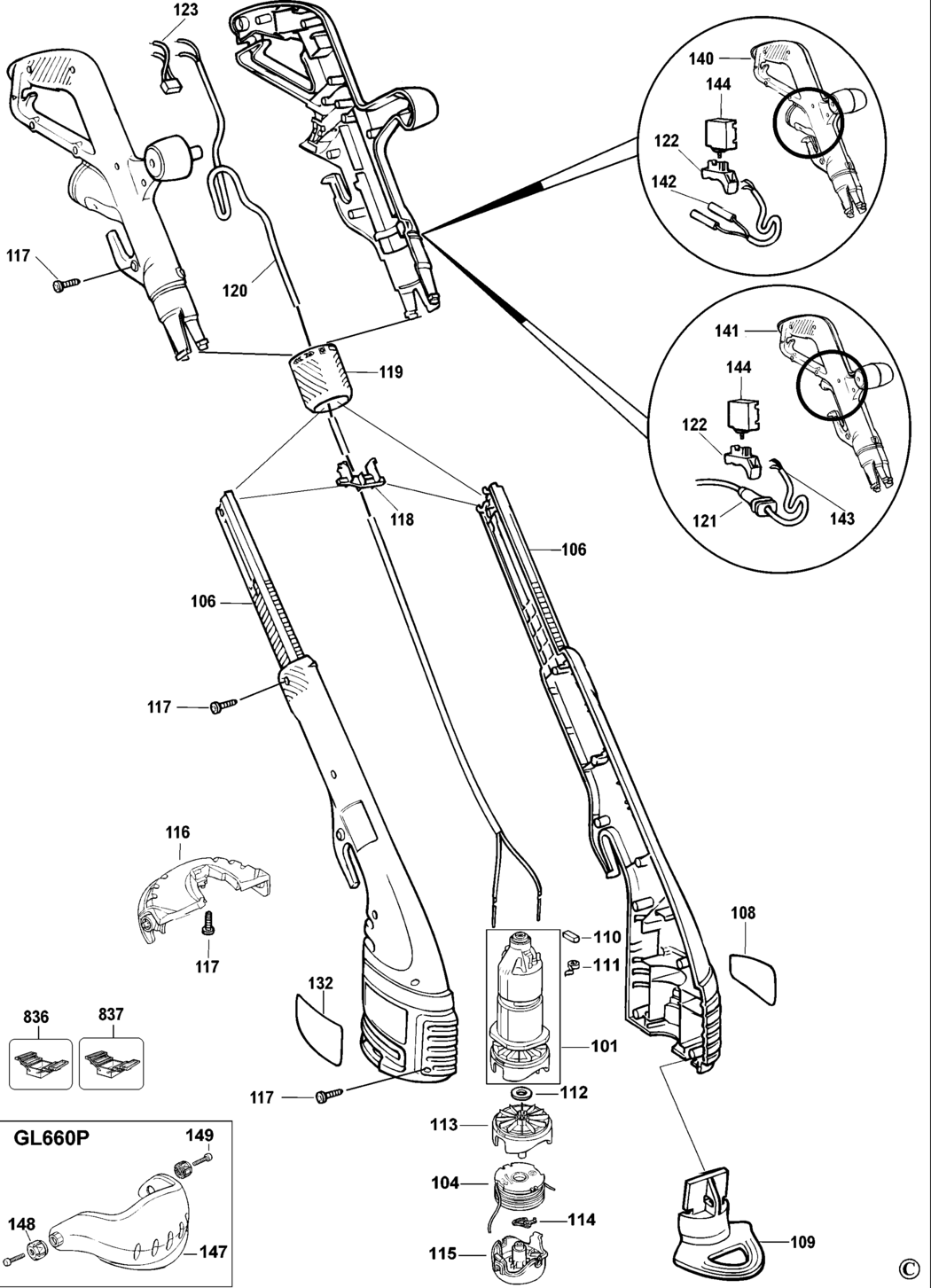

An exploded drawing and spare parts listing for the Black & Decker GL660 Type 2 String Trimmer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A124270 000000-00	-
104 - SPOOL & LINE BDE-575462-00.A10 575462-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A124271 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A124272 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A124273 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A124274 000000-00	-
111 - NO LONGER AVAILABLE BDE-000000-00.A124275 000000-00	-
112 - WASHER BDE-371796.A9 371796	-
113 - NO LONGER AVAILABLE BDE-000000-00.A124276 000000-00	-
114 - ACTUATOR BDE-573952-00.A3 573952-00	-
115 - COVER SPOOL BDE-575648-00.A6 575648-00	£4.69	£5.63
116 - GUARD SA BDE-575661-00.A4 575661-00	-
117 - SCREW BDE-747329.A594 747329	£1.66	£1.99
118 - NO LONGER AVAILABLE BDE-000000-00.A124277 000000-00	-
119 - NO LONGER AVAILABLE BDE-000000-00.A124278 000000-00	-
120 - CABLE BDE-368765.A1 368765	-
121 - CORD PROTECTOR GB BDE-806603.A45 806603	-
122 - TRIGGER BDE-373126.A17 373126	-
123 - CAPACITOR BDE-807285-10.A19 807285-10	-
132 - NO LONGER AVAILABLE GB BDE-000000-00.A124279 000000-00	-
141 - NO LONGER AVAILABLE GB BDE-000000-00.A124280 000000-00	-
143 - NO LONGER AVAILABLE GB BDE-000000-00.A124281 000000-00	-
144 - NO LONGER AVAILABLE GB BDE-000000-00.A124282 000000-00	-
147 - NO LONGER AVAILABLE GL660P BDE-000000-00.A124283 000000-00	-
148 - NO LONGER AVAILABLE GL660P BDE-000000-00.A124284 000000-00	-
149 - SCREW GL660P BDE-747329.A595 747329	£1.66	£1.99
836 - S.T.RELEASE TOOL BDE-559519-99.A4 559519-99	-
837 - S.T.RELEASE TOOL BDE-559581-99.A15 559581-99	£58.69	£70.43

Attribute Name	Value
Brand	Black & Decker
