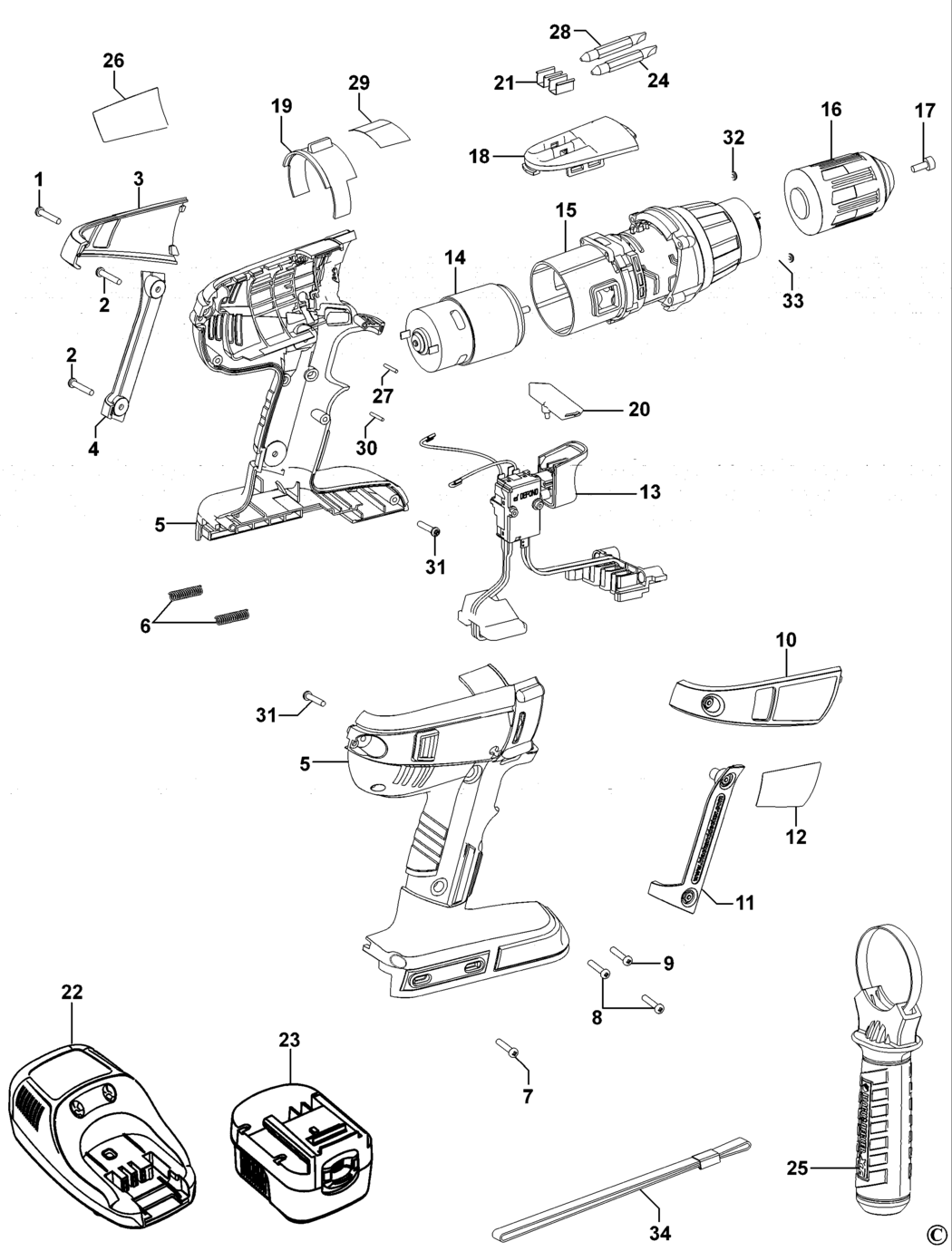

1 - SCREW
BDE-5145507-04.A1
5145507-04
|
£1.66
|
£1.99
|
|
|
2 - SCREW
BDE-5145507-00.A5
5145507-00
|
£1.66
|
£1.99
|
|
|
3 - COVER LH
BDE-5146862-00.A6
5146862-00
|
£5.72
|
£6.87
|
|
|
4 - COVER
BDE-5145395-01.A4
5145395-01
|
£2.26
|
£2.71
|
|
|
5 - CLAMSHELL
BDE-5146767-01.A2
5146767-01
|
£9.17
|
£11.00
|
|
|
6 - SPRING
BDE-5145496-00.A17
5145496-00
|
-
|
|
|
|
7 - SCREW
BDE-5146420-02.A11
5146420-02
|
-
|
|
|
|
8 - SCREW
BDE-5146420-01.A3
5146420-01
|
£1.66
|
£1.99
|
|
|
9 - SCREW
BDE-5146420-00.A11
5146420-00
|
-
|
|
|
|
10 - COVER RH
BDE-5146863-00.A0
5146863-00
|
£5.72
|
£6.87
|
|
|
11 - COVER
BDE-5145396-01.A0
5145396-01
|
£2.21
|
£2.65
|
|
|
13 - SWITCH SA
BDE-5148062-00.A2
5148062-00
|
£25.05
|
£30.06
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A95230
000000-00
|
-
|
|
|
|
15 - TRANSMISSION ASSEMBLY
BDE-5147027-00.A0
5147027-00
|
£105.49
|
£126.59
|
|
|
16 - CHUCK KEYLESS
BDE-5147021-00.A10
5147021-00
|
-
|
|
|
|
17 - SCREW
BDE-5103096-01.A25
5103096-01
|
£1.66
|
£1.99
|
|
|
18 - COVER-TOP
BDE-5146269-00.A4
5146269-00
|
£1.66
|
£1.99
|
|
|
19 - ACTUATOR
BDE-5146268-00.A2
5146268-00
|
£1.66
|
£1.99
|
|
|
20 - ACTUATOR FWD/REV
BDE-5145751-01.A2
5145751-01
|
-
|
|
|
|
21 - HOLDER
BDE-148354-03.A16
148354-03
|
£1.66
|
£1.99
|
|
|
24 - BIT
BDE-419581-01.A35
419581-01
|
£1.66
|
£1.99
|
|
|
25 - SIDE HANDLE
BDE-90510330.A0
90510330
|
-
|
|
|
|
27 - PIN
BDE-5106169-00.A10
5106169-00
|
£1.66
|
£1.99
|
|
|
28 - BIT
BDE-419581-62.A2
419581-62
|
£1.66
|
£1.99
|
|
|
29 - LABEL
BDE-5147332-01.A6
5147332-01
|
£1.66
|
£1.99
|
|
|
30 - PIN
BDE-5106169-02.A1
5106169-02
|
£1.66
|
£1.99
|
|
|
31 - SCREW
BDE-5102250-00.A1
5102250-00
|
£1.66
|
£1.99
|
|
|
32 - SCREW
BDE-5146783-00.A7
5146783-00
|
£1.66
|
£1.99
|
|
|
33 - SCREW
BDE-5146783-01.A0
5146783-01
|
£1.66
|
£1.99
|
|
|
34 - STRAP
BDE-5106149-01.A8
5106149-01
|
£1.66
|
£1.99
|
|
