Black & Decker CS3653LC Type H1 Cordless Screwdriver Spare Parts

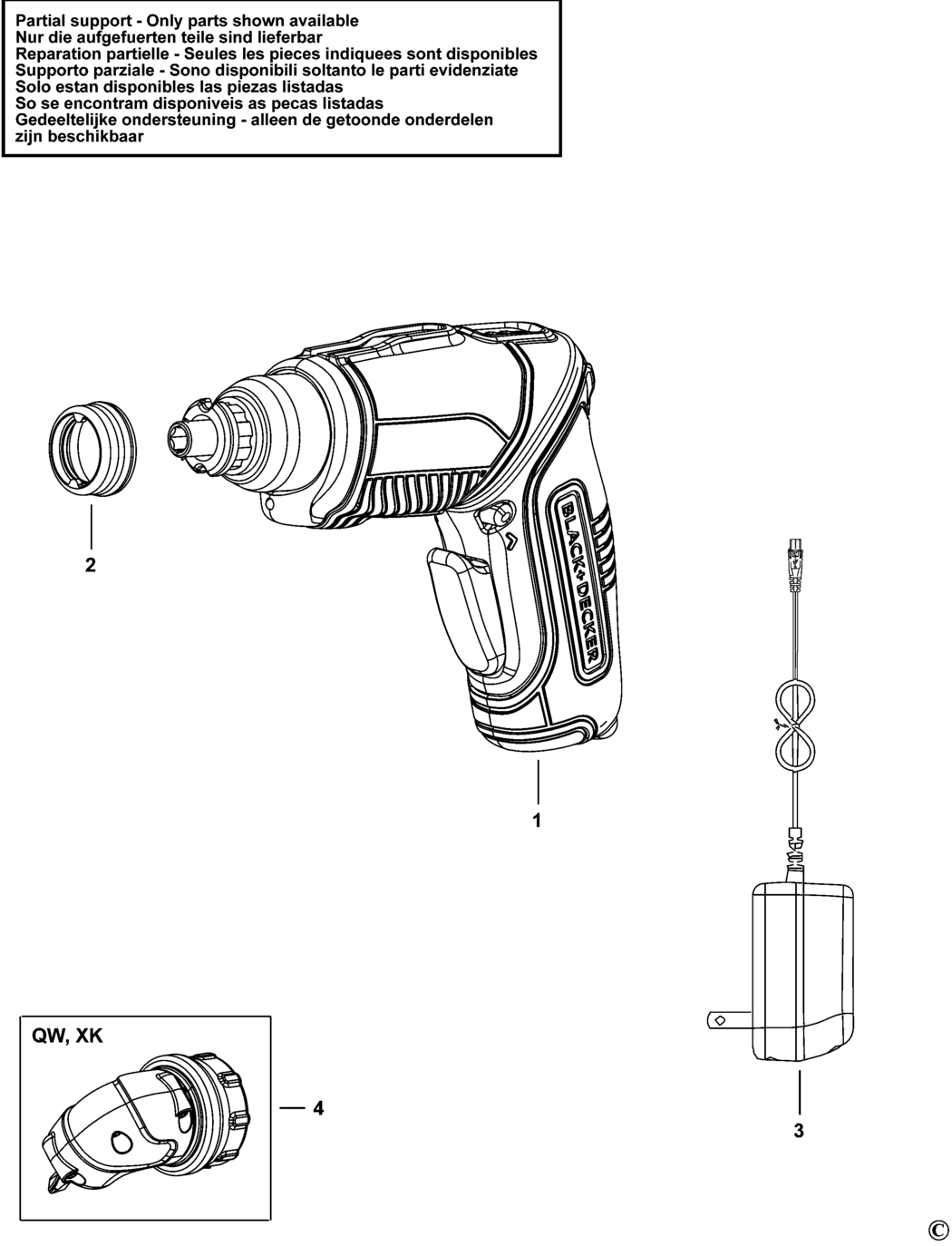

An exploded drawing and spare parts listing for the Black & Decker CS3653LC Type H1 Cordless Screwdriver

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A240 000000-05	-
1 - SCREW BDE-5119564-00.A33 5119564-00	£1.66	£1.99
2 - RING BDE-90621116.A5 90621116	£1.66	£1.99
2 - GEARBOX SA BDE-90608284 90608284	-
3 - ACTUATOR BDE-90606565 90606565	-
4 - MAGNET BDE-90556563-02.A2 90556563-02	-
5 - SPRING BDE-90532974.A2 90532974	-
6 - LOCK BDE-90606564 90606564	-
7 - BATTERY CELL BDE-90608285 90608285	-
8 - PCB SA BDE-90604202-01 90604202-01	-
9 - SCREW BDE-90514681.A0 90514681	-
10 - CONTACT BDE-90514680.A4 90514680	-
11 - SPRING BDE-90608291 90608291	-
12 - TRIGGER BDE-90606566 90606566	-
13 - HOUSING HANDLE BDE-90608286 90608286	-
14 - HOUSING MOTOR BDE-90617491 90617491	-
16 - CHARGER SA BDE-90614182 90614182	-

Attribute Name	Value
Brand	Black & Decker
