Black & Decker CLM3820 Type 1 Cordless Mower Spare Parts

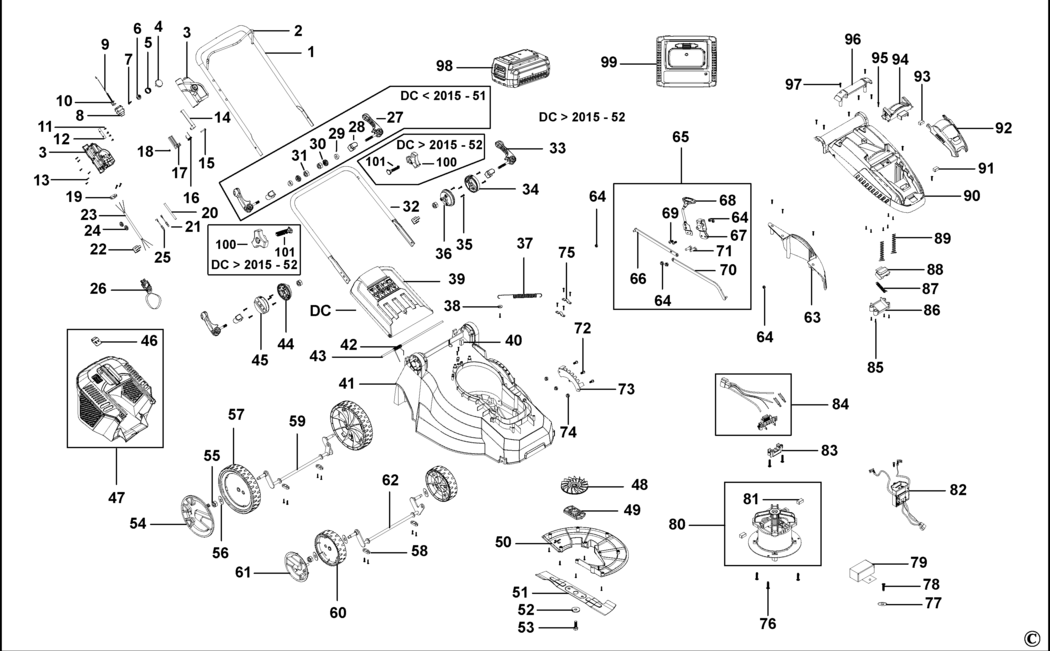

An exploded drawing and spare parts listing for the Black & Decker CLM3820 Type 1 Cordless Mower

	Ex VAT	Inc VAT
1 - HANDLE TUBE UPPER BDE-1004694-70 1004694-70	£25.70	£30.84
2 - LEVER BDE-1004694-71 1004694-71	£7.85	£9.42
3 - SWITCH COVER BDE-1004694-72 1004694-72	£4.69	£5.63
4 - BUTTON BDE-1004694-73 1004694-73	£1.66	£1.99
5 - SPRING BDE-1004694-74 1004694-74	£1.66	£1.99
6 - BUTTON BDE-1004694-75 1004694-75	£1.66	£1.99
7 - SCREW BDE-1004694-76 1004694-76	£1.66	£1.99
8 - SWITCH BDE-1004694-77 1004694-77	£14.57	£17.48
9 - CABLE SA BDE-1004694-78.A0 1004694-78	£30.08	£36.10
10 - CATCH BDE-1004694-79 1004694-79	£1.66	£1.99
11 - SCREW BDE-1004694-80 1004694-80	£1.66	£1.99
12 - CLAMP BDE-1004694-81 1004694-81	£1.66	£1.99
13 - SCREW BDE-1004694-82 1004694-82	£4.69	£5.63
14 - CATCHPLATE BDE-1004694-83.A0 1004694-83	£1.66	£1.99
15 - SCREW BDE-1004694-84.A2 1004694-84	£1.66	£1.99
16 - SPRING TORSION BDE-1004694-85.A0 1004694-85	£1.66	£1.99
17 - GUIDE BDE-1004694-86 1004694-86	£1.66	£1.99
18 - NUT BDE-1004694-87.A0 1004694-87	£1.66	£1.99
19 - CABLE CLAMP BDE-1004694-88 1004694-88	£1.66	£1.99
20 - TUBE BDE-1004694-89 1004694-89	£1.66	£1.99
21 - CONNECTING WIRE BDE-1004694-90 1004694-90	£1.66	£1.99
22 - CABLE GUIDE BDE-1004694-91 1004694-91	£2.26	£2.71
23 - CABLE BDE-1004694-92 1004694-92	£19.90	£23.88
24 - BUSHING BDE-1004694-93 1004694-93	£1.66	£1.99
25 - CONNECTING WIRE BDE-1004694-94 1004694-94	£2.26	£2.71
26 - KEY BDE-1004694-95 1004694-95	£7.18	£8.62
27 - LEVER DC < 2015 - 51 BDE-1004694-96 1004694-96	£14.57	£17.48
28 - PIVOT BLOCK DC < 2015 - 51 BDE-1004694-97 1004694-97	£3.80	£4.56
29 - WASHER DC < 2015 - 51 BDE-1004694-98 1004694-98	£1.66	£1.99
30 - KNOB DC < 2015 - 51 BDE-1004695-00 1004695-00	£1.66	£1.99
31 - NUT DC < 2015 - 51 BDE-1004695-01.A0 1004695-01	£1.66	£1.99
32 - HANDLE TUBE LOWER BDE-1004695-02 1004695-02	£18.91	£22.69
33 - LEVER BDE-1004695-03 1004695-03	£14.57	£17.48
34 - ADJUSTER HEIGHT LH BDE-1004695-04 1004695-04	£1.66	£1.99
35 - SCREW BDE-1004695-05 1004695-05	£3.30	£3.96
36 - ADJUSTER HEIGHT LH BDE-1004695-06 1004695-06	£2.78	£3.34
37 - SPRING BDE-1004695-07 1004695-07	£1.66	£1.99
38 - WASHER BDE-1004695-08.A0 1004695-08	£1.66	£1.99
39 - REAR FLAP BDE-1004695-09 1004695-09	£12.17	£14.60
40 - STOP RUBBER BDE-1004695-10 1004695-10	£1.66	£1.99
41 - HOUSING BDE-1004695-11 1004695-11	£84.42	£101.30
42 - SPRING TORSION BDE-1004695-12 1004695-12	£1.66	£1.99
43 - SHAFT BDE-1004695-13 1004695-13	£1.66	£1.99
44 - ADJUSTER HEIGHT RH BDE-1004695-14 1004695-14	£3.30	£3.96
45 - ADJUSTER HEIGHT RH BDE-1004695-15 1004695-15	£2.78	£3.34
46 - INDICATOR BDE-1004695-16 1004695-16	£1.66	£1.99
47 - GRASSBOX SA BDE-1004695-17 1004695-17	£38.80	£46.56
48 - FAN BDE-1004695-18 1004695-18	£4.69	£5.63
49 - BLADE MOUNT BDE-1004695-19 1004695-19	£2.78	£3.34
50 - HOUSING LOWER BDE-1004695-20 1004695-20	£7.85	£9.42
51 - BLADE BDE-1004695-21 1004695-21	£16.03	£19.24
52 - BLADE CLAMP BDE-1004695-22 1004695-22	£1.66	£1.99
53 - BLADE BOLT BDE-1004695-23 1004695-23	£1.66	£1.99
54 - CAP BDE-1004695-24 1004695-24	£2.26	£2.71
55 - LOCK NUT BDE-1004695-25.A0 1004695-25	£1.66	£1.99
56 - WASHER BDE-1004695-26 1004695-26	£1.66	£1.99
57 - WHEEL REAR BDE-1004695-27 1004695-27	£9.41	£11.29
58 - RETAINER BDE-1004695-28 1004695-28	£1.66	£1.99
59 - AXLE REAR BDE-1004695-29 1004695-29	£19.90	£23.88
60 - WHEEL FRONT BDE-1004695-30 1004695-30	£5.88	£7.06
61 - CAP BDE-1004695-31 1004695-31	£1.66	£1.99
62 - AXLE FRONT BDE-1004695-32 1004695-32	£18.91	£22.69
63 - HOUSING LH BDE-1004695-33 1004695-33	£7.18	£8.62
64 - LOCK NUT BDE-1004695-34 1004695-34	£1.66	£1.99
65 - ADJUSTER HEIGHT BDE-1004695-35 1004695-35	£17.48	£20.97
66 - CONNECTING ROD BDE-1004695-36 1004695-36	£5.88	£7.06
67 - CONNECTOR BDE-1004695-37 1004695-37	£5.88	£7.06
68 - ELEVATING HANDLE BDE-1004695-38 1004695-38	£1.66	£1.99
69 - SCREW BDE-1004695-39 1004695-39	£1.66	£1.99
70 - CONNECTING ROD BDE-1004695-40 1004695-40	£5.88	£7.06
71 - BOLT BDE-1004695-41 1004695-41	£1.66	£1.99
72 - SCREW BDE-1004695-42.A0 1004695-42	£1.66	£1.99
73 - ADJUSTER PLATE BDE-1004695-43 1004695-43	£7.18	£8.62
74 - NUT BDE-1004695-44 1004695-44	£1.66	£1.99
75 - CLAMP BDE-1004695-45 1004695-45	£1.66	£1.99
76 - SCREW BDE-1004695-46 1004695-46	£1.66	£1.99
77 - WASHER BDE-1004695-47 1004695-47	£1.66	£1.99
78 - SCREW BDE-1004695-48 1004695-48	£1.66	£1.99
79 - RESISTOR BDE-1004695-49.A0 1004695-49	£7.18	£8.62
80 - MOTOR SA BDE-1004695-50 1004695-50	£192.14	£230.57
81 - BRUSH & HOLDER BDE-1004695-51 1004695-51	£7.85	£9.42
82 - PCB BDE-1004695-52 1004695-52	£55.30	£66.36
83 - CLAMP BDE-1004695-53 1004695-53	£1.66	£1.99
84 - TERMINAL SA BDE-1004695-54.A0 1004695-54	£7.85	£9.42
85 - SCREW BDE-1004695-55 1004695-55	£1.66	£1.99
86 - CATCHPLATE BDE-1004695-56 1004695-56	£1.66	£1.99
87 - SPRING BDE-1004695-57 1004695-57	£1.66	£1.99
88 - CATCH BDE-1004695-58 1004695-58	£1.66	£1.99
89 - SPRING BDE-1004695-59.A0 1004695-59	£1.66	£1.99
90 - HOUSING UPPER BDE-1004695-60 1004695-60	£30.08	£36.10
91 - STOP RUBBER BDE-1004695-61 1004695-61	£1.66	£1.99
92 - BATTERY COVER BDE-1004695-62 1004695-62	£9.41	£11.29
93 - BLOCK BDE-1004695-63 1004695-63	£1.66	£1.99
94 - HINGE BDE-1004695-64 1004695-64	£1.66	£1.99
95 - SCREW BDE-1004695-65 1004695-65	£1.66	£1.99
96 - HANDLE BDE-1004695-66 1004695-66	£1.66	£1.99
97 - SCREW BDE-1004695-67 1004695-67	£1.66	£1.99
98 - BATTERY 36V - 2.0AH - 72WH GB BDE-N694215.A1 N694215	£131.46	£157.75
99 - CHARGER 36V GB BDE-90616337-02.A5 90616337-02	£60.94	£73.13
100 - KNOB DC > 2015 - 52 BDE-1004701-26.A2 1004701-26	£1.66	£1.99
101 - BOLT DC > 2015 - 52 BDE-1004701-19.A1 1004701-19	£1.66	£1.99

Attribute Name	Value
Brand	Black & Decker
