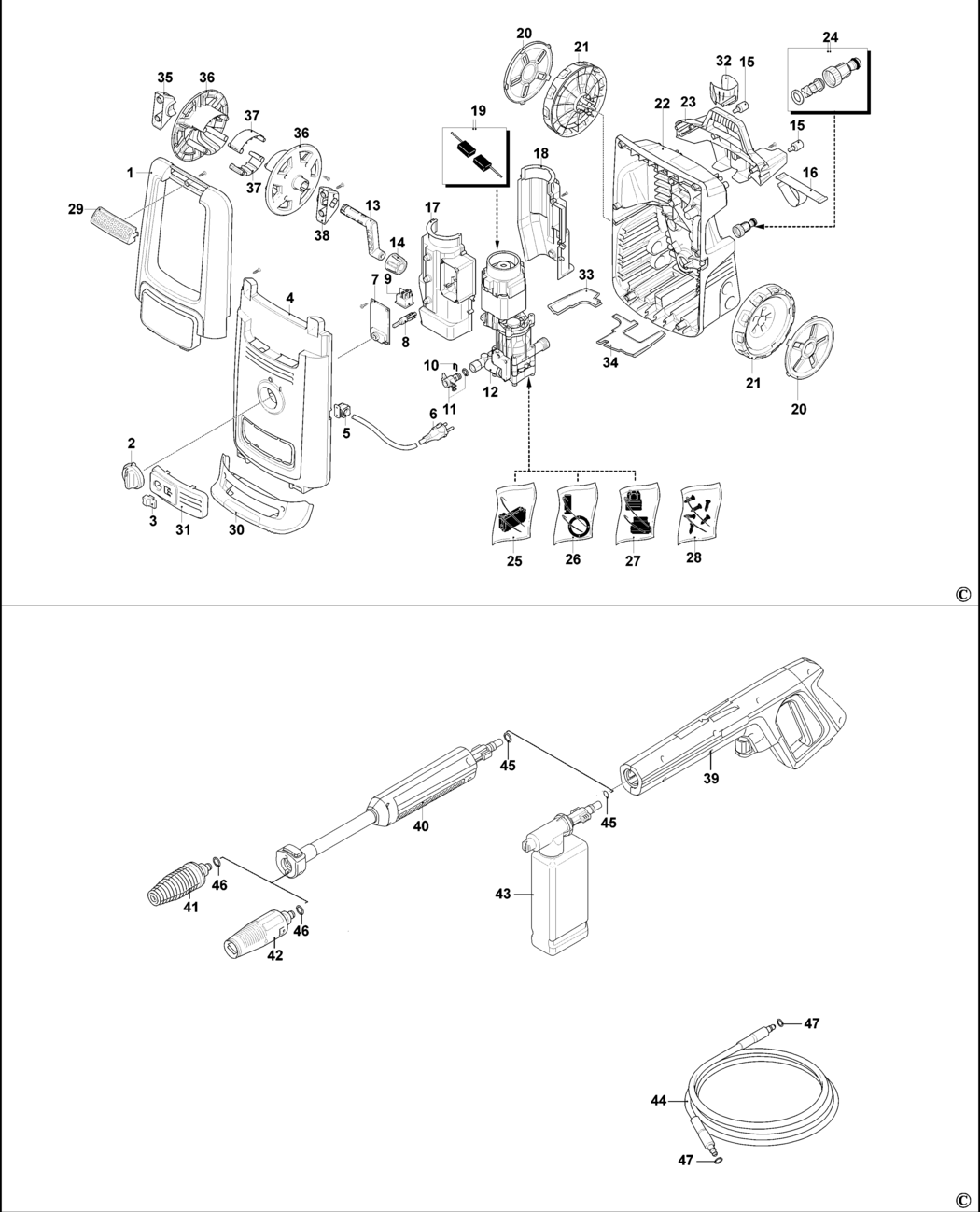

1 - HANDLE
BDE-4380510.A7
4380510
|
£24.39
|
£29.27
|
|
|
2 - KNOB
BDE-4380250.A5
4380250
|
£2.78
|
£3.34
|
|
|
3 - LEVER
BDE-4380390.A16
4380390
|
£2.26
|
£2.71
|
|
|
4 - HOUSING
BDE-4380500.A0
4380500
|
£25.70
|
£30.84
|
|
|
5 - GLAND
BDE-3080580.A23
3080580
|
£1.50
|
£1.80
|
|
|
7 - COVER
BDE-1004700-65.A10
1004700-65
|
£2.78
|
£3.34
|
|
|
8 - PIN
BDE-1004700-66.A23
1004700-66
|
£1.50
|
£1.80
|
|
|
9 - PIN
BDE-1004700-66.A24
1004700-66
|
£1.50
|
£1.80
|
|
|
10 - FORK
BDE-1004512-08.A7
1004512-08
|
£5.95
|
£7.14
|
|
|
11 - CONNECTOR
BDE-4383200.A22
4383200
|
£10.82
|
£12.99
|
|
|
12 - PUMP SA
BDE-4381520.A1
4381520
|
£174.63
|
£209.56
|
|
|
13 - LEVER
BDE-4380560.A22
4380560
|
£7.18
|
£8.62
|
|
|
14 - KNOB
BDE-4380450.A6
4380450
|
£2.26
|
£2.71
|
|
|
15 - FOOT
BDE-1004712-16.A18
1004712-16
|
£7.18
|
£8.62
|
|
|
16 - HOOK SA
BDE-4380810.A22
4380810
|
£3.30
|
£3.96
|
|
|
17 - CONVEYOR
BDE-4380160.A9
4380160
|
£14.57
|
£17.48
|
|
|
18 - CONVEYOR
BDE-4380170.A18
4380170
|
£14.57
|
£17.48
|
|
|
19 - BRUSH PAIR
BDE-3082600.A2
3082600
|
£16.03
|
£19.24
|
|
|
20 - GUARD
BDE-4380620.A0
4380620
|
£12.17
|
£14.60
|
|
|
21 - WHEEL
BDE-4380610.A17
4380610
|
£14.57
|
£17.48
|
|
|
22 - BASE
BDE-4380490.A7
4380490
|
£37.35
|
£44.82
|
|
|
23 - CARRIER SA
BDE-4380990.A6
4380990
|
£16.03
|
£19.24
|
|
|
24 - COUPLING SA
BDE-1004712-93.A71
1004712-93
|
£9.16
|
£10.99
|
|
|
25 - CLIP SA
BDE-4381280.A2
4381280
|
£3.80
|
£4.56
|
|
|
26 - PISTONS & SEALS KIT
BDE-3081270.A3
3081270
|
£24.39
|
£29.27
|
|
|
27 - VALVES & SEALS KIT
BDE-3081290.A10
3081290
|
-
|
|
|
|
28 - SCREW KIT
BDE-4381470.A23
4381470
|
£7.18
|
£8.62
|
|
|
29 - KNOB
BDE-4380520.A1
4380520
|
£5.88
|
£7.06
|
|
|
30 - FOOT
BDE-4380530.A3
4380530
|
£14.57
|
£17.48
|
|
|
31 - GUARD
BDE-4380600.A0
4380600
|
£7.85
|
£9.42
|
|
|
32 - CLIP SA
BDE-4381280.A3
4381280
|
£3.80
|
£4.56
|
|
|
33 - COVER
BDE-4380590.A13
4380590
|
£3.30
|
£3.96
|
|
|
34 - COVER
BDE-4380580.A0
4380580
|
£2.26
|
£2.71
|
|
|
35 - BRACKET
BDE-4380470.A1
4380470
|
£5.88
|
£7.06
|
|
|
36 - PLATE
BDE-3080200.A8
3080200
|
£14.57
|
£17.48
|
|
|
37 - SHIM
BDE-4380550.A0
4380550
|
£3.30
|
£3.96
|
|
|
38 - BRACKET
BDE-4380460.A22
4380460
|
£5.88
|
£7.06
|
|
|
39 - HANDLE SA
BDE-4381481.A7
4381481
|
£34.00
|
£40.80
|
|
|
40 - EXTENSION
BDE-4381491.A11
4381491
|
£25.70
|
£30.84
|
|
|
41 - HEAD SA
BDE-4100800.A21
4100800
|
£24.39
|
£29.27
|
|
|
42 - NOZZLE
BDE-4381830.A0
4381830
|
£24.39
|
£29.27
|
|
|
43 - TANK
BDE-4381500.A0
4381500
|
£7.85
|
£9.42
|
|
|
44 - HOSE
BDE-4381750.A4
4381750
|
£41.24
|
£49.49
|
|
|
45 - O RING
BDE-5140193-41.A23
5140193-41
|
£1.50
|
£1.80
|
|
|
46 - O RING
BDE-5140206-02.A12
5140206-02
|
£1.51
|
£1.81
|
|
|
47 - O RING
BDE-3083400.A17
3083400
|
£1.50
|
£1.80
|
|
