Black & Decker BCASK61D Type 1 Multitool Spare Parts

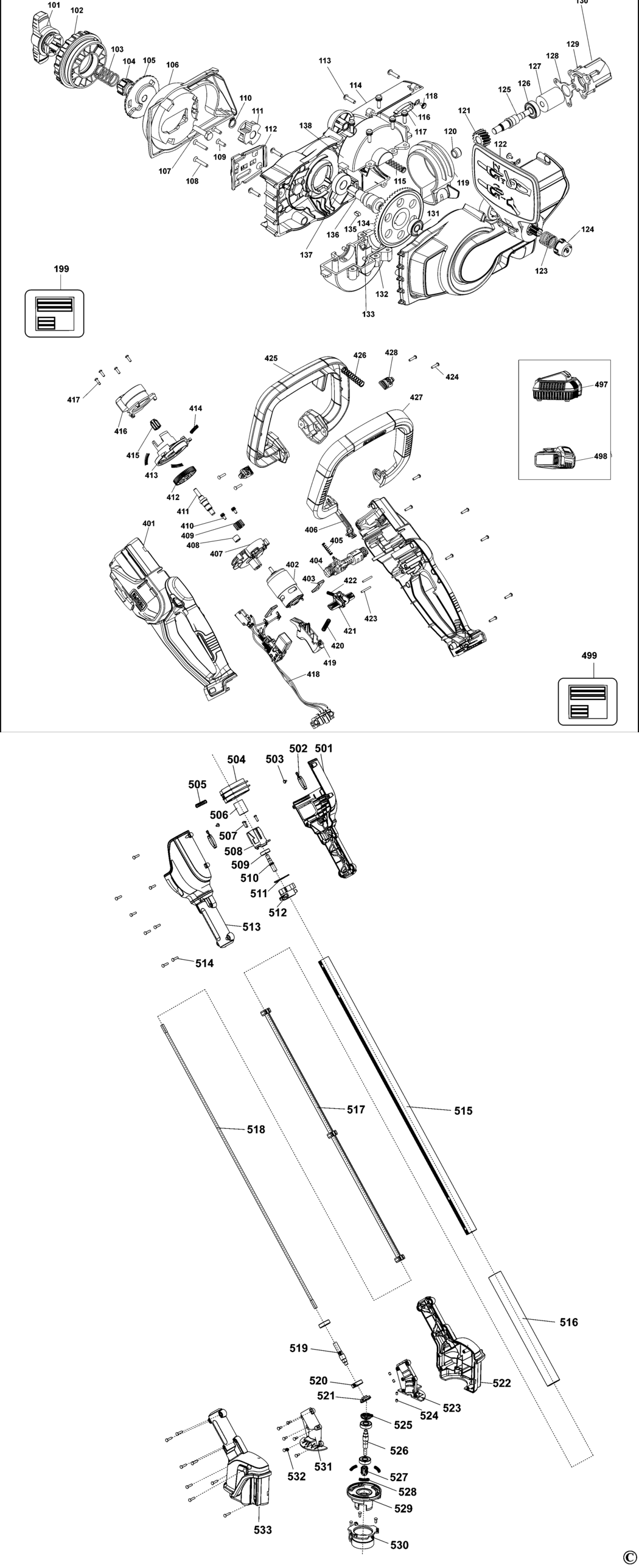

An exploded drawing and spare parts listing for the Black & Decker BCASK61D Type 1 Multitool

	Ex VAT	Inc VAT
101 - KNOB BDE-90099608-01.A1 90099608-01	£1.66	£1.99
102 - KNOB BDE-90597017.A0 90597017	-
103 - SPRING ` BDE-90551260.A1 90551260	£1.66	£1.99
104 - CLAMP BDE-90592796.A2 90592796	£1.66	£1.99
105 - ADJUSTER BDE-90099788.A2 90099788	£2.26	£2.71
106 - COVER BDE-N490590.A3 N490590	£3.30	£3.96
107 - BOLT BDE-90604103.A2 90604103	£1.66	£1.99
108 - SCREW BDE-90603202.A0 90603202	£1.66	£1.99
109 - SCREW BDE-90603203.A5 90603203	£1.66	£1.99
110 - LOCKING RING BDE-624521-00.A21 624521-00	£1.66	£1.99
111 - SPROCKET BDE-90585879.A3 90585879	£3.30	£3.96
112 - PLATE BDE-90577998.A2 90577998	£3.30	£3.96
113 - SCREW BDE-N541722.A12 N541722	£1.66	£1.99
114 - HOUSING SA BDE-N490525.A0 N490525	£10.85	£13.02
115 - SPRING BDE-N532371.A1 N532371	£1.66	£1.99
116 - SPRING BDE-N529957.A9 N529957	£1.66	£1.99
118 - SCREW BDE-N532358.A16 N532358	£1.66	£1.99
119 - SLEEVE BDE-N526587.A15 N526587	£1.66	£1.99
120 - BEARING NEEDLE BDE-330004-27.A4 330004-27	-
121 - GEAR BDE-N526275.A0 N526275	£1.66	£1.99
122 - GUARD BDE-N490748.A3 N490748	£4.69	£5.63
123 - SPRING BDE-N499874.A0 N499874	£1.66	£1.99
124 - GUARD BDE-N494059.A2 N494059	£1.66	£1.99
125 - SHAFT BDE-N491471.A1 N491471	£5.88	£7.06
126 - BEARING BDE-574853-08.A12 574853-08	£1.66	£1.99
127 - COUPLER (SPLASH) BDE-N490313.A1 N490313	£2.78	£3.34
128 - PLATE BDE-N520834.A4 N520834	£1.66	£1.99
129 - SCREW BDE-N542111.A1 N542111	£1.66	£1.99
130 - PINION BDE-N490598.A7 N490598	£1.66	£1.99
131 - BEARING BDE-574853-08.A11 574853-08	£1.66	£1.99
132 - GEAR CASE SA BDE-N520478.A1 N520478	£18.91	£22.69
133 - PLUG BDE-90621610.A9 90621610	£1.66	£1.99
134 - GEAR BDE-N526276.A3 N526276	£10.85	£13.02
135 - KEY BDE-N491763.A0 N491763	£1.66	£1.99
136 - OUTPUT SHAFT BDE-N491129.A0 N491129	£7.85	£9.42
137 - BEARING BALL BDE-574853-01.A7 574853-01	£2.78	£3.34
138 - COVER BDE-N520480.A2 N520480	£17.48	£20.97
401 - HOUSING SA BDE-N490120.A4 N490120	£19.90	£23.88
402 - MOTOR SA BDE-N501772.A0 N501772	£25.70	£30.84
403 - CLAMP BDE-N498351.A2 N498351	£1.66	£1.99
404 - SWITCH BDE-N504087.A2 N504087	£1.66	£1.99
405 - SPRING BDE-N561352.A2 N561352	£1.66	£1.99
406 - BAR BDE-N504468.A2 N504468	£1.66	£1.99
407 - GEARCASE SA BDE-N490297.A0 N490297	£2.26	£2.71
408 - BEARING NEEDLE BDE-330004-02.A54 330004-02	£1.66	£1.99
409 - PINION BDE-N510015.A4 N510015	£1.66	£1.99
410 - SCREW KIT BDE-N542375.A4 N542375	£1.66	£1.99
411 - SPINDLE BDE-N490311.A0 N490311	£4.69	£5.63
412 - GEAR BDE-N510013.A0 N510013	£3.80	£4.56
413 - COVER BDE-N490299.A4 N490299	£7.18	£8.62
414 - SPRING BDE-N525319.A1 N525319	£1.66	£1.99
415 - PINION BDE-N490312.A8 N490312	£1.66	£1.99
416 - LOCKING RING BDE-N490623.A9 N490623	£7.18	£8.62
417 - SCREW BDE-90611829.A2 90611829	£1.66	£1.99
418 - SWITCH SA BDE-N521783.A2 N521783	£30.08	£36.10
419 - TRIGGER BDE-90613570.A5 90613570	£1.66	£1.99
420 - SPRING BDE-90638274.A3 90638274	£1.66	£1.99
421 - TRIGGER LOCK-ON BDE-N554509.A2 N554509	£1.66	£1.99
422 - SPRING BDE-90604113.A5 90604113	£1.66	£1.99
423 - BEARING BDE-478230-00.A2 478230-00	£1.66	£1.99
424 - SCREW BDE-N541722.A13 N541722	£1.66	£1.99
425 - HANDLE BDE-N513389.A4 N513389	£10.85	£13.02
426 - SPRING BDE-N542972.A2 N542972	£1.66	£1.99
427 - HANDLE BDE-N513390.A0 N513390	£7.18	£8.62
428 - INSERT BDE-90565960.A2 90565960	£1.66	£1.99
501 - HOUSING SA BDE-N490610.A4 N490610	£3.80	£4.56
502 - SPRING BDE-N529957.A8 N529957	£1.66	£1.99
503 - SCREW BDE-N532358.A17 N532358	£1.66	£1.99
504 - SLEEVE BDE-N526587.A16 N526587	£1.66	£1.99
505 - SPRING BDE-N532371.A0 N532371	£1.66	£1.99
506 - COUPLER (SPLASH) BDE-N490313.A0 N490313	£2.78	£3.34
507 - SCREW BDE-90611829.A1 90611829	£1.66	£1.99
508 - PINION BDE-N490598.A8 N490598	£1.66	£1.99
509 - BEARING BDE-574853-08.A13 574853-08	£1.66	£1.99
510 - SPINDLE BDE-N490620.A0 N490620	£14.57	£17.48
511 - PLATE BDE-N520834.A5 N520834	£1.66	£1.99
512 - CLAMP BDE-N501431.A2 N501431	£1.66	£1.99
513 - HOUSING BDE-N490611.A0 N490611	£3.80	£4.56
514 - SCREW BDE-N541722.A14 N541722	£1.66	£1.99
515 - GRIP BDE-N557859.A0 N557859	£12.17	£14.60
516 - GRIP BDE-N523824.A4 N523824	£2.78	£3.34
517 - SUPPORT BDE-N557862.A4 N557862	£5.88	£7.06
520 - BEARING BALL BDE-90581548.A5 90581548	£3.30	£3.96
522 - HOUSING SA BDE-N506380.A2 N506380	£5.88	£7.06
523 - GEARCASE SA BDE-N511602.A2 N511602	£1.66	£1.99
524 - PLUG BDE-90621610.A8 90621610	£1.66	£1.99
525 - OUTPUT SHAFT BDE-N510767.A0 N510767	£16.03	£19.24
526 - OUTPUT SHAFT BDE-N510767.A1 N510767	£16.03	£19.24
527 - PINION BDE-N490312.A9 N490312	£1.66	£1.99
528 - SPRING BDE-N525319.A0 N525319	£1.66	£1.99
529 - COUPLER (SPLASH) BDE-N490615.A4 N490615	£1.82	£2.19
530 - LOCKING RING BDE-N490623.A8 N490623	£7.18	£8.62
531 - COVER BDE-N511603.A2 N511603	£1.66	£1.99
532 - SCREW BDE-90614124-03.A2 90614124-03	£1.66	£1.99
533 - HOUSING BDE-N506381.A2 N506381	£4.69	£5.63
