Bosch GTS 10 XC / 3601L30460 / GB 110 Volt Spare Parts

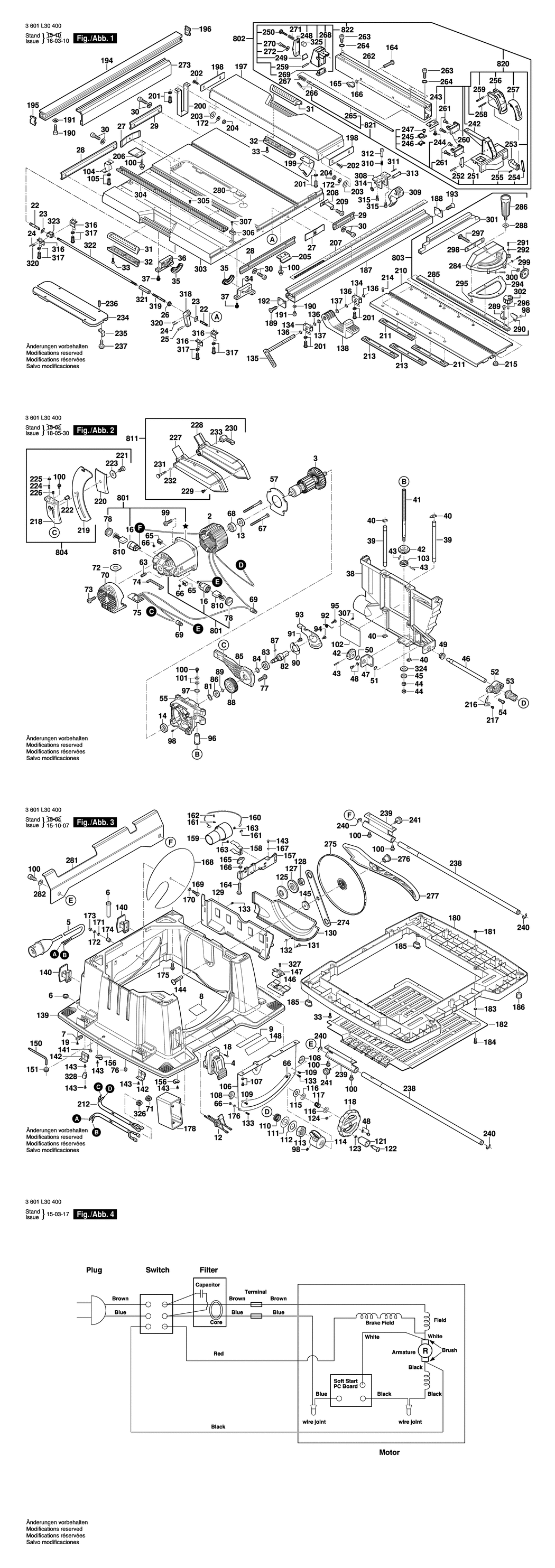

An exploded drawing and listing for the Bosch GTS 10 XC / 3601L30460 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110V BSD-2610018377.A0 2610018377	£93.88	£112.65
3 - ARMATURE 110V BSD-2610018378.A1 2610018378	£120.11	£144.13
4 - ON-OFF SWITCH BSD-2610018375.A1 2610018375	£54.42	£65.30
5 - POWER SUPPLY CORD GB BSD-2610018371.A1 2610018371	£63.50	£76.20
6 - RUBBER BUSHING BSD-2610915699.A14 2610915699	£7.36	£8.83
7 - CLAMP BSD-2610358842.A11 2610358842	£1.75	£2.10
8 - NAMEPLATE BSD-2610018356.A0 2610018356	-
9 - LABEL BSD-2610018213.A6 2610018213	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-2610018376.A0 2610018376	£18.96	£22.75
13 - BALL BEARING BSD-2610004595.A1 2610004595	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A34 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610911858.A23 2610911858	£16.41	£19.69
16 - BRUSH HOLDER BSD-2610013003.A17 2610013003	£7.36	£8.83
18 - SCREW BSD-2610018217.A6 2610018217	-
19 - SCREW BSD-2610358844.A5 2610358844	£1.75	£2.10
22 - COVER BSD-2610996865.A6 2610996865	£14.91	£17.89
23 - PLATE BSD-2610996917.A13 2610996917	£1.75	£2.10
24 - PIN BSD-2610997274.A18 2610997274	£1.75	£2.10
25 - NUT BSD-2610327868.A31 2610327868	£1.75	£2.10
26 - NUT BSD-2610911896.A17 2610911896	-
27 - FIXING PLATE BSD-2610996912.A8 2610996912	£5.58	£6.70
28 - MOUNTING RAIL BSD-1600A00724.A3 1600A00724	£2.16	£2.59
29 - MOUNTING RAIL BSD-2610950075.A7 2610950075	£8.67	£10.41
30 - SCREW BSD-2610303029.A12 2610303029	£1.75	£2.10
31 - HANDLE COVER BSD-2610018218.A3 2610018218	£3.72	£4.47
32 - HANDLE COVER BSD-2610018219.A6 2610018219	£3.72	£4.47
33 - SCREW BSD-2610018580.A8 2610018580	£1.75	£2.10
34 - MOUNTING BRACKET BSD-2610950126.A17 2610950126	£8.67	£10.41
35 - BUSHING BSD-2610950070.A15 2610950070	£1.75	£2.10
36 - MOUNTING BRACKET BSD-2610950127.A2 2610950127	£11.30	£13.56
37 - SCREW BSD-2610998575.A6 2610998575	£1.75	£2.10
38 - HOLDING PLATE BSD-2610018220.A3 2610018220	£2.61	£3.13
39 - GUIDING BOLT BSD-2610950052.A7 2610950052	£7.36	£8.83
40 - SPRING RETAINING RING BSD-2610992380.A2 2610992380	£1.75	£2.10
41 - THREADED ROD BSD-2610018221.A6 2610018221	£14.91	£17.89
42 - TOOTHED GEAR BSD-2610996896.A14 2610996896	£5.58	£6.70
43 - BOLT BSD-2610910796.A2 2610910796	£2.80	£3.36
44 - NUT BSD-2610358149.A7 2610358149	£1.75	£2.10
45 - PLAIN WASHER BSD-2610018223.A2 2610018223	£1.75	£2.10
46 - SHAFT BSD-2610018224.A7 2610018224	£12.04	£14.45
47 - MOUNTING BRACKET BSD-2610997212.A6 2610997212	£2.80	£3.36
48 - SCREW BSD-2615297323.A16 2615297323	£1.75	£2.10
49 - BUSHING BSD-2610997222.A9 2610997222	£1.32	£1.58
50 - SPRING RETAINING RING BSD-2610997277.A4 2610997277	£1.75	£2.10
51 - SPRING RETAINING RING BSD-2610997276.A14 2610997276	£1.75	£2.10
52 - BUSHING BSD-2610996938.A6 2610996938	£8.67	£10.41
53 - THREADED BUSHING BSD-2610996933.A12 2610996933	£14.91	£17.89
54 - SCREW BSD-2610303026.A6 2610303026	£1.75	£2.10
55 - GEAR HOUSING BSD-2610018225.A2 2610018225	£54.42	£65.30
57 - BAFFLE BSD-2610018226.A7 2610018226	£4.26	£5.11
63 - SET SCREW BSD-1609902054.A8 1609902054	£1.75	£2.10
65 - INSERT BSD-2610911569.A39 2610911569	£2.61	£3.13
66 - NUT BSD-2610356706.A6 2610356706	£2.61	£3.13
67 - SCREW BSD-2610911929.A26 2610911929	£1.75	£2.10
68 - RUBBER RING BSD-2610996948.A13 2610996948	£1.75	£2.10
69 - CONNECTOR BSD-2610358932.A12 2610358932	£1.75	£2.10
70 - COVER BSD-2610018227.A2 2610018227	£10.10	£12.12
71 - CABLE CLIP BSD-1609203K96.A6 1609203K96	£1.75	£2.10
72 - WASHER BSD-2610018336.A2 2610018336	£1.95	£2.34
73 - SCREW BSD-2610998571.A11 2610998571	£1.75	£2.10
73 - SCREW BSD-2610018983.A0 2610018983	-
75 - SPEED GOVERNOR 115-120V BSD-2610997306.A3 2610997306	£63.50	£76.20
76 - CABLE STRAP BSD-1609902050.A7 1609902050	£1.75	£2.10
77 - SCREW BSD-2610998587.A7 2610998587	£1.75	£2.10
78 - BRUSH-COVER dia 20mm BSD-2610911859.A3 2610911859	£2.16	£2.59
81 - SPRING WASHER BSD-2610911924.A16 2610911924	£3.72	£4.47
82 - SHAFT BSD-2610018231.A6 2610018231	£21.52	£25.83
83 - BALL BEARING BSD-2610997210.A16 2610997210	£14.91	£17.89
84 - SPRING RETAINING RING BSD-2610997282.A13 2610997282	£1.75	£2.10
85 - GEAR COVER BSD-2610018232.A3 2610018232	£21.52	£25.83
86 - BALL BEARING BSD-2610996949.A14 2610996949	£14.91	£17.89
87 - WOODRUFF KEY BSD-2610993102.A22 2610993102	£2.16	£2.59
88 - TOOTHED GEAR BSD-2610997208.A11 2610997208	£37.27	£44.72
89 - SPRING RETAINING RING BSD-2610997281.A20 2610997281	£1.75	£2.10
90 - BEARING SLEEVE BSD-2610996932.A6 2610996932	£2.61	£3.13
91 - SCREW BSD-2610355923.A8 2610355923	£1.75	£2.10
92 - TORSION SPRING BSD-2610996875.A21 2610996875	£1.75	£2.10
93 - LOCKING LEVER BSD-2610996874.A6 2610996874	£11.30	£13.56
94 - SHOULDER SCREW BSD-2610996876.A6 2610996876	£1.75	£2.10
95 - SCREW BSD-2610998588.A20 2610998588	£1.75	£2.10
96 - BUSHING BSD-2610018233.A6 2610018233	£7.36	£8.83
97 - SPRING RETAINING RING BSD-2610998573.A16 2610998573	£1.75	£2.10
98 - SET SCREW BSD-2610950427.A15 2610950427	£1.75	£2.10
99 - SCREW BSD-2610018230.A3 2610018230	£1.75	£2.10
100 - SCREW BSD-2610328617.A6 2610328617	£1.75	£2.10
101 - PLAIN WASHER BSD-2610303020.A6 2610303020	-
102 - COVER PLATE BSD-2610018234.A3 2610018234	£6.52	£7.83
103 - END STOP BSD-2610018235.A6 2610018235	£2.16	£2.59
104 - HOLDING SPRING BSD-2610018236.A3 2610018236	£3.72	£4.47
105 - SCREW BSD-2610018237.A6 2610018237	£1.75	£2.10
106 - FRONT PANEL BSD-2610018238.A3 2610018238	£31.64	£37.97
107 - PROFILE RAIL BSD-2610950118.A6 2610950118	£1.75	£2.10
108 - END STOP BSD-2610018239.A6 2610018239	£1.75	£2.10
109 - SCREW M5x0.8Px10L BSD-2610018599.A9 2610018599	£1.75	£2.10
110 - SPRING BSD-2610997271.A11 2610997271	£1.75	£2.10
111 - PLAIN WASHER BSD-2610998550.A6 2610998550	£1.75	£2.10
112 - PLAIN WASHER BSD-2610997299.A14 2610997299	£1.75	£2.10
113 - NUT BSD-2610997298.A4 2610997298	£5.30	£6.36
114 - CLAMPING LEVER BSD-2610950056.A7 2610950056	£12.04	£14.45
115 - PLAIN WASHER BSD-2610950129.A7 2610950129	£1.75	£2.10
116 - WASHER BSD-2610341465.A23 2610341465	£2.16	£2.59
117 - SPRING BSD-2610950115.A7 2610950115	£1.75	£2.10
118 - HANDWHEEL BSD-2610950057.A2 2610950057	£14.91	£17.89
121 - HANDLE BSD-2610950059.A16 2610950059	£1.75	£2.10
122 - SHOULDER SCREW BSD-2610997270.A7 2610997270	£2.16	£2.59
123 - SPRING WASHER BSD-2610355325.A2 2610355325	£1.75	£2.10
124 - SET SCREW BSD-1609902669.A7 1609902669	£1.75	£2.10
125 - CLAMPING FLANGE BSD-1609203K93.A12 1609203K93	£12.04	£14.45
127 - WASHER BSD-2610950046.A15 2610950046	£12.04	£14.45
128 - NUT BSD-2610358858.A6 2610358858	£2.61	£3.13
129 - COVER PLATE BSD-2610018241.A3 2610018241	£18.96	£22.75
130 - COVER PLATE BSD-2610018242.A6 2610018242	£13.12	£15.75
131 - SCREW BSD-2610018243.A3 2610018243	£1.75	£2.10
132 - RETAINING SNAP RING BSD-2610358869.A8 2610358869	£1.75	£2.10
133 - SCREW BSD-1609902699.A14 1609902699	£1.75	£2.10
134 - MOUNTING BRACKET BSD-2610937291.A8 2610937291	£2.80	£3.36
135 - LINKAGE BSD-2610018244.A6 2610018244	£13.12	£15.75
136 - RETAINING RING BSD-2610937293.A9 2610937293	£1.75	£2.10
137 - WASHER BSD-1619P03473.A6 1619P03473	£1.75	£2.10
138 - CLAMPING LEVER BSD-2610018245.A3 2610018245	£12.04	£14.45
139 - HOUSING BSD-2610018246.A6 2610018246	£102.57	£123.08
140 - CLAMP BSD-2610018247.A3 2610018247	£2.61	£3.13
141 - SCREW BSD-2610998574.A11 2610998574	£1.75	£2.10
142 - PICKUP CLIP BSD-2610996930.A9 2610996930	£2.52	£3.02
143 - SCREW BSD-2610910047.A14 2610910047	£1.75	£2.10
144 - SCREW BSD-2610018248.A6 2610018248	£2.16	£2.59
145 - NUT BSD-2610018249.A3 2610018249	£2.16	£2.59
146 - HOLDING SPRING BSD-2610018250.A6 2610018250	£2.16	£2.59
147 - HOLDING SPRING BSD-2610018251.A3 2610018251	£3.72	£4.47
148 - COMPANY LOGO BSD-2610018252.A6 2610018252	£6.52	£7.83
150 - HEXAGON SOCKET SCREW KEY BSD-2610018254.A3 2610018254	£4.26	£5.11
151 - RUBBER BUSHING BSD-2610911920.A26 2610911920	£1.32	£1.58
156 - CABLE CLIP BSD-2610990504.A12 2610990504	£1.75	£2.10
157 - MOUNTING BRACKET BSD-2610018255.A6 2610018255	£2.16	£2.59
158 - HOLDING SPRING BSD-2610018256.A3 2610018256	£2.61	£3.13
159 - SUCTION SOCKET BSD-2610018257.A6 2610018257	£6.52	£7.83
160 - CHAIN BSD-2610018258.A3 2610018258	£1.75	£2.10
161 - CLIP BSD-2610018259.A6 2610018259	£1.75	£2.10
162 - STUD BOLT BSD-2610016560.A16 2610016560	£1.75	£2.10
163 - PIN BSD-2610018262.A3 2610018262	£1.75	£2.10
164 - SCREW BSD-1609203L05.A12 1609203L05	£1.75	£2.10
165 - KNOB BSD-1609203L06.A6 1609203L06	£3.72	£4.47
166 - PLAIN WASHER BSD-2610018263.A6 2610018263	£1.75	£2.10
167 - WASHER BSD-2610018264.A3 2610018264	£1.75	£2.10
168 - GUARD PLATE BSD-1609203L09.A12 1609203L09	£10.10	£12.12
169 - SCREW BSD-2610018265.A6 2610018265	£1.75	£2.10
170 - SPRING WASHER BSD-1609902052.A8 1609902052	£1.75	£2.10
171 - PLAIN WASHER BSD-1609902053.A10 1609902053	£1.75	£2.10
172 - PLAIN WASHER BSD-1609203L10.A6 1609203L10	£1.75	£2.10
173 - NUT BSD-1609203L11.A12 1609203L11	£1.75	£2.10
174 - SLEEVE BSD-2610018266.A3 2610018266	£1.75	£2.10
175 - SCREW BSD-2610997297.A14 2610997297	£1.75	£2.10
176 - WASHER BSD-2610355570.A1 2610355570	£3.72	£4.47
178 - SWITCH COVER BSD-2610018267.A6 2610018267	£8.67	£10.41
180 - HOUSING BSD-2610018268.A3 2610018268	£46.37	£55.64
181 - STUD BOLT BSD-1609902584.A0 1609902584	£1.75	£2.10
182 - GUARD PLATE BSD-2610018269.A6 2610018269	£27.23	£32.68
183 - RETAINING RING BSD-2610018270.A3 2610018270	£1.75	£2.10
184 - SCREW BSD-2610018271.A6 2610018271	£2.16	£2.59
185 - RUBBER BUSHING BSD-2610018272.A3 2610018272	£2.61	£3.13
186 - RUBBER BUSHING BSD-2610358846.A12 2610358846	£1.75	£2.10
187 - PROFILE RAIL BSD-2610018275.A6 2610018275	£59.53	£71.44
188 - END STOP BSD-2610018276.A3 2610018276	£1.75	£2.10
189 - SCREW BSD-2610950133.A6 2610950133	£1.75	£2.10
190 - WASHER BSD-2610950135.A15 2610950135	£1.75	£2.10
191 - BOLT BSD-2610950134.A3 2610950134	£1.75	£2.10
192 - STAMPED PART BSD-2610018277.A6 2610018277	£2.16	£2.59
193 - SCREW BSD-2610018278.A3 2610018278	£1.75	£2.10
194 - PROFILE RAIL BSD-2610018279.A6 2610018279	£48.38	£58.06
195 - COVER BSD-2610997218.A6 2610997218	£1.75	£2.10
196 - COVER BSD-2610997216.A7 2610997216	£1.75	£2.10
197 - TABLE TOP BSD-2610018280.A3 2610018280	£120.11	£144.13
198 - FIXING PLATE BSD-2610950086.A2 2610950086	£5.30	£6.36
199 - MOUNTING BRACKET BSD-2610018281.A6 2610018281	£3.72	£4.47
200 - MOUNTING BRACKET BSD-2610018597.A0 2610018597	£5.58	£6.70
201 - SCREW BSD-2610018283.A3 2610018283	£1.75	£2.10
202 - SCREW BSD-2610950087.A7 2610950087	£1.75	£2.10
203 - WASHER BSD-1609902042.A7 1609902042	£1.75	£2.10
204 - NUT BSD-2610304772.A6 2610304772	£1.75	£2.10
205 - END STOP BSD-2610950121.A3 2610950121	£2.80	£3.36
206 - END STOP BSD-2610018284.A6 2610018284	£2.61	£3.13
207 - STICKER BSD-2610018285.A3 2610018285	£2.61	£3.13
208 - POINTER BSD-2610950078.A7 2610950078	£3.72	£4.47
209 - SCREW BSD-2610320339.A6 2610320339	£1.75	£2.10
210 - TABLE TOP BSD-2610018286.A6 2610018286	£120.11	£144.13
211 - SLIDE RAIL BSD-2610018287.A3 2610018287	£10.10	£12.12
212 - CONNECTING CABLE BSD-2610018384.A4 2610018384	£2.16	£2.59
213 - SLIDE RAIL BSD-2610018288.A6 2610018288	£10.10	£12.12
214 - SCREW BSD-2610014697.A15 2610014697	£1.75	£2.10
215 - BUSHING BSD-2610018289.A3 2610018289	£1.75	£2.10
216 - POINTER BSD-2610950062.A6 2610950062	£2.61	£3.13
217 - SCREW BSD-2610355278.A3 2610355278	£5.30	£6.36
218 - MOUNTING BRACKET BSD-2610018337.A6 2610018337	£21.52	£25.83
219 - RIVING KNIFE BSD-2610018338.A3 2610018338	£23.86	£28.63
220 - HOLDING PLATE BSD-2610018339.A6 2610018339	£3.72	£4.47
221 - BOLT BSD-2610018340.A3 2610018340	£1.75	£2.10
222 - DETENT BSD-2610018341.A6 2610018341	£2.16	£2.59
223 - WASHER BSD-2610018342.A3 2610018342	£1.75	£2.10
224 - SCREW BSD-2610998580.A12 2610998580	£1.75	£2.10
225 - NUT BSD-1609902058.A8 1609902058	£1.75	£2.10
226 - BOLT BSD-2610018354.A7 2610018354	£1.75	£2.10
227 - FLAP GUARD BSD-2610018343.A4 2610018343	£10.10	£12.12
228 - FLAP GUARD BSD-2610018344.A2 2610018344	£10.10	£12.12
229 - SCREW BSD-2610018345.A4 2610018345	£1.75	£2.10
230 - CLAMPING LEVER BSD-2610018346.A2 2610018346	£5.58	£6.70
231 - SCREW BSD-2610018347.A4 2610018347	£2.16	£2.59
232 - SPRING BSD-2610018348.A2 2610018348	£1.75	£2.10
233 - RETAINING RING BSD-2610018349.A4 2610018349	£1.75	£2.10
234 - FIXING PLATE BSD-2610018290.A6 2610018290	£27.23	£32.68
235 - HOLDING SPRING BSD-2610011716.A0 2610011716	£1.75	£2.10
236 - STUD BSD-2610997283.A14 2610997283	£1.75	£2.10
237 - SCREW BSD-1609902055.A10 1609902055	£1.75	£2.10
238 - SLIDING RAIL BSD-2610018291.A3 2610018291	£23.86	£28.63
239 - GUIDE BRACKET BSD-2610996944.A5 2610996944	£14.91	£17.89
240 - SPRING RETAINING RING BSD-2610018292.A6 2610018292	£1.75	£2.10
241 - KNOB BSD-2610998585.A6 2610998585	£2.16	£2.59
242 - EDGE GUIDE BSD-2610018293.A3 2610018293	£31.64	£37.97
243 - CLAMPING PLATE BSD-2610018294.A6 2610018294	£2.16	£2.59
244 - SHOULDER SCREW BSD-2610997249.A2 2610997249	£1.75	£2.10
245 - BRACKET BSD-2610950102.A7 2610950102	£4.26	£5.11
246 - LENS BSD-2610950143.A3 2610950143	£2.61	£3.13
247 - SCREW BSD-2610951946.A7 2610951946	£1.75	£2.10
248 - CLAMPING PLATE BSD-2610018295.A3 2610018295	£3.72	£4.47
249 - CLAMPING PIECE BSD-2610997240.A9 2610997240	£2.16	£2.59
250 - ADJUSTING SCREW BSD-2610997245.A14 2610997245	£2.61	£3.13
251 - CLAMPING PLATE BSD-2610950098.A2 2610950098	£2.61	£3.13
252 - PIN BSD-2610997288.A2 2610997288	£5.58	£6.70
253 - CAM BSD-2610996889.A7 2610996889	£12.04	£14.45
254 - LEVER BSD-2610996890.A2 2610996890	£1.75	£2.10
255 - PIN BSD-2610997289.A7 2610997289	£1.75	£2.10
256 - HOUSING BSD-2610950095.A7 2610950095	£21.68	£26.01
257 - HANDLE COVER BSD-2610950094.A2 2610950094	£6.52	£7.83
258 - BOLT BSD-2610950096.A2 2610950096	£1.75	£2.10
259 - BOLT BSD-2610950097.A7 2610950097	£2.16	£2.59
260 - COVER BSD-2610018296.A6 2610018296	£2.16	£2.59
261 - SCREW BSD-2610967422.A3 2610967422	£1.75	£2.10
262 - EDGE GUIDE BSD-2610018297.A3 2610018297	£59.53	£71.44
263 - SCREW BSD-2610303023.A12 2610303023	£1.75	£2.10
264 - WASHER BSD-2610358802.A17 2610358802	£1.75	£2.10
265 - BRACKET BSD-2610018298.A6 2610018298	£6.52	£7.83
266 - RETAINING PIN BSD-2610911577.A18 2610911577	£1.75	£2.10
267 - SPRING BSD-2610996888.A6 2610996888	£1.75	£2.10
268 - EDGE GUIDE BSD-2610950107.A2 2610950107	£16.41	£19.69
269 - COVER BSD-2610018299.A3 2610018299	£1.75	£2.10
270 - SCREW BSD-2610997293.A6 2610997293	£1.75	£2.10
271 - SPRING BSD-2610998593.A7 2610998593	£1.75	£2.10
272 - WASHER BSD-2610018300.A6 2610018300	£1.75	£2.10
273 - END STOP BSD-2610018301.A3 2610018301	£21.68	£26.01
274 - BOX WRENCH BSD-2610996880.A9 2610996880	£5.30	£6.36
275 - INSERT BSD-2610018302.A6 2610018302	£18.96	£22.75
276 - NUT BSD-2610018303.A3 2610018303	£1.75	£2.10
277 - WORKPIECE PUSHER BSD-2610015022.A16 2610015022	£6.52	£7.83
280 - STICKER BSD-1609203L00.A14 1609203L00	£11.30	£13.56
281 - TABLE TOP BSD-2610018304.A6 2610018304	£33.74	£40.49
282 - WASHER BSD-2610029674.A4 2610029674	£1.75	£2.10
284 - END STOP BSD-1609203L38.A11 1609203L38	-
285 - GUIDE BAR BSD-2610018307.A3 2610018307	£18.96	£22.75
286 - CLAMP HANDLE BSD-2610018308.A6 2610018308	£13.12	£15.75
288 - PLAIN WASHER BSD-2610909178.A9 2610909178	£1.75	£2.10
289 - POINTER BSD-2610018309.A3 2610018309	£1.75	£2.10
290 - END STOP BSD-2610997215.A11 2610997215	£1.75	£2.10
291 - SCREW BSD-2610358519.A7 2610358519	£1.75	£2.10
292 - NUT BSD-2610908272.A10 2610908272	£1.75	£2.10
294 - BASE SUPPORT BSD-2610997213.A7 2610997213	£2.80	£3.36
295 - SCREW BSD-2610358832.A1 2610358832	£1.75	£2.10
296 - SCREW BSD-2610015065.A33 2610015065	£1.75	£2.10
297 - BOLT BSD-1609203L08.A6 1609203L08	£1.75	£2.10
298 - CLAMPING PLATE BSD-1609203L04.A6 1609203L04	£2.16	£2.59
299 - ROUND NUT BSD-1609902047.A13 1609902047	£2.61	£3.13
300 - PLAIN WASHER BSD-2610993221.A7 2610993221	£1.75	£2.10
301 - PROFILE RAIL BSD-1609203L07.A12 1609203L07	£21.52	£25.83
302 - KNOB BSD-2610018313.A6 2610018313	£2.61	£3.13
303 - TABLE TOP BSD-2610018315.A3 2610018315	£306.65	£367.98
304 - PROFILE RAIL BSD-2610018316.A6 2610018316	£37.27	£44.72
305 - SCREW BSD-2610018317.A3 2610018317	£1.75	£2.10
306 - END STOP BSD-2610018318.A6 2610018318	£1.75	£2.10
307 - SCREW BSD-2610018319.A3 2610018319	£1.75	£2.10
308 - MOUNTING BRACKET BSD-2610018320.A6 2610018320	£3.72	£4.47
309 - CLAMPING LEVER BSD-2610018321.A3 2610018321	£4.26	£5.11
310 - SPRING BSD-2610018322.A6 2610018322	£1.75	£2.10
311 - PIN BSD-2610018323.A3 2610018323	£1.75	£2.10
312 - LOCKING PIN BSD-2610018324.A6 2610018324	£2.16	£2.59
313 - AXLE BSD-2610018325.A3 2610018325	£1.75	£2.10
314 - SPRING RETAINING RING BSD-2610018326.A6 2610018326	£1.75	£2.10
315 - SCREW BSD-2610018327.A3 2610018327	£1.75	£2.10
316 - HOLDING BRACKET BSD-2610996921.A4 2610996921	£1.75	£2.10
317 - TAPPING SCREW BSD-2610908271.A8 2610908271	£1.75	£2.10
318 - GUSSET BSD-2610996914.A5 2610996914	-
319 - SET SCREW BSD-2610996918.A4 2610996918	£2.16	£2.59
320 - PIN BSD-2610997275.A4 2610997275	£1.75	£2.10
321 - CONNECTING NUT BSD-2610996920.A14 2610996920	£5.01	£6.01
322 - BRACKET BSD-2610018567.A9 2610018567	£5.30	£6.36
323 - CLAMPING PIECE BSD-2610996915.A9 2610996915	£11.30	£13.56
324 - PLAIN WASHER BSD-2610018350.A2 2610018350	£1.75	£2.10
325 - CAP NUT BSD-2610028342.A9 2610028342	£1.75	£2.10
326 - CLAMP BUSHING BSD-2610998567.A5 2610998567	£1.75	£2.10
327 - SCREW BSD-2610015078.A16 2610015078	£1.75	£2.10
328 - GROMMET BSD-2610018579.A0 2610018579	£1.75	£2.10
801 - MOTOR HOUSING BSD-1619PB2532.A0 1619PB2532	-
802 - EDGE GUIDE BSD-2610018329.A2 2610018329	£179.37	£215.24
803 - MITRE FENCE BSD-2610015508.A6 2610015508	£59.53	£71.44
804 - PROTECTIVE COVER BSD-2610018330.A7 2610018330	£57.05	£68.46
810 - CARBON-BRUSH SET BSD-2610018379.A0 2610018379	£13.12	£15.75
811 - PROTECTIVE COVER BSD-2610018328.A12 2610018328	£23.86	£28.63
820 - CLAMP HANDLE BSD-2610018333.A7 2610018333	£63.50	£76.20
821 - ROD BSD-2610018334.A2 2610018334	£10.10	£12.12
822 - LOCKING CLAMPS BSD-2610018335.A7 2610018335	£23.86	£28.63

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GTS 10 XC / 3601L30460 / GB 110 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GTS 10 XC / 3601L30460 / GB 110 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GTS 10 XC / 3601L30460 / GB 110 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
