Bosch GCM 8 SJL / 3601M19101 / EU 230 Volt Spare Parts

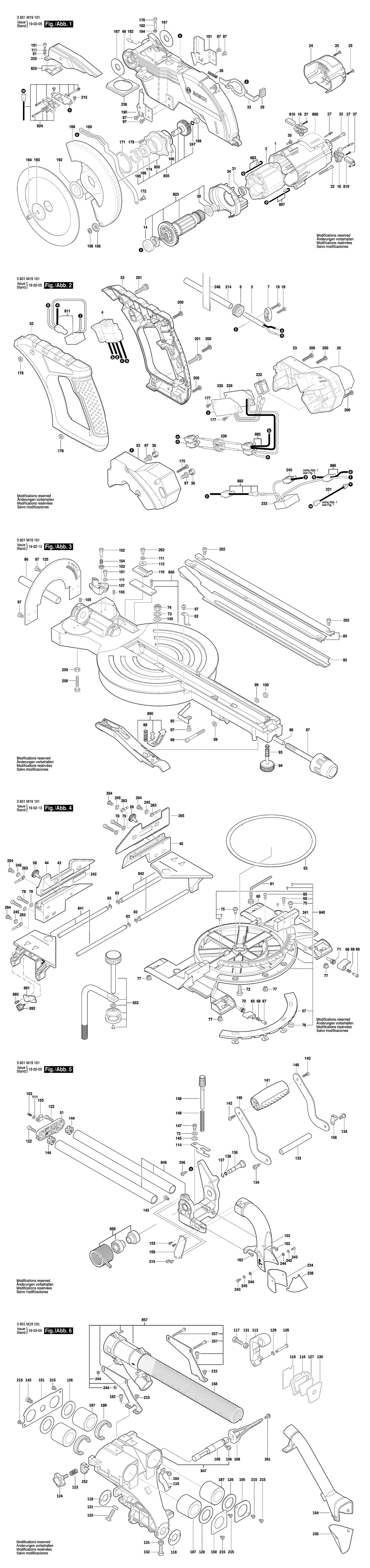

An exploded drawing and listing for the Bosch GCM 8 SJL / 3601M19101 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609B04181.A0 1609B04181	-
2 - FIELD 230V BSD-1619P04474.A9 1619P04474	£33.74	£40.49
4 - ON-OFF SWITCH BSD-1609B04011.A3 1609B04011	£14.91	£17.89
5 - POWER SUPPLY CORD EU 3m 2x1mm H05 RN-F BSD-1609B02952.A3 1609B02952	£16.41	£19.69
6 - CORD GUARD BSD-1609B01533.A16 1609B01533	£1.75	£2.10
7 - CABLE CLIP BSD-1609B00821.A9 1609B00821	£1.75	£2.10
14 - BEARING COVER PLATE BSD-1619P06374.A15 1619P06374	£8.67	£10.41
16 - BRUSH HOLDER BSD-1619P06212.A15 1619P06212	£8.67	£10.41
19 - SCREW ST3.5x15 BSD-1609B02357.A8 1609B02357	£1.75	£2.10
20 - WARNING LABEL BSD-1609B02127.A6 1609B02127	£2.61	£3.13
22 - SCREW BSD-1609B04117.A6 1609B04117	£1.75	£2.10
24 - END CAP BSD-1609B04008.A0 1609B04008	£6.52	£7.83
25 - SPECIAL SCREW BSD-1609B00921.A13 1609B00921	£1.75	£2.10
27 - RIGHT ANGLE PLUG BSD-1619P06213.A7 1619P06213	£2.40	£2.88
28 - COMPRESSION SPRING BSD-1619P01642.A42 1619P01642	£1.75	£2.10
29 - CAP BSD-1609B04070.A8 1609B04070	£1.75	£2.10
30 - SEALING WASHER BSD-1609B04071.A10 1609B04071	£1.75	£2.10
31 - RUBBER RING BSD-1609B04072.A10 1609B04072	£1.75	£2.10
32 - GUIDE BRACKET BSD-1609B04073.A10 1609B04073	£5.58	£6.70
34 - BAFFLE BSD-1609B04075.A12 1609B04075	£1.75	£2.10
35 - COVER BSD-1609B04200.A8 1609B04200	£1.75	£2.10
36 - COVER BSD-1609B04202.A1 1609B04202	£1.75	£2.10
37 - SCREW BSD-1609B04208.A0 1609B04208	£1.75	£2.10
43 - MITRE FENCE BSD-1609B01892.A0 1609B01892	£21.68	£26.01
44 - MITRE FENCE BSD-1609B04182.A8 1609B04182	£21.52	£25.83
45 - MITRE FENCE BSD-1609B04185.A5 1609B04185	£16.41	£19.69
49 - ARM BSD-1609B04015.A0 1609B04015	£59.53	£71.44
51 - END CAP BSD-1609B03746.A8 1609B03746	£6.52	£7.83
52 - SWITCH HANDLE BSD-1609B04090.A3 1609B04090	-
53 - JUNCTION BOX BSD-1609B04023.A7 1609B04023	£14.91	£17.89
57 - DETENT PLATE BSD-1609B03704.A0 1609B03704	£7.36	£8.83
59 - KNURLED SCREW BSD-1609B05382.A5 1609B05382	£1.75	£2.10
60 - SCREW BSD-1609B03711.A1 1609B03711	£1.75	£2.10
61 - PLAIN WASHER BSD-1609B00863.A9 1609B00863	£1.75	£2.10
62 - POINTER BSD-1609B00717.A14 1609B00717	£1.75	£2.10
63 - WEAR PLATE BSD-1609B03714.A8 1609B03714	£4.26	£5.11
65 - LOCKING LEVER BSD-1609B00232.A17 1609B00232	£1.75	£2.10
66 - LOCKING LEVER BSD-1609B00233.A1 1609B00233	£1.75	£2.10
67 - SHOULDER SCREW BSD-1609B00236.A17 1609B00236	£1.75	£2.10
68 - COMPRESSION SPRING BSD-1609B00237.A5 1609B00237	£1.75	£2.10
69 - SHOULDER SCREW BSD-1609B00238.A17 1609B00238	£1.75	£2.10
70 - LOCK SCREW BSD-1609B01435.A2 1609B01435	£1.75	£2.10
71 - LOCK SCREW BSD-1609B01436.A9 1609B01436	£1.75	£2.10
72 - BOLT BSD-1609B05203.A12 1609B05203	£1.75	£2.10
73 - WASHER BSD-1609B00670.A8 1609B00670	£1.75	£2.10
74 - LOCK NUT BSD-1609B00704.A2 1609B00704	£1.75	£2.10
75 - SPECIAL SCREW BSD-1609B04067.A8 1609B04067	£1.75	£2.10
76 - NUT BSD-1609B01654.A3 1609B01654	£1.75	£2.10
77 - RUBBER BUSHING BSD-1609B00705.A25 1609B00705	£1.75	£2.10
78 - SCREW BSD-1609B03722.A9 1609B03722	£1.75	£2.10
79 - WASHER BSD-1609B00669.A21 1609B00669	£1.75	£2.10
80 - RUBBER RING BSD-1609BP7098.A20 1609BP7098	£1.75	£2.10
81 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A31 1609BP7026	£2.80	£3.36
83 - END CLIP BSD-1609B01992.A2 1609B01992	£1.75	£2.10
84 - SUPPORT PLATE BSD-1609B03717.A0 1609B03717	£6.52	£7.83
85 - DUST TRAY BSD-1609B03718.A9 1609B03718	£2.61	£3.13
86 - ROD BSD-1609B04080.A8 1609B04080	£5.58	£6.70
87 - KNOB BSD-1609B04079.A1 1609B04079	£7.36	£8.83
89 - COMPRESSION SPRING BSD-1609B03721.A0 1609B03721	£1.75	£2.10
93 - CONTACT STRAP BSD-1609BP7341.A2 1609BP7341	£1.75	£2.10
94 - SUPPORTING FOOT BSD-1609B03727.A2 1609B03727	£2.16	£2.59
95 - WEAR PLATE BSD-1609B03729.A18 1609B03729	£1.75	£2.10
96 - PIVOT SHAFT BSD-1609B04108.A0 1609B04108	£4.26	£5.11
97 - SCREW BSD-1609B04086.A20 1609B04086	£2.16	£2.59
98 - SCREW BSD-1609B03723.A11 1609B03723	£1.75	£2.10
99 - PLAIN WASHER BSD-1609B01324.A1 1609B01324	£1.75	£2.10
100 - NUT BSD-1609B01949.A11 1609B01949	£1.75	£2.10
101 - SHOULDER SCREW BSD-1609B01462.A19 1609B01462	£1.75	£2.10
102 - SHOULDER SCREW BSD-1609B01463.A0 1609B01463	£1.75	£2.10
103 - SLIDING BLOCK BSD-1609B01464.A11 1609B01464	£1.75	£2.10
104 - COMPRESSION SPRING BSD-1609B01479.A2 1609B01479	£1.75	£2.10
105 - SET SCREW BSD-1609BP7143.A20 1609BP7143	£1.75	£2.10
106 - SCREW BSD-1609B01388.A18 1609B01388	£1.75	£2.10
107 - DETENT BSD-1609B03760.A8 1609B03760	£11.30	£13.56
108 - CONTROL LEVER BSD-1609B03733.A1 1609B03733	£4.26	£5.11
109 - SHAFT BSD-1609B03734.A8 1609B03734	£14.91	£17.89
110 - DETENT BSD-1609B03737.A7 1609B03737	£1.75	£2.10
111 - WASHER BSD-1609B01668.A9 1609B01668	£1.75	£2.10
112 - WASHER BSD-1609B00675.A14 1609B00675	£1.75	£2.10
113 - LOCKING ELEMENT BSD-1609B03738.A0 1609B03738	£12.04	£14.45
114 - STOP PLATE BSD-1609B03739.A9 1609B03739	£1.75	£2.10
115 - LEAF SPRING BSD-1609B05370.A8 1609B05370	-
116 - LOCK PLATE BSD-1609B03741.A0 1609B03741	£2.61	£3.13
117 - ADJUSTING BOLT BSD-1609B03742.A21 1609B03742	£1.75	£2.10
118 - WEAR PLATE BSD-1609B04134.A3 1609B04134	-
119 - POINTER BSD-1609B03758.A12 1609B03758	£1.75	£2.10
122 - HEX SOCKET HEAD CAP SCREW BSD-1609B03749.A9 1609B03749	£1.75	£2.10
123 - CONTACT STRAP BSD-1609BP7343.A18 1609BP7343	£1.75	£2.10
124 - KNOB BSD-1609B03755.A12 1609B03755	£1.75	£2.10
125 - SCALE PLATE BSD-1609B03772.A0 1609B03772	£12.04	£14.45
126 - FELT WASHER BSD-1609B03763.A12 1609B03763	£1.75	£2.10
127 - FRICTION PLATE BSD-1609B03770.A0 1609B03770	£7.36	£8.83
128 - SHAFT BSD-1609B00370.A29 1609B00370	£1.75	£2.10
129 - RETAINING RING BSD-1609B00690.A21 1609B00690	£1.75	£2.10
130 - FRICTION PLATE BSD-1609B03773.A9 1609B03773	£7.36	£8.83
131 - HEX NUT BSD-1609B01041.A28 1609B01041	£1.75	£2.10
132 - STOP BOLT BSD-1609B03776.A11 1609B03776	£1.75	£2.10
133 - PIVOT PIN BSD-1609B03771.A9 1609B03771	£6.52	£7.83
134 - SHOULDER SCREW BSD-1609B03779.A15 1609B03779	£1.75	£2.10
136 - DETENT PIN BSD-1609B03767.A19 1609B03767	£2.80	£3.36
137 - CLIP BSD-1609B03757.A8 1609B03757	£1.75	£2.10
138 - O-RING BSD-1609B00601.A29 1609B00601	£1.75	£2.10
140 - HANDLE PLATE BSD-1609B03745.A0 1609B03745	£2.80	£3.36
141 - CARRYING HANDLE BSD-1609B03747.A0 1609B03747	£11.30	£13.56
142 - TAPPING SCREW BSD-1609B03768.A1 1609B03768	£1.75	£2.10
143 - SLIDE STOP BSD-1609B03753.A19 1609B03753	£1.75	£2.10
144 - SPECIAL NUT BSD-1609B03752.A1 1609B03752	£3.72	£4.47
145 - SPRING WASHER BSD-1609B00660.A15 1609B00660	£1.75	£2.10
147 - SHOULDER SCREW BSD-1609B03795.A0 1609B03795	£1.75	£2.10
148 - KNOB BSD-1609B00382.A8 1609B00382	£5.30	£6.36
149 - COMPRESSION SPRING BSD-1609B00417.A20 1609B00417	£1.75	£2.10
150 - RETAINING PLATE BSD-1609B03765.A8 1609B03765	£1.75	£2.10
151 - RETAINING PLATE BSD-1609B03766.A1 1609B03766	£1.75	£2.10
152 - DUST EXTRACTION BSD-1609B03750.A2 1609B03750	£8.67	£10.41
153 - SET SCREW BSD-1609B03777.A7 1609B03777	£1.75	£2.10
154 - DUST EXTRACTION BSD-1609B03751.A7 1609B03751	£8.67	£10.41
155 - CABLE CLIP BSD-1609B01512.A18 1609B01512	£1.75	£2.10
156 - CABLE CLIP BSD-1609B00339.A13 1609B00339	£2.16	£2.59
158 - VACUUM HOSE BSD-1609B03782.A4 1609B03782	£11.02	£13.23
159 - SUPPORT BRACKET BSD-1609B03783.A5 1609B03783	£1.75	£2.10
162 - SCREW BSD-1609B00623.A22 1609B00623	£1.75	£2.10
163 - THREAD-FORMING SCREW BSD-1609B01168.A16 1609B01168	£1.75	£2.10
164 - SCREW BSD-1609B01690.A15 1609B01690	£1.75	£2.10
167 - WEAR PLATE BSD-1609B01602.A5 1609B01602	£1.75	£2.10
168 - LOWER GUARD BSD-1609B04188.A2 1609B04188	£14.91	£17.89
169 - LINKAGE BSD-1609B04001.A4 1609B04001	£12.04	£14.45
170 - COVER BSD-1609B04002.A16 1609B04002	£1.75	£2.10
171 - SPRING BSD-1609B04004.A4 1609B04004	£1.75	£2.10
172 - SCREW BSD-1609BP7145.A16 1609BP7145	£1.75	£2.10
174 - BALL BEARING BSD-1609B01255.A4 1609B01255	£5.58	£6.70
175 - TAPPING SCREW BSD-1609B04010.A3 1609B04010	£1.75	£2.10
177 - SHIM BSD-1609B05321.A1 1609B05321	£1.75	£2.10
178 - LOCK NUT BSD-1609B00974.A16 1609B00974	£1.75	£2.10
179 - TAPPING SCREW BSD-1609BP7134.A16 1609BP7134	£1.75	£2.10
180 - SEAL BSD-1609B04248.A14 1609B04248	£1.75	£2.10
182 - SET SCREW BSD-1609B04205.A15 1609B04205	£1.75	£2.10
184 - NUT BSD-1609B04207.A3 1609B04207	£1.75	£2.10
185 - SPRING RETAINING RING BSD-1609BP7068.A16 1609BP7068	£1.75	£2.10
186 - WASHER BSD-1609BP7050.A13 1609BP7050	£2.61	£3.13
187 - BALL BEARING BSD-1609B03774.A17 1609B03774	£12.04	£14.45
188 - SPACER BSD-1609B03780.A5 1609B03780	£1.75	£2.10
189 - PLAIN BEARING BSD-1600200029.A149 1600200029	£4.26	£5.11
190 - DEFLECTOR BSD-1609B04017.A3 1609B04017	£4.26	£5.11
191 - DEFLECTOR BSD-1609B04028.A16 1609B04028	£6.52	£7.83
192 - CLAMPING FLANGE BSD-1609B04018.A17 1609B04018	£7.36	£8.83
193 - CLAMPING FLANGE BSD-1609B06289.A3 1609B06289	£8.49	£10.19
194 - FLANGE BOLT BSD-1609B05364.A3 1609B05364	£2.71	£3.25
195 - WHEEL BSD-1609B04020.A17 1609B04020	£1.75	£2.10
196 - QUICK-LOCK BSD-1609B00458.A22 1609B00458	£1.75	£2.10
200 - TAPPING SCREW BSD-1609B00637.A36 1609B00637	£1.75	£2.10
201 - SCREW BSD-1609B00973.A4 1609B00973	£1.75	£2.10
202 - SCREW BSD-1609B00627.A25 1609B00627	£2.16	£2.59
214 - SHRINKABLE TUBE BSD-1609B00583.A26 1609B00583	£1.75	£2.10
215 - SCREW BSD-1609B01561.A19 1609B01561	£1.75	£2.10
225 - COVER BSD-1609B04077.A0 1609B04077	£1.75	£2.10
229 - PRINTED CIRCUIT BOARD BSD-1609B01894.A2 1609B01894	-
230 - COVER PLATE BSD-1609B04219.A2 1609B04219	£1.75	£2.10
231 - WIRE BSD-1609B04210.A2 1609B04210	£2.61	£3.13
232 - ON-OFF SWITCH BSD-1619P03669.A14 1619P03669	£21.52	£25.83
233 - SOFT START-UP MODULE BSD-1609B03797.A2 1609B03797	£40.80	£48.96
234 - RUBBER LIP BSD-1609B03791.A4 1609B03791	£2.38	£2.85
235 - RUBBER LIP BSD-1609B03792.A5 1609B03792	£2.38	£2.85
236 - RUBBER STRIP BSD-1609B04220.A16 1609B04220	£2.02	£2.42
238 - RUBBER STRIP BSD-1609B04222.A4 1609B04222	£2.38	£2.85
239 - RING BSD-1609B00813.A5 1609B00813	£1.75	£2.10
240 - CONNECTION BLOCK BSD-1609BP7059.A22 1609BP7059	£1.75	£2.10
241 - WARNING LABEL BSD-1609B04111.A7 1609B04111	£2.61	£3.13
242 - WARNING LABEL BSD-1609B04112.A2 1609B04112	£2.61	£3.13
243 - SCREW BSD-1609B00633.A34 1609B00633	£1.75	£2.10
244 - NUT BSD-1609B00691.A4 1609B00691	£2.16	£2.59
245 - PLAIN WASHER BSD-1609B04225.A4 1609B04225	£1.75	£2.10
246 - SHOULDER SCREW BSD-1609B05201.A3 1609B05201	£1.75	£2.10
247 - O-RING BSD-1609B04228.A2 1609B04228	£4.26	£5.11
248 - CABLE TAPE BSD-1609B01538.A3 1609B01538	£1.75	£2.10
252 - COVER BSD-1609B05298.A19 1609B05298	£1.75	£2.10
257 - SCREW BSD-1609B05270.A2 1609B05270	£1.75	£2.10
258 - BOLT BSD-1609B04236.A6 1609B04236	£1.75	£2.10
259 - ADJUSTING NUT BSD-1609B04227.A21 1609B04227	£1.75	£2.10
261 - SCREW BSD-1609B01665.A4 1609B01665	£1.75	£2.10
262 - SHOULDER SCREW BSD-1609B04744.A12 1609B04744	£1.75	£2.10
263 - CABLE BSD-1609B05115.A12 1609B05115	£2.16	£2.59
264 - SCREW BSD-1609B00780.A17 1609B00780	£1.75	£2.10
265 - MITRE FENCE BSD-1609B04184.A4 1609B04184	£21.52	£25.83
652 - CLAMP BSD-1609B04224.A16 1609B04224	£18.96	£22.75
803 - ARMATURE ASSEMBLY 230V BSD-1609B03793.A2 1609B03793	£103.14	£123.77
808 - NAMEPLATE BSD-1609BN0263.A0 1609BN0263	-
810 - CARBON-BRUSH SET BSD-1609B06661.A16 1609B06661	£16.41	£19.69
811 - CAPACITOR BSD-1609B04141.A3 1609B04141	£1.75	£2.10
824 - LASER BSD-1609B01726.A10 1609B01726	£21.52	£25.83
825 - DUST-PROTECTION COVER BSD-1609B04127.A2 1609B04127	£10.10	£12.12
840 - ASSEMBLY BASE BSD-1609B03744.A6 1609B03744	£195.26	£234.31
841 - FEED TABLE BSD-1609B04128.A4 1609B04128	£21.68	£26.01
842 - FEED TABLE BSD-1609B05388.A5 1609B05388	£37.73	£45.28
846 - TABLE BSD-1609B05339.A7 1609B05339	£120.11	£144.13
847 - PIVOT BSD-1609B04123.A7 1609B04123	£59.53	£71.44
848 - YOKE BSD-1609B03788.A7 1609B03788	£81.81	£98.17
850 - GEAR COVER BSD-1609B05349.A16 1609B05349	£12.04	£14.45
855 - OUTPUT SHAFT BSD-1609B03789.A2 1609B03789	£41.62	£49.95
857 - DUST EXTRACTION BSD-1609B04125.A5 1609B04125	£14.91	£17.89
866 - TORSION SPRING BSD-1609B04124.A2 1609B04124	£13.12	£15.75
881 - CONNECTING WIRE BSD-1609B01895.A0 1609B01895	-
882 - CONNECTING WIRE BSD-1609B04026.A5 1609B04026	-
883 - CONNECTING WIRE BSD-1609B04027.A2 1609B04027	-
885 - CONNECTING WIRE BSD-1609B01896.A3 1609B01896	-
886 - CONNECTING WIRE BSD-1609B04089.A3 1609B04089	-
887 - CONNECTING WIRE BSD-1609B04100.A3 1609B04100	-
890 - LEVER BSD-1609B05340.A0 1609B05340	£4.26	£5.11
891 - STOP PLATE BSD-1609B02365.A5 1609B02365	£2.29	£2.75
892 - SCREW BSD-1609B00263.A9 1609B00263	£2.16	£2.59
893 - SCREW BSD-1609B00678.A23 1609B00678	£1.75	£2.10

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 8 SJL / 3601M19101 / EU 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
