Bosch GCM 12 SDE / 3601M23100 / EU 230 Volt Spare Parts

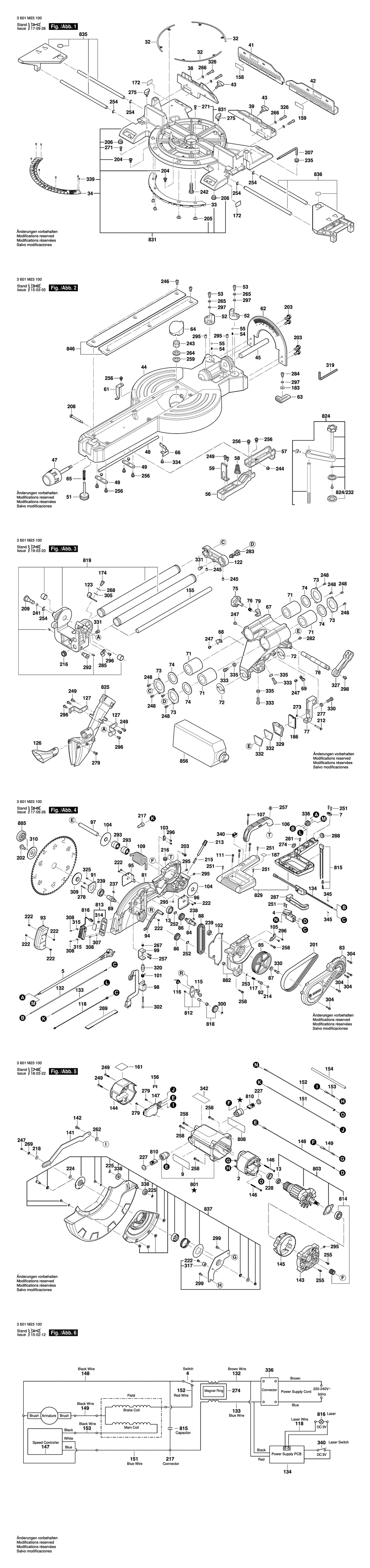

An exploded drawing and listing for the Bosch GCM 12 SDE / 3601M23100 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1609B04898.A4 1609B04898	£63.50	£76.20
4 - SWITCH BSD-2610950336.A7 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD EU 3.5m 2x1mm H07 RN-F BSD-1609B00372.A4 1609B00372	£21.52	£25.83
7 - CABLE CLIP BSD-1619P03808.A12 1619P03808	£1.75	£2.10
9 - LABEL BSD-1609B00695.A6 1609B00695	£2.61	£3.13
13 - BEARING BSD-1609B00597.A6 1609B00597	£10.10	£12.12
32 - SLIDING PLATE BSD-1609B04702.A3 1609B04702	£6.52	£7.83
33 - DETENT PLATE BSD-1609B04703.A4 1609B04703	£7.36	£8.83
34 - SCALE BSD-1609B04704.A3 1609B04704	£5.58	£6.70
38 - MITRE FENCE BSD-1609B04991.A6 1609B04991	£27.68	£33.21
39 - MITRE FENCE BSD-1609b04992.A3 1609b04992	£24.45	£29.34
41 - MITRE FENCE BSD-1609B04993.A1 1609B04993	£27.23	£32.68
42 - MITRE FENCE BSD-1609B04994.A6 1609B04994	£27.23	£32.68
43 - KNOB BSD-1609B04715.A1 1609B04715	£2.61	£3.13
44 - TABLE BSD-1609B04721.A3 1609B04721	£195.26	£234.31
45 - SHAFT BSD-1609B04722.A4 1609B04722	£4.26	£5.11
47 - KNOB BSD-1609B04725.A7 1609B04725	£5.30	£6.36
48 - ROD BSD-1609B04726.A4 1609B04726	£2.80	£3.36
49 - COVER BSD-1609B04727.A3 1609B04727	£2.80	£3.36
51 - SUPPORTING FOOT BSD-1609B04728.A8 1609B04728	£2.80	£3.36
52 - DETENT BSD-1609B04743.A3 1609B04743	£13.12	£15.75
53 - SHOULDER SCREW BSD-1609B04744.A4 1609B04744	£1.75	£2.10
54 - CONTACT STRAP BSD-1609B04745.A3 1609B04745	£1.75	£2.10
55 - BALL BSD-1609B04746.A8 1609B04746	£1.75	£2.10
56 - DETENT BSD-1609B04747.A3 1609B04747	£2.80	£3.36
57 - DETENT BSD-1609B04748.A4 1609B04748	£10.10	£12.12
58 - CONTACT STRAP BSD-1609B04749.A3 1609B04749	£1.75	£2.10
59 - LEAF SPRING BSD-1609B04750.A4 1609B04750	£1.75	£2.10
61 - POINTER BSD-1609B04751.A3 1609B04751	£1.75	£2.10
62 - SCALE BSD-1609B04752.A4 1609B04752	£21.52	£25.83
63 - SLIDING PLATE BSD-1609B04754.A3 1609B04754	£2.16	£2.59
64 - COVER BSD-1609B04755.A4 1609B04755	£1.75	£2.10
65 - CONTACT STRAP BSD-1609B04756.A3 1609B04756	£1.75	£2.10
66 - LEAF SPRING BSD-1609B04758.A4 1609B04758	£1.75	£2.10
67 - POST BSD-1609B04761.A3 1609B04761	£68.42	£82.10
68 - POINTER BSD-1609B04773.A8 1609B04773	£1.75	£2.10
69 - POINTER BSD-1609B04774.A3 1609B04774	£1.75	£2.10
71 - BEARING BSD-1609B04775.A8 1609B04775	£40.80	£48.96
72 - WEAR PLATE BSD-1609B04776.A3 1609B04776	£2.16	£2.59
73 - PLATE BSD-1609B04778.A8 1609B04778	£3.72	£4.47
74 - FELT BSD-1609B04780.A3 1609B04780	£2.80	£3.36
75 - KNOB BSD-1609B04781.A8 1609B04781	£4.26	£5.11
76 - CONTACT STRAP BSD-1609B04791.A3 1609B04791	£1.32	£1.58
77 - LOCKING LEVER BSD-1609B04794.A4 1609B04794	£16.41	£19.69
78 - LEVER SHAFT BSD-1609B04795.A3 1609B04795	£16.41	£19.69
79 - COVER BSD-1609B04798.A4 1609B04798	£2.16	£2.59
81 - ARM BSD-1609B04801.A1 1609B04801	£102.57	£123.08
83 - BELT COVER BSD-1609B04803.A3 1609B04803	£10.10	£12.12
84 - TRANSMISSION SHAFT BSD-1609B04804.A4 1609B04804	£10.10	£12.12
85 - PULLEY BSD-1609B04805.A3 1609B04805	£14.91	£17.89
86 - SPROCKET BSD-1609B04806.A4 1609B04806	£13.12	£15.75
87 - WASHER BSD-1609B04807.A7 1609B04807	£1.75	£2.10
88 - CHAIN BSD-1609B04808.A4 1609B04808	£16.41	£19.69
89 - OUTPUT SHAFT BSD-1609B04809.A3 1609B04809	£10.10	£12.12
91 - PLATE BSD-1609B04810.A8 1609B04810	£1.75	£2.10
92 - SPINDLE BSD-1609B04811.A3 1609B04811	£1.75	£2.10
93 - COVER BSD-1609B04812.A4 1609B04812	£1.75	£2.10
94 - CHANNEL BSD-1609B04813.A3 1609B04813	£1.75	£2.10
95 - CHIP DEFLECTOR BSD-1609B04815.A2 1609B04815	£2.61	£3.13
96 - CHIP DEFLECTOR BSD-1609B04814.A2 1609B04814	£2.61	£3.13
97 - PIVOT PIN BSD-1609B04816.A3 1609B04816	£3.72	£4.47
98 - LOCKING LEVER BSD-1609B04817.A2 1609B04817	£6.52	£7.83
99 - BRACKET BSD-1609B04818.A1 1609B04818	£1.75	£2.10
101 - TORSION SPRING BSD-1609B04819.A6 1609B04819	£1.75	£2.10
102 - GASKET BSD-1609B04822.A4 1609B04822	£2.80	£3.36
103 - CABLE CLIP BSD-1609B04825.A2 1609B04825	£1.75	£2.10
104 - WEAR PLATE BSD-1609B04826.A3 1609B04826	£1.75	£2.10
105 - CABLE CLIP BSD-1609B04827.A4 1609B04827	£1.75	£2.10
106 - CARRYING HANDLE BSD-1609B04828.A3 1609B04828	£3.72	£4.47
107 - SCREW BSD-1609B04829.A4 1609B04829	£1.75	£2.10
109 - TORSION SPRING BSD-1609B04831.A3 1609B04831	£12.04	£14.45
111 - SCREW BSD-1609B04832.A4 1609B04832	£13.12	£15.75
115 - SCREW BSD-1609B04836.A7 1609B04836	£1.75	£2.10
116 - TORSION SPRING BSD-1609B04837.A4 1609B04837	£3.72	£4.47
117 - COMPRESSION SPRING BSD-1609B04838.A7 1609B04838	£2.16	£2.59
118 - WIRE BSD-1609B04839.A4 1609B04839	£3.72	£4.47
122 - END CAP BSD-1609B04843.A7 1609B04843	£10.10	£12.12
123 - PLATE BSD-1609B04844.A4 1609B04844	£1.95	£2.34
126 - DUST EXTRACTION BSD-1609B04847.A3 1609B04847	£4.26	£5.11
127 - SUPPORT BRACKET BSD-1609B04848.A4 1609B04848	£2.16	£2.59
132 - WIRE BSD-1609B04855.A0 1609B04855	£1.75	£2.10
133 - WIRE BSD-1609B04856.A2 1609B04856	£1.75	£2.10
134 - POWER SUPPLY BOARD BSD-1609B04858.A0 1609B04858	£16.41	£19.69
141 - LINKAGE BSD-1609B04875.A0 1609B04875	£10.10	£12.12
142 - SHOULDER SCREW BSD-1609B04876.A7 1609B04876	£1.75	£2.10
143 - INTERMEDIATE FLANGE BSD-1609B04892.A3 1609B04892	£14.91	£17.89
144 - END CAP BSD-1609B04902.A5 1609B04902	£4.26	£5.11
145 - BAFFLE BSD-1609B04904.A3 1609B04904	£2.80	£3.36
146 - SCREW BSD-1609B04911.A8 1609B04911	£3.72	£4.47
147 - SPEED GOVERNOR BSD-1609B04913.A7 1609B04913	£27.23	£32.68
148 - WIRE BSD-1609B04915.A4 1609B04915	£2.80	£3.36
149 - WIRE BSD-1609B04916.A7 1609B04916	£1.75	£2.10
151 - WIRE BSD-1609B04917.A2 1609B04917	£2.16	£2.59
152 - WIRE BSD-1609B04918.A7 1609B04918	£2.61	£3.13
153 - WIRE BSD-1609B04919.A2 1609B04919	£1.75	£2.10
154 - SLEEVE BSD-1609B04921.A7 1609B04921	£1.75	£2.10
155 - SLEEVE BSD-1609B04922.A2 1609B04922	£1.75	£2.10
156 - CLIP BSD-1609B04923.A2 1609B04923	£1.75	£2.10
158 - LABEL BSD-1609B04949.A1 1609B04949	£2.61	£3.13
159 - LABEL BSD-1609B04950.A10 1609B04950	£2.61	£3.13
161 - LABEL BSD-1609B04951.A0 1609B04951	£2.61	£3.13
172 - LABEL BSD-1609B04960.A5 1609B04960	£2.61	£3.13
174 - SHOULDER SCREW BSD-1609B04783.A5 1609B04783	£1.75	£2.10
183 - WASHER BSD-1609B04757.A4 1609B04757	£1.75	£2.10
186 - LEAF SPRING BSD-1609B04762.A2 1609B04762	£1.75	£2.10
187 - LABEL BSD-1609B04959.A10 1609B04959	£2.61	£3.13
201 - BELT BSD-1609B00207.A0 1609B00207	£27.23	£32.68
202 - FLANGE BOLT BSD-1609B00211.A7 1609B00211	£4.26	£5.11
203 - FLANGE BOLT BSD-1609B00213.A15 1609B00213	£1.75	£2.10
204 - SCREW BSD-1609B00223.A14 1609B00223	£1.75	£2.10
205 - NUT BSD-1609B00225.A4 1609B00225	£3.72	£4.47
206 - SUPPORTING FOOT BSD-1609B01431.A6 1609B01431	£2.16	£2.59
207 - WRENCH SOCKET BSD-1609B00256.A19 1609B00256	£2.16	£2.59
208 - BOLT BSD-1609B00305.A14 1609B00305	£2.61	£3.13
209 - KNOB BSD-1609B00350.A17 1609B00350	£1.75	£2.10
212 - SHAFT BSD-1609B00370.A10 1609B00370	£1.75	£2.10
213 - KNOB BSD-1609B00382.A25 1609B00382	£5.30	£6.36
214 - BUTTON BSD-1609B00390.A13 1609B00390	£1.75	£2.10
215 - COMPRESSION SPRING BSD-1609B00417.A15 1609B00417	£1.75	£2.10
216 - SLEEVE BSD-1609B00418.A3 1609B00418	£1.75	£2.10
217 - CONNECTOR BSD-1609B00430.A8 1609B00430	£1.75	£2.10
218 - BUSHING BSD-1609B00449.A13 1609B00449	£1.75	£2.10
222 - SCREW BSD-1609B00454.A15 1609B00454	£1.75	£2.10
224 - WASHER BSD-1609B00457.A12 1609B00457	£1.75	£2.10
225 - QUICK-LOCK BSD-1609B00458.A5 1609B00458	£1.75	£2.10
227 - BRUSH-COVER BSD-1609B00478.A15 1609B00478	£1.75	£2.10
228 - RUBBER BUSHING BSD-1609B00480.A10 1609B00480	£2.16	£2.59
235 - RUBBER BUSHING BSD-1609B00533.A4 1609B00533	£1.75	£2.10
237 - KEY BSD-1609B00592.A1 1609B00592	£1.75	£2.10
238 - KEY BSD-1609B00593.A17 1609B00593	£1.75	£2.10
239 - BEARING BSD-1609B00596.A8 1609B00596	£13.12	£15.75
241 - O-RING BSD-1609B00601.A6 1609B00601	£1.75	£2.10
242 - BOLT BSD-1609B00602.A14 1609B00602	£1.75	£2.10
243 - LOCK NUT BSD-1609B00603.A6 1609B00603	£1.75	£2.10
244 - LOCK NUT BSD-1609B00605.A13 1609B00605	£1.75	£2.10
245 - SET SCREW BSD-1609B00617.A11 1609B00617	£1.75	£2.10
246 - SCREW BSD-1609B00627.A16 1609B00627	£2.16	£2.59
247 - SCREW BSD-1609B00630.A14 1609B00630	£1.75	£2.10
248 - SCREW BSD-1609B00633.A13 1609B00633	£1.75	£2.10
249 - TAPPING SCREW BSD-1609B00636.A13 1609B00636	£2.61	£3.13
251 - TAPPING SCREW BSD-1609B00637.A12 1609B00637	£1.75	£2.10
252 - RETAINING RING BSD-1609B00641.A14 1609B00641	£1.75	£2.10
253 - RETAINING RING BSD-1609B00643.A14 1609B00643	£1.75	£2.10
254 - RETAINING RING BSD-1609B00644.A4 1609B00644	£2.16	£2.59
255 - SCREW BSD-1609B00649.A4 1609B00649	£1.75	£2.10
256 - SCREW BSD-1609B00650.A13 1609B00650	£1.75	£2.10
257 - SCREW BSD-1609B00652.A5 1609B00652	£1.75	£2.10
258 - SCREW BSD-1609B00654.A1 1609B00654	£1.75	£2.10
259 - SPRING WASHER BSD-1609B00658.A19 1609B00658	£1.75	£2.10
262 - WASHER BSD-1609B00662.A10 1609B00662	£1.75	£2.10
264 - WASHER BSD-1609B00665.A20 1609B00665	£1.75	£2.10
265 - WASHER BSD-1609B00667.A0 1609B00667	£1.75	£2.10
266 - WASHER BSD-1609B00669.A20 1609B00669	£1.75	£2.10
267 - LOCK NUT BSD-1609B00673.A13 1609B00673	£1.75	£2.10
268 - WASHER BSD-1609B00674.A5 1609B00674	£1.75	£2.10
269 - WASHER BSD-1609B00675.A8 1609B00675	£1.75	£2.10
271 - SCREW BSD-1609B00678.A15 1609B00678	£1.75	£2.10
273 - RETAINING RING BSD-1609B00690.A15 1609B00690	£1.75	£2.10
274 - RING BSD-1609B00813.A20 1609B00813	£1.75	£2.10
275 - KNOB BSD-1609B00861.A4 1609B00861	£1.32	£1.58
277 - HEX NUT BSD-1609B01041.A4 1609B01041	£1.75	£2.10
278 - SCREW BSD-1609B04799.A8 1609B04799	£1.75	£2.10
279 - TAPPING SCREW BSD-1609B01194.A4 1609B01194	£1.75	£2.10
281 - CYL HEAD TAPPING SCREW BSD-1609B01356.A9 1609B01356	£1.75	£2.10
282 - SCREW BSD-1609B01388.A4 1609B01388	£1.75	£2.10
283 - CABLE HOLDER BSD-1609B04869.A5 1609B04869	£1.75	£2.10
284 - SHOULDER SCREW BSD-1609B01462.A5 1609B01462	£1.75	£2.10
285 - CABLE CLIP BSD-1609B01512.A7 1609B01512	£1.75	£2.10
287 - TRIGGER BSD-1609B01531.A5 1609B01531	£2.16	£2.59
288 - CORD GUARD BSD-1609BP7095.A5 1609BP7095	£1.75	£2.10
289 - CABLE TAPE BSD-1609B01538.A24 1609B01538	£1.75	£2.10
292 - CONTROL SCREW BSD-1609B01599.A6 1609B01599	£1.75	£2.10
293 - BUSHING BSD-1609B01605.A5 1609B01605	£1.75	£2.10
295 - SCREW BSD-1609B01660.A4 1609B01660	£1.75	£2.10
296 - SCREW BSD-1609B01664.A9 1609B01664	£1.75	£2.10
297 - WASHER BSD-1609B01668.A30 1609B01668	£1.75	£2.10
298 - SCREW BSD-1609B01665.A14 1609B01665	£1.75	£2.10
299 - SCREW BSD-1609B01693.A7 1609B01693	£1.75	£2.10
300 - END CLIP BSD-1609B01992.A16 1609B01992	£1.75	£2.10
302 - SCREW BSD-1609B02177.A5 1609B02177	£1.75	£2.10
304 - SCREW BSD-1609B00653.A13 1609B00653	£1.75	£2.10
305 - WASHER BSD-1609B01696.A2 1609B01696	£1.75	£2.10
307 - WASHER BSD-1609B02191.A13 1609B02191	£2.61	£3.13
308 - SCREW BSD-1609B02192.A1 1609B02192	£1.75	£2.10
309 - FLANGE BSD-1609B02350.A14 1609B02350	£12.04	£14.45
310 - FLANGE BSD-1609B02352.A0 1609B02352	£11.30	£13.56
314 - SCREW BSD-1609B02437.A0 1609B02437	£1.75	£2.10
315 - GROOVED WASHER BSD-1609B02438.A13 1609B02438	£1.75	£2.10
317 - BUMPER BSD-1609B02467.A15 1609B02467	£1.75	£2.10
319 - WRENCH SOCKET BSD-1609B02490.A7 1609B02490	£1.32	£1.58
320 - BUSHING BSD-1609B02502.A2 1609B02502	£1.75	£2.10
325 - SCREW BSD-1609B03179.A6 1609B03179	£1.75	£2.10
326 - SCREW BSD-1609B03722.A25 1609B03722	£1.75	£2.10
327 - CONTROL LEVER BSD-1609B03733.A17 1609B03733	£4.26	£5.11
329 - LOCK PLATE BSD-1609B03741.A14 1609B03741	£2.61	£3.13
330 - ADJUSTING BOLT BSD-1609B03742.A7 1609B03742	£1.75	£2.10
331 - SLIDE STOP BSD-1609B03753.A25 1609B03753	£1.75	£2.10
332 - FRICTION PLATE BSD-1609B03770.A17 1609B03770	£7.36	£8.83
333 - STOP BOLT BSD-1609B03776.A25 1609B03776	£1.75	£2.10
334 - SCREW BSD-1609B04086.A28 1609B04086	£2.16	£2.59
335 - ADJUSTING NUT BSD-1609B04227.A10 1609B04227	£1.75	£2.10
336 - CONNECTION BLOCK BSD-1609BP7059.A32 1609BP7059	£1.75	£2.10
338 - ROLLER BSD-1609BP7124.A0 1609BP7124	£1.75	£2.10
339 - RIVET BSD-1609B00622.A14 1609B00622	£1.75	£2.10
340 - SWITCH BSD-1609B05392.A6 1609B05392	£4.26	£5.11
342 - WARNING PLATE BSD-1609B02125.A6 1609B02125	£2.61	£3.13
345 - CONNECTING TERMINAL BSD-1609B01397.A7 1609B01397	£1.75	£2.10
801 - HOUSING ASSEMBLY BSD-1609B05013.A4 1609B05013	£21.52	£25.83
803 - ARMATURE ASSEMBLY 230V BSD-1609B05014.A2 1609B05014	£114.88	£137.86
808 - NAMEPLATE BSD-1609BN0171.A0 1609BN0171	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1609B05015.A0 1609B05015	£12.04	£14.45
812 - TENSIONING BRACKET BSD-1609B05016.A3 1609B05016	£4.26	£5.11
813 - SUPPORT PLATE BSD-1609B02434.A16 1609B02434	£16.41	£19.69
814 - BEARING BSD-1609B02316.A2 1609B02316	£16.41	£19.69
815 - CONDENSER BSD-1609B05030.A3 1609B05030	£1.75	£2.10
816 - LASER MODULE BSD-1609B05019.A0 1609B05019	£81.81	£98.17
818 - SPROCKET BSD-1609B05020.A7 1609B05020	£13.12	£15.75
819 - CARRIER BSD-1609B05021.A0 1609B05021	£93.88	£112.65
824 - ADJUSTABLE SCREW CLAMP BSD-1609B06203.A12 1609B06203	£14.99	£17.99
824/232 - RUBBER PAD BSD-1609B00523.A17 1609B00523	£2.61	£3.13
825 - DUST EXTRACTION BSD-1609B05018.A7 1609B05018	£12.04	£14.45
829 - SWITCH HANDLE BSD-1609B05012.A3 1609B05012	£21.52	£25.83
831 - BASE UNIT BSD-1609B05022.A7 1609B05022	£195.26	£234.31
835 - EXTENSION STAND BSD-1609B05023.A0 1609B05023	£40.80	£48.96
836 - EXTENSION STAND BSD-1609B05024.A7 1609B05024	£40.80	£48.96
837 - LOWER GUARD BSD-1609B05025.A0 1609B05025	£45.67	£54.80
846 - PLATE BSD-1609B05028.A4 1609B05028	£10.10	£12.12
882 - CHAIN COVER BSD-1609B05026.A7 1609B05026	£31.64	£37.97
885 - BOLT BSD-1609B05017.A0 1609B05017	£18.96	£22.75

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 12 SDE / 3601M23100 / EU 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GCM 12 SDE / 3601M23100 / EU 230 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GCM 12 SDE / 3601M23100 / EU 230 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
