Dewalt DW745 Type 3 Table Saw Spare Parts

Home Details Reviews Delivery

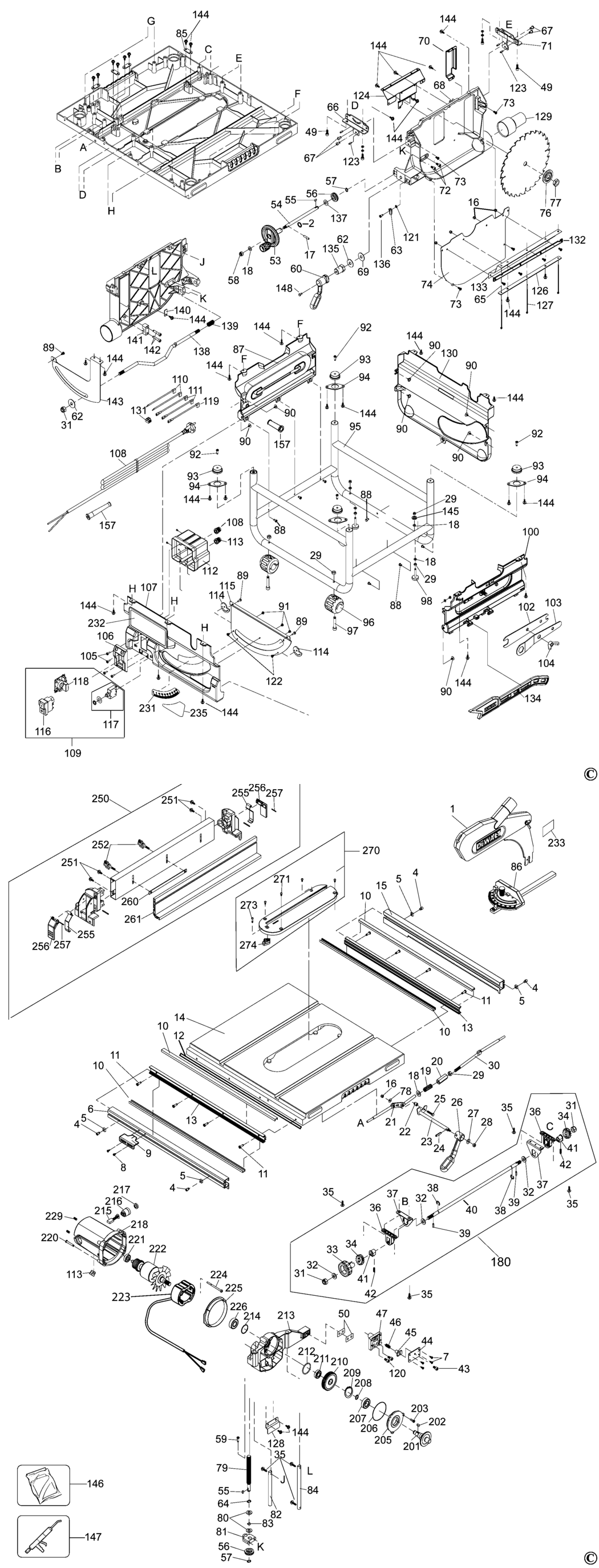

An exploded drawing and spare parts listing for the Dewalt DW745 Type 3 Table Saw

	Ex VAT	Inc VAT
1 - GUARD SA BDE-5140034-41.A0 5140034-41	£11.18	£13.41
2 - O RING BDE-1004549-04.A2 1004549-04	£1.66	£1.99
4 - PIN BDE-5140032-02.A1 5140032-02	£1.66	£1.99
5 - NUT M6 BDE-5140032-03.A3 5140032-03	£1.66	£1.99
6 - RAIL BDE-5140117-75.A0 5140117-75	£41.24	£49.49
7 - SCREW.SPECIAL BDE-1004549-00.A1 1004549-00	£1.66	£1.99
7 - SCREW BDE-5140032-05.A1 5140032-05	£1.66	£1.99
8 - SCREW.SPECIAL BDE-1004549-00.A2 1004549-00	£1.66	£1.99
8 - WASHER M4 BDE-5140032-06 5140032-06	-
9 - POINTER BDE-5140032-07.A0 5140032-07	£4.83	£5.80
9 - POINTER RAIL BDE-5140032-07.A1 5140032-07	£4.83	£5.80
10 - CAP BDE-5140032-08.A3 5140032-08	£1.66	£1.99
10 - CAP INNER RAIL BDE-5140032-08.A4 5140032-08	£1.66	£1.99
11 - SCREW BDE-5140032-09.A0 5140032-09	£1.66	£1.99
11 - SCREW.SPECIAL BDE-1002765-00.A4 1002765-00	£1.66	£1.99
12 - SCALE BDE-N177688.A0 N177688	£3.80	£4.56
12 - WASHER LOCK BDE-5140011-65.A1 5140011-65	£1.66	£1.99
13 - RAIL INNER BDE-5140122-82.A2 5140122-82	-
13 - RAIL BDE-5140032-10.A2 5140032-10	£18.91	£22.69
14 - TABLE BDE-5140118-00 5140118-00	£301.55	£361.86
15 - RAIL REAR BDE-5140117-76.A2 5140117-76	£41.24	£49.49
16 - NUT M5 BDE-5140032-13.A4 5140032-13	£1.66	£1.99
17 - PIN BDE-1002766-00.A0 1002766-00	£1.66	£1.99
17 - WASHER M5 BDE-5140032-14 5140032-14	-
18 - WASHER M8 BDE-5140032-15.A0 5140032-15	£1.66	£1.99
19 - SPRING BDE-5140032-16.A2 5140032-16	£1.66	£1.99
20 - ADJUSTER HEX BDE-5140032-17.A0 5140032-17	£3.39	£4.07
20 - ADJUSTER BDE-5140032-17.A1 5140032-17	£3.39	£4.07
21 - SHAFT SA BDE-5140034-48.A2 5140034-48	£18.00	£21.60
21 - SHAFT SA FRONT THREAD BDE-5140034-48.A3 5140034-48	£18.00	£21.60
22 - BUSHING BDE-5140032-19.A3 5140032-19	£1.66	£1.99
23 - SHAFT BDE-5140032-20.A0 5140032-20	£12.53	£15.04
24 - PIN BDE-5140032-21.A3 5140032-21	£1.66	£1.99
25 - SCREW BDE-5140032-22.A0 5140032-22	£1.66	£1.99
26 - LEVER LOCK BDE-5140032-23.A3 5140032-23	£8.08	£9.70
27 - WASHER M6 BDE-5140032-24.A1 5140032-24	£1.66	£1.99
28 - NUT M6 BDE-5140032-25.A3 5140032-25	£1.66	£1.99
29 - NUT BDE-429989-57.A3 429989-57	£1.66	£1.99
30 - SHAFT SA BDE-5140034-49.A0 5140034-49	£15.01	£18.01
30 - SHAFT SA REAR THREAD BDE-5140034-49.A1 5140034-49	£15.01	£18.01
31 - LOCK NUT BDE-429901-00.A4 429901-00	£1.66	£1.99
32 - WASHER M10 BDE-5140032-27.A6 5140032-27	£1.66	£1.99
33 - FENCE KNOB BDE-5140032-28.A0 5140032-28	£3.92	£4.70
34 - PINION GEAR BDE-5140032-29.A6 5140032-29	£3.39	£4.07
35 - SCREW.SPECIAL BDE-1002767-00.A2 1002767-00	£1.66	£1.99
35 - BOLT BDE-5140032-30 5140032-30	-
36 - BRACKET BDE-5140032-31.A0 5140032-31	£2.32	£2.78
37 - GUARD BDE-5140118-01.A0 5140118-01	£16.52	£19.82
37 - GUARD BDE-5140118-01.A1 5140118-01	£16.52	£19.82
38 - LOCKING RING BDE-5140032-33.A6 5140032-33	£1.66	£1.99
39 - PIN BDE-5140032-34.A0 5140032-34	£1.66	£1.99
40 - ROD BDE-5140034-50.A2 5140034-50	£17.48	£20.97
41 - BEARING BLOCK BDE-5140032-36.A6 5140032-36	£1.66	£1.99
42 - SPRING BDE-5140032-37.A0 5140032-37	£1.66	£1.99
43 - SCREW BDE-5140034-51.A0 5140034-51	£1.66	£1.99
44 - COVER BDE-5140118-02.A1 5140118-02	£1.66	£1.99
44 - COVER SPLITTERBASE FRONT BDE-5140118-02.A2 5140118-02	£1.66	£1.99
45 - LOCK PIN BDE-5140118-03.A0 5140118-03	£2.87	£3.44
45 - LOCK PIN SPLITTER BDE-5140118-03.A1 5140118-03	£2.87	£3.44
46 - LEAF SPRING BDE-5140032-41.A2 5140032-41	£1.66	£1.99
47 - BASE SPLITTER BDE-5140118-04.A1 5140118-04	£18.00	£21.60
47 - BASE BDE-5140118-04.A2 5140118-04	£18.00	£21.60
48 - GUARD PLATE BDE-5140032-43 5140032-43	-
49 - SCREW BDE-5140032-44 5140032-44	-
49 - SCREW.SPECIAL BDE-1002769-00.A3 1002769-00	£1.66	£1.99
50 - SPACER BDE-5140032-45.A0 5140032-45	£1.66	£1.99
51 - SCREW BDE-5140032-46.A1 5140032-46	-
52 - KNOB BDE-5140032-47.A0 5140032-47	-
53 - WHEEL SA BDE-1004549-07.A0 1004549-07	£15.01	£18.01
53 - HANDLE BDE-5140117-77.A0 5140117-77	-
54 - SHAFT BDE-5140032-49.A3 5140032-49	£9.69	£11.63
55 - KEY BDE-5140032-50.A0 5140032-50	£1.66	£1.99
56 - BEVEL GEAR BDE-5140118-05.A0 5140118-05	£3.39	£4.07
57 - RING S-RING BDE-5140032-52.A6 5140032-52	£1.66	£1.99
57 - RING BDE-5140032-52.A7 5140032-52	£1.66	£1.99
58 - NUT BDE-429898-00.A1 429898-00	£1.66	£1.99
59 - SCREW.SPECIAL BDE-1002773-00.A0 1002773-00	£1.66	£1.99
59 - SCREW BDE-5140010-48.A2 5140010-48	-
60 - LOCK HANDLE BDE-5140118-06.A1 5140118-06	£7.40	£8.88
62 - WASHER LOCK BDE-5140032-57.A3 5140032-57	£1.66	£1.99
63 - INDICATOR BDE-5140032-58.A0 5140032-58	£1.66	£1.99
64 - WASHER BDE-5140010-05.A1 5140010-05	-
64 - RING BDE-1002774-00.A3 1002774-00	£1.66	£1.99
65 - WASHER M6 BDE-5140032-59 5140032-59	-
65 - SCREW.SPECIAL BDE-1002775-00.A0 1002775-00	£1.66	£1.99
66 - TRUNION BDE-5140032-60.A0 5140032-60	£15.01	£18.01
67 - SCREW BDE-5140032-61 5140032-61	-
67 - SCREW.SPECIAL BDE-1002776-00.A3 1002776-00	£1.66	£1.99
68 - SHROUD BDE-5140118-07.A0 5140118-07	-
69 - WASHER PLASTIC BDE-1002778-00.A2 1002778-00	£1.66	£1.99
69 - BOLT BDE-5140032-63 5140032-63	-
70 - GUARD REAR REAR BDE-5140118-08.A3 5140118-08	£2.78	£3.34
70 - GUARD REAR BDE-5140118-08.A4 5140118-08	£2.78	£3.34
71 - BRACKET BDE-5140032-65.A0 5140032-65	£14.57	£17.48
71 - BRACKET REAR BDE-5140032-65.A1 5140032-65	£14.57	£17.48
72 - SCREW BDE-5140032-66 5140032-66	-
72 - SCREW.SPECIAL BDE-1002779-00.A1 1002779-00	£1.66	£1.99
73 - LOCKING SCREW BDE-1004549-01.A2 1004549-01	£1.66	£1.99
73 - SCREW WING W/WASHER BDE-5140032-67 5140032-67	£1.66	£1.99
74 - SHROUD BDE-5140118-09.A0 5140118-09	£34.00	£40.80
74 - SHROUD CRADLE BDE-5140118-09.A1 5140118-09	£34.00	£40.80
76 - WASHER CLAMP BDE-5140034-53.A1 5140034-53	£3.92	£4.70
77 - NUT BDE-429989-94.A0 429989-94	£1.66	£1.99
78 - WASHER BDE-5140032-70.A3 5140032-70	£1.66	£1.99
79 - SCREW BDE-5140118-10.A1 5140118-10	£12.53	£15.04
80 - WASHER THRUST BDE-5140032-72.A0 5140032-72	£1.66	£1.99
81 - BLOCK ELEVATIONSCREW BDE-5140032-73.A4 5140032-73	£7.40	£8.88
81 - BLOCK BDE-5140032-73.A5 5140032-73	£7.40	£8.88
82 - SHAFT BDE-5140118-11.A0 5140118-11	£11.18	£13.41
83 - WASHER BOW CURVED BDE-5140032-75.A3 5140032-75	£1.66	£1.99
83 - WASHER BOW BDE-5140032-75.A4 5140032-75	£1.66	£1.99
84 - SHAFT BDE-5140118-12.A1 5140118-12	£14.57	£17.48
85 - PLATE BDE-5140032-77.A6 5140032-77	£1.66	£1.99
85 - PLATE FIX BDE-5140032-77.A7 5140032-77	£1.66	£1.99
86 - MITRE FENCE BDE-5140034-54.A0 5140034-54	£39.97	£47.96
87 - PANEL LH LEFT BDE-5140032-79.A3 5140032-79	£15.01	£18.01
87 - PANEL LH BDE-5140032-79.A4 5140032-79	£15.01	£18.01
88 - WASHER BDE-1002781-00.A1 1002781-00	£1.66	£1.99
88 - WASHER BDE-5140011-66.A0 5140011-66	-
89 - SCREW BDE-1002782-00.A0 1002782-00	£1.66	£1.99
89 - SCREW BDE-5140032-80.A0 5140032-80	£1.66	£1.99
90 - SCREW.SPECIAL BDE-1002783-00.A3 1002783-00	£1.66	£1.99
90 - SCREW W/WASHER BDE-5140032-81.A2 5140032-81	-
91 - SCREW BDE-1002784-00.A0 1002784-00	£1.66	£1.99
91 - SCREW BDE-5140032-82 5140032-82	-
92 - SCREW BDE-1002785-00.A1 1002785-00	£1.66	£1.99
92 - SCREW BDE-5140032-83.A0 5140032-83	£1.66	£1.99
93 - BUMPER BDE-5140032-84.A3 5140032-84	£1.66	£1.99
93 - BUMPER TABLE BDE-5140032-84.A4 5140032-84	£1.66	£1.99
94 - PLATE BDE-5140032-85.A1 5140032-85	£1.66	£1.99
95 - CAGE BDE-5140118-13.A0 5140118-13	£157.18	£188.61
96 - FEET BDE-5140032-87.A3 5140032-87	£12.53	£15.04
97 - SCREW BDE-5140032-88.A1 5140032-88	£1.66	£1.99
98 - FEET BDE-5140032-89.A3 5140032-89	£2.87	£3.44
98 - FEET REAR BDE-5140032-89.A4 5140032-89	£2.87	£3.44
99 - SCREW HEX HD BDE-5140032-90 5140032-90	-
100 - PANEL RH BDE-1004549-05.A0 1004549-05	£19.48	£23.37
100 - PANEL RH BDE-1004549-05.A3 1004549-05	£19.48	£23.37
101 - NUT BDE-5140032-92 5140032-92	-
102 - WRENCH SPECIAL BDE-1002789-00.A2 1002789-00	£12.53	£15.04
102 - WRENCH SPECIAL OPEN END BDE-5140061-75.A2 5140061-75	-
103 - WRENCH SPECIAL BDE-1002790-00.A2 1002790-00	£12.53	£15.04
103 - WRENCH SPECIAL BOX BDE-5140061-76.A0 5140061-76	-
104 - WING NUT BDE-5140032-95.A0 5140032-95	£1.66	£1.99
105 - SCREW BDE-1002791-00.A0 1002791-00	£1.66	£1.99
105 - SCREW BDE-5140071-27.A0 5140071-27	-
106 - SWITCH COVER BDE-5140034-55.A2 5140034-55	-
107 - PANEL FRONT BDE-1004697-35.A2 1004697-35	£24.39	£29.27
107 - PANEL FRONT INCLUDES LABELS BDE-5140034-88.A1 5140034-88	-
108 - CORDSET LX BDE-1004549-09 1004549-09	£87.82	£105.39
108 - CORDSET (M/PLUG) GB GB BDE-5140118-23.A0 5140118-23	£55.30	£66.36
108 - CORDSET (M/PLUG) GB BDE-5140118-23.A1 5140118-23	£55.30	£66.36
109 - SWITCH 115V Inc 116-117-118 LX BDE-1002796-00.A1 1002796-00	£47.08	£56.49
109 - SWITCH SA BDE-5140118-15 5140118-15	-
109 - SWITCH KIT 230V Inc 116-117-118 GB BDE-1003705-00.A1 1003705-00	£48.48	£58.17
110 - LEAD SA SJT 14 AWG BDE-5140118-16 5140118-16	-
110 - LEAD SA BDE-5140034-57.A0 5140034-57	£7.85	£9.42
111 - LEAD SA SJT 14 AWG BDE-5140034-58.A1 5140034-58	£7.85	£9.42
111 - LEAD SA BDE-5140034-58.A2 5140034-58	£7.85	£9.42
112 - SWITCHBOX BDE-5140034-59.A0 5140034-59	£80.46	£96.55
113 - GROMMET BDE-429991-43.A0 429991-43	£7.40	£8.88
113 - GROMMET SB7R-3 BDE-429991-43.A1 429991-43	£7.40	£8.88
114 - WASHER ANGLE ADJUST BDE-5140033-04.A4 5140033-04	£1.66	£1.99
114 - WASHER BDE-5140033-04.A5 5140033-04	£1.66	£1.99
115 - SUPPORT PLATE BDE-5140033-05.A0 5140033-05	£17.48	£20.97
115 - SUPPORT PLATE FRONT BDE-5140033-05.A1 5140033-05	£17.48	£20.97
116 - MOTOR SA BDE-5140118-17 5140118-17	-
116 - SWITCH GB BDE-1003685-00.A1 1003685-00	£48.48	£58.17
116 - SWITCH 115V LX BDE-1003687-00.A1 1003687-00	£46.49	£55.79
117 - OVERLOAD PROTECTOR LX BDE-1003688-00.A0 1003688-00	£12.17	£14.60
117 - OVERLOAD PROTECTOR GB BDE-1003686-00.A0 1003686-00	£15.01	£18.01
118 - PCB SA GB BDE-1003703-00.A0 1003703-00	£25.12	£30.15
118 - PCB SA LX BDE-1003703-00.A1 1003703-00	£25.12	£30.15
119 - LEAD SA BDE-1004549-08.A1 1004549-08	£7.18	£8.62
120 - SCREW BDE-1002797-00.A0 1002797-00	£1.66	£1.99
121 - WASHER BDE-5140033-38.A3 5140033-38	£1.66	£1.99
122 - SCREW BDE-5140033-39.A0 5140033-39	£1.66	£1.99
123 - DOWEL BDE-5140033-40.A6 5140033-40	£1.66	£1.99
124 - COVER BDE-5140034-65.A2 5140034-65	£6.06	£7.27
124 - COVER GEAR BDE-5140034-65.A3 5140034-65	£6.06	£7.27
125 - NUT M5 BDE-5140032-13.A5 5140032-13	£1.66	£1.99
126 - PLATE BDE-5140034-66.A0 5140034-66	£3.80	£4.56
127 - CABLE TIE BDE-5140034-67.A1 5140034-67	£3.30	£3.96
128 - GUARD BDE-5140034-68.A0 5140034-68	£1.66	£1.99
129 - DUST PORT BDE-5140034-69.A1 5140034-69	£3.92	£4.70
130 - PANEL.REAR BDE-5140034-70.A0 5140034-70	£17.48	£20.97
131 - TERMINAL BLOCK BDE-5140118-18 5140118-18	£3.80	£4.56
132 - PLATE BDE-1004549-02.A0 1004549-02	£4.69	£5.63
133 - COVER UPPER CRADLE BDE-5140034-72.A2 5140034-72	£25.12	£30.15
133 - COVER BDE-5140034-72.A3 5140034-72	£25.12	£30.15
134 - PUSHROD BDE-5140033-44.A2 5140033-44	£8.08	£9.70
135 - LOCK NUT BDE-5140034-73.A0 5140034-73	£7.18	£8.62
136 - SCREW BDE-1002798-00.A2 1002798-00	£1.66	£1.99
136 - SCREW BDE-5140033-41.A0 5140033-41	-
137 - WASHER BDE-5140033-42.A3 5140033-42	£1.66	£1.99
138 - WASHER LOCK BDE-5140033-43.A0 5140033-43	£1.66	£1.99
138 - SHAFT BDE-5140034-74.A2 5140034-74	£16.03	£19.24
139 - SPRING BDE-5140034-75.A1 5140034-75	£1.66	£1.99
139 - SHAFT BDE-5140034-74.A3 5140034-74	£16.03	£19.24
140 - SPRING BDE-5140034-75.A0 5140034-75	£1.66	£1.99
140 - PLATE BDE-5140034-76.A2 5140034-76	£1.66	£1.99
141 - PLATE BDE-5140034-77.A1 5140034-77	£7.18	£8.62
141 - PLATE BDE-5140034-76.A3 5140034-76	£1.66	£1.99
142 - SCREW BDE-1002799-00.A0 1002799-00	£1.66	£1.99
142 - PLATE REAR BDE-5140034-77.A0 5140034-77	£7.18	£8.62
143 - SCREW BDE-5140034-78 5140034-78	-
143 - PLATE LOCK BDE-5140034-79.A0 5140034-79	£14.57	£17.48
144 - SCREW BDE-1002800-00.A1 1002800-00	£1.66	£1.99
144 - PLATE LOCK BDE-5140034-79.A1 5140034-79	£14.57	£17.48
145 - WASHER LOCK BDE-1002801-00.A0 1002801-00	£1.66	£1.99
146 - GREASE 50 GMS BDE-583534-00.A238 583534-00	£148.42	£178.11
147 - SERVICE KIT BDE-1002803-00.A1 1002803-00	£1.66	£1.99
148 - SCREW BDE-1002804-00.A0 1002804-00	£1.66	£1.99
157 - CORD PROTECTOR BDE-1002772-00.A2 1002772-00	£1.66	£1.99
157 - CORD PROTECTOR BDE-5140118-19 5140118-19	-
180 - ROD SA BDE-1004549-06.A1 1004549-06	£55.30	£66.36
201 - ARBOR BDE-5140103-68.A3 5140103-68	£19.48	£23.37
202 - KEY BDE-5140010-15.A3 5140010-15	£1.66	£1.99
203 - SCREW BDE-5140032-09.A1 5140032-09	£1.66	£1.99
204 - WASHER LOCK BDE-5140033-09.A1 5140033-09	-
205 - GEARCASE COVER BDE-5140033-10.A0 5140033-10	£11.18	£13.41
206 - O RING BDE-5140033-11.A5 5140033-11	£1.66	£1.99
207 - BEARING BDE-5140033-12.A0 5140033-12	£18.91	£22.69
207 - BEARING BDE-5140117-79.A2 5140117-79	-
208 - RING S-RING BDE-5140033-13.A3 5140033-13	£1.66	£1.99
208 - RING BDE-5140033-13.A4 5140033-13	£1.66	£1.99
209 - RETAINER BDE-5140010-11.A3 5140010-11	£1.66	£1.99
210 - GEAR BDE-5140033-14.A0 5140033-14	£39.97	£47.96
210 - GEAR REDUCTION BDE-5140033-14.A1 5140033-14	£39.97	£47.96
211 - BEARING BDE-5140117-80.A0 5140117-80	-
211 - BEARING BDE-5140033-15.A1 5140033-15	£14.57	£17.48
212 - O RING BDE-5140033-16.A0 5140033-16	£1.66	£1.99
213 - GEARCASE BDE-5140118-20.A0 5140118-20	-
213 - GEARCASE BDE-1004683-44.A2 1004683-44	£56.97	£68.36
214 - O RING BDE-5140033-18.A5 5140033-18	£1.66	£1.99
215 - BRUSH 115-120V LX BDE-1002806-00.A2 1002806-00	£4.83	£5.80
215 - BRUSH PAIR BDE-5140118-25.A0 5140118-25	-
215 - BRUSH 230V GB BDE-1002805-00.A2 1002805-00	£4.83	£5.80
216 - BRUSH HOLDER BDE-5140033-20.A0 5140033-20	£8.08	£9.70
217 - BRUSH CAP BDE-5140033-21.A5 5140033-21	£1.66	£1.99
218 - FIELD CASE BDE-5140033-22.A0 5140033-22	£30.98	£37.18
219 - WASHER BDE-5140033-23.A1 5140033-23	£1.66	£1.99
220 - SCREW BDE-5140033-24.A0 5140033-24	£1.66	£1.99
221 - BEARING BDE-5140117-81.A2 5140117-81	£8.08	£9.70
222 - ARMATURE 115/120V LX BDE-1002808-00.A0 1002808-00	£239.35	£287.22
222 - ARMATURE BDE-5140034-61.A1 5140034-61	-
222 - ARMATURE 220/240V GB BDE-1002807-00.A2 1002807-00	£179.88	£215.85
223 - FIELD 220/240V GB BDE-1002809-00.A2 1002809-00	£76.38	£91.65
223 - FIELD 115V LX BDE-1002810-00.A0 1002810-00	£74.15	£88.98
223 - FIELD BDE-5140034-62.A0 5140034-62	-
224 - SCREW.SPECIAL BDE-5140033-28.A1 5140033-28	£1.66	£1.99
225 - BUFFER BDE-5140033-29.A0 5140033-29	£1.88	£2.26
226 - BEARING BDE-5140118-21.A2 5140118-21	£9.69	£11.63
228 - WASHER LOCK BDE-5140033-43.A1 5140033-43	£1.66	£1.99
229 - SCREW BDE-5140118-22.A0 5140118-22	-
229 - SCREW BDE-5140011-87.A3 5140011-87	£1.66	£1.99
231 - BEVEL SCALE BDE-5140033-31.A3 5140033-31	£2.78	£3.34
232 - LABEL BDE-5140033-32.A0 5140033-32	£3.80	£4.56
233 - WARNING LABEL BDE-1002815-00.A0 1002815-00	£3.80	£4.56
233 - WARNING LABEL BDE-5140033-33 5140033-33	-
234 - SCALE BDE-N177688.A1 N177688	£3.80	£4.56
235 - RATING PLATE LX BDE-N170386 N170386	£3.30	£3.96
235 - RATING PLATE GB BDE-N170385 N170385	£3.30	£3.96
250 - FENCE SA BDE-5140034-42.A1 5140034-42	-
251 - BOLT BDE-1002814-00.A1 1002814-00	£1.66	£1.99
252 - SCREW WING BDE-5140034-43.A0 5140034-43	£2.87	£3.44
255 - LEAF SPRING BDE-5140033-51.A0 5140033-51	-
256 - PADDLE BDE-5140033-49.A0 5140033-49	£3.39	£4.07
256 - PADDLE FENCE LOCK BDE-5140033-49.A1 5140033-49	£3.39	£4.07
257 - PIN BDE-5140033-50.A3 5140033-50	£1.66	£1.99
260 - PLATE LOCK BDE-5140034-44.A1 5140034-44	£3.80	£4.56
260 - PLATE LOCK RIP FENCE BDE-5140034-44.A2 5140034-44	£3.80	£4.56
261 - RIP FENCE BDE-5140034-45.A0 5140034-45	£73.58	£88.30
270 - TABLE INSERT BDE-5140034-46.A2 5140034-46	£7.92	£9.50
271 - SCREW SELF TAP BDE-5140033-53.A3 5140033-53	£1.66	£1.99
271 - SCREW BDE-5140033-53.A4 5140033-53	£1.66	£1.99
273 - SCREW BDE-5140033-54.A3 5140033-54	£1.66	£1.99
273 - SCREW SELF TAP BDE-5140033-54.A4 5140033-54	£1.66	£1.99
274 - CAM BDE-5140033-55.A2 5140033-55	£1.66	£1.99

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW745 Type 3 Table Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here

Carry On Shopping

People who bought this product also bought

Metabo KGS 216 M / 19260000 / EU 230V Spare Parts

Metabo KGS 216 M / 0102160418 10 / CH 230V Spare Parts

Try these categories

Bench Saws

Shopping Basket (0) £0.00

Dewalt DW745 Type 3 Table Saw Spare Parts

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Metabo KGS 216 M / 19260000 / EU 230V Spare Parts

Metabo KGS 216 M / 0102160418 10 / CH 230V Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW745 Type 3 Table Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Metabo KGS 216 M / 19260000 / EU 230V Spare Parts

Metabo KGS 216 M / 0102160418 10 / CH 230V Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
