Metabo HC 410 G/5 50 DNB Planer / 0113041013 11 / 3/400V/50Hz Spare Parts

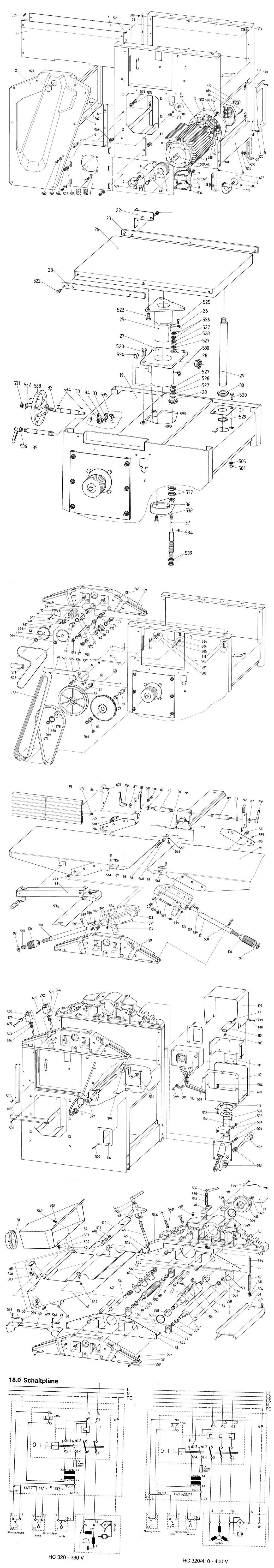

An exploded diagram and spare parts listing for the Metabo HC 410 G/5 50 DNB / 0113041013 11 / 3/400V/50Hz

	Ex VAT	Inc VAT
1 - COVER PLATE BL 2 5X240X686 MET-1382218724.A3002 1382218724	-
2 - THICKNESSER DRIVE COVER SCHWARZ MET-1381218780.A3000 1381218780	£76.70	£92.04
3 - MOTOR CARRIER BL 5X285X290 MET-1382218627.A3002 1382218627	-
4 - STRIP FL 25X10X290 MET-1382218716.A3001 1382218716	-
5 - COVER MACHINE STAND BL 2 MET-1382218775.A3001 1382218775	-
6 - SPACER BOLT SW 14X46 M8/M6 MET-1485218200.A3001 1485218200	-
9 - WASHER MOTOR PULLEY BL 2 MET-1382218759.A3001 1382218759	-
10 - POLY-RIB PULLEY RDA 84 5X71 RDI 28 / NOR MET-7240218199.A3001 7240218199	£35.57	£42.68
11 - MECHANICAL MOTORBRAKE ASSEMBLY BW750 MET-8055142530.A3001 8055142530	£93.30	£111.96
12 - BREMSSCHEIBE MET-1332172545.A3001 1332172545	-
14 - FAN COVER ET MET-1332172448.A3001 1332172448	-
15 - LID MOTOR TERMINAL BOX MET-1331409665.A3001 1331409665	£3.82	£4.59
16 - RECTIFIER PRE-ASSEMBLED 230 V 3-PHASEN- MET-1010001141.A3001 1010001141	£9.82	£11.79
17 - LOWER CASING MOTOR TERM. BOX MET-1331409657.A3001 1331409657	£8.37	£10.04
18 - MOTOR PLANER/THICKNESSER HCM 5 MET-1011168163.A3001 1011168163	-
19 - WORKSTAND HC 410 MET-1382218058.A3002 1382218058	-
20 - FOOT FL 25X5X136 MET-1382218767.A3001 1382218767	-
21 - SCALE 1 00X30X238 0 MET-1142219120.A3002 1142219120	£7.44	£8.93
22 - POINTER THICKNESSER BED BL 1 MET-1482218993.A3002 1482218993	-
23 - SIDE DELIMITATION FL 25X4X654 MET-1382218481.A3001 1382218481	-
24 - THICKNESSER BED 405X670 MET-1380218042.A3001 1380218042	-
25 - COLUMN HEIGHT ADJUSTMENT MET-1380218514.A3001 1380218514	-
26 - CAP SPINDLE MET-1381219131.A3000 1381219131	£2.60	£3.12
27 - COLUMN GUIDE HEIGHT ADJUSTMT. MET-1380218522.A3002 1380218522	-
28 - CONICAL GEAR WHEEL Z=16 M2 5 45GRAD RDI MET-1380218565.A3001 1380218565	£6.19	£7.43
29 - GUIDE SHAFT RD 30X320 MET-1485218650.A3001 1485218650	£63.36	£76.03
30 - BUSHING RD 45/38X11 MET-1381218747.A3002 1381218747	-
31 - SETTING PLATE BL 2 99X84X90 MET-1482218730.A3000 1482218730	-
32 - SHAFT HEIGHT ADJUSTMENT RD 16X455 MET-1485218552.A3001 1485218552	-
33 - BEARING HEIGHT ADJUSTMENT RD 28/20X10 MET-1381218585.A3000 1381218585	£2.60	£3.12
34 - BRAKE PAD RD 13 7X10 MET-1385218598.A3001 1385218598	-
35 - LOCK BAR RD 16X310 MET-1485218609.A3001 1485218609	£22.40	£26.88
36 - CAP COLUMN MET-1380218530.A3001 1380218530	-
37 - THREADED ROD M 12/20/16X424 LI MET-1485218544.A3001 1485218544	-
38 - CONNECTOR RD 100 SPA 1000 MET-1381053489.A3001 1381053489	£9.62	£11.54
39 - DUST CHUTE HC 410 MET-1011219582.A3001 1011219582	-
40 - PLUG-IN BUFFER MET-2391203906.A3001 2391203906	£1.50	£1.80
41 - CHIP EJECTION HOOD MET-1011219809.A3002 1011219809	-
42 - AXLE RD 16X536 MET-1485218382.A3001 1485218382	-
43 - TENSION BRACKET MET-1380218425.A3002 1380218425	-
44 - PRESSURE SPRING RDI 11 X MET-342002850.A3001 342002850	£4.64	£5.57
45 - TENSION BRACKET CLAMP BD 1 5X34X47 MET-1382218430.A3002 1382218430	-
46 - CLAMPING PIECE FL 30X12X100 MET-1482218870.A3002 1482218870	-
47 - COVER PLATE DRILL CHUCK BL 1 MET-1482219094.A3000 1482219094	£8.70	£10.44
48 - BEARING SEAT MET-1380218107.A3001 1380218107	-
49 - PRESSURE SPRING RDI 9X89X2 MET-7051218340.A3002 7051218340	£2.60	£3.12
50 - COVER PLATE BL 2X141 8X698 MET-1382218899.A3001 1382218899	-
51 - GUARD EXTRUSION 440 MM MET-1383219295.A3001 1383219295	£32.61	£39.13
52 - SIDE PANEL RECHTS MET-1380218166.A3001 1380218166	-
53 - BEARING BLOCK MET-1380218263.A3001 1380218263	£6.19	£7.43
54 - AXLE RD 16X440 MET-1485218986.A3001 1485218986	-
55 - PRESSURE SPRING RDI 6 7X20X0 MET-7051219907.A3001 7051219907	£1.50	£1.80
56 - STRAINING SCREW M 6X11 SW10 MET-341701940.A205 341701940	£3.20	£3.84
57 - OUTFEED ROLLER D26/36+-0 15X410/527 GUMM MET-1385218253.A3002 1385218253	£140.20	£168.24
58 - COVER PLATE BL 2 00X125 MET-1382218902.A3001 1382218902	-
59 - SIDE PANEL LINKS MET-1380218158.A3001 1380218158	-
60 - MESSERWELLE MET-1385218075.A3000 1385218075	-
61 - PLANER BLADE HSS 410X25X3 HC 410 SATZ=3 MET-0911014238.A3001 0911014238	-
62 - CUTTERBLOCK WEDGE 410 MM LANG MET-1482218217.A3000 1482218217	-
63 - FEED ROLLER RD 35 7X527 GERILLT MET-1485218242.A3001 1485218242	-
64 - RUECKSCHLAGSICHERUNG MET-1482218365.A3001 1482218365	-
65 - SCALE 1 00X16X50 0 MET-1142219324.A3002 1142219324	-
66 - HOOD COVER BL 2X99X371 MET-1382218791.A3001 1382218791	-
67 - SCALE 1 00X16X50 0-5 MET-1142219111.A3001 1142219111	-
68 - BOLT 60X130 MET-1382219720.A3001 1382219720	-
69 - BEARING BUSH RD 16/20/24X16 MET-7151218576.A3002 7151218576	-
70 - POLY-RIB PULLEY RDA 44 5X46 RDI 20 PN 6 MET-1385218180.A3001 1385218180	-
71 - COVER PLATE BL 2X56X62 MET-1382218295.A3001 1382218295	£3.11	£3.73
72 - KETTENRAD MET-7246220551.A3001 7246220551	-
73 - HEXAGON FIT BOLT SW19X42 / M 10 RUNDUMBE MET-1485218706.A3002 1485218706	£7.44	£8.93
74 - BOLT CHAIN TENSIONER RD 24X85 M10 MET-1485218960.A3001 1485218960	£17.07	£20.48
75 - CHAIN SPROCKET RDA 46 2X14/RDI 20 Z=10 MET-7246218280.A3002 7246218280	-
76 - TORSION SPRING MET-7051005753.A3001 7051005753	£3.89	£4.67
77 - BRACKET FL 25X4X100 MET-1482218950.A3000 1482218950	-
78 - TRANSMISSION LEVER BL 4 00X67X315 MET-1482218640.A3000 1482218640	-
79 - ADHESIVE LABEL SILVER/BLACK 38X47 SYMB. MET-1141218910.A3001 1141218910	-
80 - TRANSMISSION BASE PLATE FL 140X10X208 MET-1482218616.A3002 1482218616	-
81 - BOLT RD 15X75 / SW 24 MET-1385218504.A3001 1385218504	£17.95	£21.54
82 - FLAT BELT PULLEY RDA 197X57 5 RDI 15 MET-7242218692.A3001 7242218692	-
83 - BOLT GEAR WHEEL RD 25X66 MET-1485218498.A3002 1485218498	£17.07	£20.48
84 - GEARWHEEL/CHAIN SPROCKET RDA 174X30 5/RD MET-7247218941.A3001 7247218941	-
85 - FENCE EXTRUSION 1100 MM MET-1383218868.A3001 1383218868	-
86 - COVER FENCE EXTRUSION 8X155X75 MET-1381218925.A3002 1381218925	-
87 - WASHER RDA 25 RDI 10 MET-1485218633.A3002 1485218633	£3.89	£4.67
88 - ANGLE BRACKET BL 2 99X79 MET-1482218829.A3002 1482218829	£7.44	£8.93
89 - THREADED BOLT RD 25X140 M10/M16 MET-1485218811.A3001 1485218811	£20.12	£24.14
90 - GUARD PLATE BL 2X80X286 MET-1382218848.A3001 1382218848	-
91 - FENCE CARRIER MET-1380218808.A3001 1380218808	-
92 - ANGLE BRACKET BL 2 99X79 MET-1482218837.A3000 1482218837	£7.44	£8.93
93 - CUTTERBLOCK GUARD SCHUTZLÃ„NGE 530 MM MET-1011170478.A3001 1011170478	£129.46	£155.35
94 - ANGLE BRACKET BL 5 00X94X236 MET-1482218136.A3002 1482218136	£14.71	£17.65
95 - ANGLE BRACKET BL 5 00X94X236 MET-1482218128.A3000 1482218128	-
96 - JOINTING TABLE 438X834 MET-1380220268.A3001 1380220268	£342.80	£411.36
97 - SCALE 1 00X10X55 0 MET-1142219332.A3001 1142219332	-
98 - SCALE 1 00X10X55 0-5 MET-1142219103.A3001 1142219103	-
99 - SCALE 1 00XRD39 MET-1142219146.A3001 1142219146	-
100 - SETTING HANDLE RD 45X70 MET-1485218455.A3001 1485218455	£48.88	£58.66
101 - SETTING SHAFT RD 25X299/M 20 MET-1485218471.A3001 1485218471	£63.36	£76.03
102 - PLATE SETTING HANDLE BL 2 MET-1482218462.A3000 1482218462	£3.89	£4.67
103 - HINGE HINTEN MET-1380218140.A3002 1380218140	-
104 - BOLT 32 MM MET-1383219163.A3001 1383219163	£4.64	£5.57
105 - HINGE VORNE MET-1380218115.A3001 1380218115	-
106 - SETTING HANDLE RD 45X110 MET-1485218447.A3001 1485218447	-
107 - LIMIT SWITCH PLATE BL 0 88X33X35 MET-1482219191.A3003 1482219191	-
108 - CABLE CONDUIT BL 0 88X40X250 MET-1382219003.A3001 1382219003	-
109 - SWITCH ENCLOSURE UPPER BL 2 MET-1382219356.A3002 1382219356	-
110 - STAY BL 1 50X50X142 MET-1382219950.A3001 1382219950	£8.70	£10.44
111 - PLATE CABLE BRACKET BL 2X181X338 MET-1382219941.A3001 1382219941	-
112 - SWITCH ENCLOSURE LOWER BL 2 MET-1382219348.A3001 1382219348	-
113 - CLAW PLATE CABLE CONDUIT BL 2 MET-1482218675.A3003 1482218675	-
114 - CABLE GUIDE MET-1011219442.A3001 1011219442	-
115 - SWITCH KSK DN 3X400V M=8 0A K3000 MET-8133219910.A3002 8133219910	£163.66	£196.39
116 - MOVER PLATE BL 2 5X100X112 MET-1382219593.A3001 1382219593	-
117 - GLIDE PIECE MET-2391202772.A3001 2391202772	£1.50	£1.80
120 - CLOSING PLATE BL 2X110X454 MET-1382220486.A3000 1382220486	-
121 - SLIP COUPLER ET MET-1010633970.A3001 1010633970	£54.44	£65.33
193 - CUTTER GUARD STANDARD 88X530 MET-1384219981.A3001 1384219981	£49.88	£59.86
500 - THREAD CUTTING SCREW A MET-6175174166.A3000 6175174166	£1.50	£1.80
501 - WASHER MET-141150130.A3001 141150130	£1.50	£1.80
502 - FILLISTER HEAD SCREW MET-141110640.A3001 141110640	-
503 - WASHER MET-141151940.A3013 141151940	£1.50	£1.80
504 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A3001 6202002305	£1.50	£1.80
505 - WASHER MET-6305002486.A3002 6305002486	-
506 - HEXAGON HEAD SCREW MET-141114860.A3003 141114860	£3.20	£3.84
507 - COUNTERSUNK HEAD TAPPING SCREW MET-6174093740.A3002 6174093740	£1.50	£1.80
508 - FISHBOLT M 8X30 TYP: 0828-30 MET-6143167761.A3001 6143167761	£5.38	£6.45
510 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A3000 6103005270	-
511 - WASHER MET-141151340.A3002 141151340	£1.50	£1.80
512 - ADJUSTING SPRING MET-141140160.A3000 141140160	£3.20	£3.84
513 - SERRATED LOCK WASHER MET-6304001745.A3000 6304001745	£1.50	£1.80
514 - FILLISTER HEAD SCREW MET-141110570.A3002 141110570	£1.50	£1.80
515 - TIN NUT MET-6265167657.A3002 6265167657	£2.60	£3.12
516 - CROSS RECD SAUCER-HEAD SCREW 5X20-Z VE MET-6189011421.A3002 6189011421	£1.50	£1.80
517 - FILLISTER HEAD SCREW MET-141113040.A3000 141113040	£1.51	£1.81
518 - SERRATED LOCK WASHER MET-141150410.A3002 141150410	£3.20	£3.84
519 - CAP SCREW MET-6121023081.A3000 6121023081	£1.50	£1.80
520 - TRUSS HEAD SCREW MET-6110017942.A3001 6110017942	£1.50	£1.80
521 - SELF-TAP. FILL. H. SCREW MET-141122870.A3002 141122870	-
522 - HEXAGON HEAD SCREW MET-141113290.A3001 141113290	£1.50	£1.80
523 - HEXAGON HEAD SCREW M 10X25 VERZ. MET-6103001224.A3002 6103001224	£1.50	£1.80
524 - BEARING BUSH RD 16X18X17 MET-7150015698.A3000 7150015698	£3.11	£3.73
525 - SELF-TAP. FILL. H. SCREW MET-141122150.A3002 141122150	-
526 - HEXAGON THIN NUT M 12 VERZ. FORM B MET-6205055744.A3002 6205055744	£1.50	£1.80
527 - THRUST WASHER AS 1226 MET-7104167670.A3002 7104167670	-
528 - THRUST NEEDLE COLLAR AXK 1226 MET-7104167661.A3000 7104167661	-
529 - RETAINING RING SHAFT MET-6400121379.A3000 6400121379	£1.50	£1.80
530 - LUBRICATING NIPPLE CM 6 MET-7152171107.A3000 7152171107	-
531 - HEX NUT MET-141132030.A3002 141132030	£2.94	£3.53
532 - WASHER MET-141150140.A3001 141150140	£1.50	£1.80
533 - HANDWHEEL P 206-160-K14 MIT BALLENGRIF MET-7003167709.A3001 7003167709	£54.44	£65.33
534 - WOODRUFF KEY MET-6720008538.A3000 6720008538	£1.50	£1.80
535 - CLAMPING RING A 16 MIT SCHRAUBE MET-6415178954.A3002 6415178954	-
536 - RATCHET LOCK LEVER FEMALE M 10 IG 18 MM MET-7006073730.A3000 7006073730	£13.63	£16.36
537 - HEXAGON THIN NUT MET-6205032396.A3001 6205032396	£1.50	£1.80
538 - CAP SCREW MET-141114000.A3002 141114000	£3.20	£3.84
539 - HEXAGON THIN NUT M 20 LINKS VERZ. MET-6205167640.A3001 6205167640	-
540 - HEXAGONAL NUT MET-141130100.A3018 141130100	£1.50	£1.80
541 - CAGE NUT MET-6264166657.A3000 6264166657	-
542 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A3000 6164029245	£1.50	£1.80
543 - RATCHET LOCK LEVER FEMALE M 10 IG 18 MM MET-7006073730.A3001 7006073730	£13.63	£16.36
544 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A3001 6172015687	£1.50	£1.80
545 - EYE BOLT M 10X110 VERZ. MET-6141167578.A3000 6141167578	£8.70	£10.44
546 - PARALLEL PIN 10 H8X50 MET-6500167600.A3001 6500167600	-
547 - HEXAGON HEAD SCREW MET-141110320.A3003 141110320	£3.20	£3.84
548 - HEXAGONAL NUT MET-141131010.A3005 141131010	£1.50	£1.80
549 - HEXAGON SOCKET HEAD CAP SCREW M 6X25 VER MET-6121151098.A3001 6121151098	£1.50	£1.80
550 - WASHER MET-141150050.A3002 141150050	£1.50	£1.80
551 - HEX. SOCKET SET SCREW FLAT PT M10X60 VE MET-6161167620.A3001 6161167620	£3.11	£3.73
552 - O-RING 52 07X2 MET-7632167711.A3002 7632167711	£1.50	£1.80
553 - HEXAGONAL NUT MET-141130130.A3001 141130130	£3.20	£3.84
554 - STUD BOLT HEADLESS B M 8X110 VERZ. MET-6551116113.A3003 6551116113	£3.89	£4.67
555 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A3012 6127059193	£1.50	£1.80
557 - SHIM RING S 16X22X1 MET-6306009980.A3003 6306009980	£1.50	£1.80
558 - DEEP GROOVE BALL BEARING 25X52X15 6205-2 MET-7100093418.A3002 7100093418	£12.36	£14.83
559 - HEX. SOCKET SET SCREW DOG PT. M 8X12 VE MET-6163087683.A3003 6163087683	£1.50	£1.80
560 - WASHER MET-141156740.A3002 141156740	£2.94	£3.53
561 - FILLISTER HEAD SCREW MET-6172028215.A3002 6172028215	£1.50	£1.80
562 - CROSS RECESSED FLAT HEAD SCREW MET-6131059530.A3002 6131059530	£1.50	£1.80
564 - PARALLEL PIN 6 M6X20 MET-6500074440.A3002 6500074440	-
565 - RETAINING RING MET-141180040.A3000 141180040	£1.50	£1.80
566 - RETAINING RING MET-141180390.A3002 141180390	£3.20	£3.84
567 - HEXAGON THIN NUT MET-6205028038.A3001 6205028038	£1.50	£1.80
568 - PARALLEL KEY MET-6721059322.A3003 6721059322	£1.50	£1.80
569 - SNAP RING MET-141180090.A3001 141180090	£3.20	£3.84
570 - SHIM RING 16X22X1 VERZ. MET-6306009760.A3012 6306009760	£1.50	£1.80
571 - HANDLE 24X4X100 ROT MET-1381167697.A3000 1381167697	-
572 - ROLLER CHAIN 74 GLIEDER 1/2 TEILUNG EN MET-7236167741.A3002 7236167741	£9.82	£11.79
573 - POLY-RIB BELT 13 PJ 1321 TYP 520 MET-7233167732.A3000 7233167732	£45.80	£54.96
574 - FLAT BELT 900X12X1 5 GELB MET-7232167720.A3003 7232167720	-
575 - HEXAGON HEAD SCREW M 8X30 VERZ. MET-6103031271.A3001 6103031271	£1.50	£1.80
576 - HEXAGON HEAD SCREW MET-141124120.A3000 141124120	-
577 - CUP SPRING MET-7053016795.A3014 7053016795	£1.50	£1.80
578 - DEEP GROOVE BALL BEARING 15X35X11 6202-2 MET-7100067433.A3001 7100067433	£11.78	£14.13
579 - SQUARE NUT MET-141131020.A3004 141131020	£3.20	£3.84
580 - HEX HEAD SCREW MET-6103001178.A3013 6103001178	£1.50	£1.80
581 - HEX HEAD SCREW MET-141123480.A3002 141123480	£2.94	£3.53
582 - HEXAGON SOCKET HEAD CAP SCREW MET-6121121296.A3001 6121121296	£1.50	£1.80
583 - SERRATED LOCK WASHER MET-141150420.A3002 141150420	£1.50	£1.80
584 - HEXAGONAL LOCK NUT MET-141130650.A3001 141130650	£3.20	£3.84
585 - CLAMPING SLEEVE 8X16 MET-6503050429.A3001 6503050429	£1.50	£1.80
586 - CLAMPING SLEEVE 8X32 MET-6503167830.A3001 6503167830	-
587 - HEX. SOCKET SET SCREW CONE PT M20X20 VE MET-6162167616.A3002 6162167616	-
588 - CAP SCREW MET-141114030.A3003 141114030	-
589 - CAP SCREW MET-141121940.A3016 141121940	£3.20	£3.84
590 - HEXAGON HEAD SCREW M 10X40 VERZ. MET-141124500.A3003 141124500	-
591 - HEXAGON HEAD SCREW MET-141122690.A3002 141122690	-
592 - LIMIT SWITCH MET-8116011850.A3000 8116011850	£54.44	£65.33
593 - HEXAGON THIN NUT PG 9 MIT PG-GEWINDE MET-8244167960.A3002 8244167960	-
594 - SEAL NIPPLE PG 9 MET-8240167752.A3000 8240167752	-
595 - LIMIT SWITCH MET-8116167973.A3002 8116167973	-
596 - CABLE TIE 3 5X180 MET-8490118536.A3000 8490118536	-
597 - STRAIN RELIEF ZEV 12-14 / PG 13.5 MET-8240015103.A3002 8240015103	-
599 - WASHER MET-141150020.A3001 141150020	£1.50	£1.80
600 - CROSS RECD PAN HEAD TAP.SCREW ST 3 5X16 MET-6172032905.A3002 6172032905	£1.50	£1.80
601 - CUP SPRING MET-141155660.A3002 141155660	£1.50	£1.80
602 - PLUG CEE RED 16 A 3P+N+PE PHW MET-8215166059.A3002 8215166059	-
603 - STRAIN RELIEF ZEV 9-12/PG 11 MET-8240015090.A3000 8240015090	-
604 - PIPING CLIP RD 20/BREITE 12 BOHRUNG 5 MET-1382167771.A3002 1382167771	-
605 - CROSS RECD PAN HEAD TAP.SCREW ST 4 8X32 MET-6172011150.A3001 6172011150	-
606 - PLUG RD 38 4X12 MET-1381219611.A3000 1381219611	-
609 - FEATHER KEY A 8X7X45 ET MET-6721165319.A3002 6721165319	-
617 - HEXAGONAL LOCK NUT MET-141130930.A3005 141130930	£1.50	£1.80
618 - SPACER SLEEVE MET-6442059304.A3001 6442059304	£1.50	£1.80
619 - RAISED CHEESE HEAD SCREW M 5X16 VERZ. MET-6123002057.A3001 6123002057	£1.50	£1.80

Attribute Name	Value
Brand	Metabo

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Metabo HC 410 G/5 50 DNB Planer / 0113041013 11 / 3/400V/50Hz Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
