Metabo HC 260 C 2 80 DNB Planer / 0114026100 11 / 3/400V/50Hz Spare Parts

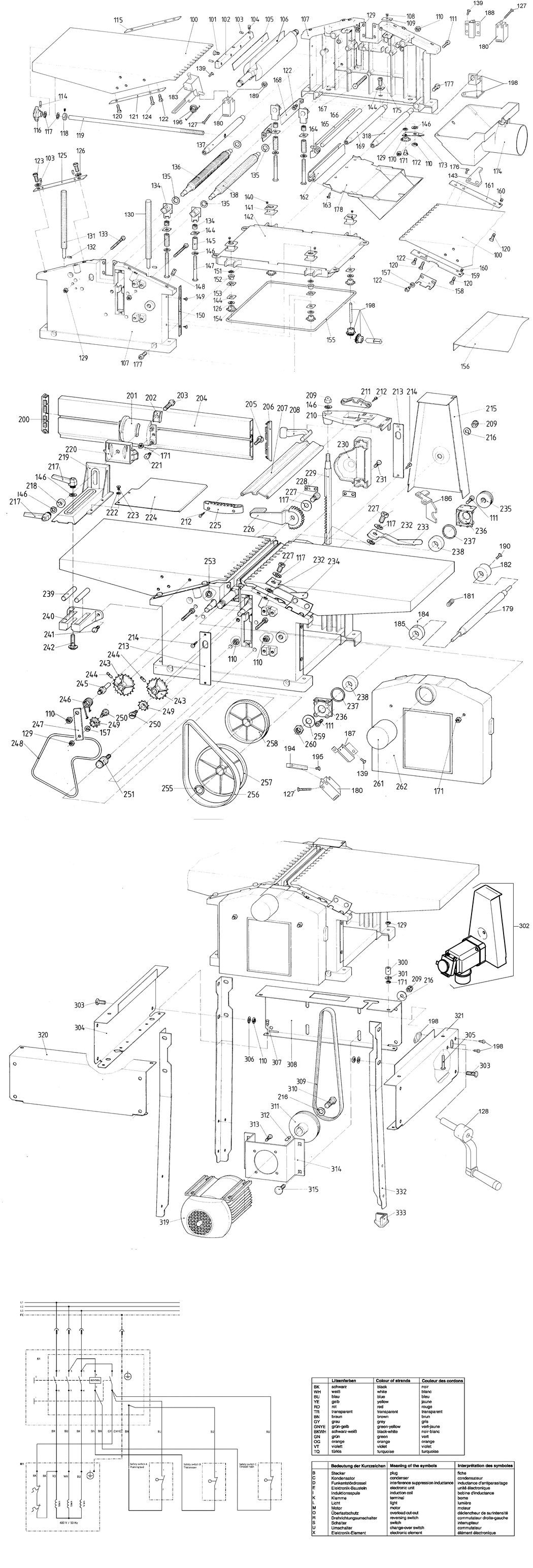

An exploded diagram and spare parts listing for the Metabo HC 260 C 2 80 DNB / 0114026100 11 / 3/400V/50Hz

	Ex VAT	Inc VAT
100 - JOINTING TABLE 286 6X525 HC260C MET-315419610.A3013 315419610	£86.42	£103.71
101 - STRAINING SCREW M 6X11 SW10 MET-341701940.A201 341701940	£3.20	£3.84
102 - CUTTERBLOCK WEDGE 1SATZ=2STÃœCK HC260C MET-1011717434.A3006 1011717434	£19.18	£23.02
103 - CLAMPING SLEEVE 5X10 MET-6503029250.A3001 6503029250	£1.50	£1.80
104 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A3007 6164029245	£1.50	£1.80
105 - DISPOSABLE PLANER BLADE PAIR 18 MET-0911030713.A3009 0911030713	£29.99	£35.99
106 - CUTTERBLOCK RD 62 5X439 HC260C MET-1385717446.A3002 1385717446	£70.49	£84.59
108 - RAISED CHEESE HEAD SCREW MET-6123002049.A3010 6123002049	£1.50	£1.80
110 - HEXAGONAL NUT MET-141131010.A3020 141131010	£1.50	£1.80
111 - CAP SCREW MET-141113890.A3002 141113890	£3.20	£3.84
114 - TIGHTENING PIN MET-6503001681.A3010 6503001681	£1.50	£1.80
116 - PALM GRIP D=42 / BUCHSE 10 HC260C MET-7007717479.A3000 7007717479	£8.37	£10.04
117 - CUP SPRING 23X10 MET-7053010100.A3000 7053010100	£1.50	£1.80
118 - SHAFT COLLAR A 11 VERZ. MET-6410147244.A3011 6410147244	£4.76	£5.71
119 - THREADED ROD M 10/60X450 HC260C MET-1385717497.A3009 1385717497	-
120 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A3001 6127059193	£1.50	£1.80
122 - CAP SCREW MET-141121940.A3011 141121940	£3.20	£3.84
123 - CAP SCREW MET-141113990.A3001 141113990	£3.20	£3.84
124 - CROSS RECESSED FLAT HEAD SCREW MET-6131059530.A3013 6131059530	£1.50	£1.80
126 - CUP SPRING MET-7053016795.A3011 7053016795	£1.50	£1.80
127 - FILLISTER HEAD SCREW MET-141111420.A3001 141111420	-
128 - CRANK HC260C MET-1382718360.A3010 1382718360	£13.63	£16.36
129 - HEXAGONAL NUT MET-141130100.A3001 141130100	£1.50	£1.80
130 - THREADED ROD TR 14X3X365 HC260C MET-1485717540.A3010 1485717540	£15.41	£18.49
131 - THREADED ROD TR 14X3X229 5 HC260C MET-1385717551.A3002 1385717551	£13.63	£16.36
132 - GROOVED DOWEL PIN 3X16 MET-6501007275.A3010 6501007275	£1.66	£1.99
133 - HEXAGON HEAD SCREW M 6X80 VERZ. MET-6103008717.A3010 6103008717	£1.50	£1.80
134 - GLIDE PIECE HC260C MET-1381717565.A3006 1381717565	£6.66	£7.99
135 - WASHER MET-6300016705.A3012 6300016705	£1.50	£1.80
136 - OUTFEED ROLLER RD 25X360 5 HC260C RUBBER MET-1385717578.A3009 1385717578	£44.99	£53.99
137 - SPACER SHAF RD 20X295 HC260C MET-1485717583.A3001 1485717583	-
138 - FEED ROLLER COARSE RD 25X360 5 HC260C MET-1485717591.A3010 1485717591	£36.59	£43.91
139 - RAISED CHEESE HEAD SCREW MET-141124560.A3001 141124560	£2.94	£3.53
140 - HEX. SOCKET SET SCREW FLAT PT M 5X5 MET-6161067090.A3008 6161067090	£1.50	£1.80
142 - THICKNESSER BED HC260C MET-1011717612.A3003 1011717612	£81.89	£98.27
143 - SHEET PIECE (NOSE) MET-1382718379.A3001 1382718379	£3.82	£4.59
144 - WASHER 22X22 HC260C MET-1380717626.A3011 1380717626	£3.20	£3.84
145 - PRESSURE SPRING HC260C MET-7051717630.A3001 7051717630	£2.94	£3.53
146 - WASHER MET-141151340.A3005 141151340	£1.50	£1.80
147 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6102001093.A3002 6102001093	£1.50	£1.80
148 - SLOTTED HEADLESS SCREW M 8X16 VERZ. MET-6160151542.A3003 6160151542	£3.20	£3.84
149 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3042 141113040	£1.51	£1.81
150 - SCALE 0 60X16X170 HC260C MET-1141717649.A3010 1141717649	£5.62	£6.75
151 - SHIM RING 8X14X1 VERZ. MET-6306017266.A3010 6306017266	£1.50	£1.80
152 - SPINDLE BUSHING RD 16X10 HC260C MET-1381717654.A3005 1381717654	£3.20	£3.84
154 - CHAIN SPROCKET RDA 32 4X15 RDI 8 HC260C MET-7246717669.A3002 7246717669	£9.62	£11.54
155 - ROLLER CHAIN 210 GLIEDER HC260C MET-7236717679.A3002 7236717679	£28.45	£34.14
157 - WASHER MET-141151940.A3002 141151940	£1.50	£1.80
158 - SETTING BRACKET BL 2 00X52X24 HC260C MET-1382717690.A3010 1382717690	£3.82	£4.59
159 - GUIDE STRIP Left FL 22X4X190 HC260C MET-1482717701.A3002 1482717701	£9.62	£11.54
160 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A3020 141124510	£2.94	£3.53
161 - GUIDE STRIP RIGHT FL 20X4X193 HC260C MET-1482717710.A3009 1482717710	£9.62	£11.54
162 - EXTRUSION CHIP EJECTION HOOD 258 MM HC2 MET-1383717724.A3001 1383717724	£15.41	£18.49
163 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A3012 6172015687	£1.50	£1.80
164 - RECOIL LOCK HC260C MET-2380717738.A3005 2380717738	-
165 - RECOIL LOCK BAR RD 6X286 HC260C MET-1385717748.A3010 1385717748	-
166 - RECOIL LOCK BAR RD 11X286 HC260C MET-1385717756.A3000 1385717756	-
167 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A3001 6103030259	£1.50	£1.80
168 - CHIP GUIDE PLATE BL 2 00X45X309 MET-1382717763.A3001 1382717763	£8.37	£10.04
169 - SPACER SHAF RD 20X295 HC260C MET-1485717770.A3001 1485717770	-
170 - DRIVE CHAIN SPROCKET RD 32 4X95 MET-7246717782.A3009 7246717782	£8.37	£10.04
171 - HEXAGONAL LOCK NUT MET-141130650.A3019 141130650	£3.20	£3.84
172 - THREADED BOLT RD 13X20 8H9 M 6 HC260C MET-1385717799.A3009 1385717799	£3.20	£3.84
173 - CHAIN TENSION PLATE BL 2 5X25X76 HC260C MET-1382717801.A3010 1382717801	£3.20	£3.84
174 - DUST EXTRACTION OUTLET HC260C MET-339205250.A3006 339205250	£26.85	£32.22
175 - CHEESE-HEAD SCREW MET-141114010.A3021 141114010	£1.50	£1.80
176 - RAISED CHEESE HEAD SCREW M 5X8 VERZ. MET-6123662723.A3002 6123662723	-
177 - CHEESE-HEAD SCREW MET-141114010.A3020 141114010	£1.50	£1.80
178 - CHIP EJECTION HOOD HC260C MET-1381717824.A3005 1381717824	£32.88	£39.45
179 - SPACER SHAF HC260C MET-1485718407.A3011 1485718407	-
180 - SWITCH HC260C MET-8116718414.A3010 8116718414	£26.35	£31.62
181 - SPRING HC260C MET-7050718420.A3000 7050718420	-
182 - SCHALTNOCKEN HC260C MET-1388718435.A3004 1388718435	£5.62	£6.75
183 - SWITCH PLAT HC260C MET-1382718441.A3010 1382718441	£13.63	£16.36
184 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A3021 141124510	£2.94	£3.53
185 - STEUERNOCKEN HC260C MET-1382718450.A3001 1382718450	-
186 - SELECTOR FOR HC260C MET-1388718460.A3007 1388718460	£3.89	£4.67
187 - BRACKET HC260C MET-1382718476.A3010 1382718476	-
188 - SHIFTBLOCK HC260C MET-1388718486.A3004 1388718486	£17.55	£21.06
189 - HEXAGONAL NUT MET-141130070.A3010 141130070	£1.50	£1.80
190 - RAISED CHEESE HEAD SCREW M 5X8 VERZ. MET-6123662723.A3003 6123662723	-
198 - BRACKET HC260C MET-1011718554.A3008 1011718554	£32.88	£39.45
200 - END CAP HC260C MET-1381717832.A3006 1381717832	£3.20	£3.84
201 - FENCE SEGMENT HC260C MET-316082550.A3000 316082550	£8.38	£10.05
202 - GLIDE SEGMENT HC260C MET-1381717859.A3005 1381717859	£4.07	£4.88
203 - HEXAGON HEAD SCREW M 8X50 VERZ. MET-6103001216.A3010 6103001216	£1.50	£1.80
204 - FENCE EXTRUSION 650 MM HC260C MET-1383717864.A3010 1383717864	£61.08	£73.30
205 - CUP SQUARE NECK SCREW MET-6110000608.A3010 6110000608	£1.50	£1.80
206 - END CAP HC260C MET-1381717875.A3006 1381717875	£2.94	£3.53
207 - CUTTERBLOCK GUARD 360 MM HC260C MET-1383717880.A3001 1383717880	£22.61	£27.13
208 - RATCHET LOCK LEVER HC260C MET-1381717891.A3005 1381717891	£4.76	£5.71
209 - CAP NUT M 8 VERZ. MET-6201002131.A3008 6201002131	£1.50	£1.80
210 - BRACKET PRESSURE ROLLER HC260C MET-316093450.A3014 316093450	£64.30	£77.16
211 - GUARD EXTRUSION END CAP HC260C MET-1381717913.A3006 1381717913	£2.94	£3.53
212 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A3003 6174001900	£2.49	£2.99
213 - SIDE PANEL LID BL 2X30X153 HC260C MET-1382717925.A3001 1382717925	£3.11	£3.73
214 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3043 141113040	£1.51	£1.81
215 - V-BELT GUARD 1 5X164 MET-1382717933.A3010 1382717933	£26.35	£31.62
216 - WASHER MET-6305002486.A3007 6305002486	-
217 - RATCHET LOCK LEVER FEMALE M 8 HC260C MET-7006717947.A3011 7006717947	£10.82	£12.99
218 - PLASTIC WASHER RD 20/RD 8 L=6 HC260C MET-1381717956.A3005 1381717956	£2.94	£3.53
219 - ANGLE BRACKET FENC HC260C MET-1380717960.A3000 1380717960	£22.61	£27.13
220 - GUIDE SEGMENT HC260C MET-1380717979.A3011 1380717979	£9.62	£11.54
221 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A3001 6103001356	£1.50	£1.80
222 - WASHER MET-141150010.A3000 141150010	£1.50	£1.80
223 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3044 141113040	£1.51	£1.81
224 - COVER PLATE BL 2 00X188X190 MET-1392017603.A3009 1392017603	£17.55	£21.06
225 - PVC PRESSURE SPRING 22X13X130 HC260C MET-1381717999.A3006 1381717999	£6.66	£7.99
226 - GUARD SETTING LEVER HC260C MET-1381718006.A3005 1381718006	£9.62	£11.54
227 - HEXAGON SOCKET HEAD CAP SCREW M 10X16 VE MET-6127043580.A3010 6127043580	£1.50	£1.80
229 - SETTING ROD COGGED 6-KT SW14X285 HC260C MET-1485718024.A3005 1485718024	£12.36	£14.83
230 - CAP HC260C MET-1381718030.A3006 1381718030	£11.78	£14.13
231 - CROSS RECD OVAL HEAD SCREW M 6X20 (22) MET-6134151119.A3001 6134151119	-
232 - SHIM RING 10X16X1 VERZ. MET-6306002170.A3010 6306002170	£1.50	£1.80
233 - CAM LEVER BL 4X50X165 HC260C MET-1482718040.A3010 1482718040	£6.38	£7.65
234 - CAM LEVER BL 4X50X165 HC260C MET-1482718058.A3001 1482718058	£7.36	£8.83
235 - POLY-RIB PULLEY RDA 42X18 HC260C MET-7240718060.A3001 7240718060	£13.63	£16.36
236 - CONROD BEARING SHELL HC260C MET-339139420.A3000 339139420	£8.62	£10.34
237 - O-RING HC260C MET-7632718564.A3009 7632718564	£2.94	£3.53
238 - DEEP GROOVE BALL BEARING 17X40X12 6203-2 MET-143116240.A3002 143116240	£7.44	£8.93
239 - FENCE BASE PLATE RD 10X75 HC260C MET-341606180.A3002 341606180	£3.89	£4.67
241 - HEXAGON HEAD SCREW MET-6103121416.A110 6103121416	£1.54	£1.85
242 - TRUSS HEAD SCREW MET-6110015990.A3009 6110015990	£1.50	£1.80
243 - DRIVE CHAIN SPROCKET RD 67 5X16 HC260C MET-340005050.A3002 340005050	£5.38	£6.45
244 - CLAMPING SLEEVE 4X20 MET-6503001665.A3000 6503001665	-
245 - BOLT RD 16X60 5 HC260C MET-1385718116.A3009 1385718116	-
246 - TORSION SPRING HC260C MET-7051718121.A3011 7051718121	£3.20	£3.84
247 - CHAIN TENSIONER FL 20X4X90 HC260C MET-1482718139.A3009 1482718139	£4.76	£5.71
248 - ROLLER CHAIN 74 GLIEDER HC260C MET-341163450.A3009 341163450	£15.41	£18.49
249 - CHAIN SPROCKET 29 X 7 HC260C MET-7246718150.A3009 7246718150	-
250 - THREADED BOLT RD 14X20 10H9 HC260C MET-341530210.A3002 341530210	£3.20	£3.84
251 - BOLT RD 20X64 5 HC260C MET-1385718175.A3009 1385718175	£5.62	£6.75
253 - STARLOCK WITHOUT CAP MET-7016056183.A3011 7016056183	£1.50	£1.80
255 - SHIM RING 16X22X1 VERZ. MET-6306009760.A3000 6306009760	£1.50	£1.80
257 - FLAT BELT PULLEY MET-316079040.A3011 316079040	£23.91	£28.69
258 - GEARWHEEL Z=80/M=1 5 Z=15/T=8 HC260C MET-7247718200.A3002 7247718200	£10.28	£12.34
261 - DRILL CHUCK COVER HC260C MET-1381718235.A3005 1381718235	£4.76	£5.71
262 - DISC GUARD HC260C MET-1381718243.A3006 1381718243	£32.88	£39.45
301 - WASHER MET-141150130.A3014 141150130	£1.50	£1.80
302 - SWITCH SSK DN HC260C 2 8 400V 50Hz ET MET-8132732664.A3002 8132732664	-
303 - HEX HEAD SCREW MET-6103001178.A3002 6103001178	£1.50	£1.80
305 - HEX HEAD SCREW MET-6103001151.A3009 6103001151	£1.50	£1.80
306 - WASHER MET-6305002486.A3005 6305002486	-
307 - BLIND RIVET MUSHROOM HEAD 6X8 F FLACHRU MET-6621009530.A3011 6621009530	£1.50	£1.80
309 - POLY-RIB BELT 5 PJ 864 CA.72 SHORE A MET-344260470.A3011 344260470	£15.41	£18.49
310 - HEXAGON HEAD SCREW MET-141114860.A3006 141114860	£3.20	£3.84
311 - POLY-RIB PULLEY RDA 90X30 5 5JX94 HC260C MET-7240718299.A3009 7240718299	£26.35	£31.62
312 - PARALLEL KEY MET-6721059322.A3004 6721059322	£1.50	£1.80
313 - CAP SCREW MET-6121023081.A3006 6121023081	£1.50	£1.80
315 - CUP SQUARE NECK SCREW M 8X16 VERZ. MET-6110000632.A3003 6110000632	£1.50	£1.80
318 - SPACER SHAF HC260C MET-1485718393.A3001 1485718393	-
319 - ELECTRIC MOTOR 400/3/50-60/3000 HC260C MET-8013719374.A3003 8013719374	-
332 - LEG BL 2 50X88X563 HC260C MET-1382718344.A3003 1382718344	£22.61	£27.13
333 - RUBBER FOOT HC260C MET-7057718352.A3011 7057718352	£5.62	£6.75
