Metabo HC 260 C 2 20 WNB Planer / 0114026000 13 / EU 230V Spare Parts

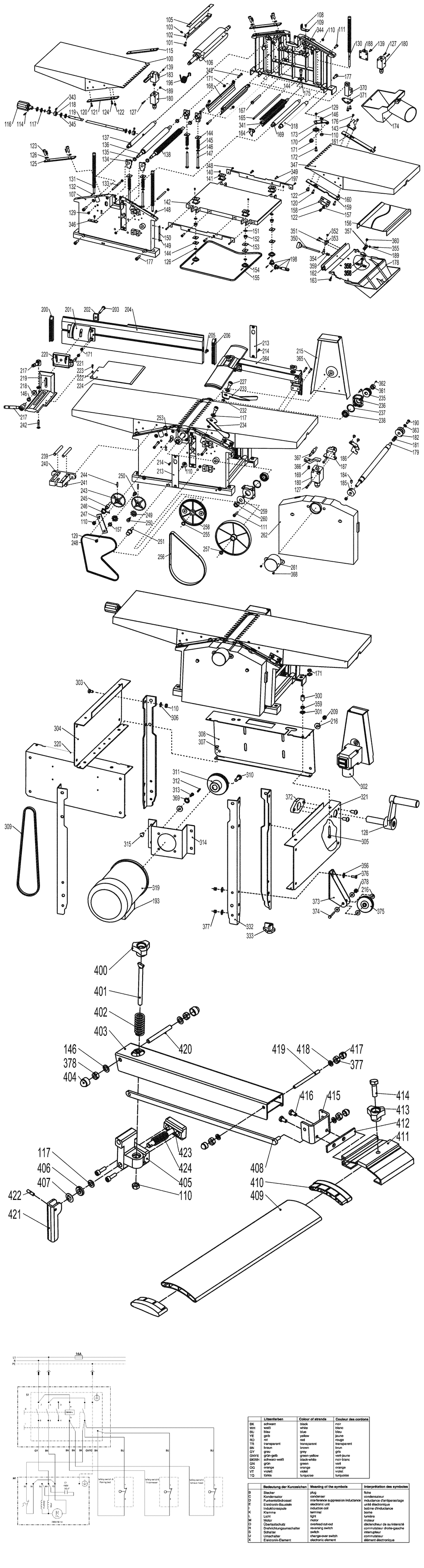

An exploded diagram and spare parts listing for the Metabo HC 260 C 2 20 WNB / 0114026000 13 / EU 230V

	Ex VAT	Inc VAT
100 - JOINTING TABLE 286 6X525 HC260C MET-315419610.A3007 315419610	£86.42	£103.71
101 - STRAINING SCREW M 6X11 SW10 MET-341701940.A195 341701940	£3.20	£3.84
102 - CUTTERBLOCK WEDGE SET MET-316099060.A3002 316099060	-
103 - CLAMPING SLEEVE 5X10 MET-6503029250.A3010 6503029250	£1.50	£1.80
104 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A3011 6164029245	£1.50	£1.80
105 - DISPOSABLE PLANER BLADE PAIR 18 MET-0911030713.A3003 0911030713	£29.99	£35.99
106 - CUTTERBLOCK RD 62 5X439 HC260C MET-1385717446.A3010 1385717446	£70.49	£84.59
107 - SIDE PANEL HC260C MET-1380717456.A3006 1380717456	-
108 - RAISED CHEESE HEAD SCREW MET-6123002049.A3004 6123002049	£1.50	£1.80
109 - RECTANGULAR WASHER FL 14X2 5X49 HC260C MET-1482717469.A3006 1482717469	-
110 - HEXAGONAL NUT MET-141131010.A3008 141131010	£1.50	£1.80
111 - CAP SCREW MET-141113890.A3007 141113890	£3.20	£3.84
114 - TIGHTENING PIN MET-6503001681.A3001 6503001681	£1.50	£1.80
115 - SPACER STRIP FL 22X4X190 HC260C MET-1482717515.A3006 1482717515	-
116 - PALM GRIP D=42 / BUCHSE 10 HC260C MET-7007717479.A3011 7007717479	£8.37	£10.04
117 - CUP SPRING 23X10 MET-7053010100.A3011 7053010100	£1.50	£1.80
118 - SHAFT COLLAR A 11 VERZ. MET-6410147244.A3001 6410147244	£4.76	£5.71
119 - THREADED ROD M 10/60X450 HC260C MET-1385717497.A3001 1385717497	-
120 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A3007 6127059193	£1.50	£1.80
121 - SPACER STRIP FL 22X4X190 HC260C MET-1482717507.A3002 1482717507	-
122 - CAP SCREW MET-141121940.A3001 141121940	£3.20	£3.84
123 - CAP SCREW MET-141113990.A3007 141113990	£3.20	£3.84
124 - CROSS RECESSED FLAT HEAD SCREW MET-6131059530.A3007 6131059530	£1.50	£1.80
125 - COVER STRIP FL 26 5X4X180 HC260C MET-1482717523.A3002 1482717523	-
126 - CUP SPRING MET-7053016795.A3000 7053016795	£1.50	£1.80
127 - FILLISTER HEAD SCREW MET-141111420.A3006 141111420	-
128 - CRANK HC260C MET-1382718360.A3005 1382718360	£13.63	£16.36
129 - HEXAGONAL NUT MET-141130100.A3013 141130100	£1.50	£1.80
130 - THREADED ROD TR 14X3X365 HC260C MET-1485717540.A3003 1485717540	£15.41	£18.49
131 - THREADED ROD TR 14X3X229 5 HC260C MET-1385717551.A3011 1385717551	£13.63	£16.36
132 - GROOVED DOWEL PIN 3X16 MET-6501007275.A3000 6501007275	£1.66	£1.99
133 - HEXAGON HEAD SCREW M 6X80 VERZ. MET-6103008717.A3005 6103008717	£1.50	£1.80
134 - GLIDE PIECE HC260C MET-1381717565.A3005 1381717565	£6.66	£7.99
135 - WASHER MET-6300016705.A3002 6300016705	£1.50	£1.80
136 - OUTFEED ROLLER RD 25X360 5 HC260C RUBBER MET-1385717578.A3000 1385717578	£44.99	£53.99
137 - SPACER SHAF RD 20X295 HC260C MET-1485717583.A3008 1485717583	-
138 - FEED ROLLER COARSE RD 25X360 5 HC260C MET-1485717591.A3003 1485717591	£36.59	£43.91
139 - RAISED CHEESE HEAD SCREW MET-141124560.A3011 141124560	£2.94	£3.53
140 - HEX. SOCKET SET SCREW FLAT PT M 5X5 MET-6161067090.A3003 6161067090	£1.50	£1.80
141 - CHECK NUT 30X30X22 TR 14X3 HC260C MET-1385717608.A3008 1385717608	£15.41	£18.49
142 - THICKNESSER BED HC260C MET-1011717612.A3006 1011717612	£81.89	£98.27
143 - SHEET PIECE (NOSE) MET-1382718379.A3006 1382718379	£3.82	£4.59
144 - WASHER 22X22 HC260C MET-1380717626.A3003 1380717626	£3.20	£3.84
145 - PRESSURE SPRING HC260C MET-7051717630.A3011 7051717630	£2.94	£3.53
146 - WASHER MET-141151340.A3017 141151340	£1.50	£1.80
147 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6102001093.A3006 6102001093	£1.50	£1.80
148 - SLOTTED HEADLESS SCREW M 8X16 VERZ. MET-6160151542.A3008 6160151542	£3.20	£3.84
149 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3024 141113040	£1.51	£1.81
150 - SCALE 0 60X16X170 HC260C MET-1141717649.A3003 1141717649	£5.62	£6.75
151 - SHIM RING 8X14X1 VERZ. MET-6306017266.A3000 6306017266	£1.50	£1.80
152 - SPINDLE BUSHING RD 16X10 HC260C MET-1381717654.A3006 1381717654	£3.20	£3.84
153 - ADAPTER PLATE IMPELLER HC260C MET-1388718389.A3002 1388718389	-
154 - CHAIN SPROCKET RDA 32 4X15 RDI 8 HC260C MET-7246717669.A3009 7246717669	£9.62	£11.54
155 - ROLLER CHAIN 210 GLIEDER HC260C MET-7236717679.A3009 7236717679	£28.45	£34.14
156 - COVER PLATE BL 2 00X259X415 HC260C MET-1382717682.A3005 1382717682	-
157 - WASHER MET-141151940.A3006 141151940	£1.50	£1.80
158 - SETTING BRACKET BL 2 00X52X24 HC260C MET-1382717690.A3005 1382717690	£3.82	£4.59
159 - GUIDE STRIP Left FL 22X4X190 HC260C MET-1482717701.A3008 1482717701	£9.62	£11.54
160 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A3001 141124510	£2.94	£3.53
161 - GUIDE STRIP RIGHT FL 20X4X193 HC260C MET-1482717710.A3003 1482717710	£9.62	£11.54
162 - EXTRUSION CHIP EJECTION HOOD 258 MM HC2 MET-1383717724.A3006 1383717724	£15.41	£18.49
163 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A3007 6172015687	£1.50	£1.80
164 - RECOIL LOCK MET-1011739691.A3001 1011739691	£63.36	£76.03
165 - RECOIL LOCK BAR RD 6X286 HC260C MET-1385717748.A3000 1385717748	-
166 - STOP PLATE MET-1011739705.A3004 1011739705	£26.35	£31.62
167 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A3006 6103030259	£1.50	£1.80
168 - CHIP GUIDE PLATE BL 2 00X45X309 MET-1382717763.A3006 1382717763	£8.37	£10.04
169 - SPACER SHAF RD 20X295 HC260C MET-1485717770.A3008 1485717770	-
170 - DRIVE CHAIN SPROCKET RD 32 4X95 MET-7246717782.A3002 7246717782	£8.37	£10.04
171 - HEXAGONAL LOCK NUT MET-141130650.A3007 141130650	£3.20	£3.84
172 - THREADED BOLT RD 13X20 8H9 M 6 HC260C MET-1385717799.A3002 1385717799	£3.20	£3.84
173 - CHAIN TENSION PLATE BL 2 5X25X76 HC260C MET-1382717801.A3005 1382717801	£3.20	£3.84
174 - DUST EXTRACTION OUTLET HC260C MET-339205250.A3005 339205250	£26.85	£32.22
175 - CHEESE-HEAD SCREW MET-141114010.A3011 141114010	£1.50	£1.80
176 - RAISED CHEESE HEAD SCREW M 5X8 VERZ. MET-6123662723.A3013 6123662723	-
177 - CHEESE-HEAD SCREW MET-141114010.A3010 141114010	£1.50	£1.80
178 - CHIP EJECTION HOOD HC260C MET-1381717824.A3006 1381717824	£32.88	£39.45
179 - SPACER SHAF HC260C MET-1485718407.A3003 1485718407	-
180 - SWITCH HC260C MET-8116718414.A3005 8116718414	£26.35	£31.62
181 - SPRING HC260C MET-7050718420.A3011 7050718420	-
182 - SCHALTNOCKEN HC260C MET-1388718435.A3008 1388718435	£5.62	£6.75
183 - SWITCH PLAT HC260C MET-1382718441.A3005 1382718441	£13.63	£16.36
184 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A3000 141124510	£2.94	£3.53
185 - STEUERNOCKEN HC260C MET-1382718450.A3006 1382718450	-
186 - SELECTOR FOR HC260C MET-1388718460.A3003 1388718460	£3.89	£4.67
187 - BRACKET HC260C MET-1382718476.A3005 1382718476	-
188 - SHIFTBLOCK HC260C MET-1388718486.A3008 1388718486	£17.55	£21.06
189 - HEXAGONAL NUT MET-141130070.A3000 141130070	£1.50	£1.80
190 - RAISED CHEESE HEAD SCREW M 5X8 VERZ. MET-6123662723.A3012 6123662723	-
194 - LEVER HC260C MET-1388718524.A3002 1388718524	-
195 - RAISED CHEESE HEAD SCREW HC260C MET-6134718534.A3004 6134718534	-
196 - SPRING HC260C MET-7050718543.A3000 7050718543	-
197 - PLATE MET-341166020.A3002 341166020	-
198 - BRACKET HC260C MET-1011718554.A3005 1011718554	£32.88	£39.45
200 - END CAP HC260C MET-1381717832.A3005 1381717832	£3.20	£3.84
201 - FENCE SEGMENT HC260C MET-316082550.A3008 316082550	£8.38	£10.05
202 - GLIDE SEGMENT HC260C MET-1381717859.A3006 1381717859	£4.07	£4.88
203 - HEXAGON HEAD SCREW M 8X50 VERZ. MET-6103001216.A3005 6103001216	£1.50	£1.80
204 - FENCE EXTRUSION 650 MM HC260C MET-1383717864.A3005 1383717864	£61.08	£73.30
205 - CUP SQUARE NECK SCREW MET-6110000608.A3005 6110000608	£1.50	£1.80
206 - END CAP HC260C MET-1381717875.A3005 1381717875	£2.94	£3.53
207 - CUTTERBLOCK GUARD 360 MM HC260C MET-1383717880.A3006 1383717880	£22.61	£27.13
208 - RATCHET LOCK LEVER HC260C MET-1381717891.A3006 1381717891	£4.76	£5.71
209 - CAP NUT M 8 VERZ. MET-6201002131.A3003 6201002131	£1.50	£1.80
210 - BRACKET PRESSURE ROLLER HC260C MET-316093450.A3006 316093450	£64.30	£77.16
211 - GUARD EXTRUSION END CAP HC260C MET-1381717913.A3005 1381717913	£2.94	£3.53
212 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A3008 6174001900	£2.49	£2.99
213 - SIDE PANEL LID BL 2X30X153 HC260C MET-1382717925.A3006 1382717925	£3.11	£3.73
214 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3025 141113040	£1.51	£1.81
215 - V-BELT GUARD 1 5X164 MET-1382717933.A3005 1382717933	£26.35	£31.62
216 - WASHER MET-6305002486.A3028 6305002486	-
217 - RATCHET LOCK LEVER FEMALE M 8 HC260C MET-7006717947.A3000 7006717947	£9.62	£11.54
218 - PLASTIC WASHER RD 20/RD 8 L=6 HC260C MET-1381717956.A3006 1381717956	£2.94	£3.53
219 - ANGLE BRACKET FENC HC260C MET-1380717960.A3008 1380717960	£22.61	£27.13
220 - GUIDE SEGMENT HC260C MET-1380717979.A3003 1380717979	£9.62	£11.54
221 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A3006 6103001356	£1.50	£1.80
222 - WASHER MET-141150010.A3011 141150010	£1.50	£1.80
223 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3026 141113040	£1.51	£1.81
224 - COVER PLATE BL 2 00X188X190 MET-1392017603.A3005 1392017603	£17.55	£21.06
225 - PVC PRESSURE SPRING 22X13X130 HC260C MET-1381717999.A3005 1381717999	£6.66	£7.99
226 - GUARD SETTING LEVER HC260C MET-1381718006.A3006 1381718006	£9.62	£11.54
227 - HEXAGON SOCKET HEAD CAP SCREW M 10X16 VE MET-6127043580.A3005 6127043580	£1.50	£1.80
228 - PRESSURE PLATE BL 2 99X15 MET-1482718015.A3006 1482718015	-
229 - SETTING ROD COGGED MET-1485739714.A3004 1485739714	-
230 - CAP HC260C MET-1381718030.A3005 1381718030	£11.78	£14.13
231 - CROSS RECD OVAL HEAD SCREW M 6X20 (22) MET-6134151119.A3006 6134151119	-
232 - SHIM RING 10X16X1 VERZ. MET-6306002170.A3000 6306002170	£1.50	£1.80
233 - CAM LEVER BL 4X50X165 HC260C MET-1482718040.A3003 1482718040	£6.38	£7.65
234 - CAM LEVER BL 4X50X165 HC260C MET-1482718058.A3008 1482718058	£7.36	£8.83
235 - POLY-RIB PULLEY RDA 42X18 HC260C MET-7240718060.A3009 7240718060	£13.63	£16.36
236 - CONROD BEARING SHELL HC260C MET-339139420.A3008 339139420	£8.62	£10.34
237 - O-RING HC260C MET-7632718564.A3002 7632718564	£2.94	£3.53
238 - DEEP GROOVE BALL BEARING 17X40X12 6203-2 MET-143116240.A3011 143116240	£7.44	£8.93
239 - FENCE BASE PLATE RD 10X75 HC260C MET-341606180.A3009 341606180	£3.89	£4.67
240 - FENCE BRACKET HC260C MET-2380718092.A3006 2380718092	£11.78	£14.13
241 - HEXAGON HEAD SCREW MET-6103121416.A104 6103121416	£1.54	£1.85
242 - TRUSS HEAD SCREW MET-6110015990.A3005 6110015990	£1.50	£1.80
243 - DRIVE CHAIN SPROCKET RD 67 5X16 HC260C MET-340005050.A3009 340005050	£5.38	£6.45
244 - CLAMPING SLEEVE 4X20 MET-6503001665.A3011 6503001665	-
245 - BOLT RD 16X60 5 HC260C MET-1385718116.A3002 1385718116	-
246 - TORSION SPRING HC260C MET-7051718121.A3001 7051718121	£3.20	£3.84
247 - CHAIN TENSIONER FL 20X4X90 HC260C MET-1482718139.A3002 1482718139	£4.76	£5.71
248 - ROLLER CHAIN 74 GLIEDER HC260C MET-341163450.A3003 341163450	£15.41	£18.49
249 - CHAIN SPROCKET 29 X 7 HC260C MET-7246718150.A3002 7246718150	-
250 - THREADED BOLT RD 14X20 10H9 HC260C MET-341530210.A3009 341530210	£3.20	£3.84
251 - BOLT RD 20X64 5 HC260C MET-1385718175.A3002 1385718175	£5.62	£6.75
253 - STARLOCK WITHOUT CAP MET-7016056183.A3001 7016056183	£1.50	£1.80
255 - SHIM RING 16X22X1 VERZ. MET-6306009760.A3010 6306009760	£1.50	£1.80
256 - FLAT BEL LI 547X2 0X18 FLACHRIEMEN MET-344260480.A3005 344260480	£36.59	£43.91
257 - FLAT BELT PULLEY MET-316079040.A3000 316079040	£23.91	£28.69
258 - GEARWHEEL Z=80/M=1 5 Z=15/T=8 HC260C MET-7247718200.A3009 7247718200	£10.28	£12.34
259 - CUP SPRING 34X12 3X1 HC260C MET-7053718218.A3008 7053718218	-
260 - HEXAGON NUT M12 X 1 25 HC260C MET-6209718225.A3005 6209718225	-
261 - DRILL CHUCK COVER HC260C MET-1381718235.A3006 1381718235	£4.76	£5.71
262 - DISC GUARD HC260C MET-1381718243.A3005 1381718243	£32.88	£39.45
300 - SPACER SLEEVE RD 15/7X16 5 HC260C MET-6442718251.A3008 6442718251	-
301 - WASHER MET-141150130.A3003 141150130	£1.50	£1.80
302 - SWITCH SSK DN HC260C 2 2 230V 50Hz ET MET-8131732652.A3003 8131732652	£79.10	£94.92
303 - HEX HEAD SCREW MET-6103001178.A3007 6103001178	£1.50	£1.80
304 - SIDE PANEL BL 1 50X252X438 HC260C MET-1382718263.A3005 1382718263	-
305 - HEX HEAD SCREW MET-6103001151.A3005 6103001151	£1.50	£1.80
306 - WASHER MET-6305002486.A3027 6305002486	-
307 - BLIND RIVET MUSHROOM HEAD 6X8 F FLACHRU MET-6621009530.A3000 6621009530	£1.50	£1.80
308 - FRONT PANEL BL 1 5X252X458 HC260C MET-1382718271.A3003 1382718271	-
309 - POLY-RIB BELT 5 PJ 864 CA.72 SHORE A MET-344260470.A3005 344260470	£15.41	£18.49
310 - HEXAGON HEAD SCREW MET-141114860.A3012 141114860	£3.20	£3.84
311 - POLY-RIB PULLEY RDA 90X30 5 5JX94 HC260C MET-7240718299.A3001 7240718299	£26.35	£31.62
312 - PARALLEL KEY MET-6721059322.A3015 6721059322	£1.50	£1.80
313 - CAP SCREW MET-6121023081.A3010 6121023081	£1.50	£1.80
314 - MOTOR CARRIER BL 2 99X120X307 HC260C MET-1382718301.A3005 1382718301	-
315 - CUP SQUARE NECK SCREW M 8X16 VERZ. MET-6110000632.A3008 6110000632	£1.50	£1.80
318 - SPACER SHAF HC260C MET-1485718393.A3009 1485718393	-
319 - ELECTRIC MOTOR 1X230V 50HZ 3000UPM HC260 MET-8012718323.A3005 8012718323	£238.25	£285.90
320 - FRONT PANEL BL 1 5X252X458 HC260C MET-1382718336.A3003 1382718336	-
321 - SIDE PANEL HC260C MET-1380718592.A3001 1380718592	-
332 - LEG BL 2 50X88X563 HC260C MET-1382718344.A3007 1382718344	£22.61	£27.13
333 - RUBBER FOOT HC260C MET-7057718352.A3000 7057718352	£5.62	£6.75
334 - RATING PLATE MET-338064940.A3000 338064940	-
341 - LATCH MET-339148070.A3002 339148070	-
342 - SCREW MET-341722410.A3002 341722410	-
343 - GRUB SCREW MET-141114900.A3000 141114900	£3.20	£3.84
344 - SIDE-PANEL LEFT MET-341166090.A3000 341166090	-
345 - RETAINING WASHER RD 8 VERZ. MET-6404091580.A3002 6404091580	£1.50	£1.80
346 - PLATE MET-341166030.A3000 341166030	-
347 - TABLE MET-315419610.A3000 315419610	£86.42	£103.71
348 - FILLISTER HEAD SCREW MET-141110580.A3000 141110580	£1.50	£1.80
349 - COUNTERSUNK SCREW MET-141112220.A3000 141112220	£1.50	£1.80
350 - ADJUSTING LEVER MET-339148080.A3000 339148080	-
351 - SCREW MET-341704250.A3000 341704250	£2.94	£3.53
352 - CIRCLIP MET-141181710.A3000 141181710	£1.50	£1.80
353 - TERMINAL MET-343085410.A3000 343085410	-
354 - SHAFT MET-341605000.A3000 341605000	-
355 - GUIDE BLOCK MET-341071850.A3002 341071850	-
356 - WASHER MET-141151930.A3000 141151930	£1.50	£1.80
357 - SLIDING CARRIAGE MET-341166040.A3002 341166040	-
358 - CONNECTION PIECE MET-341166050.A3000 341166050	-
359 - HEXAGONAL NUT MET-141130100.A3014 141130100	£1.50	£1.80
360 - HEXAGONAL LOCK NUT MET-141130930.A3002 141130930	£1.50	£1.80
361 - HEX NUT MET-341109020.A3000 341109020	-
362 - ADJUSTING SPRING MET-339101110.A3000 339101110	-
363 - SHIM MET-339009370.A3002 339009370	-
364 - PROTECTION COVER MET-316093450.A3002 316093450	£64.30	£77.16
365 - CAP SCREW MET-141113900.A3000 141113900	£3.20	£3.84
366 - LEVER MET-343442860.A3000 343442860	-
367 - SHAFT MET-341605010.A3002 341605010	-
368 - SELF-TAP. FILL. H. SCREW MET-141118130.A3002 141118130	£1.50	£1.80
369 - BEVEL WASHER PLATE MET-339012980.A3000 339012980	-
370 - TERMINAL MET-343085420.A3002 343085420	£19.18	£23.02
371 - CONNECTION PIECE MET-341166060.A3002 341166060	-
372 - FLANGE MET-341039650.A3000 341039650	-
373 - ROLLER HOLDER MET-339148090.A3002 339148090	£5.62	£6.75
374 - HEX HEAD SCREW MET-141123480.A3005 141123480	£2.94	£3.53
375 - WHEEL MET-343442870.A3002 343442870	£8.37	£10.04
376 - HEXAGON HEAD SCREW MET-141113290.A3006 141113290	£1.50	£1.80
377 - HEXAGONAL LOCK NUT MET-141130650.A3006 141130650	£3.20	£3.84
378 - HEXAGONAL NUT MET-141131010.A3006 141131010	£1.50	£1.80
400 - SCREW COMPL. MET-316093460.A3000 316093460	-
403 - ROD MET-341166070.A3000 341166070	-
404 - COVER CAP MET-343442890.A3000 343442890	-
405 - CLAMPING LEVER COMPL. MET-316093470.A3002 316093470	£19.18	£23.02
408 - FEED ROD LONG MET-341166080.A3002 341166080	-
409 - COVER CPL. MET-316093480.A3000 316093480	-
411 - HOLDER COMPL. MET-316093490.A3002 316093490	-
413 - BOLT MET-343442900.A3002 343442900	£3.20	£3.84
414 - HANDLE MET-341525360.A3002 341525360	£9.62	£11.54
417 - COVER CAP MET-343442910.A3000 343442910	-
418 - BEVEL WASHER PLATE MET-339012990.A3002 339012990	-
419 - SHAFT MET-341605020.A3000 341605020	-
420 - SHAFT MET-341605030.A3002 341605030	-

Attribute Name	Value
Brand	Metabo

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Metabo HC 260 C 2 20 WNB Planer / 0114026000 13 / EU 230V Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
