Metabo HC 260 C 2 20 WNB Planer / 0114026000 12 / EU 230V Spare Parts

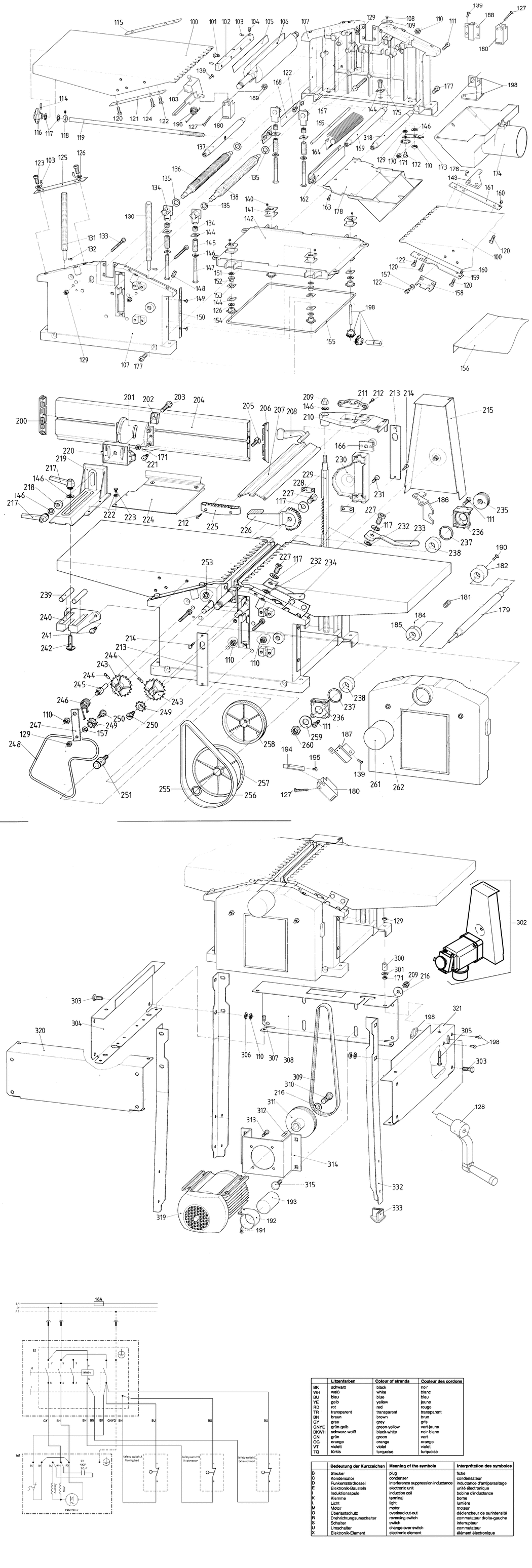

An exploded diagram and spare parts listing for the Metabo HC 260 C 2 20 WNB / 0114026000 12 / EU 230V

	Ex VAT	Inc VAT
100 - JOINTING TABLE 286 6X525 HC260C MET-315419610.A3003 315419610	£86.42	£103.71
101 - STRAINING SCREW M 6X11 SW10 MET-341701940.A194 341701940	£3.20	£3.84
102 - CUTTERBLOCK WEDGE 1SATZ=2STÃœCK HC260C MET-1011717434.A3001 1011717434	£19.18	£23.02
103 - CLAMPING SLEEVE 5X10 MET-6503029250.A3006 6503029250	£1.50	£1.80
104 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A3015 6164029245	£1.50	£1.80
105 - DISPOSABLE PLANER BLADE PAIR 18 MET-0911030713.A3002 0911030713	£29.99	£35.99
106 - CUTTERBLOCK RD 62 5X439 HC260C MET-1385717446.A3006 1385717446	£70.49	£84.59
107 - SIDE PANEL HC260C MET-1380717456.A3008 1380717456	-
108 - RAISED CHEESE HEAD SCREW MET-6123002049.A3000 6123002049	£1.50	£1.80
109 - RECTANGULAR WASHER FL 14X2 5X49 HC260C MET-1482717469.A3008 1482717469	-
110 - HEXAGONAL NUT MET-141131010.A3011 141131010	£1.50	£1.80
111 - CAP SCREW MET-141113890.A3010 141113890	£3.20	£3.84
114 - TIGHTENING PIN MET-6503001681.A3005 6503001681	£1.50	£1.80
115 - SPACER STRIP FL 22X4X190 HC260C MET-1482717515.A3008 1482717515	-
116 - PALM GRIP D=42 / BUCHSE 10 HC260C MET-7007717479.A3006 7007717479	£8.37	£10.04
117 - CUP SPRING 23X10 MET-7053010100.A3007 7053010100	£1.50	£1.80
118 - SHAFT COLLAR A 11 VERZ. MET-6410147244.A3003 6410147244	£4.76	£5.71
119 - THREADED ROD M 10/60X450 HC260C MET-1385717497.A3005 1385717497	-
120 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A3011 6127059193	£1.50	£1.80
121 - SPACER STRIP FL 22X4X190 HC260C MET-1482717507.A3000 1482717507	-
122 - CAP SCREW MET-141121940.A3004 141121940	£3.20	£3.84
123 - CAP SCREW MET-141113990.A3010 141113990	£3.20	£3.84
124 - CROSS RECESSED FLAT HEAD SCREW MET-6131059530.A3003 6131059530	£1.50	£1.80
125 - COVER STRIP FL 26 5X4X180 HC260C MET-1482717523.A3000 1482717523	-
126 - CUP SPRING MET-7053016795.A3004 7053016795	£1.50	£1.80
127 - FILLISTER HEAD SCREW MET-141111420.A3010 141111420	-
128 - CRANK HC260C MET-1382718360.A3000 1382718360	£13.63	£16.36
129 - HEXAGONAL NUT MET-141130100.A3009 141130100	£1.50	£1.80
130 - THREADED ROD TR 14X3X365 HC260C MET-1485717540.A3000 1485717540	£15.41	£18.49
131 - THREADED ROD TR 14X3X229 5 HC260C MET-1385717551.A3006 1385717551	£13.63	£16.36
132 - GROOVED DOWEL PIN 3X16 MET-6501007275.A3005 6501007275	£1.66	£1.99
133 - HEXAGON HEAD SCREW M 6X80 VERZ. MET-6103008717.A3001 6103008717	£1.50	£1.80
134 - GLIDE PIECE HC260C MET-1381717565.A3001 1381717565	£6.66	£7.99
135 - WASHER MET-6300016705.A3007 6300016705	£1.50	£1.80
136 - OUTFEED ROLLER RD 25X360 5 HC260C RUBBER MET-1385717578.A3005 1385717578	£44.99	£53.99
137 - SPACER SHAF RD 20X295 HC260C MET-1485717583.A3011 1485717583	-
138 - FEED ROLLER COARSE RD 25X360 5 HC260C MET-1485717591.A3000 1485717591	£36.59	£43.91
139 - RAISED CHEESE HEAD SCREW MET-141124560.A3007 141124560	£2.94	£3.53
140 - HEX. SOCKET SET SCREW FLAT PT M 5X5 MET-6161067090.A3000 6161067090	£1.50	£1.80
141 - CHECK NUT 30X30X22 TR 14X3 HC260C MET-1385717608.A3005 1385717608	£15.41	£18.49
142 - THICKNESSER BED HC260C MET-1011717612.A3010 1011717612	£81.89	£98.27
143 - SHEET PIECE (NOSE) MET-1382718379.A3009 1382718379	£3.82	£4.59
144 - WASHER 22X22 HC260C MET-1380717626.A3000 1380717626	£3.20	£3.84
145 - PRESSURE SPRING HC260C MET-7051717630.A3006 7051717630	£2.94	£3.53
146 - WASHER MET-141151340.A3014 141151340	£1.50	£1.80
147 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6102001093.A3011 6102001093	£1.50	£1.80
148 - SLOTTED HEADLESS SCREW M 8X16 VERZ. MET-6160151542.A3011 6160151542	£3.20	£3.84
149 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3021 141113040	£1.51	£1.81
150 - SCALE 0 60X16X170 HC260C MET-1141717649.A3000 1141717649	£5.62	£6.75
151 - SHIM RING 8X14X1 VERZ. MET-6306017266.A3005 6306017266	£1.50	£1.80
152 - SPINDLE BUSHING RD 16X10 HC260C MET-1381717654.A3010 1381717654	£3.20	£3.84
153 - ADAPTER PLATE IMPELLER HC260C MET-1388718389.A3001 1388718389	-
154 - CHAIN SPROCKET RDA 32 4X15 RDI 8 HC260C MET-7246717669.A3008 7246717669	£9.62	£11.54
155 - ROLLER CHAIN 210 GLIEDER HC260C MET-7236717679.A3008 7236717679	£28.45	£34.14
156 - COVER PLATE BL 2 00X259X415 HC260C MET-1382717682.A3007 1382717682	-
157 - WASHER MET-141151940.A3009 141151940	£1.50	£1.80
158 - SETTING BRACKET BL 2 00X52X24 HC260C MET-1382717690.A3001 1382717690	£3.82	£4.59
159 - GUIDE STRIP Left FL 22X4X190 HC260C MET-1482717701.A3010 1482717701	£9.62	£11.54
160 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A3008 141124510	£2.94	£3.53
161 - GUIDE STRIP RIGHT FL 20X4X193 HC260C MET-1482717710.A3001 1482717710	£9.62	£11.54
162 - EXTRUSION CHIP EJECTION HOOD 258 MM HC2 MET-1383717724.A3011 1383717724	£15.41	£18.49
163 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A3004 6172015687	£1.50	£1.80
164 - RECOIL LOCK MET-1011739691.A3000 1011739691	£63.36	£76.03
165 - RECOIL LOCK BAR RD 6X286 HC260C MET-1385717748.A3004 1385717748	-
166 - STOP PLATE MET-1011739705.A3005 1011739705	£26.35	£31.62
167 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A3010 6103030259	£1.50	£1.80
168 - CHIP GUIDE PLATE BL 2 00X45X309 MET-1382717763.A3010 1382717763	£8.37	£10.04
169 - SPACER SHAF RD 20X295 HC260C MET-1485717770.A3011 1485717770	-
170 - DRIVE CHAIN SPROCKET RD 32 4X95 MET-7246717782.A3003 7246717782	£8.37	£10.04
171 - HEXAGONAL LOCK NUT MET-141130650.A3011 141130650	£3.20	£3.84
172 - THREADED BOLT RD 13X20 8H9 M 6 HC260C MET-1385717799.A3005 1385717799	£3.20	£3.84
173 - CHAIN TENSION PLATE BL 2 5X25X76 HC260C MET-1382717801.A3001 1382717801	£3.20	£3.84
174 - DUST EXTRACTION OUTLET HC260C MET-339205250.A3001 339205250	£26.85	£32.22
175 - CHEESE-HEAD SCREW MET-141114010.A3003 141114010	£1.50	£1.80
176 - RAISED CHEESE HEAD SCREW M 5X8 VERZ. MET-6123662723.A3023 6123662723	-
177 - CHEESE-HEAD SCREW MET-141114010.A3002 141114010	£1.50	£1.80
178 - CHIP EJECTION HOOD HC260C MET-1381717824.A3010 1381717824	£32.88	£39.45
179 - SPACER SHAF HC260C MET-1485718407.A3000 1485718407	-
180 - SWITCH HC260C MET-8116718414.A3002 8116718414	£26.35	£31.62
181 - SPRING HC260C MET-7050718420.A3007 7050718420	-
182 - SCHALTNOCKEN HC260C MET-1388718435.A3009 1388718435	£5.62	£6.75
183 - SWITCH PLAT HC260C MET-1382718441.A3000 1382718441	£13.63	£16.36
184 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A3009 141124510	£2.94	£3.53
185 - STEUERNOCKEN HC260C MET-1382718450.A3011 1382718450	-
186 - SELECTOR FOR HC260C MET-1388718460.A3002 1388718460	£3.89	£4.67
187 - BRACKET HC260C MET-1382718476.A3000 1382718476	-
188 - SHIFTBLOCK HC260C MET-1388718486.A3009 1388718486	£17.55	£21.06
189 - HEXAGONAL NUT MET-141130070.A3004 141130070	£1.50	£1.80
190 - RAISED CHEESE HEAD SCREW M 5X8 VERZ. MET-6123662723.A3022 6123662723	-
191 - RAISED CHEESE HEAD SCREW HC260C MET-6134718496.A3000 6134718496	-
192 - CAPACITOR CLAMP HC260C MET-1332718505.A3003 1332718505	-
193 - CAPACITOR HC260C MET-8050718515.A3003 8050718515	£42.65	£51.18
194 - LEVER HC260C MET-1388718524.A3001 1388718524	-
195 - RAISED CHEESE HEAD SCREW HC260C MET-6134718534.A3005 6134718534	-
196 - SPRING HC260C MET-7050718543.A3003 7050718543	-
198 - BRACKET HC260C MET-1011718554.A3001 1011718554	£32.88	£39.45
200 - END CAP HC260C MET-1381717832.A3001 1381717832	£3.20	£3.84
201 - FENCE SEGMENT HC260C MET-316082550.A3011 316082550	£8.38	£10.05
202 - GLIDE SEGMENT HC260C MET-1381717859.A3010 1381717859	£4.07	£4.88
203 - HEXAGON HEAD SCREW M 8X50 VERZ. MET-6103001216.A3001 6103001216	£1.50	£1.80
204 - FENCE EXTRUSION 650 MM HC260C MET-1383717864.A3000 1383717864	£61.08	£73.30
205 - CUP SQUARE NECK SCREW MET-6110000608.A3001 6110000608	£1.50	£1.80
206 - END CAP HC260C MET-1381717875.A3001 1381717875	£2.94	£3.53
207 - CUTTERBLOCK GUARD 360 MM HC260C MET-1383717880.A3011 1383717880	£22.61	£27.13
208 - RATCHET LOCK LEVER HC260C MET-1381717891.A3010 1381717891	£4.76	£5.71
209 - CAP NUT M 8 VERZ. MET-6201002131.A3000 6201002131	£1.50	£1.80
210 - BRACKET PRESSURE ROLLER HC260C MET-316093450.A3003 316093450	£64.30	£77.16
211 - GUARD EXTRUSION END CAP HC260C MET-1381717913.A3001 1381717913	£2.94	£3.53
212 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A3011 6174001900	£2.49	£2.99
213 - SIDE PANEL LID BL 2X30X153 HC260C MET-1382717925.A3010 1382717925	£3.11	£3.73
214 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3022 141113040	£1.51	£1.81
215 - V-BELT GUARD 1 5X164 MET-1382717933.A3001 1382717933	£26.35	£31.62
216 - WASHER MET-6305002486.A3017 6305002486	-
217 - RATCHET LOCK LEVER FEMALE M 8 HC260C MET-7006717947.A3005 7006717947	£9.62	£11.54
218 - PLASTIC WASHER RD 20/RD 8 L=6 HC260C MET-1381717956.A3010 1381717956	£2.94	£3.53
219 - ANGLE BRACKET FENC HC260C MET-1380717960.A3011 1380717960	£22.61	£27.13
220 - GUIDE SEGMENT HC260C MET-1380717979.A3000 1380717979	£9.62	£11.54
221 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A3010 6103001356	£1.50	£1.80
222 - WASHER MET-141150010.A3007 141150010	£1.50	£1.80
223 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3023 141113040	£1.51	£1.81
224 - COVER PLATE BL 2 00X188X190 MET-1392017603.A3001 1392017603	£17.55	£21.06
225 - PVC PRESSURE SPRING 22X13X130 HC260C MET-1381717999.A3001 1381717999	£6.66	£7.99
226 - GUARD SETTING LEVER HC260C MET-1381718006.A3010 1381718006	£9.62	£11.54
227 - HEXAGON SOCKET HEAD CAP SCREW M 10X16 VE MET-6127043580.A3000 6127043580	£1.50	£1.80
228 - PRESSURE PLATE BL 2 99X15 MET-1482718015.A3008 1482718015	-
229 - SETTING ROD COGGED MET-1485739714.A3005 1485739714	-
230 - CAP HC260C MET-1381718030.A3001 1381718030	£11.78	£14.13
231 - CROSS RECD OVAL HEAD SCREW M 6X20 (22) MET-6134151119.A3011 6134151119	-
232 - SHIM RING 10X16X1 VERZ. MET-6306002170.A3005 6306002170	£1.50	£1.80
233 - CAM LEVER BL 4X50X165 HC260C MET-1482718040.A3000 1482718040	£6.38	£7.65
234 - CAM LEVER BL 4X50X165 HC260C MET-1482718058.A3011 1482718058	£7.36	£8.83
235 - POLY-RIB PULLEY RDA 42X18 HC260C MET-7240718060.A3008 7240718060	£13.63	£16.36
236 - CONROD BEARING SHELL HC260C MET-339139420.A3011 339139420	£8.62	£10.34
237 - O-RING HC260C MET-7632718564.A3004 7632718564	£2.94	£3.53
238 - DEEP GROOVE BALL BEARING 17X40X12 6203-2 MET-143116240.A3006 143116240	£7.44	£8.93
239 - FENCE BASE PLATE RD 10X75 HC260C MET-341606180.A3006 341606180	£3.89	£4.67
240 - FENCE BRACKET HC260C MET-2380718092.A3008 2380718092	£11.78	£14.13
241 - HEXAGON HEAD SCREW MET-6103121416.A103 6103121416	£1.54	£1.85
242 - TRUSS HEAD SCREW MET-6110015990.A3000 6110015990	£1.50	£1.80
243 - DRIVE CHAIN SPROCKET RD 67 5X16 HC260C MET-340005050.A3008 340005050	£5.38	£6.45
244 - CLAMPING SLEEVE 4X20 MET-6503001665.A3010 6503001665	-
245 - BOLT RD 16X60 5 HC260C MET-1385718116.A3003 1385718116	-
246 - TORSION SPRING HC260C MET-7051718121.A3000 7051718121	£3.20	£3.84
247 - CHAIN TENSIONER FL 20X4X90 HC260C MET-1482718139.A3003 1482718139	£4.76	£5.71
248 - ROLLER CHAIN 74 GLIEDER HC260C MET-341163450.A3002 341163450	£15.41	£18.49
249 - CHAIN SPROCKET 29 X 7 HC260C MET-7246718150.A3003 7246718150	-
250 - THREADED BOLT RD 14X20 10H9 HC260C MET-341530210.A3008 341530210	£3.20	£3.84
251 - BOLT RD 20X64 5 HC260C MET-1385718175.A3003 1385718175	£5.62	£6.75
253 - STARLOCK WITHOUT CAP MET-7016056183.A3000 7016056183	£1.50	£1.80
255 - SHIM RING 16X22X1 VERZ. MET-6306009760.A3011 6306009760	£1.50	£1.80
256 - FLAT BEL LI 547X2 0X18 FLACHRIEMEN MET-344260480.A3006 344260480	£36.59	£43.91
257 - FLAT BELT PULLEY MET-316079040.A3001 316079040	£23.91	£28.69
258 - GEARWHEEL Z=80/M=1 5 Z=15/T=8 HC260C MET-7247718200.A3008 7247718200	£10.28	£12.34
259 - CUP SPRING 34X12 3X1 HC260C MET-7053718218.A3007 7053718218	-
260 - HEXAGON NUT M12 X 1 25 HC260C MET-6209718225.A3004 6209718225	-
261 - DRILL CHUCK COVER HC260C MET-1381718235.A3007 1381718235	£4.76	£5.71
262 - DISC GUARD HC260C MET-1381718243.A3004 1381718243	£32.88	£39.45
300 - SPACER SLEEVE RD 15/7X16 5 HC260C MET-6442718251.A3007 6442718251	-
301 - WASHER MET-141150130.A3004 141150130	£1.50	£1.80
302 - SWITCH SSK DN HC260C 2 2 230V 50Hz ET MET-8131732652.A3002 8131732652	£79.10	£94.92
303 - HEX HEAD SCREW MET-6103001178.A3008 6103001178	£1.50	£1.80
304 - SIDE PANEL BL 1 50X252X438 HC260C MET-1382718263.A3006 1382718263	-
305 - HEX HEAD SCREW MET-6103001151.A3004 6103001151	£1.50	£1.80
306 - WASHER MET-6305002486.A3026 6305002486	-
307 - BLIND RIVET MUSHROOM HEAD 6X8 F FLACHRU MET-6621009530.A3001 6621009530	£1.50	£1.80
308 - FRONT PANEL BL 1 5X252X458 HC260C MET-1382718271.A3002 1382718271	-
309 - POLY-RIB BELT 5 PJ 864 CA.72 SHORE A MET-344260470.A3004 344260470	£15.41	£18.49
310 - HEXAGON HEAD SCREW MET-141114860.A3011 141114860	£3.20	£3.84
311 - POLY-RIB PULLEY RDA 90X30 5 5JX94 HC260C MET-7240718299.A3002 7240718299	£26.35	£31.62
312 - PARALLEL KEY MET-6721059322.A3014 6721059322	£1.50	£1.80
313 - CAP SCREW MET-6121023081.A3011 6121023081	£1.50	£1.80
314 - MOTOR CARRIER BL 2 99X120X307 HC260C MET-1382718301.A3006 1382718301	-
315 - CUP SQUARE NECK SCREW M 8X16 VERZ. MET-6110000632.A3007 6110000632	£1.50	£1.80
318 - SPACER SHAF HC260C MET-1485718393.A3008 1485718393	-
319 - ELECTRIC MOTOR 1X230V 50HZ 3000UPM HC260 MET-8012718323.A3006 8012718323	£238.25	£285.90
320 - FRONT PANEL BL 1 5X252X458 HC260C MET-1382718336.A3002 1382718336	-
321 - SIDE PANEL HC260C MET-1380718592.A3002 1380718592	-
332 - LEG BL 2 50X88X563 HC260C MET-1382718344.A3008 1382718344	£22.61	£27.13
333 - RUBBER FOOT HC260C MET-7057718352.A3001 7057718352	£5.62	£6.75

Attribute Name	Value
Brand	Metabo

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Metabo HC 260 C 2 20 WNB Planer / 0114026000 12 / EU 230V Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
