Dewalt DW755 Type 2 Bench Grinder Spare Parts

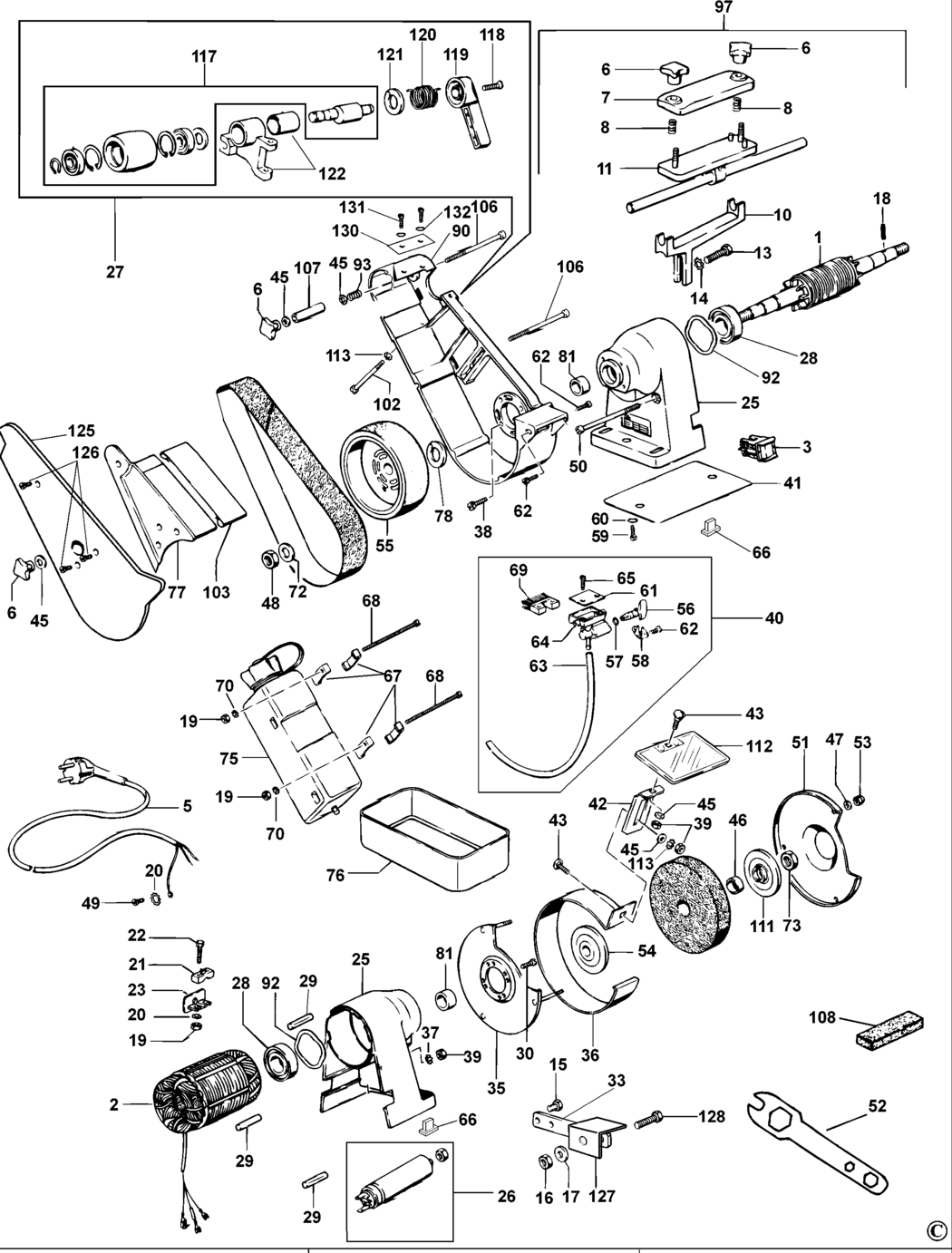

An exploded drawing and spare parts listing for the Dewalt DW755 Type 2 Bench Grinder

	Ex VAT	Inc VAT
1 - ROTOR BDE-378881.A2 378881	£19.90	£23.88
2 - STATOR BDE-378891.A6 378891	£84.42	£101.30
3 - SWITCH BDE-378787-03.A6 378787-03	£17.03	£20.44
5 - CORDSET GB BDE-378893-01.A6 378893-01	£9.41	£11.29
6 - KNOB SA BDE-744324.A42 744324	£2.78	£3.34
7 - STRIP BDE-744231.A2 744231	£7.85	£9.42
8 - SPRING BDE-742243.A11 742243	£1.50	£1.80
10 - HOLDER BDE-744230.A16 744230	£10.85	£13.02
11 - SUPPORT BDE-744232.A16 744232	-
13 - SCREW BDE-742047.A4 742047	£1.50	£1.80
14 - WASHER M8 BDE-742046.A5 742046	£1.50	£1.80
15 - SCREW BDE-378908.A3 378908	£1.50	£1.80
16 - NUT BDE-725187.A6 725187	£1.50	£1.80
17 - WASHER BDE-742172.A38 742172	£1.50	£1.80
18 - PIN BDE-742053.A6 742053	£1.50	£1.80
19 - NUT BDE-725698.A15 725698	£1.50	£1.80
20 - WASHER BDE-725163.A0 725163	£1.50	£1.80
21 - CABLE CLAMP BDE-379684.A1 379684	£1.50	£1.80
22 - SCREW BDE-742041.A16 742041	£1.50	£1.80
23 - CABLE CLAMP BDE-742125.A3 742125	£1.50	£1.80
25 - HOUSING BDE-378791-20.A6 378791-20	£55.30	£66.36
26 - CAPACITOR BDE-378892.A2 378892	£10.85	£13.02
27 - LEVER SA BDE-744371.A0 744371	£144.10	£172.92
28 - BEARING BDE-107301.A0 107301	£1.82	£2.19
29 - PIN BDE-742168.A4 742168	£2.78	£3.34
30 - SCREW BDE-378795-01.A1 378795-01	£1.50	£1.80
33 - SUPPORT BDE-744234.A2 744234	£3.30	£3.96
35 - PLATE BDE-744236.A3 744236	£19.90	£23.88
36 - GUARD BDE-744238.A3 744238	£14.57	£17.48
37 - WASHER BDE-743415.A56 743415	£1.50	£1.80
38 - SCREW BDE-378788.A0 378788	£1.50	£1.80
39 - NUT BDE-725125.A35 725125	£1.50	£1.80
40 - HOSE SA BDE-742273.A3 742273	£44.14	£52.97
41 - PLATE BDE-378841.A6 378841	£1.82	£2.19
42 - BRACKET BDE-744188.A7 744188	£3.30	£3.96
43 - SCREW BDE-725184.A17 725184	£1.50	£1.80
45 - WASHER BDE-880391.A49 880391	£1.50	£1.80
46 - BUSH BDE-742134.A3 742134	£1.50	£1.80
47 - WASHER BDE-725269.A21 725269	£1.50	£1.80
48 - NUT BDE-742887.A18 742887	£1.82	£2.19
49 - SCREW BDE-378795-01.A2 378795-01	£1.50	£1.80
50 - SCREW BDE-378907.A2 378907	£1.50	£1.80
51 - GUARD BDE-744237.A8 744237	£14.57	£17.48
52 - SPANNER BDE-742511.A3 742511	£2.78	£3.34
53 - LOCK-NUT BDE-146823100.A0 146823100	£1.50	£1.80
54 - CLAMP BDE-742298.A19 742298	£3.30	£3.96
55 - PULLEY BDE-742199.A2 742199	£34.00	£40.80
56 - GRIP BDE-742275.A3 742275	£1.82	£2.19
57 - SEAL BDE-742282.A2 742282	£1.50	£1.80
58 - FLANGE BDE-742279.A2 742279	£1.50	£1.80
59 - SCREW BDE-726430.A7 726430	£1.50	£1.80
60 - WASHER BDE-725165.A26 725165	£1.50	£1.80
61 - COVER BDE-742166.A4 742166	£1.50	£1.80
62 - SCREW BDE-742051.A1 742051	£1.50	£1.80
63 - TUBE BDE-742278.A3 742278	£9.41	£11.29
64 - HOLDER BDE-742280-00.A3 742280-00	£7.18	£8.62
65 - SCREW BDE-742050.A1 742050	£1.38	£1.65
66 - FOOT BDE-378738.A2 378738	£19.90	£23.88
67 - CLAMP BDE-742299.A1 742299	£1.50	£1.80
68 - SCREW BDE-742300.A3 742300	£1.50	£1.80
69 - BRUSH BDE-742276.A5 742276	£5.88	£7.06
70 - WASHER BDE-725163.A20 725163	£1.50	£1.80
72 - WASHER BDE-742054.A9 742054	£1.50	£1.80
73 - NUT LH BDE-742140.A14 742140	£1.82	£2.19
75 - RESERVOIR BDE-742274.A5 742274	£17.48	£20.97
76 - SCALE BDE-742283.A1 742283	£5.88	£7.06
77 - SUPPORT BDE-379719.A1 379719	£4.69	£5.63
78 - WASHER BDE-379989.A0 379989	£1.50	£1.80
81 - BUSH BDE-742153.A6 742153	£2.78	£3.34
90 - COVER BDE-744235-10.A1 744235-10	£45.14	£54.17
92 - WASHER BDE-113933000.A13 113933000	£1.50	£1.80
93 - SPRING BDE-742233.A1 742233	£3.80	£4.56
97 - CLAMP KIT SA BDE-744253.A0 744253	£55.30	£66.36
102 - SCREW BDE-742231.A0 742231	£1.82	£2.19
103 - PLATE BDE-742290.A2 742290	£3.80	£4.56
106 - SCREW BDE-379844.A0 379844	£1.50	£1.80
107 - SPACER BDE-742228-10.A3 742228-10	£2.78	£3.34
108 - STONE BDE-742240.A2 742240	£16.03	£19.24
111 - CLAMP OUTER BDE-742066.A15 742066	£2.78	£3.34
112 - VISOR BDE-742133.A8 742133	£3.30	£3.96
113 - WASHER BDE-742040.A2 742040	£1.50	£1.80
117 - REPAIR KIT BDE-742212.A8 742212	£126.63	£151.96
118 - SCREW BDE-744308.A10 744308	£1.50	£1.80
119 - LEVER BDE-744245.A10 744245	£12.17	£14.60
120 - SPRING BDE-742222.A6 742222	£1.50	£1.80
121 - WASHER BDE-742218.A2 742218	£1.50	£1.80
122 - BRACKET SA BDE-743814.A7 743814	£14.57	£17.48
125 - COVER BDE-379685.A1 379685	£1.50	£1.80
126 - SCREW BDE-378795-01.A12 378795-01	£1.50	£1.80
127 - SUPPORT RH BDE-379717.A2 379717	£1.50	£1.80
128 - SCREW BDE-379712.A2 379712	£1.50	£1.80
130 - PLATE BDE-379912.A1 379912	£1.50	£1.80
131 - SCREW BDE-726477.A1 726477	£1.50	£1.80
132 - WASHER BDE-249222-00.A1 249222-00	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
