Bosch PBS 75 / 0603270050 / I 220 Volt Spare Parts

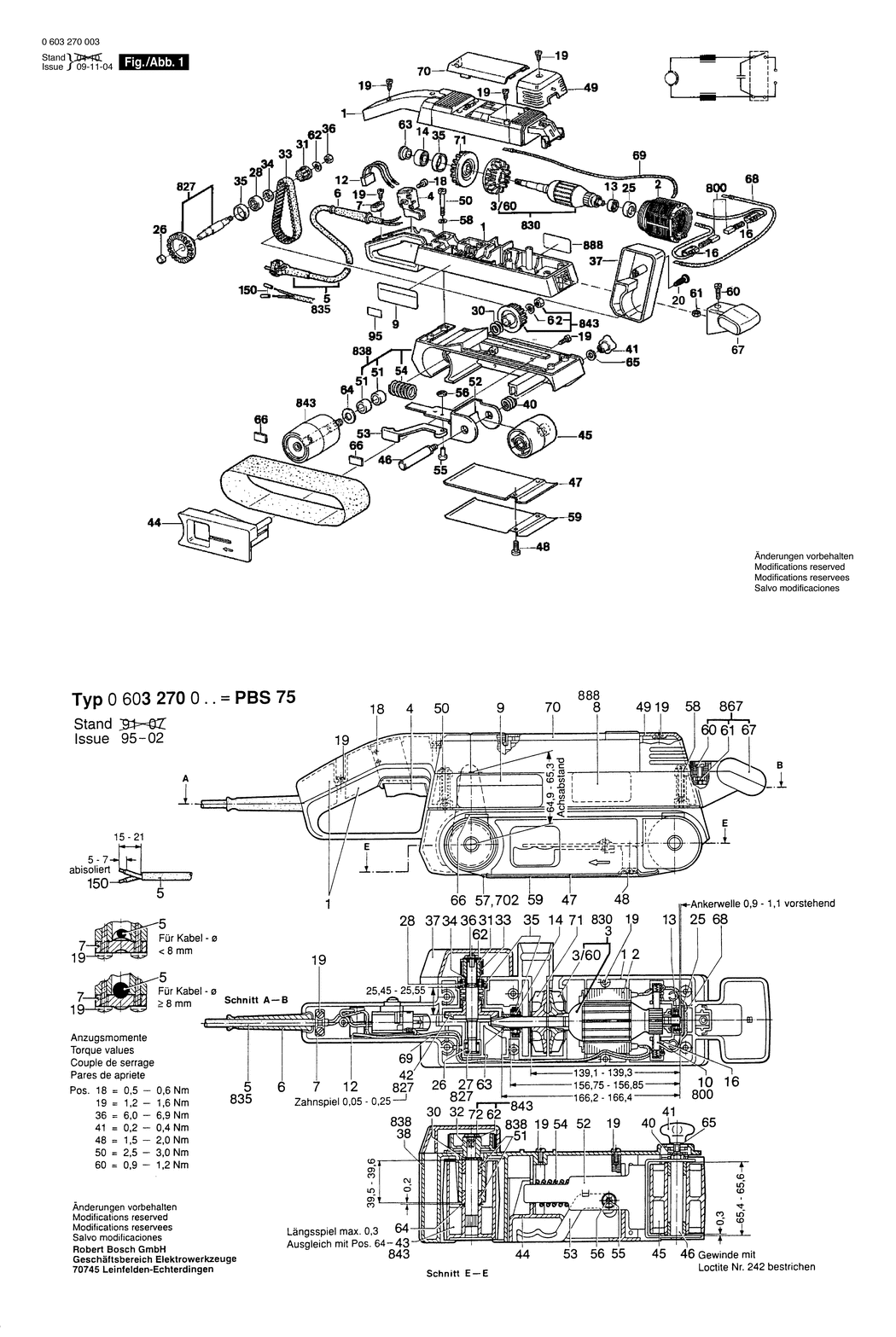

An exploded drawing and listing for the Bosch PBS 75 / 0603270050 / I 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104548.A20 2605104548	£30.28	£36.33
2 - FIELD 230-240V BSD-2604220447.A27 2604220447	£23.86	£28.63
3/60 - FAN BSD-2606610049.A150 2606610049	£2.16	£2.59
4 - SWITCH BSD-2607200260.A208 2607200260	£11.30	£13.56
4 - SWITCH BSD-2607200084.A115 2607200084	£10.10	£12.12
5 - POWER SUPPLY CORD I 4.15m 2 x 1.0mm H05VV-F BSD-2604460102.A25 2604460102	-
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A531 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A2838 2601035001	£1.75	£2.10
9 - STICKER BSD-2601110607.A0 2601110607	-
12 - SUPPRESSION FILTER BSD-1607328028.A110 1607328028	£5.30	£6.36
13 - FLANGED BEARING BSD-2605805008.A62 2605805008	£5.30	£6.36
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A92 1610905011	£14.91	£17.89
16 - BRUSH HOLDER BSD-2604449026.A59 2604449026	£1.75	£2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2134 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A2622 2603490022	£1.75	£2.10
20 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A273 2603490023	£1.75	£2.10
25 - INTERMEDIATE RING BSD-1600502011.A440 1600502011	£2.61	£3.13
26 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A81 2600910001	£4.26	£5.11
28 - GROOVE BALL BEARING 8x22x7 BSD-1900905041.A54 1900905041	£13.12	£15.75
30 - SHIM BSD-2600100099.A27 2600100099	£2.16	£2.59
31 - TOOTHED BELT WHEEL Z=19 BSD-1606625026.A12 1606625026	-
33 - TOOTHED BELT Z=75 BSD-1604736005.A0 1604736005	£8.49	£10.19
34 - PLAIN WASHER 8-ST BSD-2916021013.A40 2916021013	£1.75	£2.10
35 - INTERMEDIATE RING BSD-1600206024.A9 1600206024	£1.75	£2.10
36 - NUT M 8 BSD-2603342010.A27 2603342010	£2.61	£3.13
36 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A127 2915011007	-
37 - COVERING HOOD BSD-1605510150.A5 1605510150	£4.26	£5.11
40 - COMPRESSION SPRING BSD-2604630002.A33 2604630002	£1.75	£2.10
41 - WING NUT BSD-2603339005.A25 2603339005	£2.80	£3.36
44 - BASE BSD-1608005003.A1 1608005003	-
45 - ROLLER BSD-2606625900.A25 2606625900	£18.96	£22.75
46 - AXLE BSD-1603521027.A36 1603521027	£10.10	£12.12
47 - BASE PLATE BSD-1601098005.A7 1601098005	-
48 - SOCKET HEAD CAP SCREW DIN 84-M5x10-4.8 BSD-2603410045.A5 2603410045	£2.16	£2.59
49 - BRUSH-COVER BSD-1605500122.A15 1605500122	£5.58	£6.70
50 - SOCKET HEAD CAP SCREW DIN 84-BM5x40-5.8 BSD-2910011170.A11 2910011170	£1.75	£2.10
51 - SINTERED-METAL BUSHING DIN 1850-J12x18x12 BSD-1900301018.A45 1900301018	-
52 - BEARING BRACKET BSD-1605807013.A0 1605807013	£8.67	£10.41
53 - TENSIONING LEVER BSD-1602098006.A28 1602098006	£2.71	£3.25
54 - COMPRESSION SPRING BSD-1604619017.A93 1604619017	£2.16	£2.59
55 - BUTTON-HEAD RIVET BSD-2917030110.A0 2917030110	£2.61	£3.13
56 - LOCKING WASHER BSD-1600146001.A0 1600146001	£1.75	£2.10
58 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A219 2916060006	£1.32	£1.58
59 - SLIDE PLATE BSD-1601098006.A4 1601098006	-
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8 BSD-2910021126.A28 2910021126	£1.75	£2.10
61 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A170 2915011005	£1.75	£2.10
62 - SPRING WASHER DIN 137-A6-FST BSD-2916061007.A67 2916061007	-
63 - SEAL RING BSD-1600322034.A4 1600322034	-
64 - SHIM 0.3 MM BSD-1600101618.A108 1600101618	£2.61	£3.13
64 - SHIM 0.3 MM BSD-2600100627.A45 2600100627	-
66 - CERAMIC PLATE BSD-1601010007.A4 1601010007	£2.61	£3.13
67 - HANDLE BSD-1605133036.A57 1605133036	£7.36	£8.83
68 - CONNECTING CABLE L=410 MM BSD-1604438018.A10 1604438018	£1.75	£2.10
69 - CONNECTING CABLE L=373 MM BSD-1604448000.A66 1604448000	£2.16	£2.59
70 - HOUSING COVER BSD-1605500120.A27 1605500120	£2.61	£3.13
71 - FAN BSD-1606610120.A28 1606610120	£2.61	£3.13
650 - DUST BAG BSD-1605411025.A0 1605411025	-
650/1 - RETAINING BRACKET BSD-1608045015.A4 1608045015	-
650/2 - RETAINING WASHER BSD-2600139001.A2 2600139001	£3.80	£4.56
650/4 - CLAMP RING BSD-2600290013.A2 2600290013	-
650/6 - SUPPORT CLAMP BSD-2601314002.A2 2601314002	-
650/7 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A203 2603490017	£2.16	£2.59
650/8 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A2 2910011128	£1.75	£2.10
650/9 - HEX NUT DIN 439-BM 4-04 BSD-2915051104.A91 2915051104	-
700/1 - HOSE FITTING dia30xdia36x66 MM BSD-1600306008.A1 1600306008	-
701/1 - O-RING 4.0x1.5 MM BSD-1610210043.A37 1610210043	£1.75	£2.10
701/2 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A389 2916011014	£1.75	£2.10
701/3 - WING SCREW M 6x16 MM BSD-2603480003.A74 2603480003	£2.61	£3.13
701/4 - STOP BRACKET BSD-1601332018.A1 1601332018	£3.72	£4.47
701/5 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A206 2910281203	£2.61	£3.13
701/6 - WING NUT M6 BSD-1603339006.A312 1603339006	£2.52	£3.02
701/7 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A3 2910281196	-
701/9 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A175 2916011010	£1.75	£2.10
800 - CARBON BRUSH BSD-1607014117.A163 1607014117	£10.10	£12.12
827 - CROWN GEAR Z=45 BSD-2606333900.A50 2606333900	£21.52	£25.83
830 - ARMATURE 220V BSD-1604010252.A0 1604010252	-
838 - HOUSING BSD-2605190900.A44 2605190900	£48.38	£58.06
843 - ROLLER BSD-2606625906.A11 2606625906	-
888 - NAMEPLATE BSD-160111A3H3.A3492 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
