Bosch GBS 100 AE / 0601276732 / CH 230 Volt Spare Parts

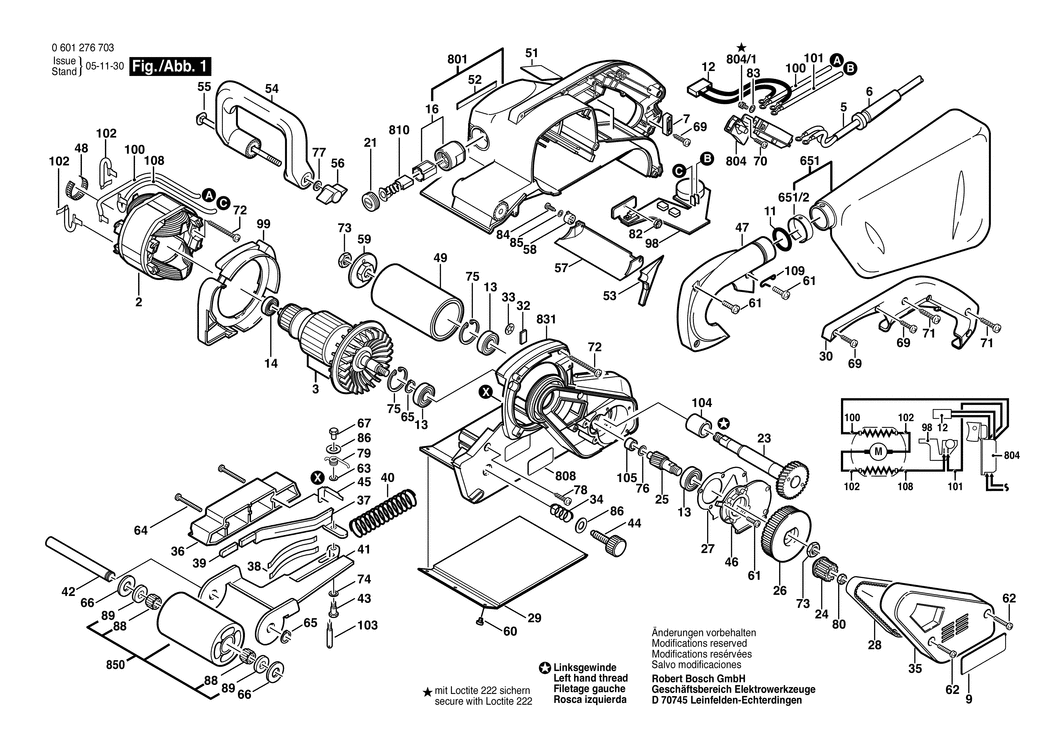

An exploded drawing and listing for the Bosch GBS 100 AE / 0601276732 / CH 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230-240V BSD-2610908605.A3 2610908605	-
3 - ARMATURE 230V BSD-2610908607.A3 2610908607	-
5 - ELEC. CABLE W/CONNECTION CH 4.25m 2 x 1.0mm H07RN-F BSD-3604460521.A1 3604460521	£27.23	£32.68
6 - GROMMET dia 9.4 MM BSD-3600707503.A24 3600707503	£3.72	£4.47
7 - CABLE CLIP BSD-2601035001.A2428 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2610911723.A0 2610911723	£3.72	£4.47
11 - O-RING 2x22 MM BSD-2610992403.A7 2610992403	-
12 - SUPPRESSION FILTER BSD-3607328501.A15 3607328501	-
13 - GROOVE BALL BEARING 12x28x8 BSD-1900905161.A5 1900905161	£21.68	£26.01
14 - BALL BEARING BSD-1619P01511.A119 1619P01511	£6.52	£7.83
16 - BRUSH HOLDER BSD-2610994411.A7 2610994411	-
21 - SCREW CAP BSD-2610994437.A9 2610994437	-
23 - SPINDLE WITH GEAR BSD-2610908618.A4 2610908618	£31.64	£37.97
24 - PINION BSD-2610993575.A7 2610993575	£18.96	£22.75
25 - PINION BSD-2610908621.A5 2610908621	£21.68	£26.01
26 - CONVERSION GEAR BSD-2610994443.A7 2610994443	£33.74	£40.49
27 - INSERT 0.8 MM BSD-3601015503.A11 3601015503	£2.80	£3.36
28 - TOOTHED BELT 14.3 MM. Z=60 BSD-3604736505.A16 3604736505	-
29 - SANDER SUPPORT PLATE BSD-2610908625.A4 2610908625	£23.86	£28.63
30 - HANDLE COVER BSD-2610994470.A9 2610994470	£8.49	£10.19
32 - CERAMIC PLATE BSD-2610908628.A4 2610908628	£2.80	£3.36
33 - LOCKING WASHER BSD-1600146001.A39 1600146001	£1.75	£2.10
34 - COMPRESSION SPRING BSD-2610990029.A0 2610990029	£2.61	£3.13
35 - GEAR COVER BSD-2610990025.A15 2610990025	£10.10	£12.12
36 - GUARD PLATE BSD-3605510525.A16 3605510525	£13.12	£15.75
37 - LEVER BSD-3601923502.A17 3601923502	£16.41	£19.69
38 - LEAF SPRING BSD-2610908629.A5 2610908629	-
39 - PROTECTIVE CAP BSD-2610908630.A4 2610908630	£2.61	£3.13
40 - SPRING BSD-3604619500.A17 3604619500	£2.80	£3.36
41 - SUPPORT FRAME BSD-2610908632.A5 2610908632	-
42 - SHAFT BSD-2610908634.A4 2610908634	£12.04	£14.45
43 - HEX SCREW 5x0.8 MM BSD-3603453500.A9 3603453500	£3.72	£4.47
44 - ADJUSTING SCREW BSD-2610908637.A4 2610908637	£5.30	£6.36
45 - PLATE STRAP BSD-2610908638.A5 2610908638	£2.33	£2.80
46 - GEAR COVER BSD-2610993630.A8 2610993630	£23.86	£28.63
47 - FAN COVER BSD-3605500579.A13 3605500579	£6.52	£7.83
48 - RING 22 MM BSD-2610911048.A10 2610911048	£2.61	£3.13
49 - PULLEY BSD-2610908642.A4 2610908642	£33.74	£40.49
51 - WARNING LABEL BSD-1619P06526.A7 1619P06526	£2.61	£3.13
52 - REFERENCE PLATE BSD-2610911699.A3 2610911699	£3.34	£4.01
53 - DUST CAP BSD-2610908651.A3 2610908651	£2.80	£3.36
54 - AUXILIARY HANDLE BSD-2610908652.A6 2610908652	£11.78	£14.13
55 - ROUND-HEAD BOLT BSD-2610908653.A3 2610908653	£2.61	£3.13
56 - WING NUT M6 BSD-1603339006.A276 1603339006	£2.52	£3.02
57 - ADJUSTMENT FLAP BSD-2610908655.A6 2610908655	£11.30	£13.56
58 - ADJUSTING DEVICE BSD-2610908656.A3 2610908656	£2.61	£3.13
59 - COVER DISC BSD-2610908657.A6 2610908657	£2.33	£2.80
60 - SOCKET HEAD CAP SCREW DIN 7985 3.50x4.00-4.8 BSD-2610911095.A5 2610911095	£2.61	£3.13
61 - SCREW 4x13 MM BSD-3603415540.A21 3603415540	£2.61	£3.13
62 - SCREW 4x25 MM BSD-3603429514.A12 3603429514	£1.75	£2.10
63 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A237 2916011010	£1.75	£2.10
64 - SCREW 4x35 MM BSD-3603429513.A9 3603429513	£1.75	£2.10
65 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A25 2916650003	£1.75	£2.10
66 - WASHER 12.5x26.0x1.52MM BSD-2610908658.A3 2610908658	£2.61	£3.13
67 - SPRING RETAINER M 5x0.8 MM BSD-3603315500.A5 3603315500	£2.61	£3.13
69 - TAPPING SCREW BSD-2610910566.A53 2610910566	£1.32	£1.58
70 - TAPPING SCREW DIN 7981-ST4.2x9.5-F-H BSD-2910611424.A8 2910611424	-
71 - TAPPING SCREW DIN 7981-ST4.2x22-C-H BSD-2910611028.A5 2910611028	-
72 - TAPPING SCREW BSD-2610996051.A3 2610996051	£1.95	£2.34
73 - HEX NUT BSD-2610990040.A0 2610990040	£2.61	£3.13
74 - SPRING WASHER BSD-3600150505.A20 3600150505	£2.61	£3.13
75 - RETAINING SNAP RING BSD-2610908661.A6 2610908661	£2.61	£3.13
76 - SHIM BSD-3600100504.A1 3600100504	£2.61	£3.13
77 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A282 2916011014	£1.75	£2.10
78 - TAPPING SCREW DIN 7981-ST3.5x19-C-H BSD-2910611013.A18 2910611013	-
79 - COMPRESSION SPRING BSD-2610990039.A8 2610990039	£5.30	£6.36
80 - HEX NUT M8x1.25 MM BSD-2610908663.A3 2610908663	£2.61	£3.13
82 - NUT BSD-3603301523.A4 3603301523	£2.80	£3.36
83 - LOCKING WASHER DIN 433-5.3-ST BSD-3600151505.A0 3600151505	-
84 - OVAL-HEAD SCREW BSD-2910641086.A1 2910641086	£1.75	£2.10
85 - WASHER BSD-2610991341.A6 2610991341	£1.75	£2.10
86 - SHIM BSD-2610992475.A8 2610992475	£1.75	£2.10
88 - NEEDLE BEARING dia12xdia16x10 MM BSD-3600910504.A0 3600910504	£5.01	£6.01
89 - ROTARY SHAFT LIP SEAL BSD-1600290016.A520 1600290016	£2.61	£3.13
98 - CONTROL SWITCH BSD-2610908671.A3 2610908671	£30.28	£36.33
99 - BAFFLE BSD-2610908665.A4 2610908665	£6.52	£7.83
100 - CONNECTING CABLE VYC101 BSD-2610908666.A4 2610908666	£4.75	£5.70
101 - CONNECTING CABLE VYC101 BSD-2610908667.A1 2610908667	£5.30	£6.36
102 - CONNECTING CABLE VYC101 BSD-2610908668.A4 2610908668	£5.30	£6.36
103 - SWIVELLING AXIS BSD-3603405509.A7 3603405509	£2.61	£3.13
104 - BUSHING dia 15.9 MM BSD-3600301501.A21 3600301501	-
105 - BUSHING dia 7.8 MM BSD-3600301502.A0 3600301502	£2.80	£3.36
108 - CONNECTING CABLE VYC101 BSD-2610908669.A1 2610908669	£4.75	£5.70
109 - WIRE GUIDE BSD-3604680500.A13 3604680500	£2.61	£3.13
651 - DUST BAG BSD-2610997000.A11 2610997000	£40.80	£48.96
651/2 - HOLDING SPRING BSD-3601253503.A9 3601253503	-
801 - MOTOR HOUSING BSD-2610991329.A2 2610991329	£72.18	£86.62
804 - SWITCH BSD-3607200507.A6 3607200507	£19.45	£23.34
804/1 - SOCKET HEAD CAP SCREW BSD-3603433506.A16 3603433506	-
808 - NAMEPLATE BSD-3601119595.A5 3601119595	£3.72	£4.47
810 - CARBON-BRUSH SET BSD-2610908678.A2 2610908678	£18.96	£22.75
831 - HOUSING BSD-2610907550.A6 2610907550	-
850 - TENSIONING ROLLER BSD-2610908644.A6 2610908644	£40.80	£48.96

Attribute Name	Value
Brand	Bosch
