Bosch ---- / 0600270142 / GB 240 Volt Spare Parts

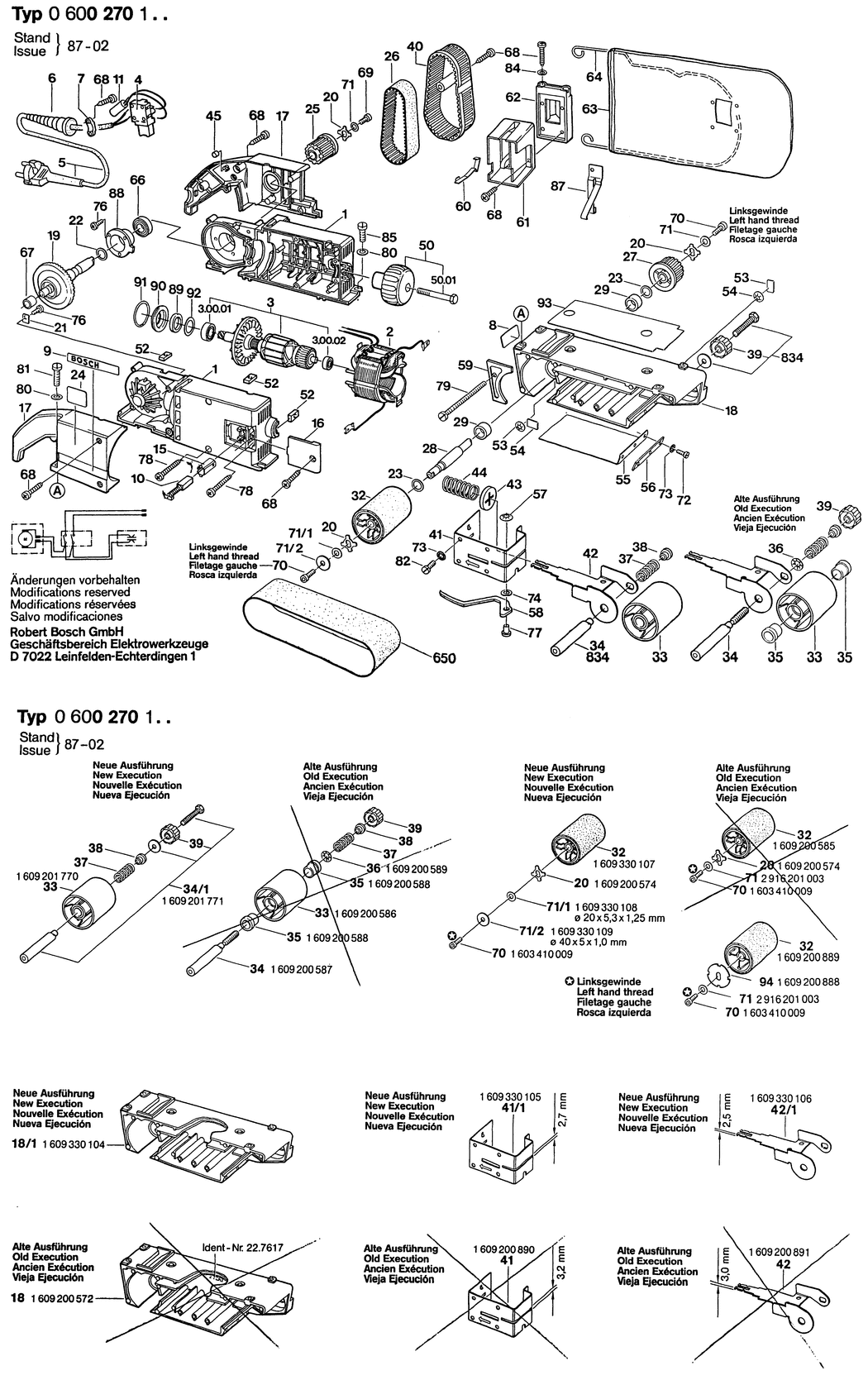

An exploded drawing and listing for the Bosch ---- / 0600270142 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609200700.A3 1609200700	-
2 - POLE SHOE 240V BSD-1609200779.A0 1609200779	-
3 - ARMATURE WITH FAN 240V BSD-1609200780.A0 1609200780	-
3/00/01 - BALL BEARING 7x19x6 BSD-2600905032.A278 2600905032	£5.30	£6.36
3/00/02 - GROOVE BALL BEARING 6 001 LLU C 3/3K DIN 625 BSD-1609200715.A3 1609200715	-
4 - ON-OFF SWITCH BSD-1609200748.A56 1609200748	-
6 - GROMMET dia9x90 MM BSD-1609207001.A37 1609207001	-
7 - FASTENING CLAMP BSD-1609213000.A172 1609213000	-
9 - STICKER BSD-1601110046.A59 1601110046	£1.75	£2.10
10 - CARBON-BRUSH SET BSD-1609202417.A43 1609202417	-
11 - SUPPRESSION CAPACITOR BSD-1609200887.A17 1609200887	-
15 - BRUSH HOLDER BSD-1609200032.A78 1609200032	-
16 - SEALING CAP BSD-1609200570.A3 1609200570	-
17 - HANDLE BSD-1609200701.A1 1609200701	-
18 - HOUSING BASE BSD-1609330104.A1 1609330104	-
19 - SPINDLE WITH GEAR Z=51 BSD-1609200702.A2 1609200702	-
20 - DRIVER DISC BSD-1609200574.A1 1609200574	-
21 - CLAMPING PLATE BSD-1609200039.A14 1609200039	-
22 - SHIM WASHER dia12xdia18x1 MM BSD-1609200703.A2 1609200703	-
22 - SHIM WASHER dia12xdia18x1.05 MM BSD-1609200704.A2 1609200704	-
22 - SHIM WASHER dia12xdia18x0.1 MM BSD-1609200705.A2 1609200705	-
22 - SHIM WASHER BSD-1609200773.A2 1609200773	-
23 - SUPPORTING DISC dia21xdia12.1x1.0 MM BSD-1609200578.A3 1609200578	-
25 - PULLEY Z=19 BSD-1609200706.A2 1609200706	-
26 - TOOTHED BELT Z=55 BSD-1609200581.A1 1609200581	-
27 - PULLEY Z=26 BSD-1609200582.A3 1609200582	-
28 - DRIVE SHAFT BSD-1609200583.A1 1609200583	-
29 - SINTERED-METAL BUSHING BSD-1609200584.A3 1609200584	-
32 - ROLLER BSD-1609330107.A2 1609330107	-
33 - PARTS SET BSD-1609201770.A2 1609201770	-
34 - PARTS SET BSD-1609201771.A2 1609201771	-
37 - COMPRESSION SPRING BSD-1609200590.A1 1609200590	-
38 - THRUST MEMBER BSD-1609200591.A3 1609200591	-
39 - ADJUSTING SCREW BSD-1609200592.A1 1609200592	-
40 - PROTECTIVE COVER BSD-1609200593.A3 1609200593	-
41 - MOUNTING BRACKET BSD-1609330105.A2 1609330105	-
42 - BEARING BRACKET 3 MM BSD-1609200891.A3 1609200891	-
42/1 - BEARING BRACKET 2.5 MM BSD-1609330106.A2 1609330106	-
43 - SPRING DISK BSD-1609200596.A1 1609200596	-
44 - COMPRESSION SPRING BSD-1609200597.A3 1609200597	-
45 - PLUG BSD-1609200048.A43 1609200048	-
50 - HANDLE BSD-1609200598.A1 1609200598	-
50/01 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x50-8.8 BSD-2910141213.A18 2910141213	£2.61	£3.13
52 - PERFORATED PANEL M6-20x10x5 MM BSD-1601030025.A36 1601030025	-
53 - GUIDE PLATE BSD-1609200600.A1 1609200600	-
54 - LOCKING WASHER BSD-1609200601.A3 1609200601	-
55 - SANDER SUPPORT PLATE BSD-1609200602.A1 1609200602	-
56 - PRESSURE PAD BSD-1609200603.A3 1609200603	-
57 - LOCKING WASHER BSD-1609200604.A1 1609200604	-
58 - TENSIONING LEVER BSD-1609200605.A3 1609200605	-
59 - COVER PLATE BSD-1609200606.A1 1609200606	-
60 - LEAF SPRING BSD-1609200607.A3 1609200607	-
61 - FITTING BSD-1609200608.A1 1609200608	-
62 - THRUST MEMBER BSD-1609200609.A3 1609200609	-
63 - DUST BAG BSD-1609200610.A1 1609200610	-
64 - RETAINING BRACKET BSD-1609200611.A3 1609200611	-
66 - GROOVE BALL BEARING 6 001 LLU C 3/3K DIN 625 BSD-1609200715.A4 1609200715	-
67 - NEEDLE BEARING BSD-1609209006.A32 1609209006	-
68 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A1 2910211220	-
69 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A96 2910141154	£1.75	£2.10
70 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12 BSD-1603410009.A2 1603410009	-
71 - PLAIN WASHER 5.3 DIN 7349 BSD-2916201003.A2 2916201003	-
71/1 - SHIM WASHER dia20x5.3x1.25 MM BSD-1609330108.A0 1609330108	-
71/2 - COVER DISC dia40x5x1 MM BSD-1609330109.A4 1609330109	-
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1194 2910021118	£1.75	£2.10
73 - TOOTHED LOCK WASHER BSD-1609200599.A1 1609200599	-
74 - SPRING WASHER DIN 137-A 6-ST BSD-2916060007.A96 2916060007	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1272 2603490017	£2.16	£2.59
77 - TUBULAR RIVET BSD-1600422011.A1 1600422011	-
78 - TAPPING SCREW B 3.9x32 DIN 7981 BSD-2910611082.A167 2910611082	£1.75	£2.10
79 - SOCKET HEAD CAP SCREW DIN 84-BM4x80-5.8 BSD-2910013672.A1 2910013672	-
80 - PLAIN WASHER DIN 433-5.3-ST BSD-2916011011.A150 2916011011	£1.75	£2.10
81 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-8.8 BSD-2910021162.A41 2910021162	-
82 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A556 2910021122	£2.16	£2.59
83 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x50-8.8 BSD-2910141213.A26 2910141213	£2.61	£3.13
84 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A104 2916011010	£1.75	£2.10
85 - SOCKET HEAD CAP SCREW DIN 84-AM5x16-8.8 BSD-2910021158.A28 2910021158	£1.32	£1.58
87 - SHAPED SPRING BSD-1609200657.A0 1609200657	-
88 - SPACER SLEEVE BSD-1609200658.A4 1609200658	-
89 - FELT WASHER BSD-1609200832.A3 1609200832	-
90 - SUPPORTING DISC BSD-1609200833.A1 1609200833	-
91 - O-RING BSD-1609200834.A3 1609200834	-
92 - LOCKING WASHER BSD-1609200846.A1 1609200846	-
93 - DAMPING PLATE BSD-1609200847.A3 1609200847	-
94 - CARRIER BSD-1609200888.A3 1609200888	-
95 - SHIM BSD-1609200893.A3 1609200893	-
96 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A108 2910211206	£1.32	£1.58
711 - PARTS SET BSD-0601999007.A3 0601999007	-
711/1 - BASE BSD-1609200562.A0 1609200562	-
711/1/1 - PARTS SET BSD-1609200622.A4 1609200622	-
711/1/2 - BUFFER BSD-1609231000.A6 1609231000	-
711/2 - EDGE GUIDE BSD-1609200563.A5 1609200563	-
711/2/1 - PARTS SET BSD-1609200623.A1 1609200623	-
711/2/2 - WIDTH STOP BSD-1609200054.A23 1609200054	-
711/2/3 - END STOP BSD-1609200628.A4 1609200628	-
