Hitachi / Hikoki SB10V2 Belt Sander Spare Parts

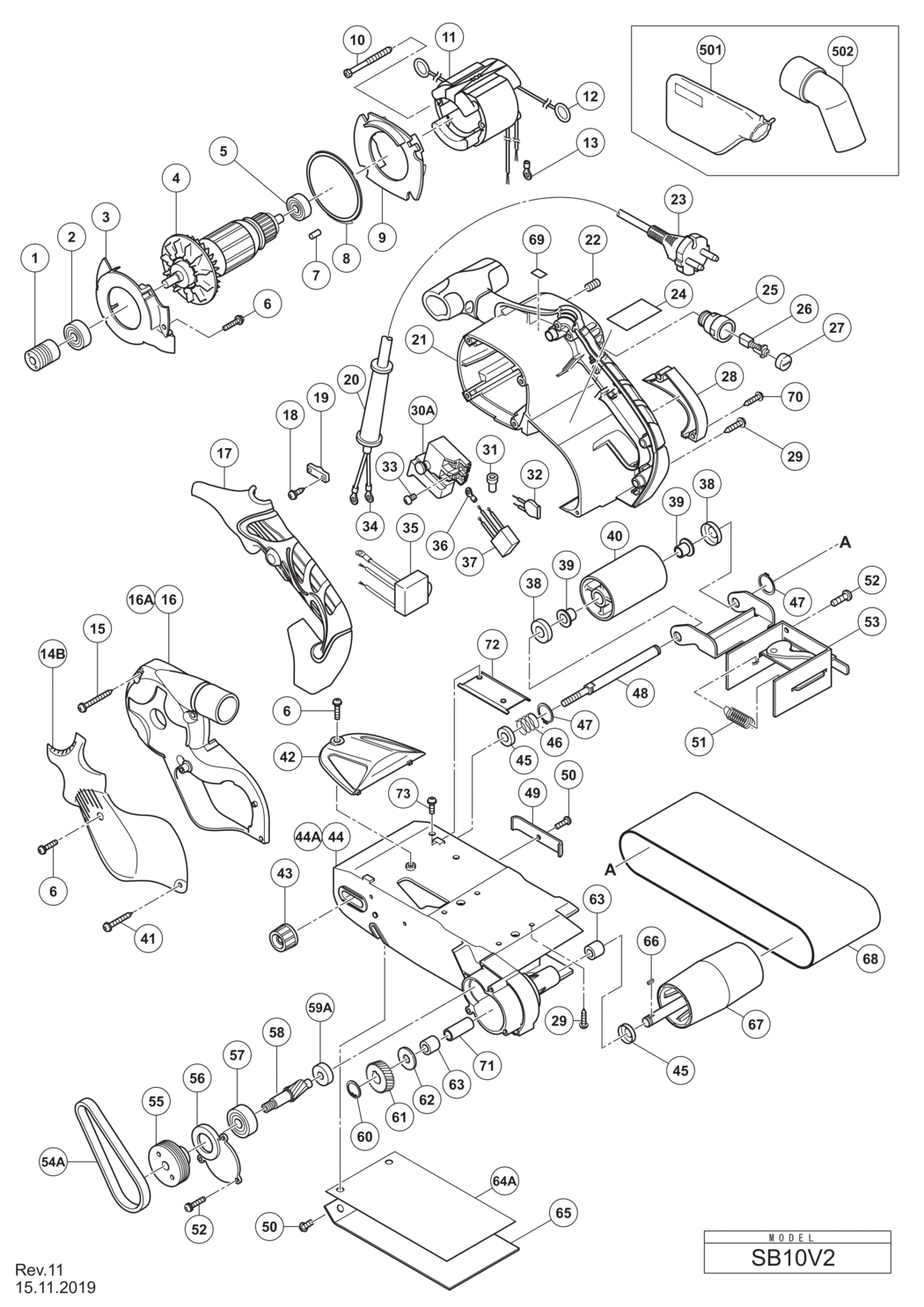

An exploded diagram and spare parts listing for the Hitachi / Hikoki SB10V2 Belt Sander

	Ex VAT	Inc VAT
1 - PULLEY (A) HIT-327742.A1 327742	£10.00	£12.00
2 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A47 6000VV	£7.62	£9.15
3 - DUST GUIDE HIT-327739.A1 327739	-
*4 - ARMATURE 110V HIT-360797C.A0 360797C	£54.05	£64.86
*4 - ARMATURE ASS'Y 120V INCLUD.2 HIT-360797U.A2 360797U	-
*4 - ARMATURE 220V-230V HIT-360797E.A2 360797E	£54.05	£64.86
*4 - ARMATURE 240V HIT-360797F.A0 360797F	-
5 - BALL BEARING 608VVC2PS2L HIT-608VVM.A37 608VVM	£5.70	£6.84
6 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A7 935196	£1.67	£2.00
7 - BEARING LOCK HIT-931701.A36 931701	£1.67	£2.00
8 - DUST PLATE HIT-328209.A1 328209	£4.02	£4.83
9 - FAN GUIDE HIT-327738.A0 327738	£2.84	£3.41
10 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A2 953174	£1.67	£2.00
*11 - STATOR ASS'Y 110V INCLUD.12 HIT-340700J.A2 340700J	£52.01	£62.41
*11 - STATOR ASS'Y 120V INCLUD.12 HIT-340700D.A1 340700D	-
*11 - STATOR ASS'Y 220V-230V INCLUD.12 HIT-340700G.A3 340700G	£52.01	£62.41
*11 - STATOR ASS'Y 240V INCLUD.12 HIT-340700H.A0 340700H	-
12 - BRUSH TERMINAL HIT-930703.A35 930703	£3.28	£3.93
*13 - TERMINAL HIT-980063.A81 980063	£1.67	£2.00
*13 - TERMINAL FOR USA HIT-980063.A82 980063	£1.67	£2.00
14B - BELT COVER HIT-328433.A0 328433	£7.34	£8.81
15 - TAPPING SCREW (W/FLANGE) D5X45 HIT-316321.A2 316321	£1.67	£2.00
16 - DUST COVER HIT-327740.A0 327740	£31.03	£37.24
16A - DUST COVER FOR GBR HIT-376090.A2 376090	-
17 - HANDLE COVER HIT-327760.A2 327760	£16.40	£19.68
18 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A109 984750	£1.67	£2.00
19 - CORD CLIP HIT-937631.A182 937631	£1.67	£2.00
20 - CORD ARMOR D8.2 HIT-958049.A13 958049	£1.67	£2.00
21 - HOUSING ASS'Y INCLUD.22 HIT-327759.A0 327759	£72.28	£86.74
22 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A90 938477	£1.67	£2.00
*23 - CORD (CORD ARMOR D8.2) HIT-500234Z.A36 500234Z	-
*23 - CORD (CORD ARMOR D8.2) FOR FIN HIT-500247Z.A20 500247Z	-
*23 - CORD (CORD ARMOR D8.2) FOR AUS HIT-500439Z.A24 500439Z	-
*23 - CORD (CORD ARMOR D8.2) FOR GBR HIT-500435Z.A83 500435Z	£14.14	£16.97
*23 - CORD (CORD ARMOR D8.2) FOR SUI HIT-500447Z.A17 500447Z	£7.92	£9.51
*23 - CORD (CORD ARMOR D8.2) FOR USA HIT-500432Z.A4 500432Z	-
*23 - CORD (CORD ARMOR D8.2) FOR CHN HIT-500455Z.A14 500455Z	-
24 - NAME PLATE HIT-000000.A4399 000000	-
25 - BRUSH HOLDER HIT-958900.A26 958900	£8.24	£9.89
26 - CARBON BRUSH (1 PAIR) HIT-999043.A29 999043	£5.54	£6.65
27 - BRUSH CAP HIT-945161.A57 945161	£1.67	£2.00
28 - PULLEY COVER HIT-327779.A0 327779	£7.12	£8.54
29 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A90 305812	£1.67	£2.00
30A - TRIGGER SWITCH HIT-339021.A4 339021	-
31 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR USA HIT-959140.A95 959140	£4.98	£5.97
32 - VARISTOR HIT-328432.A1 328432	£4.48	£5.38
33 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A4 305499	£1.67	£2.00
34 - TERMINAL FOR CORD HIT-980063.A83 980063	£1.67	£2.00
*35 - CONTROLLER 100V-110V HIT-327753.A1 327753	£38.78	£46.54
*35 - CONTROLLER 120V HIT-327757.A0 327757	-
*35 - CONTROLLER 220V-240V HIT-327758.A1 327758	£39.30	£47.16
36 - TERMINAL EXCEPT FOR USA HIT-938108.A6 938108	£1.67	£2.00
37 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-325566.A13 325566	£11.98	£14.38
38 - WASHER HIT-953043.A0 953043	£1.67	£2.00
39 - METAL HIT-953042.A1 953042	£1.67	£2.00
40 - IDLE PULLEY ASS'Y INCLUD.39 HIT-995586.A1 995586	£28.69	£34.43
41 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A2 305490	£1.67	£2.00
42 - CLEAR COVER HIT-327744.A0 327744	-
43 - KNOB NUT HIT-995578.A1 995578	£1.67	£2.00
44 - BODY ASS'Y INCLUD.59 HIT-327780.A1 327780	£98.21	£117.85
44A - BODY ASS'Y INCLUD.59 HIT-376094.A0 376094	-
45 - WASHER HIT-953161.A0 953161	£1.67	£2.00
46 - SPRING HIT-995577.A0 995577	£1.67	£2.00
47 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A71 939542	£2.98	£3.57
48 - SHAFT HIT-995587.A0 995587	£16.54	£19.85
49 - STRIKING GUIDE HIT-327746.A2 327746	£2.99	£3.59
50 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A32 949216	£1.67	£2.00
51 - SPRING HIT-953063.A1 953063	£4.33	£5.20
52 - MACHINE SCREW M4X14 (10 PCS.) HIT-949218.A8 949218	£1.67	£2.00
53 - FORK ASS'Y INCLUD.51 HIT-995585.A0 995585	£33.31	£39.97
54A - BELT HIT-330690.A0 330690	£4.02	£4.83
55 - PULLEY (B) HIT-327749.A1 327749	£18.76	£22.51
56 - GEAR COVER HIT-327748.A1 327748	£5.32	£6.39
57 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A2 6200VV	£7.36	£8.83
58 - PINION HIT-327750.A1 327750	£11.75	£14.10
59A - BALL BEARING 608VVC2PS2L HIT-608VVM.A36 608VVM	£5.70	£6.84
60 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A13 939540	£1.67	£2.00
61 - GEAR HIT-995576.A1 995576	£16.22	£19.46
62 - WASHER (B) D19 HIT-948213.A1 948213	£1.67	£2.00
63 - METAL D10X14X12 HIT-953175.A0 953175	£1.67	£2.00
64A - SHOE CUSHION HIT-329900.A1 329900	£9.56	£11.47
65 - SHOE PLATE HIT-327781.A0 327781	£8.46	£10.15
66 - FEATHER KEY 3X3X8 HIT-944109.A14 944109	£3.28	£3.93
67 - DRIVE PULLEY HIT-995575.A0 995575	£44.57	£53.48
68 - SANDING BELTS 100X610 WA80 (10 PCS.) HIT-753263.A0 753263	£9.16	£10.99
69 - DUST SEAL HIT-328513.A1 328513	-
70 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A21 302086	£1.67	£2.00
71 - FELT HIT-370075.A0 370075	£1.67	£2.00
72 - PLATE FOR GBR HIT-376091.A0 376091	-
73 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) FOR GBR HIT-317200.A3 317200	£1.67	£2.00
501 - DUST BAG (BLACK) HIT-323011.A1 323011	£32.87	£39.44
*501 - DUST BAG (BLACK) FOR METABOHPT HIT-323011M.A1 323011M	-
502 - ELBOW FOR GBR HIT-376092.A1 376092	-
601 - SANDING BELTS 100X610 WA40 (10 PCS.) HIT-995550.A1 995550	£7.22	£8.66
602 - SANDING BELTS 100X610 WA60 (10 PCS.) HIT-995551.A0 995551	£6.69	£8.03
603 - SANDING BELTS 100X610 WA100 (10 PCS.) HIT-995553.A0 995553	-
604 - SANDING BELTS 100X610 WA120 (10 PCS.) HIT-995554.A1 995554	-
605 - SANDING BELTS 100X610 WA150 (10 PCS.) HIT-995555.A0 995555	-
606 - SANDING BELTS 100X610 WA180 (10 PCS.) HIT-995556.A1 995556	-
607 - SANDING BELTS 100X610 WA240 (10 PCS.) HIT-995557.A0 995557	-
608 - SANDING BELTS 100X610 AA40 (10 PCS.) HIT-995558.A1 995558	-
609 - SANDING BELTS 100X610 AA60 (10 PCS.) HIT-995559.A0 995559	-
610 - SANDING BELTS 100X610 AA80 (10 PCS.) HIT-995560.A1 995560	-
611 - SANDING BELTS 100X610 AA100 (10 PCS.) HIT-995561.A0 995561	-
612 - SANDING BELTS 100X610 AA120 (10 PCS.) HIT-995562.A1 995562	-
613 - SANDING BELTS 100X610 AA150 (10 PCS.) HIT-995563.A0 995563	-
614 - SANDING BELTS 100X610 AA180 (10 PCS.) HIT-995564.A1 995564	-
615 - SANDING BELTS 100X610 AA240 (10 PCS.) HIT-995565.A0 995565	-
616 - SANDING BELTS 100X610 CC40 (10 PCS.) HIT-995566.A1 995566	-
617 - SANDING BELTS 100X610 CC60 (10 PCS.) HIT-995567.A0 995567	-
618 - SANDING BELTS 100X610 CC80 (10 PCS.) HIT-995568.A1 995568	-
619 - SANDING BELTS 100X610 CC100 (10 PCS.) HIT-995569.A0 995569	-
620 - SANDING BELTS 100X610 CC120 (10 PCS.) HIT-995570.A1 995570	-
621 - SANDING BELTS 100X610 CC150 (10 PCS.) HIT-995571.A0 995571	-
622 - SANDING BELTS 100X610 CC180 (10 PCS.) HIT-995572.A1 995572	-
623 - SANDING BELTS 100X610 CC240 (10 PCS.) HIT-995573.A0 995573	-

Attribute Name	Value
Brand	Hikoki
