Hitachi / Hikoki SB10S2 Belt Sander Spare Parts

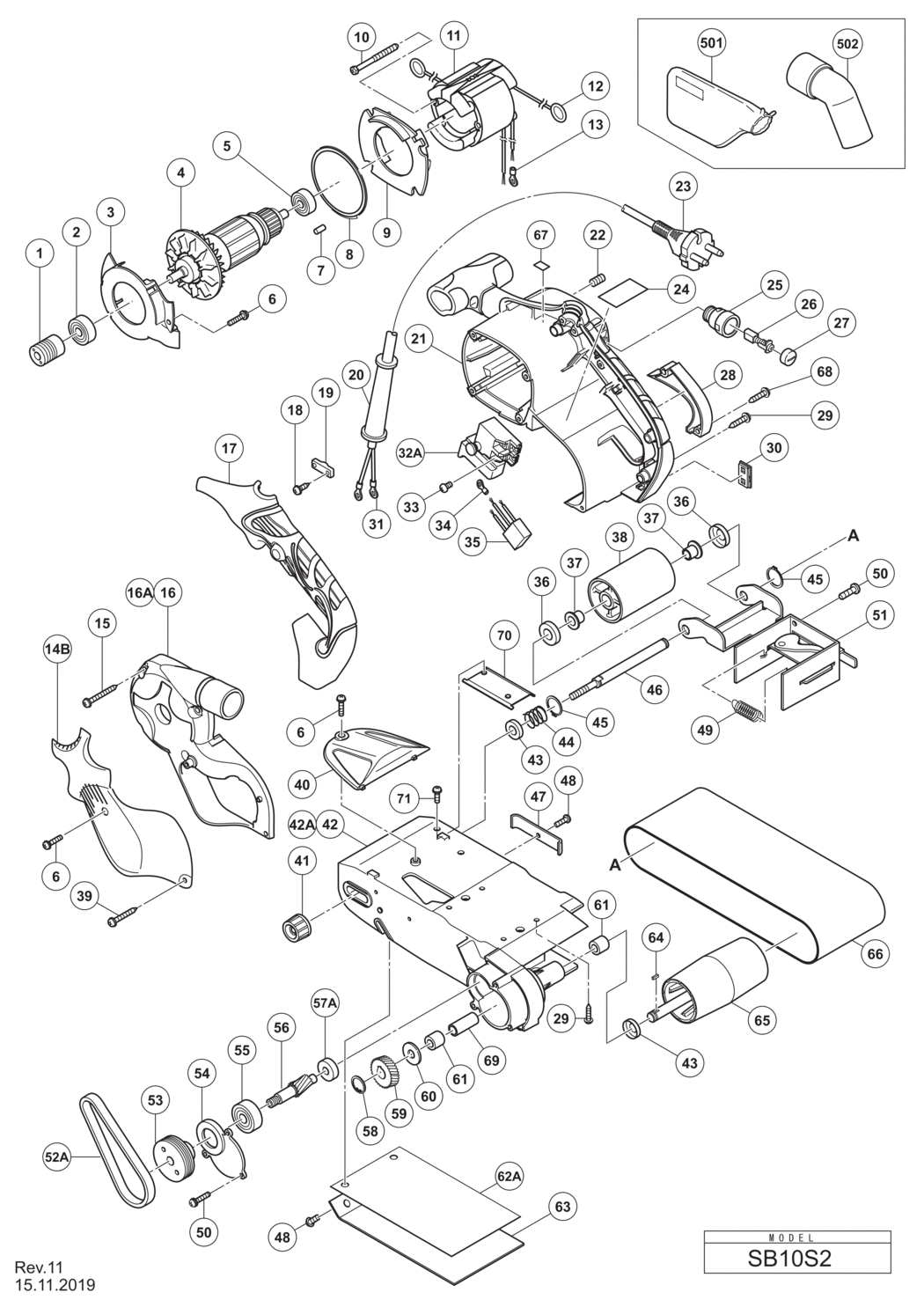

An exploded diagram and spare parts listing for the Hitachi / Hikoki SB10S2 Belt Sander

	Ex VAT	Inc VAT
1 - PULLEY (A) HIT-327742.A0 327742	£10.00	£12.00
2 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A46 6000VV	£7.62	£9.15
3 - DUST GUIDE HIT-327739.A0 327739	-
*4 - ARMATURE 110V HIT-360797C.A2 360797C	£54.05	£64.86
*4 - ARMATURE ASS'Y 120V INCLUD.2 HIT-360797U.A0 360797U	-
*4 - ARMATURE 220V-230V HIT-360797E.A0 360797E	£54.05	£64.86
*4 - ARMATURE 240V HIT-360797F.A2 360797F	-
5 - BALL BEARING 608VVC2PS2L HIT-608VVM.A38 608VVM	£5.70	£6.84
6 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A6 935196	£1.67	£2.00
7 - BEARING LOCK HIT-931701.A35 931701	£1.67	£2.00
8 - DUST PLATE HIT-328209.A0 328209	£4.02	£4.83
9 - FAN GUIDE HIT-327738.A1 327738	£2.84	£3.41
10 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A0 953174	£1.67	£2.00
*11 - STATOR ASS'Y 110V INCLUD.12 HIT-340700J.A1 340700J	£52.01	£62.41
*11 - STATOR ASS'Y 120V INCLUD.12 HIT-340700D.A2 340700D	-
*11 - STATOR ASS'Y 220V-230V INCLUD.12 HIT-340700G.A2 340700G	£52.01	£62.41
*11 - STATOR ASS'Y 240V INCLUD.12 HIT-340700H.A1 340700H	-
12 - BRUSH TERMINAL HIT-930703.A34 930703	£3.28	£3.93
*13 - TERMINAL M4.0 (10 PCS.) HIT-930804.A37 930804	£3.64	£4.37
*13 - TERMINAL FOR USA HIT-980063.A80 980063	£1.67	£2.00
14B - BELT COVER HIT-328433.A1 328433	£7.34	£8.81
14B - BELT COVER FOR MEX HIT-328433M.A1 328433M	-
15 - TAPPING SCREW (W/FLANGE) D5X45 HIT-316321.A1 316321	£1.67	£2.00
16 - DUST COVER HIT-327740.A1 327740	£31.03	£37.24
16A - DUST COVER FOR POL HIT-376090.A1 376090	-
17 - HANDLE COVER HIT-327760.A1 327760	£16.40	£19.68
18 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A110 984750	£1.67	£2.00
19 - CORD CLIP HIT-937631.A181 937631	£1.67	£2.00
*20 - CORD ARMOR D8.2 HIT-958049.A12 958049	£1.67	£2.00
*20 - CORD ARMOR D10.7 HIT-940778.A66 940778	£3.15	£3.78
21 - HOUSING ASS'Y INCLUD.22 HIT-327759.A1 327759	£72.28	£86.74
22 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A89 938477	£1.67	£2.00
*23 - CORD (CORD ARMOR D8.2) HIT-500247Z.A21 500247Z	-
*23 - CORD (CORD ARMOR D8.2)FOR GBR HIT-500234Z.A35 500234Z	-
*23 - CORD (CORD ARMOR D8.2) FOR USA HIT-500432Z.A3 500432Z	-
*23 - CORD (CORD ARMOR D8.2) FOR AUS HIT-500439Z.A25 500439Z	-
*23 - CORD (CORD ARMOR D8.2) FOR CHN HIT-500455Z.A15 500455Z	-
*23 - CORD (CORD ARMOR D10.7) FOR TPE HIT-323974.A5 323974	-
24 - NAME PLATE HIT-000000.A4396 000000	-
25 - BRUSH HOLDER HIT-958900.A27 958900	£8.24	£9.89
26 - CARBON BRUSH (1 PAIR) HIT-999043.A28 999043	£5.54	£6.65
27 - BRUSH CAP HIT-945161.A56 945161	£1.67	£2.00
28 - PULLEY COVER HIT-327779.A1 327779	£7.12	£8.54
29 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A89 305812	£1.67	£2.00
30 - DIAL COVER HIT-327791.A0 327791	-
31 - TERMINAL FOR CORD HIT-980063.A79 980063	£1.67	£2.00
32A - TRIGGER SWITCH HIT-339021.A3 339021	-
33 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A5 305499	£1.67	£2.00
34 - TERMINAL EXCEPT FOR USA HIT-938108.A7 938108	£1.67	£2.00
35 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-325566.A12 325566	£11.98	£14.38
36 - WASHER HIT-953043.A1 953043	£1.67	£2.00
37 - METAL HIT-953042.A0 953042	£1.67	£2.00
38 - IDLE PULLEY ASS'Y INCLUD.37 HIT-995586.A0 995586	£28.69	£34.43
39 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A1 305490	£1.67	£2.00
40 - CLEAR COVER HIT-327744.A1 327744	-
41 - KNOB NUT HIT-995578.A0 995578	£1.67	£2.00
42 - BODY ASS'Y INCLUD.57 HIT-327780.A0 327780	£98.21	£117.85
*42A - BODY ASS'Y INCLUD.57 HIT-376094.A1 376094	-
*42A - BODY ASS'Y CHI HIT-376094.A2 376094	-
43 - WASHER HIT-953161.A1 953161	£1.67	£2.00
44 - SPRING HIT-995577.A1 995577	£1.67	£2.00
45 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A70 939542	£2.98	£3.57
46 - SHAFT HIT-995587.A1 995587	£16.54	£19.85
47 - STRIKING GUIDE HIT-327746.A1 327746	£2.99	£3.59
48 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A31 949216	£1.67	£2.00
49 - SPRING HIT-953063.A0 953063	£4.33	£5.20
50 - MACHINE SCREW M4X14 (10 PCS.) HIT-949218.A9 949218	£1.67	£2.00
51 - FORK ASS'Y INCLUD.49 HIT-995585.A1 995585	£33.31	£39.97
52A - BELT HIT-330690.A1 330690	£4.02	£4.83
53 - PULLEY (B) HIT-327749.A0 327749	£18.76	£22.51
54 - GEAR COVER HIT-327748.A2 327748	£5.32	£6.39
55 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A1 6200VV	£7.36	£8.83
56 - PINION HIT-327750.A2 327750	£11.75	£14.10
57A - BALL BEARING 608VVC2PS2L HIT-608VVM.A39 608VVM	£5.70	£6.84
58 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A14 939540	£1.67	£2.00
59 - GEAR HIT-995576.A0 995576	£16.22	£19.46
60 - WASHER (B) D19 HIT-948213.A0 948213	£1.67	£2.00
61 - METAL D10X14X12 HIT-953175.A1 953175	£1.67	£2.00
62A - SHOE CUSHION HIT-329900.A0 329900	£9.56	£11.47
63 - SHOE PLATE HIT-327781.A1 327781	£8.46	£10.15
64 - FEATHER KEY 3X3X8 HIT-944109.A13 944109	£3.28	£3.93
65 - DRIVE PULLEY HIT-995575.A1 995575	£44.57	£53.48
66 - SANDING BELTS 100X610 WA80 (10 PCS.) HIT-753263.A1 753263	£9.16	£10.99
67 - DUST SEAL HIT-328513.A0 328513	-
68 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A22 302086	£1.67	£2.00
69 - FELT HIT-370075.A1 370075	£1.67	£2.00
70 - PLATE FOR POL HIT-376091.A1 376091	-
71 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) FOR POL HIT-317200.A5 317200	£1.67	£2.00
501 - DUST BAG (BLACK) HIT-323011.A0 323011	£32.87	£39.44
*501 - DUST BAG (BLACK) FOR METABOHPT HIT-323011M.A2 323011M	-
502 - ELBOW FOR POL HIT-376092.A2 376092	-
601 - SANDING BELTS 100X610 WA40 (10 PCS.) HIT-995550.A0 995550	£7.22	£8.66
602 - SANDING BELTS 100X610 WA60 (10 PCS.) HIT-995551.A1 995551	£6.69	£8.03
603 - SANDING BELTS 100X610 WA100 (10 PCS.) HIT-995553.A1 995553	-
604 - SANDING BELTS 100X610 WA120 (10 PCS.) HIT-995554.A0 995554	-
605 - SANDING BELTS 100X610 WA150 (10 PCS.) HIT-995555.A1 995555	-
606 - SANDING BELTS 100X610 WA180 (10 PCS.) HIT-995556.A0 995556	-
607 - SANDING BELTS 100X610 WA240 (10 PCS.) HIT-995557.A1 995557	-
608 - SANDING BELTS 100X610 AA40 (10 PCS.) HIT-995558.A0 995558	-
609 - SANDING BELTS 100X610 AA60 (10 PCS.) HIT-995559.A1 995559	-
610 - SANDING BELTS 100X610 AA80 (10 PCS.) HIT-995560.A0 995560	-
611 - SANDING BELTS 100X610 AA100 (10 PCS.) HIT-995561.A1 995561	-
612 - SANDING BELTS 100X610 AA120 (10 PCS.) HIT-995562.A0 995562	-
613 - SANDING BELTS 100X610 AA150 (10 PCS.) HIT-995563.A1 995563	-
614 - SANDING BELTS 100X610 AA180 (10 PCS.) HIT-995564.A0 995564	-
615 - SANDING BELTS 100X610 AA240 (10 PCS.) HIT-995565.A1 995565	-
616 - SANDING BELTS 100X610 CC40 (10 PCS.) HIT-995566.A0 995566	-
617 - SANDING BELTS 100X610 CC60 (10 PCS.) HIT-995567.A1 995567	-
618 - SANDING BELTS 100X610 CC80 (10 PCS.) HIT-995568.A0 995568	-
619 - SANDING BELTS 100X610 CC100 (10 PCS.) HIT-995569.A1 995569	-
620 - SANDING BELTS 100X610 CC120 (10 PCS.) HIT-995570.A0 995570	-
621 - SANDING BELTS 100X610 CC150 (10 PCS.) HIT-995571.A1 995571	-
622 - SANDING BELTS 100X610 CC180 (10 PCS.) HIT-995572.A0 995572	-
623 - SANDING BELTS 100X610 CC240 (10 PCS.) HIT-995573.A1 995573	-
