Metabo BAS 317 PRECISION / 0090317019 10 / AU 240V Spare Parts

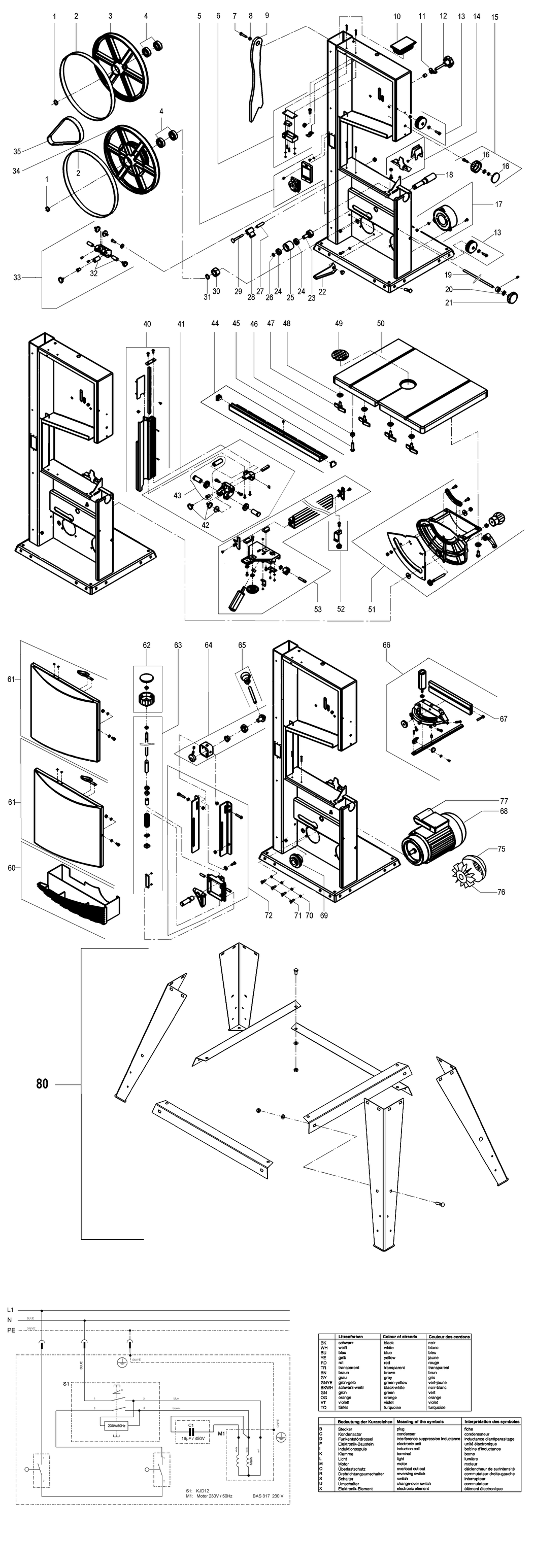

An exploded diagram and spare parts listing for the Metabo BAS 317 PRECISION / 0090317019 10 / AU 240V

	Ex VAT	Inc VAT
1 - RETAINING RING MET-141180110.A41 141180110	£3.20	£3.84
2 - BANDSAW BANDAGE MET-344101930.A7 344101930	£7.36	£8.83
3 - BANDSAW WHEEL UPPER MET-315419740.A18 315419740	£63.36	£76.03
4 - DEEP GROOVE BALL BEARING 17X40X12 6203-2 MET-7100047254.A15 7100047254	£11.78	£14.13
5 - SWITCH MET-343411350.A6 343411350	£26.35	£31.62
6 - SAFETY SWITCH MIT KABEL BAS 317 PRECISIO MET-1009719748.A15 1009719748	£9.62	£11.54
7 - HEXAGON HEAD SCREW MET-141110320.A51 141110320	£3.20	£3.84
8 - HEXAGONAL NUT MET-141131010.A11 141131010	£1.50	£1.80
9 - PUSH STICK MET-343433180.A15 343433180	-
10 - LAMELLAR PLUG 100X60X3 2 VL SCHWARZ MET-1381144590.A7 1381144590	-
11 - THUMB-NUT MET-7005135529.A12 7005135529	£3.20	£3.84
12 - STARKNOB SCREW M 8X65 (DIN 558) VERZINKT MET-7001047374.A8 7001047374	£5.62	£6.75
13 - DOOR HANDLE BAS 317 PRECISION MET-1009719845.A2 1009719845	£5.62	£6.75
14 - SAWBAND GUARD BAS 317 PRECISION MET-1009719888.A10 1009719888	£8.37	£10.04
15 - SHAFT WITH GEARWHEEL ET MET-1388681035.A15 1388681035	£3.20	£3.84
16 - STARKNOB ET MET-1381681013.A10 1381681013	£3.20	£3.84
17 - ADAPTOR SUCTION PORT BAS 317 PRECISION MET-1009719853.A12 1009719853	-
18 - BEARING SHAFT RD 25X124 UNTEN MET-1485051518.A1 1485051518	£22.96	£27.55
19 - SPANNER SCHAFT ET MET-1482666317.A8 1482666317	-
20 - WASHER MET-141150050.A63 141150050	£1.50	£1.80
21 - STARKNOB NUT M 10 / RD 63 VERZINKT MET-7000074122.A1 7000074122	£4.76	£5.71
22 - SAFETY LEVER ET MET-1382666301.A7 1382666301	£4.76	£5.71
23 - SLIDING BOLT RD 30X47 MET-1485400172.A13 1485400172	£22.96	£27.55
24 - DEEP GROOVE BALL BEARING 12X28X8 6001-2Z MET-7100086764.A9 7100086764	£11.78	£14.13
25 - TENSION ROLLER RD 35X28 MET-1485400180.A1 1485400180	£17.55	£21.06
26 - RETAINING RING MET-141180060.A4 141180060	£1.50	£1.80
27 - SPACER SLEEVE RD 10 MET-6442084643.A7 6442084643	£3.82	£4.59
28 - BRUSH STRIP MET-9132081414.A8 9132081414	£11.78	£14.13
29 - CUP SQUARE NECK SCREW M 8X100 VERZ. MET-6110082701.A13 6110082701	£3.20	£3.84
30 - HEXAGON NUT M 20X1 5 VERZ. MET-6200046208.A10 6200046208	£3.20	£3.84
31 - RETAINING RING MET-141180110.A40 141180110	£3.20	£3.84
32 - BEARING BUSH BAS 317 PRECISION MET-1009719870.A4 1009719870	£8.62	£10.34
33 - THREE-ROLLER GUIDE BAS 317 PRECISION MET-1009719861.A10 1009719861	£22.61	£27.13
34 - BANDSAW WHEEL LOWER MET-1380421352.A2 1380421352	£79.10	£94.92
35 - POLY-RIB BELT 4 PJ 610 MET-7233190017.A18 7233190017	£19.18	£23.02
40 - SAWBAND GUARD BAS 317 PRECISION MET-1009719802.A8 1009719802	£32.88	£39.45
41 - THREE-ROLLER GUIDE BAS 317 PRECISION MET-1009719810.A6 1009719810	£36.59	£43.91
42 - THRUST BEARING BAS 317 PRECISION MET-1009719829.A12 1009719829	£13.63	£16.36
43 - BEARING BUSH BAS 317 PRECISION MET-1009719837.A6 1009719837	£26.35	£31.62
44 - GUIDE EXTRUSION BAS 317 PRECISION MET-1009719896.A4 1009719896	£32.88	£39.45
45 - HEXAGON HEAD SCREW MET-141113330.A11 141113330	£3.20	£3.84
46 - FLANGE NUT MET-6209110995.A82 6209110995	£1.50	£1.80
47 - THUMB SCREW RED M 8X18 MET-6150421509.A13 6150421509	-
48 - WASHER MET-6305002486.A50 6305002486	-
49 - TABLE INSERT RD 70X5 SCHMALER SCHLITZ MET-1381404400.A2 1381404400	£4.76	£5.71
50 - BANDSAW TABLE 400X548 ET MET-1380421212.A12 1380421212	£214.12	£256.95
51 - TABLE TRUNNION BAS 317 PRECISION MET-1009719942.A11 1009719942	£73.52	£88.23
52 - CLAMP BAS 317 PRECISION MET-1009719918.A4 1009719918	£4.76	£5.71
53 - PARALLELANSCHLAG BAS 317 PRECISION MET-1009719900.A10 1009719900	£63.36	£76.03
60 - CHIP CASE ET MET-1381666324.A7 1381666324	£42.65	£51.18
61 - DOOR BAS 317 PRECISION MET-1009719969.A2 1009719969	£48.88	£58.66
62 - STARKNOB NUT M 8 (DIN 934) VERZINKT MET-7000028937.A61 7000028937	£3.82	£4.59
63 - ADJUSTMENT SET FOR BLADE TENSION MET-1009719772.A8 1009719772	£13.63	£16.36
64 - QUICK RELEASE FUNCTION BAS 317 PRECISIO MET-1009719764.A6 1009719764	£15.41	£18.49
65 - SHAFT WITH HANDLE BAS 317 PRECISION MET-1009719756.A8 1009719756	£9.62	£11.54
66 - MITRE FENCE BAS 317 PRECISION MET-1009719926.A10 1009719926	£48.88	£58.66
67 - AUXILIARY FENCE EXTRUSION BAS 317 PRECI MET-1009719934.A4 1009719934	-
68 - MOTOR BANDSAW BAS 0 MET-1009003602.A6 1009003602	£214.12	£256.95
69 - POLY-RIB PULLEY 4JX62 / RDA 62X47 5 RDI MET-7240419429.A3 7240419429	£48.88	£58.66
70 - SERRATED LOCK WASHER MET-141150410.A85 141150410	£3.20	£3.84
71 - HEX HEAD SCREW MET-6103001127.A26 6103001127	£1.50	£1.80
72 - ROLLER GUIDE BAS 317 PRECISION MET-1009719799.A6 1009719799	-
75 - FAN COVER BAS 316 MET-1382705951.A8 1382705951	£13.63	£16.36
76 - FAN WING BAS 316 MET-1381705940.A9 1381705940	-
77 - CAPACITOR 16µF 40X80 KABEL.300 BAS 317 MET-8050724043.A9 8050724043	£30.06	£36.07
80 - WORKSTAND BAS 317 PRECISION MET-1009719950.A6 1009719950	£67.04	£80.45
