Dewalt DW100 Type 1 Bandsaw Spare Parts

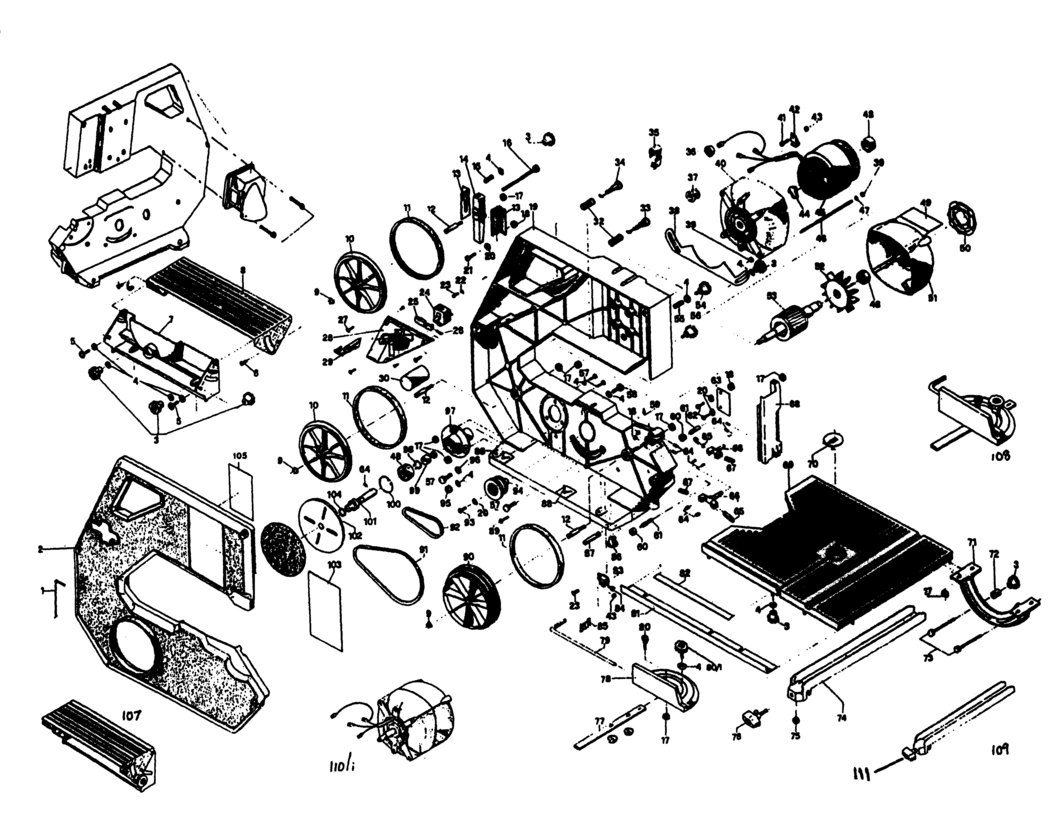

An exploded drawing and spare parts listing for the Dewalt DW100 Type 1 Bandsaw

	Ex VAT	Inc VAT
1 - HEX KEY 2.5 MM BDE-943271-00.A6 943271-00	£1.50	£1.80
2 - NO LONGER AVAILABLE BDE-000000-00.A113783 000000-00	-
3 - KNOB BDE-946469-00.A80 946469-00	£1.50	£1.80
4 - WASHER BDE-720959-00.A267 720959-00	£1.50	£1.80
5 - SCREW BDE-860301-00.A127 860301-00	£1.50	£1.80
6 - NO LONGER AVAILABLE BDE-000000-00.A113790 000000-00	-
9 - CIRCLIP BDE-860079-02.A28 860079-02	£1.50	£1.80
10 - WHEEL DRIVING BDE-32940.A0 32940	-
11 - NO LONGER AVAILABLE BDE-000000-00.A113784 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A113785 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A113786 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A113787 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A113788 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A113789 000000-00	-
17 - NUT BDE-860083-03.A71 860083-03	£1.50	£1.80
18 - NUT BDE-860083-02.A252 860083-02	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A113791 000000-00	-
20 - WASHER BDE-860074-01.A58 860074-01	£1.50	£1.80
21 - SCREW BDE-760998-00.A53 760998-00	£1.50	£1.80
22 - WASHER SPRING BDE-944650-00.A60 944650-00	£1.50	£1.80
23 - SCREW BDE-860094-02.A109 860094-02	£1.50	£1.80
24 - NO LONGER AVAILABLE BDE-000000-00.A113792 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A113793 000000-00	-
26 - SPRING BDE-860112-06.A2 860112-06	£1.50	£1.80
27 - SCREW BDE-860094-03.A72 860094-03	£1.50	£1.80
28 - NO LONGER AVAILABLE BDE-000000-00.A113794 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A113795 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A113796 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A113797 000000-00	-
33 - RETAINER BDE-34536.A6 34536	-
34 - FASTENER BDE-34537.A2 34537	-
35 - NO LONGER AVAILABLE BDE-000000-00.A113798 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A113799 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A113800 000000-00	-
39 - NUT BDE-860083-01.A15 860083-01	£1.50	£1.80
40 - NO LONGER AVAILABLE BDE-000000-00.A113801 000000-00	-
41 - SCREW BDE-860090-02.A9 860090-02	-
42 - STRAP BDE-123106-00.A39 123106-00	£1.50	£1.80
43 - NUT BDE-860083-10.A3 860083-10	£1.50	£1.80
44 - RING BDE-860080-02.A155 860080-02	£1.50	£1.80
45 - NO LONGER AVAILABLE 240 VOLT BDE-000000-00.A113802 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A113803 000000-00	-
47 - WASHER BDE-860073-00.A66 860073-00	£1.50	£1.80
48 - BEARING BDE-930563-00.A13 930563-00	£10.85	£13.02
50 - NO LONGER AVAILABLE BDE-000000-00.A113804 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A113805 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A113806 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A113807 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A113808 000000-00	-
55 - SPRING BDE-949722-18.A16 949722-18	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A113809 000000-00	-
57 - SCREW BDE-860085-07.A16 860085-07	£1.50	£1.80
58 - SCREW BDE-860085-13.A12 860085-13	£1.50	£1.80
59 - NO LONGER AVAILABLE BDE-000000-00.A113810 000000-00	-
60 - BEARING BDE-949719-04.A8 949719-04	£3.30	£3.96
61 - PIN BDE-32955.A0 32955	-
62 - SCREW.TEMP BDE-860089-17.A36 860089-17	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A113811 000000-00	-
64 - SCREW BDE-949853-02.A27 949853-02	£1.50	£1.80
65 - GUIDE BLOCK 45 BDE-32953.A0 32953	£1.82	£2.19
66 - NO LONGER AVAILABLE BDE-000000-00.A113812 000000-00	-
67 - GUIDE BLOCK 90 BDE-32952.A7 32952	£1.50	£1.80
68 - NO LONGER AVAILABLE BDE-000000-00.A113813 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A113814 000000-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A113815 000000-00	-
71 - NO LONGER AVAILABLE BDE-000000-00.A113816 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A113817 000000-00	-
73 - SCREW BDE-860085-17.A0 860085-17	-
74 - NO LONGER AVAILABLE BDE-000000-00.A113818 000000-00	-
75 - NUT BDE-860083-04.A407 860083-04	£1.50	£1.80
76 - KNOB BDE-862427-00.A67 862427-00	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A113819 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A113820 000000-00	-
79 - GAUGE BDE-863844-00.A9 863844-00	£10.85	£13.02
80 - NO LONGER AVAILABLE BDE-000000-00.A113821 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A113822 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A113823 000000-00	-
84 - SCREW BDE-860089-25.A1 860089-25	£1.50	£1.80
85 - BRUSH BDE-863801-00.A8 863801-00	£3.30	£3.96
86 - NO LONGER AVAILABLE BDE-000000-00.A113824 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A113825 000000-00	-
88 - SCREW BDE-860301-00.A126 860301-00	£1.50	£1.80
89 - SCREW BDE-860093-15.A0 860093-15	£1.50	£1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A113826 000000-00	-
91 - BELT TOOTHED BDE-123246-00.A24 123246-00	-
92 - NO LONGER AVAILABLE BDE-000000-00.A113827 000000-00	-
93 - SCREW BDE-860093-17.A11 860093-17	£1.42	£1.70
94 - NO LONGER AVAILABLE BDE-000000-00.A113828 000000-00	-
95 - NUT M6 BDE-860083-12.A229 860083-12	£1.50	£1.80
96 - WASHER BDE-860074-02.A156 860074-02	£1.50	£1.80
97 - NO LONGER AVAILABLE BDE-000000-00.A113829 000000-00	-
98 - RETAINER BDE-930098-00.A103 930098-00	£1.50	£1.80
99 - NO LONGER AVAILABLE BDE-000000-00.A113836 000000-00	-
100 - CIRCLIP BDE-949729-03.A12 949729-03	£1.50	£1.80
102 - NO LONGER AVAILABLE BDE-000000-00.A113830 000000-00	-
103 - NO LONGER AVAILABLE BDE-000000-00.A113831 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A113832 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A113833 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A113834 000000-00	-
110 - NO LONGER AVAILABLE 240 VOLT BDE-000000-00.A113835 000000-00	-
111 - KNOB BDE-862438-00.A3 862438-00	£1.42	£1.70
