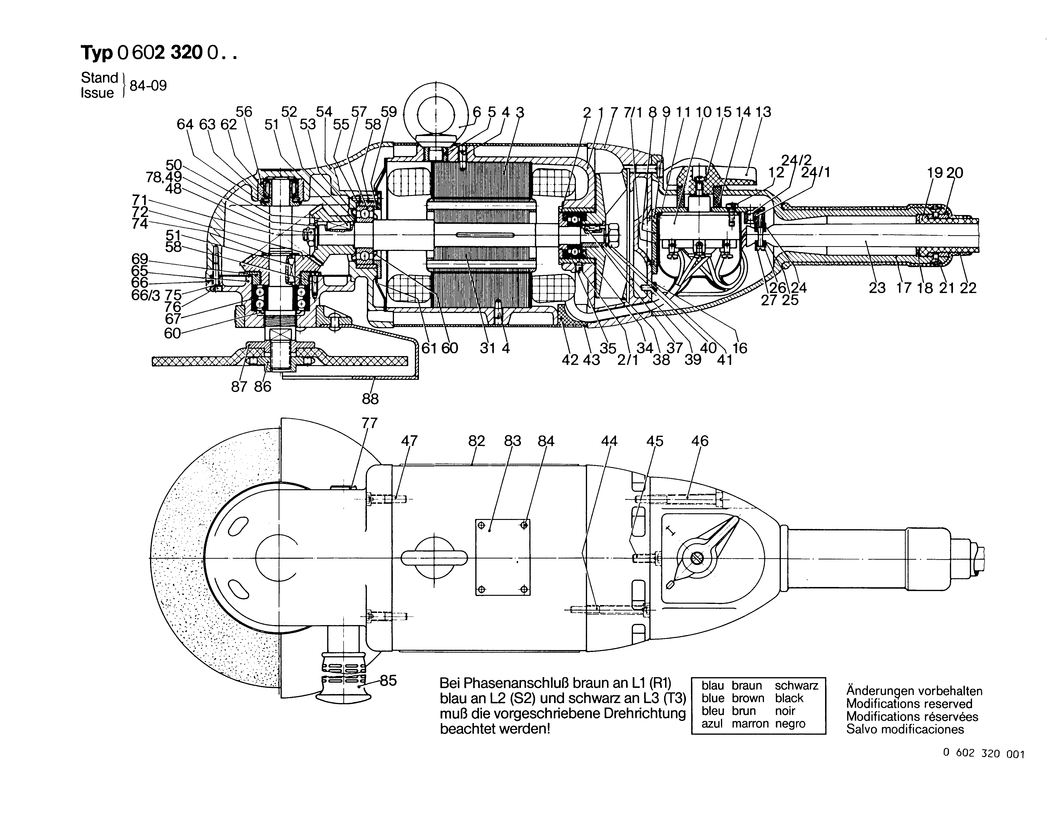

1 - MOTOR HOUSING
BSD-3609200141.A1
3609200141
|
-
|
|
|
|
2 - GUIDE BUSHING
BSD-3609200142.A6
3609200142
|
-
|
|
|
|
2/1 - SET SCREW
BSD-3609200143.A1
3609200143
|
-
|
|
|
|
3 - STATOR 200V/300HZ
BSD-3609200203.A0
3609200203
|
-
|
|
|
|
4 - SET SCREW DIN 417 M 6x12-5.8
BSD-2912050193.A2
2912050193
|
-
|
|
|
|
5 - THREADED FITTING
BSD-3609200145.A2
3609200145
|
-
|
|
|
|
6 - MOTOR HOUSING
BSD-3609200146.A5
3609200146
|
-
|
|
|
|
7 - FAN HOUSING
BSD-3609200147.A2
3609200147
|
-
|
|
|
|
7/1 - INSULATING STRIP
BSD-3609200148.A5
3609200148
|
-
|
|
|
|
8 - MOUNTING BRACKET
BSD-3609200149.A1
3609200149
|
-
|
|
|
|
9 - COUNTERSUNK-HEAD RIVET DIN 661 3x10 AL
BSD-2917050650.A5
2917050650
|
-
|
|
|
|
10 - ON-OFF SWITCH
BSD-3609200150.A4
3609200150
|
-
|
|
|
|
11 - COVER
BSD-3609200151.A1
3609200151
|
-
|
|
|
|
12 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910090118.A2
2910090118
|
-
|
|
|
|
13 - CONTROL LEVER
BSD-3609200152.A4
3609200152
|
-
|
|
|
|
14 - FELT WASHER
BSD-3609200153.A1
3609200153
|
-
|
|
|
|
15 - PAN HEAD SCREW DIN 85-M4x6-4.8
BSD-2910091116.A26
2910091116
|
-
|
|
|
|
16 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A339
2910110120
|
£1.75
|
£2.10
|
|
|
16 - REFERENCE PLATE
BSD-3609200154.A5
3609200154
|
-
|
|
|
|
16 - SPRING WASHER DIN 137-A 4-ST
BSD-2916060005.A72
2916060005
|
£1.75
|
£2.10
|
|
|
17 - HANDLE
BSD-3609200155.A1
3609200155
|
-
|
|
|
|
18 - PLAIN WASHER
BSD-3609200156.A6
3609200156
|
-
|
|
|
|
19 - PROTECTIVE SHEATH
BSD-3609200157.A1
3609200157
|
-
|
|
|
|
20 - SET RING
BSD-3609200158.A6
3609200158
|
-
|
|
|
|
21 - RAISED COUNTERS HEAD SCRE DIN 964-M4x6-4.8
BSD-2910810116.A0
2910810116
|
-
|
|
|
|
22 - INSULATION TUBING
BSD-3609200159.A1
3609200159
|
-
|
|
|
|
23 - POWER SUPPLY CORD
BSD-3609200228.A1
3609200228
|
-
|
|
|
|
24 - CLAMPING PIECE
BSD-3609200161.A4
3609200161
|
-
|
|
|
|
24 - CLAMPING PIECE
BSD-3609200162.A1
3609200162
|
-
|
|
|
|
24/2 - COUNTERSUNK-HEAD RIVET DIN 661 4x15 AL
BSD-2917050692.A0
2917050692
|
-
|
|
|
|
25 - CLAMPING PIECE
BSD-3609200006.A14
3609200006
|
-
|
|
|
|
26 - SPRING LOCK WASHER
BSD-3609200163.A4
3609200163
|
-
|
|
|
|
27 - PAN HEAD SCREW DIN 85-M3.5x25-4.8
BSD-2910090096.A1
2910090096
|
-
|
|
|
|
31 - ROTOR
BSD-3609200164.A1
3609200164
|
-
|
|
|
|
34 - SHIM
BSD-3609200165.A6
3609200165
|
-
|
|
|
|
35 - GROOVE BALL BEARING 12x32x10
BSD-1900905225.A10
1900905225
|
£10.10
|
£12.12
|
|
|
37 - PARALLEL KEY A 3x3x10DIN6885ST 50
BSD-1902300021.A0
1902300021
|
-
|
|
|
|
38 - FAN
BSD-3609200166.A1
3609200166
|
-
|
|
|
|
39 - BUSHING
BSD-3609200167.A6
3609200167
|
-
|
|
|
|
40 - SPRING LOCK WASHER DIN 7980-8
BSD-2916580004.A1
2916580004
|
-
|
|
|
|
41 - HEX NUT M 8 DIN 934-M-MS
BSD-2915010409.A1
2915010409
|
-
|
|
|
|
42 - SEAL
BSD-3609200168.A1
3609200168
|
-
|
|
|
|
43 - PROTECTION SLEEVE
BSD-3609200169.A6
3609200169
|
-
|
|
|
|
44 - HEX SOCKET HEAD CAP SCREW DIN 6912-M5x50-8.8
BSD-2910370174.A1
2910370174
|
-
|
|
|
|
45 - HEX SOCKET HEAD CAP SCREW DIN 6912-M6x16-8.8
BSD-2910370197.A6
2910370197
|
-
|
|
|
|
46 - SOCKET HEAD CAP SCREW
BSD-3609200170.A1
3609200170
|
-
|
|
|
|
47 - HEX SOCKET HEAD CAP SCREW DIN 6912-M5x25-8.8
BSD-2910370164.A0
2910370164
|
-
|
|
|
|
48 - HEX NUT
BSD-3609200171.A6
3609200171
|
-
|
|
|
|
49 - PLAIN WASHER A 8.4 DIN 125-ST
BSD-2916010016.A0
2916010016
|
£1.75
|
£2.10
|
|
|
50 - BEVEL-GEAR TRANSMISSION
BSD-3609200234.A0
3609200234
|
-
|
|
|
|
51 - PARALLEL KEY
BSD-3609200173.A1
3609200173
|
-
|
|
|
|
52 - SHIM
BSD-3609200174.A6
3609200174
|
-
|
|
|
|
52 - SHIM
BSD-3609200175.A1
3609200175
|
-
|
|
|
|
53 - SHIM
BSD-3609200176.A6
3609200176
|
-
|
|
|
|
54 - GEAR HOUSING
BSD-3609200177.A1
3609200177
|
-
|
|
|
|
55 - BUSHING
BSD-3609200178.A6
3609200178
|
-
|
|
|
|
56 - BUSHING
BSD-3609200179.A1
3609200179
|
-
|
|
|
|
57 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A1
1900905227
|
-
|
|
|
|
58 - COUNTERSUNK-HEAD SCREW DIN 963-M4x12-8.8
BSD-2910780122.A7
2910780122
|
-
|
|
|
|
59 - CONNECTION PLATE
BSD-3609200180.A6
3609200180
|
£41.62
|
£49.95
|
|
|
60 - SEAL RING
BSD-3609200181.A1
3609200181
|
-
|
|
|
|
61 - COVER DISC
BSD-3609200182.A6
3609200182
|
-
|
|
|
|
62 - NEEDLE-ROLLER BEARING
BSD-1610910049.A66
1610910049
|
£37.26
|
£44.71
|
|
|
63 - SPRING RETAINING RING
BSD-3609200183.A1
3609200183
|
-
|
|
|
|
64 - PROTECTIVE RING
BSD-3609200184.A6
3609200184
|
-
|
|
|
|
65 - PIVOT PLATE
BSD-3609200185.A1
3609200185
|
-
|
|
|
|
66 - SHIM
BSD-3609200186.A6
3609200186
|
-
|
|
|
|
66 - SHIM
BSD-3609200187.A1
3609200187
|
-
|
|
|
|
66/3 - O-RING
BSD-3609200188.A6
3609200188
|
-
|
|
|
|
67 - ANG. CONTACT BALL BEARING
BSD-3609200189.A1
3609200189
|
-
|
|
|
|
69 - DRIVE SHAFT
BSD-3609200190.A6
3609200190
|
-
|
|
|
|
71 - DRIVE SHAFT
BSD-3609200191.A1
3609200191
|
-
|
|
|
|
74 - SPRING RETAINING RING
BSD-3609200193.A6
3609200193
|
-
|
|
|
|
75 - FLAT SEAL RING A 5x9 DIN 7603-CU
BSD-2916710601.A5
2916710601
|
-
|
|
|
|
76 - HEX SOCKET HEAD CAP SCREW DIN 6912-M5x16-8.8
BSD-2910370158.A10
2910370158
|
-
|
|
|
|
77 - PROTECTIVE CAP
BSD-3609200194.A1
3609200194
|
-
|
|
|
|
82 - MANUFACTURER'S NAMEPLATE
BSD-3601110105.A1
3601110105
|
-
|
|
|
|
83 - NAMEPLATE
BSD-3601100004.A10
3601100004
|
-
|
|
|
|
84 - GROOVED NAIL
BSD-3609200222.A15
3609200222
|
-
|
|
|
|
85 - AUXILIARY HANDLE
BSD-3609200195.A6
3609200195
|
-
|
|
|
|
85 - REFERENCE PLATE
BSD-3601103001.A6
3601103001
|
-
|
|
|
|
86 - CLAMPING-FLANGE
BSD-3609200196.A0
3609200196
|
-
|
|
|
|
87 - CLAMPING-FLANGE
BSD-3609200197.A7
3609200197
|
-
|
|
|
|
88 - PROTECTIVE COVER
BSD-3609200202.A2
3609200202
|
-
|
|
|
