Fein WSG 25-180 (50Hz 230V) / 72212699230 Spare Parts

Fein WSG 25-180 ⡐Hz 230V) / 72212699230 Spare Parts

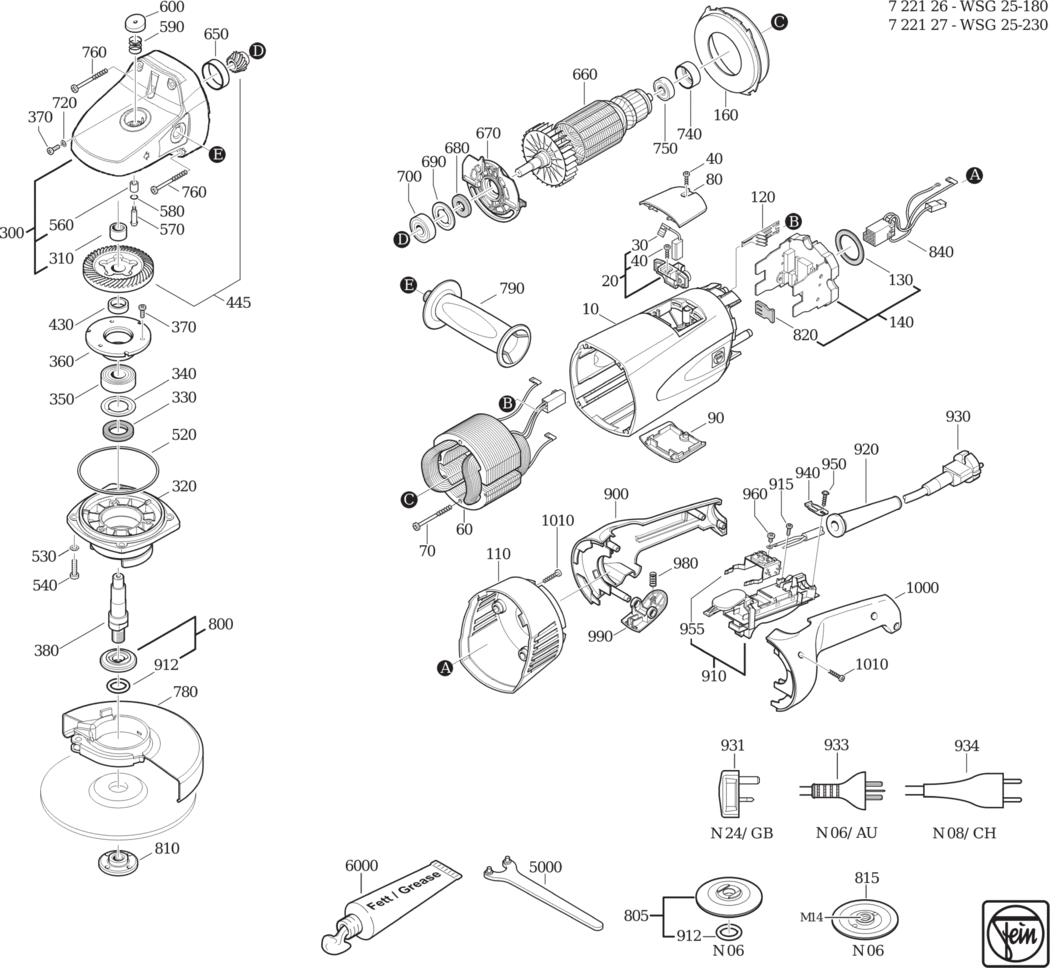

An exploded diagram and spare parts listing for the Fein WSG 25-180 (50Hz 230V) / 72212699230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903210002.A3 31903210002	£46.45	£55.74
20 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A4 30712090019	£23.51	£28.21
30 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A18 30711137006	£14.48	£17.37
40 - SCREW FEI-43070027000.A17 43070027000	-
60 - STATOR FEI-51275005230.A1 51275005230	-
70 - SCREW FEI-43072001009.A15 43072001009	-
80 - COVER FEI-32427113009.A8 32427113009	£6.24	£7.49
90 - COVER FEI-32427115001.A3 32427115001	£7.15	£8.58
110 - HOUSING FEI-31207242002.A10 31207242002	£18.58	£22.29
120 - BASE PLATE FEI-31428132004.A0 31428132004	£1.60	£1.92
140 - ELECTRONICS FEI-30762609990.A1 30762609990	-
160 - AIR GUIDE RING FEI-31428133008.A10 31428133008	£6.37	£7.64
300 - GEARBOX HOUSING FEI-31206134030.A0 31206134030	-
310 - NEEDLE BEARING FEI-41706030007.A10 41706030007	£29.44	£35.33
320 - BEARING PLATE FEI-32419137000.A3 32419137000	-
330 - FELT RING FEI-30601110005.A6 30601110005	£1.60	£1.92
340 - DISC FEI-32411084009.A11 32411084009	£1.60	£1.92
350 - GROOVED BALL BEARING FEI-41701224024.A4 41701224024	£12.19	£14.63
360 - PLATE FEI-32416105008.A4 32416105008	£7.32	£8.79
370 - FILLISTER HEAD SCREW FEI-43064002043.A50 43064002043	£1.60	£1.92
380 - SHAFT FEI-33406289002.A11 33406289002	£41.29	£49.55
430 - RING FEI-32601273006.A6 32601273006	£4.18	£5.01
445 - BEVEL GEAR Z=15/52 FEI-33809232016.A6 33809232016	£73.87	£88.64
520 - DISC FEI-32624118022.A14 32624118022	£2.66	£3.19
530 - CIRCLIP M5 FEI-42443004057.A237 42443004057	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064009054.A4 43064009054	-
560 - BUSH FEI-30507230009.A13 30507230009	£4.05	£4.86
570 - BOLT FEI-30217335005.A56 30217335005	£7.39	£8.87
580 - SEALING RING FEI-40612137008.A89 40612137008	£1.60	£1.92
590 - SPIRAL SPRING FEI-30901354004.A10 30901354004	£2.38	£2.86
600 - PUSHBUTTON FEI-32805180004.A7 32805180004	£2.78	£3.34
650 - BUSH FEI-30507169007.A7 30507169007	£2.74	£3.29
660 - ARMATURE FEI-53275001231.A3 53275001231	£198.92	£238.71
670 - PLATE FEI-32416103006.A7 32416103006	£9.82	£11.78
680 - FELT RING FEI-30601050002.A27 30601050002	£1.60	£1.92
690 - DISC FEI-32411083001.A10 32411083001	£1.60	£1.92
700 - GROOVED BALL BEARING FEI-41701213096.A23 41701213096	£20.90	£25.08
720 - CIRCLIP M4 FEI-42443003043.A168 42443003043	£1.60	£1.92
740 - BUSH FEI-30507168003.A37 30507168003	£2.74	£3.29
750 - GROOVED BALL BEARING FEI-41701207033.A48 41701207033	£10.15	£12.18
760 - SCREW FEI-43070029002.A11 43070029002	-
780 - SAFETY HOOD FEI-31810245020.A5 31810245020	£48.24	£57.89
790 - SIDE HANDLE FEI-32119032002.A33 32119032002	£12.89	£15.47
800 - INNER FLANGE FEI-63801182010.A136 63801182010	£14.88	£17.86
810 - THREADED FLANGE FEI-63802052000.A135 63802052000	£14.88	£17.86
900 - HANDLE HALF SHELL FEI-31204167000.A13 31204167000	£13.42	£16.11
910 - SWITCH FEI-30701278010.A8 30701278010	£72.98	£87.57
912 - SEALING RING FEI-40612000007.A141 40612000007	£1.60	£1.92
915 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A142 43041001994	£1.60	£1.92
920 - CABLE GROMMET FEI-31413094007.A58 31413094007	£3.04	£3.65
934 - CABLE WITH PLUG FEI-30707394010.A0 30707394010	-
940 - CABLE CLAMPING PIECE FEI-32431042008.A61 32431042008	£1.60	£1.92
950 - SCREW FEI-43070035002.A88 43070035002	£1.60	£1.92
955 - CONNECTING PIECE FEI-30717203014.A10 30717203014	£22.25	£26.70
960 - FILLISTER HEAD SCREW FEI-43041016042.A9 43041016042	-
980 - SPIRAL SPRING FEI-30901343007.A16 30901343007	-
990 - SWITCH PUSHBUTTON FEI-32816057007.A19 32816057007	£3.17	£3.80
1000 - HANDLE HALF SHELL FEI-31204168008.A16 31204168008	£13.42	£16.11
1010 - SCREW FEI-43070031003.A52 43070031003	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A129 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A537 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A299 34130054061	-
